Oil Pan, Engine

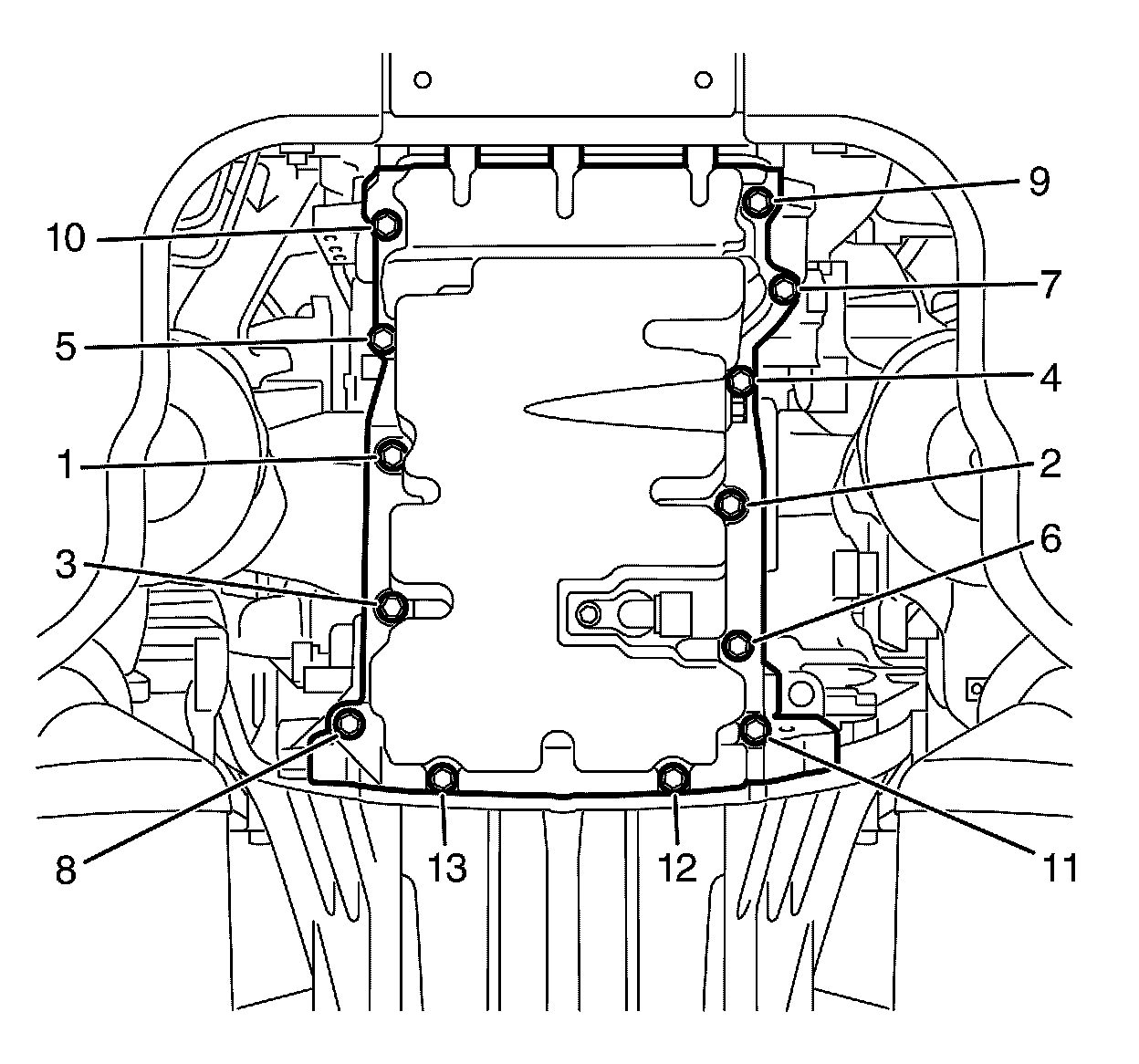

Oil Pan To Cylinder Block Retaining Bolts (in the sequence shown)
Eight mm Bolts (1-11) 23 N.m (17 lb ft).
Six mm Bolts (12, 13) 10 N.m (89 lb in).



Transmission To Oil Pan Retaining Bolts 48 N.m (17 lb ft).

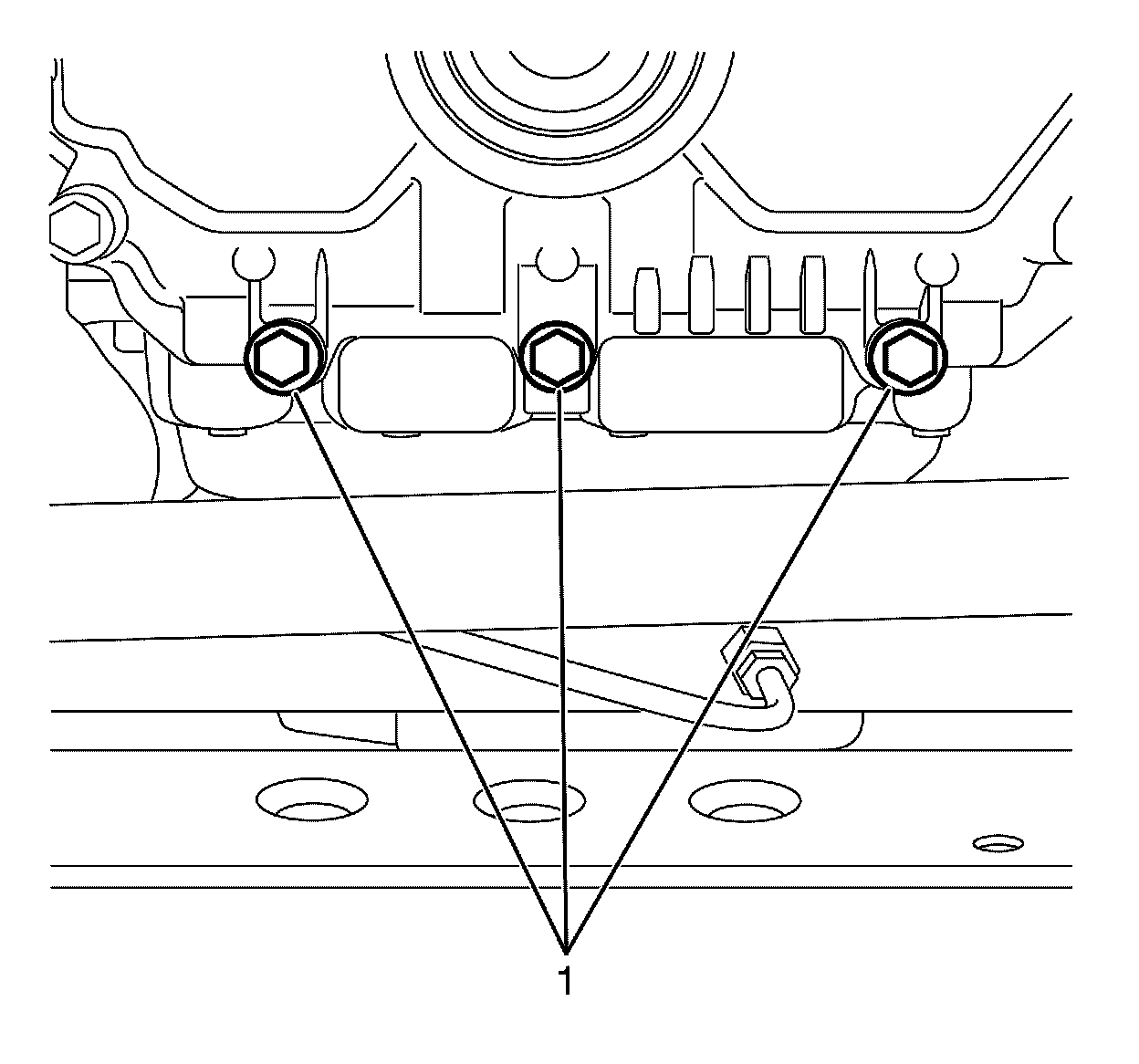

Front Cover To Oil Pan Retaining Bolts 23 N.m (17 lb ft).
