Connector Views



Component Connector End Views

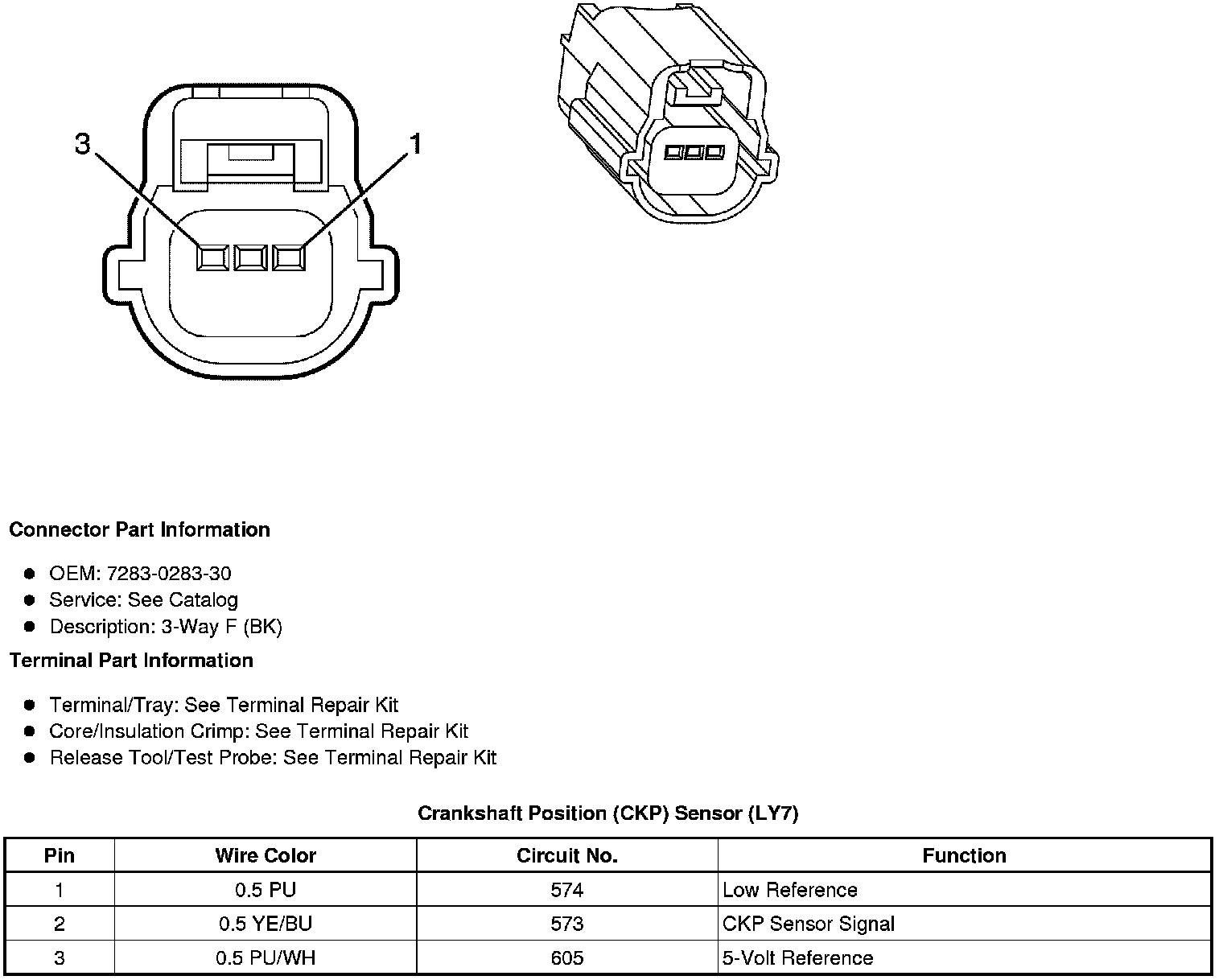

Crankshaft Position (CKP) Sensor (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)






Crankshaft Position (CKP) Sensor (L76 - Gas 8 Cyl, 6.0L SFI, V8)
