Mirrors



Component Connector End Views

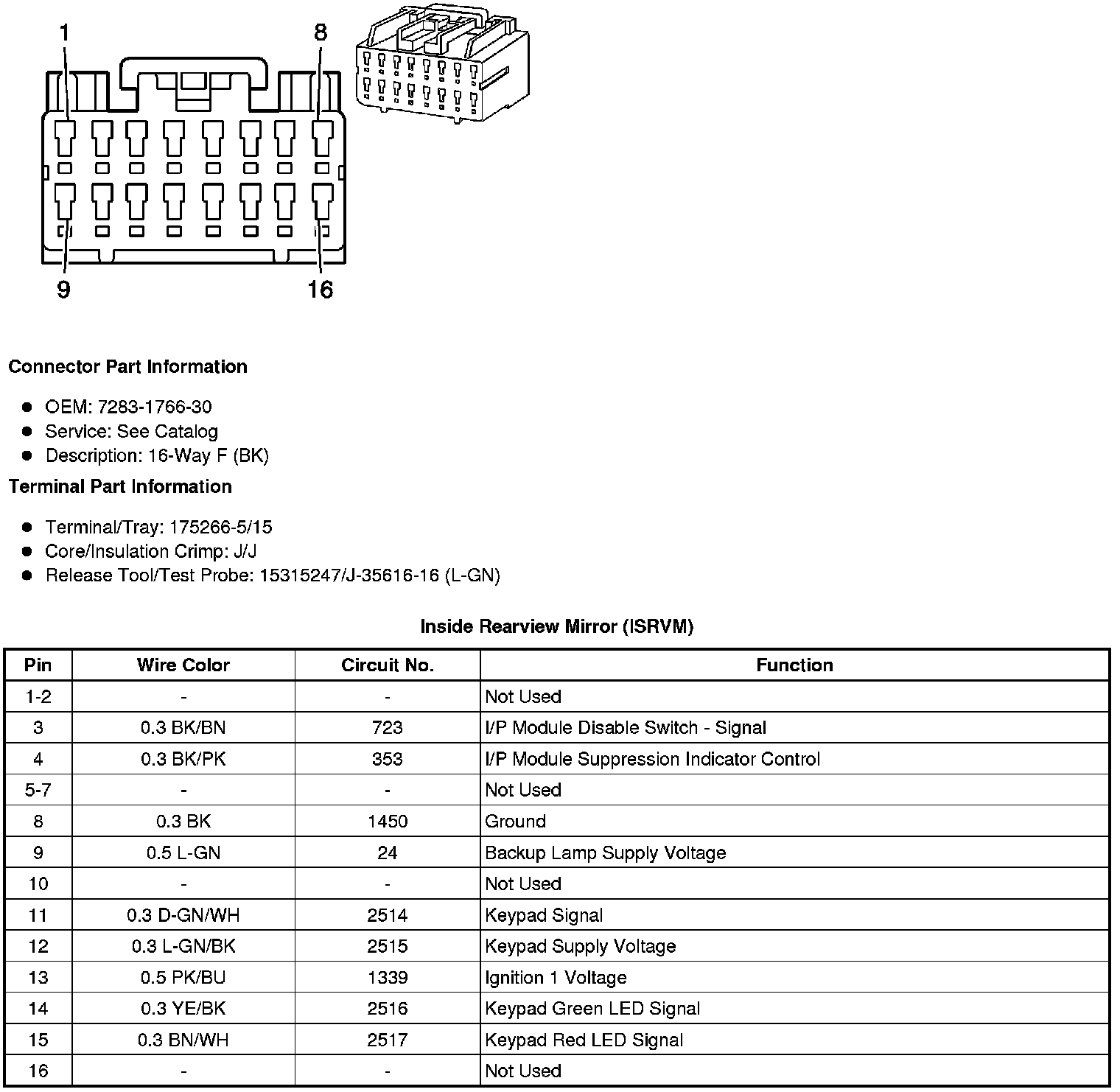

Inside Rearview Mirror (ISRVM)







Component Connector End Views

Outside Rearview Mirror - Driver














Outside Rearview Mirror - Passenger
