Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

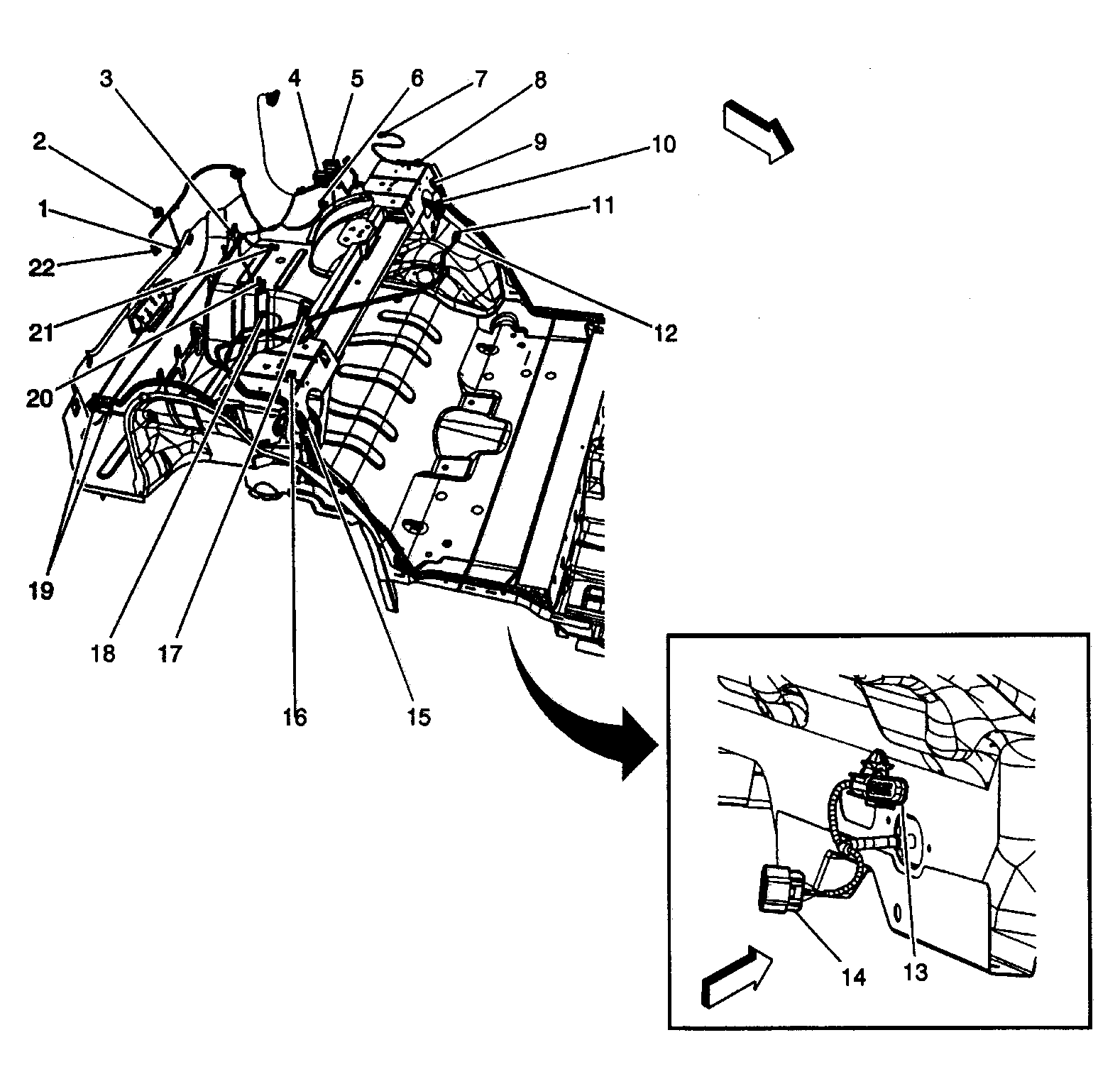

| Fuse Block - Rear (4) | Left side of rear compartment, behind left rear wheel well. See Figure. |

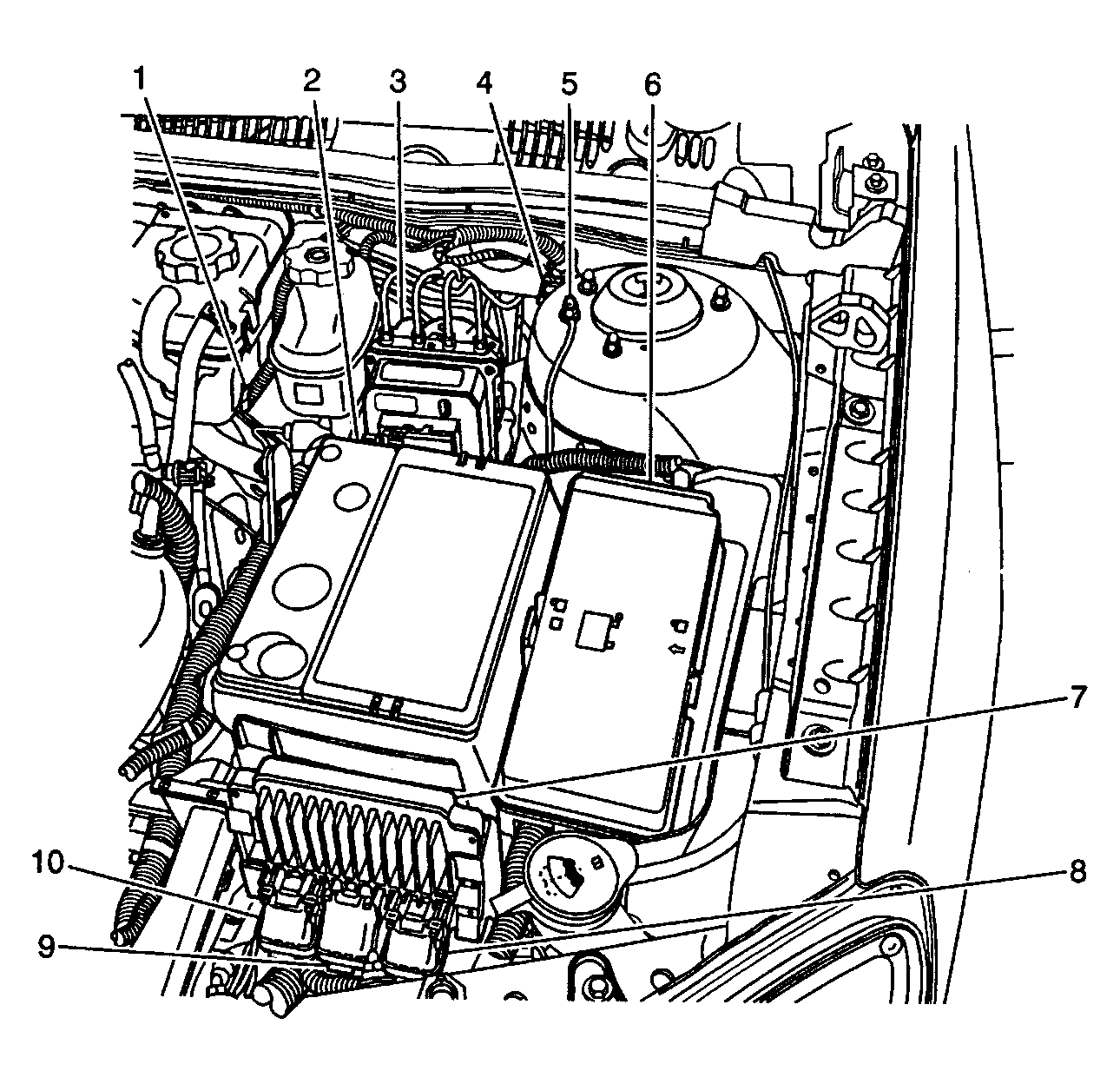

| Fuse Block - Underhood (6) | In left side of engine compartment. See Figure. |
| Fusible Link | Front of engine, near starter assembly. |

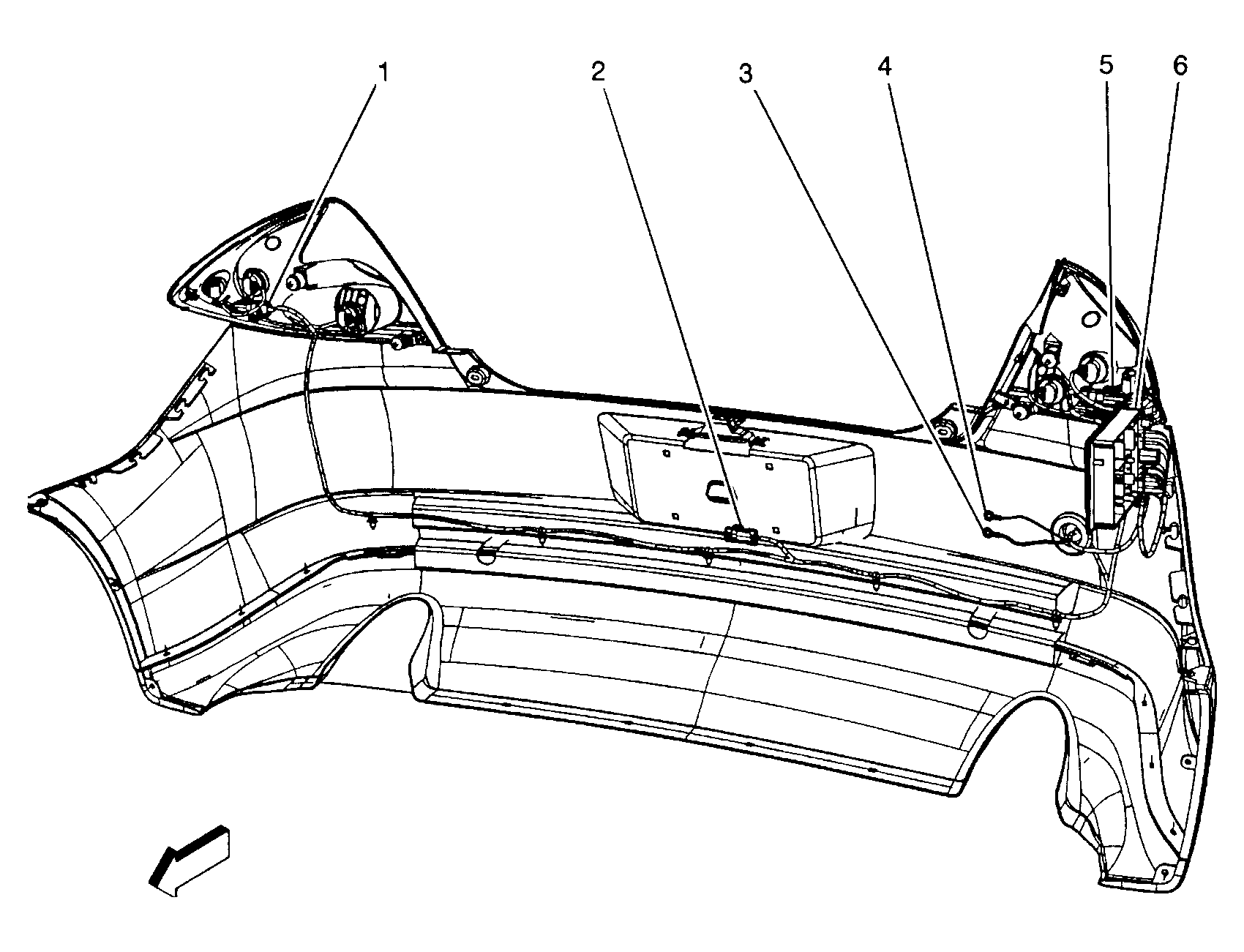

| Rear Junction Block C1 (6) | Behind left rear tail lamp assembly. See Figure. |
