Antilock Brake System Schematics

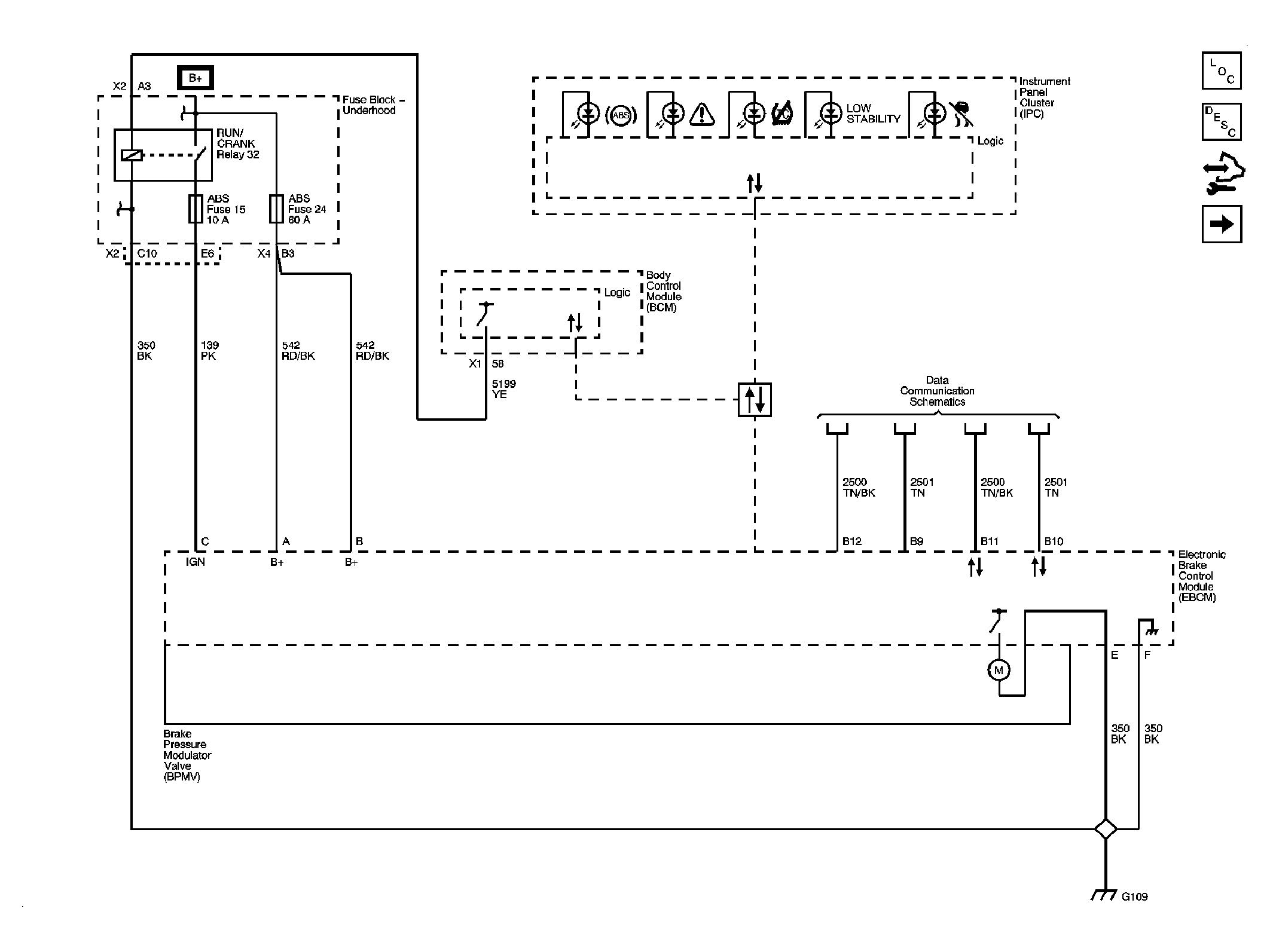

Fig 1: DLC, Ground, Indicators and Power - Schematic

Courtesy of GENERAL MOTORS CORP.

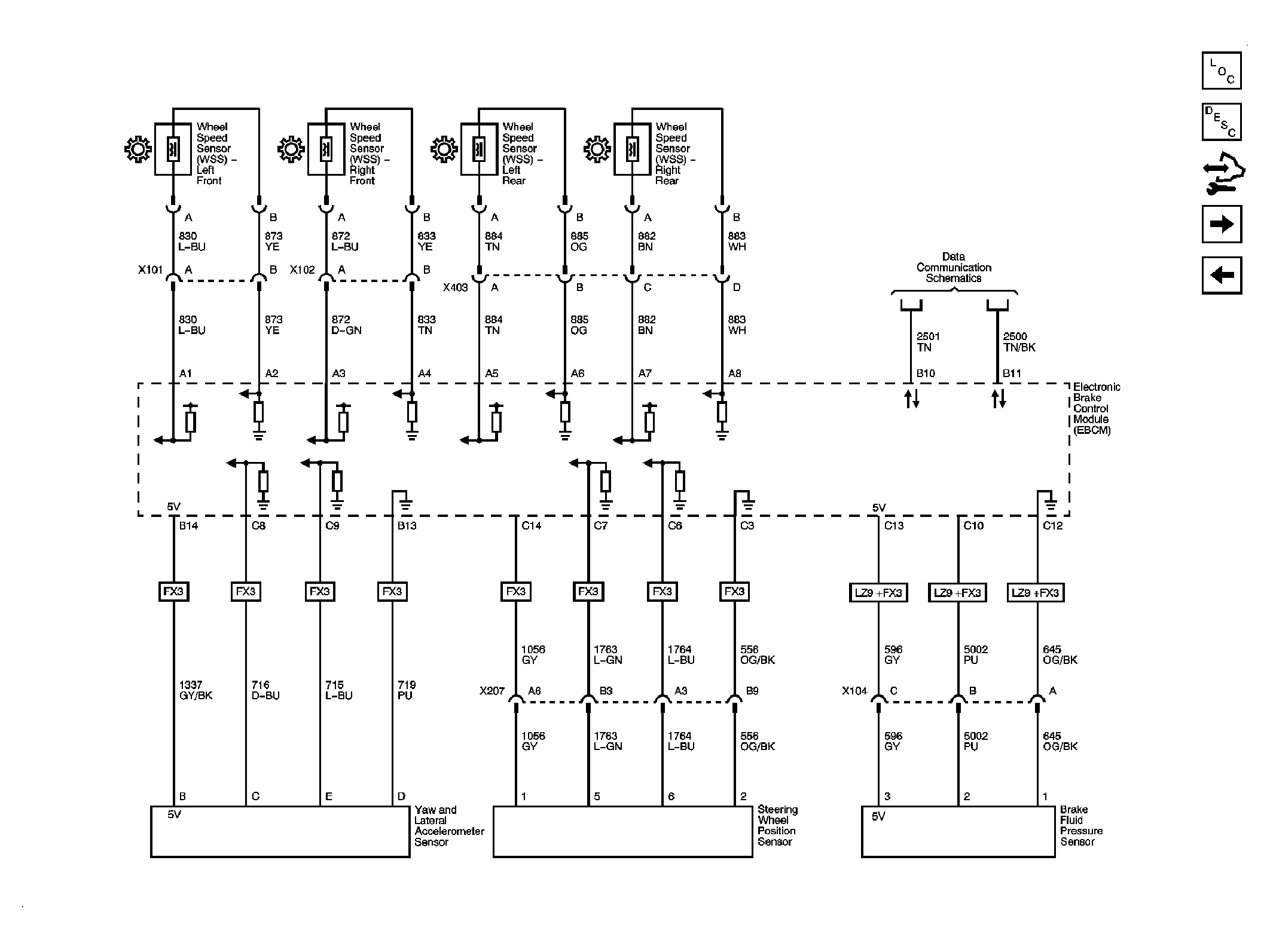

Fig 2: Sensors and Traction Control - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Brake Pedal Position Sensor and Traction Control Switch - Schematic

Courtesy of GENERAL MOTORS CORP.
