Transmission Position Sensor/Switch: Locations

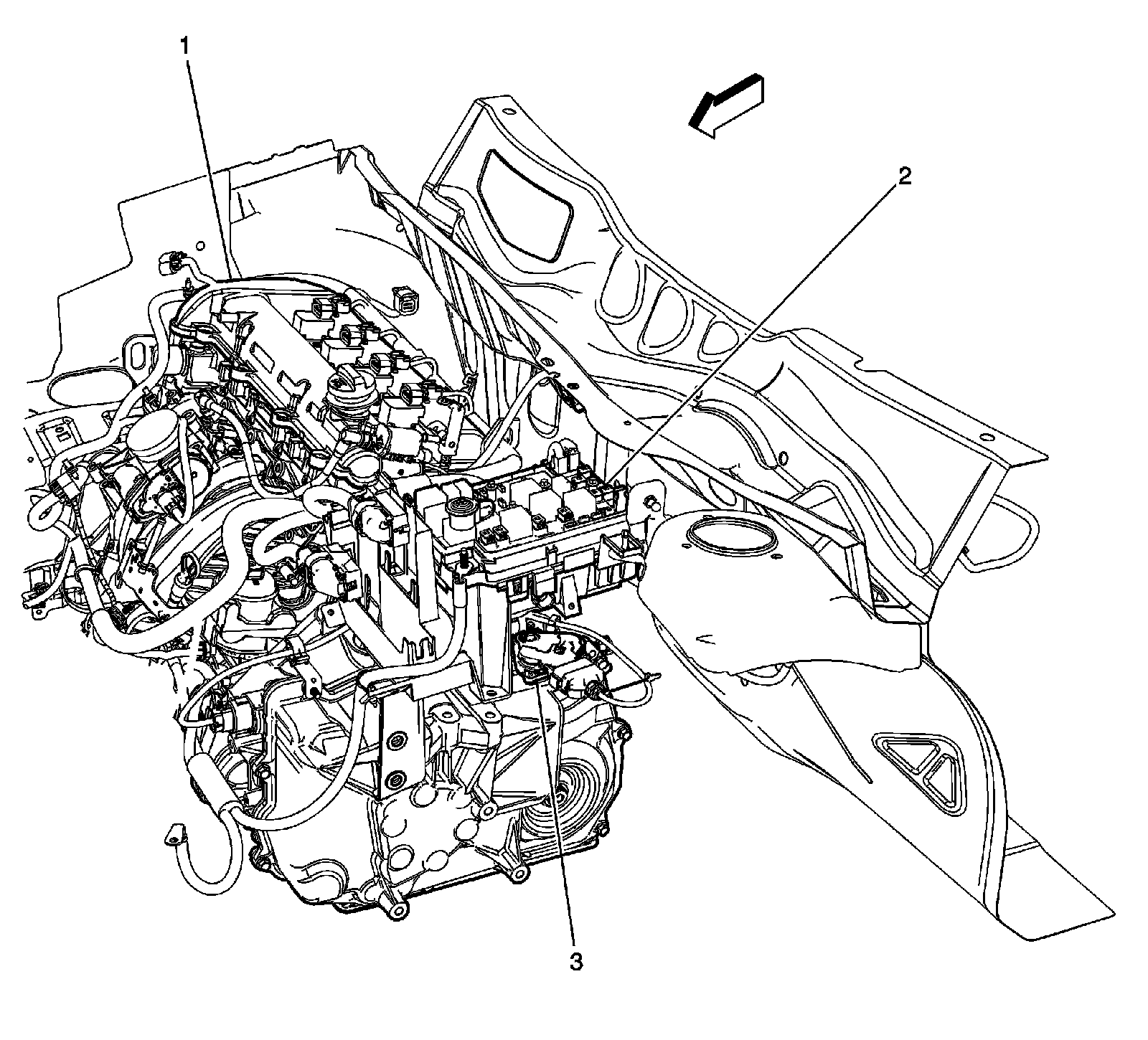

Powertrain Component Views

Park Neutral Position (PNP) Switch




1 - Engine - L61
2 - Fuse Block - Underhood
3 - Park Neutral Position (PNP) Switch (MN5)
