Steering Column

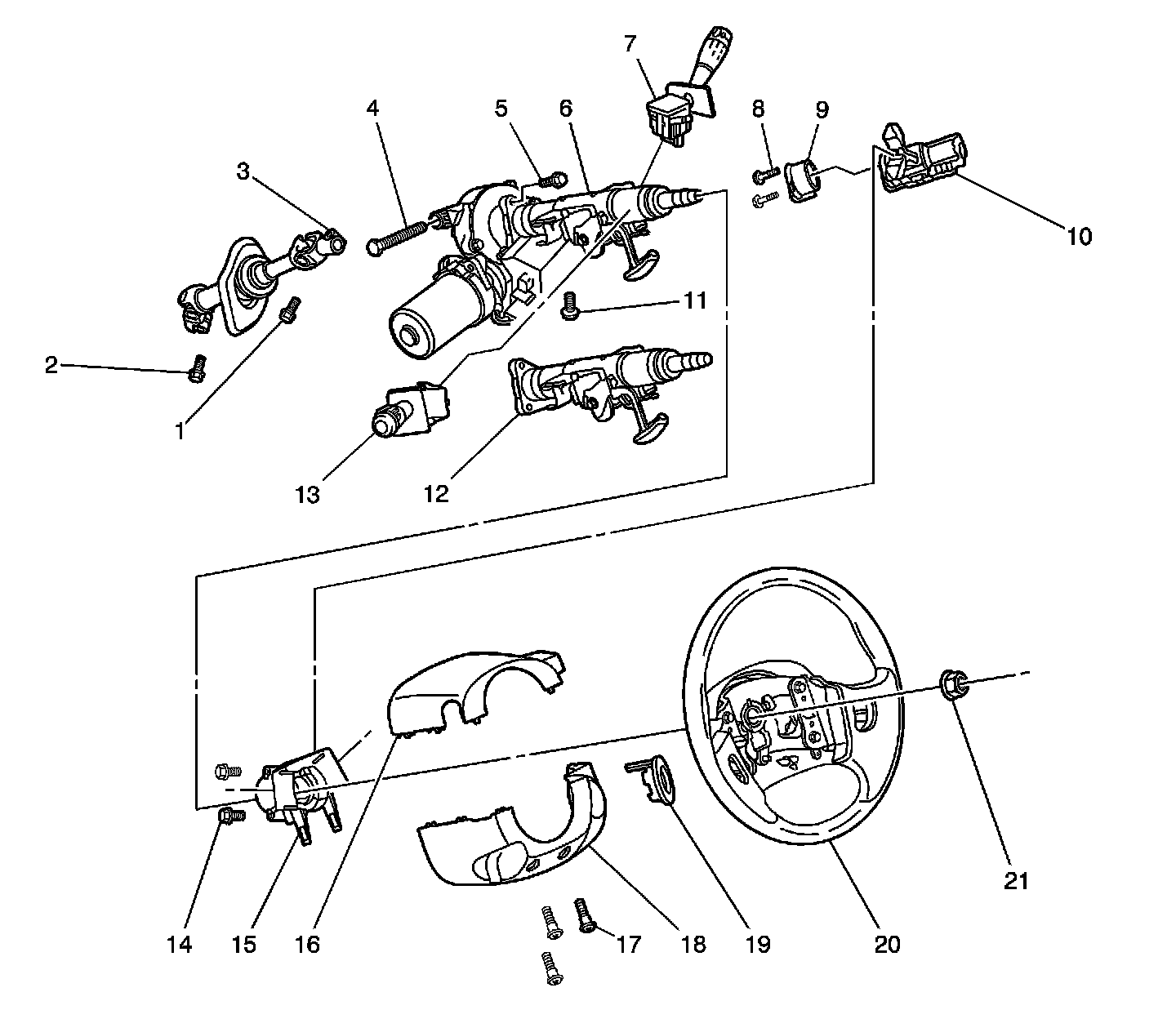

Steering Column Disassembled View

Steering Column Disassembled View:




1 - Upper Intermediate Shaft Bolt
2 - Lower Intermediate Shaft Bolt
3 - Intermediate Shaft Assembly
4 - Lower Steering Column Support Bracket Bolt
5 - Lower Steering Column Jacket Bolt
6 - Steering Column Assembly
7 - Wiper/Washer Switch Assembly
8 - Ignition Start Switch Screw
9 - Ignition Start Switch Assembly
10 - Ignition Start Switch Housing Assembly
11 - Upper Steering Column Support Bracket Bolt
12 - Steering Column Jacket Assembly
13 - Headlamp/Dimmer/Park/Turn Signal Switch Assembly
14 - Ignition Start Switch Bracket Bolt
15 - Wiper/Washer Switch and Headlamp/Dimmer/Park/Turn Signal Switch Bracket
16 - Steering Column Shroud Assembly
17 - Lower Steering Column Shroud Screw
18 - Steering Column Shroud
19 - Ignition Start Switch Bezel
20 - Steering Wheel Assembly
21 - Steering Wheel Nut
