Axle Shaft Assembly

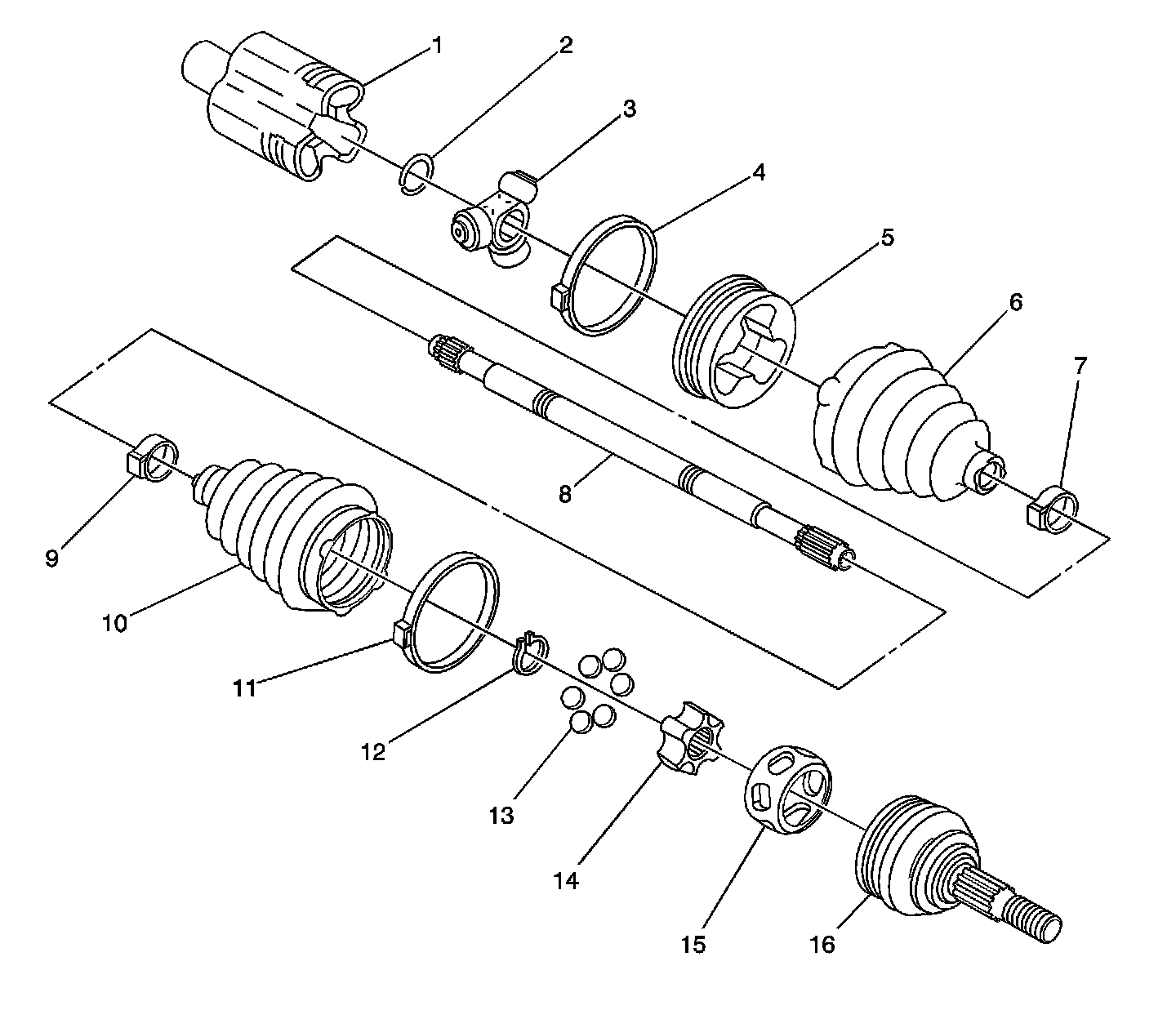

Wheel Drive Shafts Disassembled Views

Tripot Design Wheel Drive Shaft

Tripot Design Wheel Drive Shaft:




1 - Retainer and Housing Assembly
2 - Retaining Ring
3 - Tripot Joint Spider Assembly
4 - Boot Retaining Clamp
5 - Tripot Trilobal Bushing
6 - Inboard Boot
7 - Boot Retaining Clamp
8 - Axle Shaft
9 - Boot Retaining Clamp
10 - Outboard Boot
11 - Boot Retaining Clamp
12 - Race Retaining Ring
13 - Chrome Alloy Ball
14 - CV Joint Inner Race
15 - CV Joint Cage
16 - CV Joint Outer Race
