Underhood Fuse Block

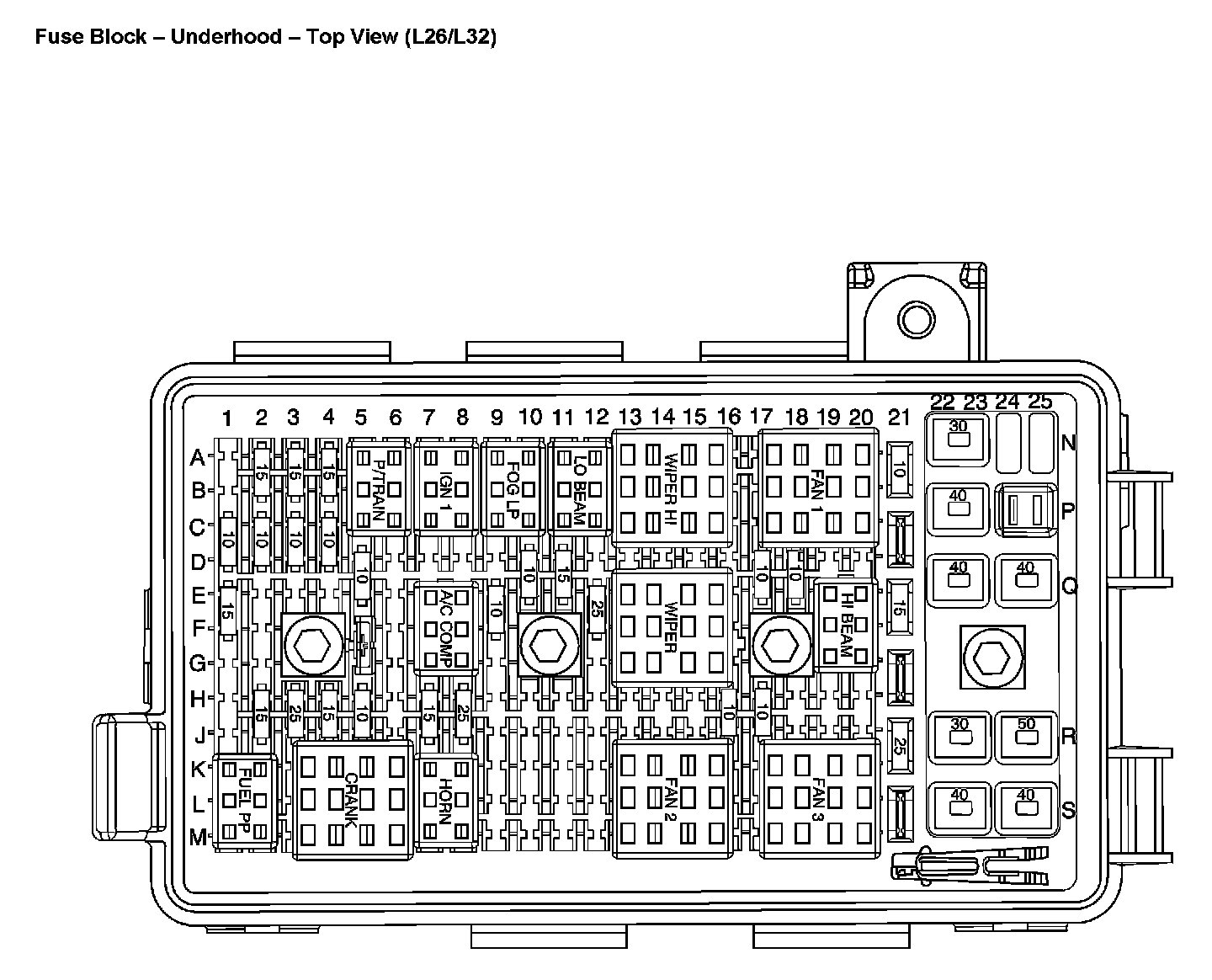

Fuse Block - Underhood - Top View (With RPO Code L26/L32):

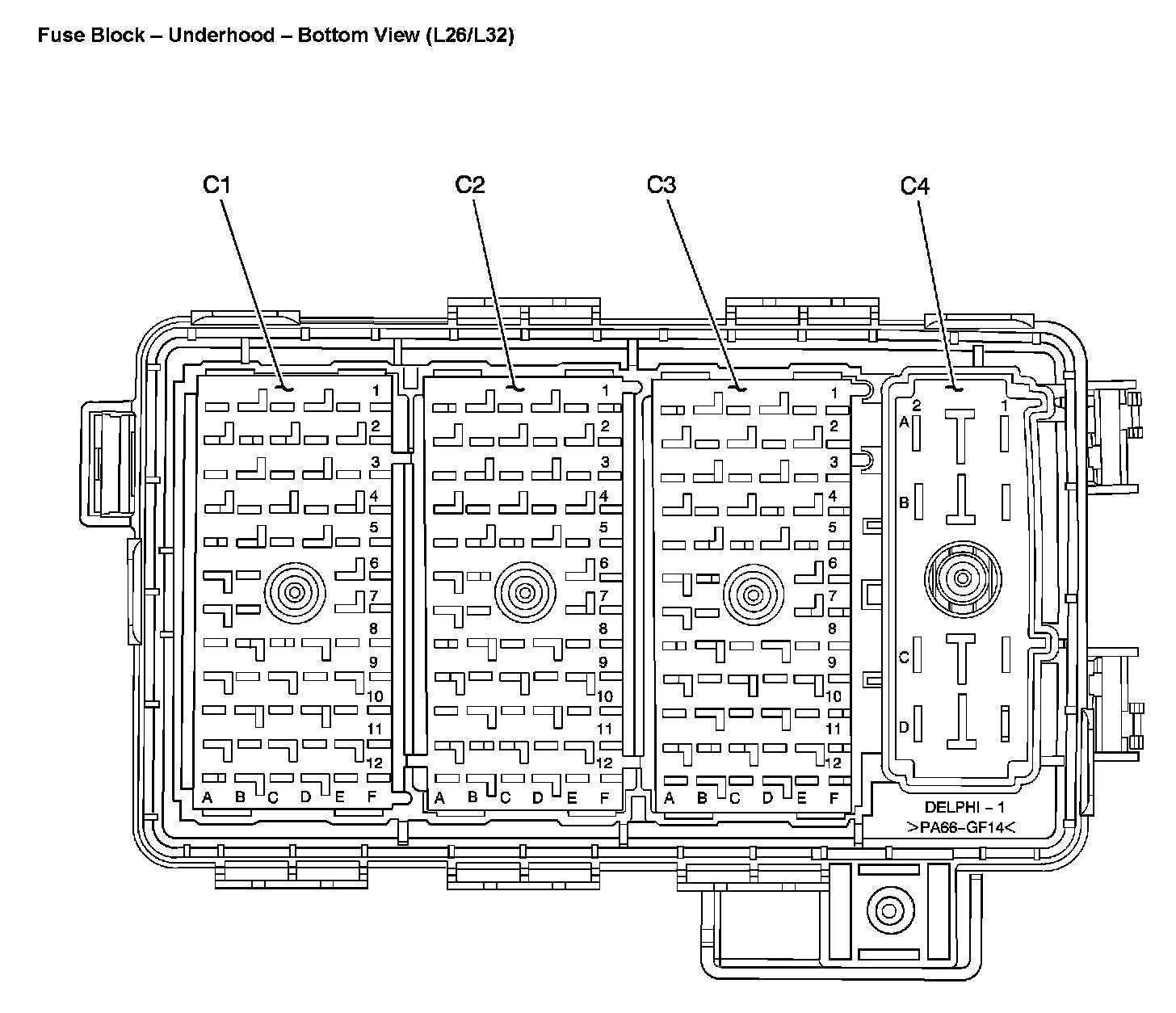

Fuse Block - Underhood - Bottom View (With RPO Code L26/L32):

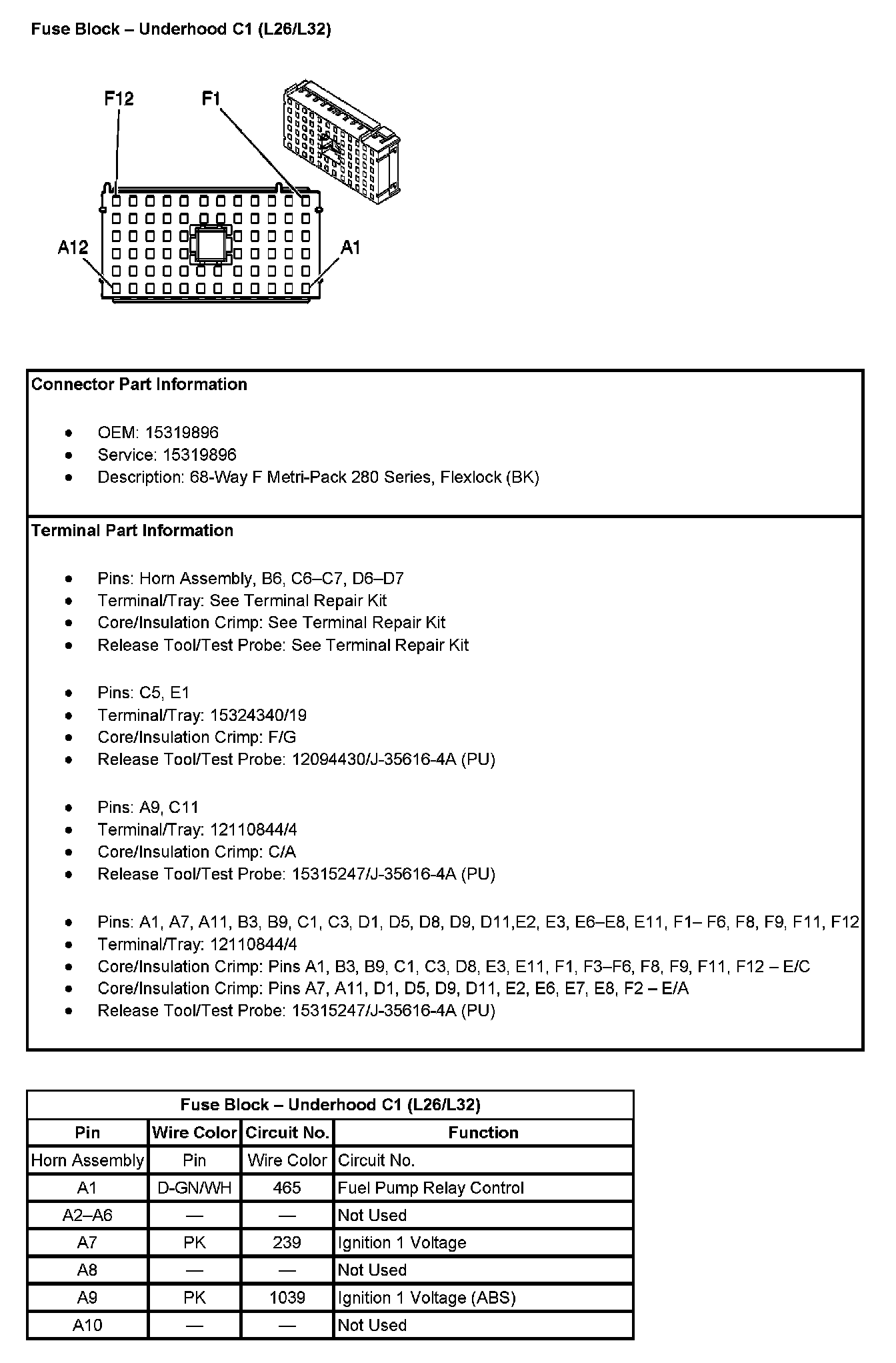

Fuse Block - Underhood C1 (With RPO Code L26/L32):

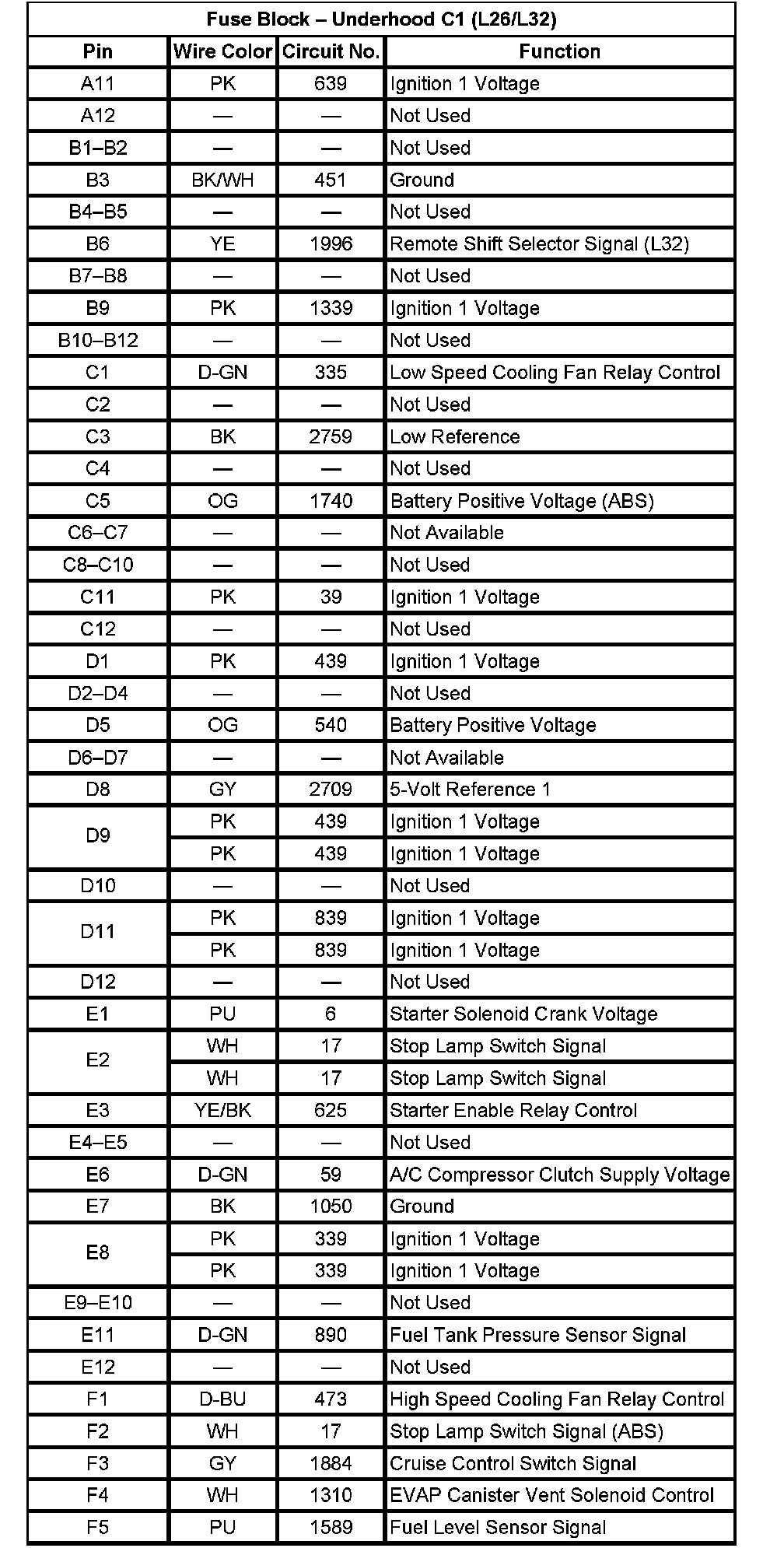

Fuse Block - Underhood C1 (With RPO Code L26/L32) (Pin A11 To F5):




Fuse Block - Underhood C1 (With RPO Code L26/L32) (Pin F6 To F12):

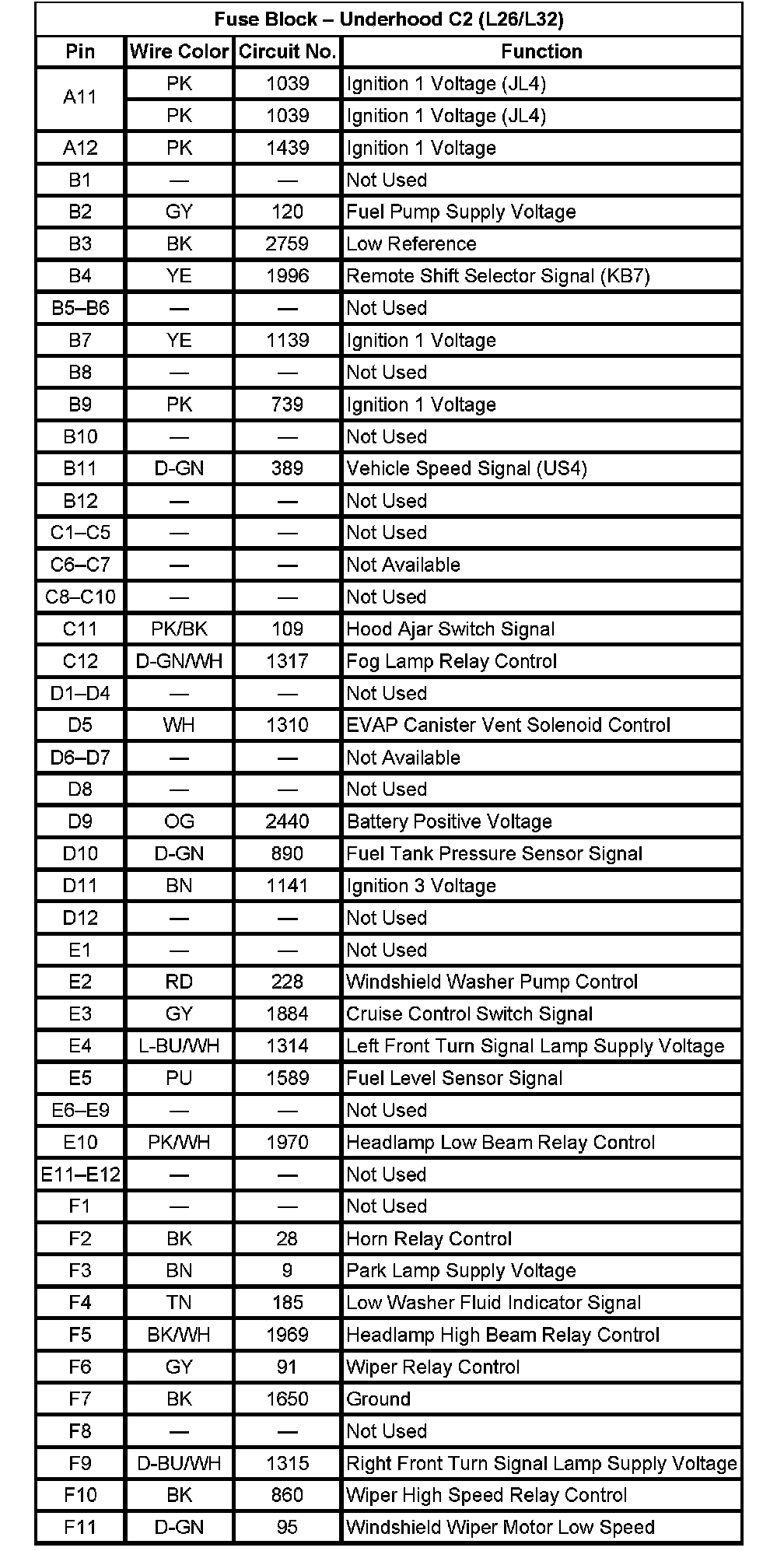

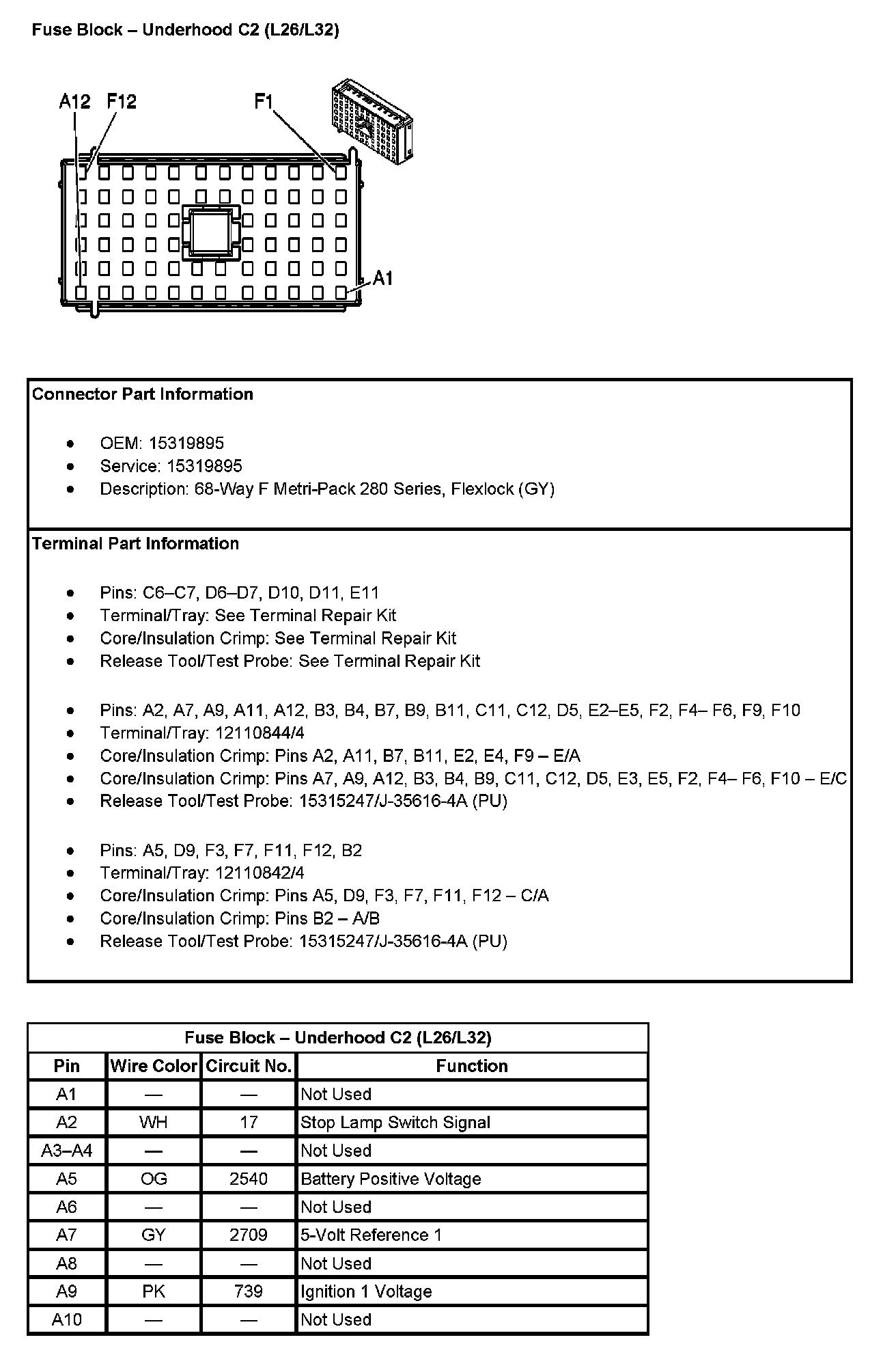

Fuse Block - Underhood C2 (With RPO Code L26/L32) (Pin A1 To A12):




Fuse Block - Underhood C2 (With RPO Code L26/L32) (Pin A11 To F11):




Fuse Block - Underhood C2 (With RPO Code L26/L32) (Pin F12):

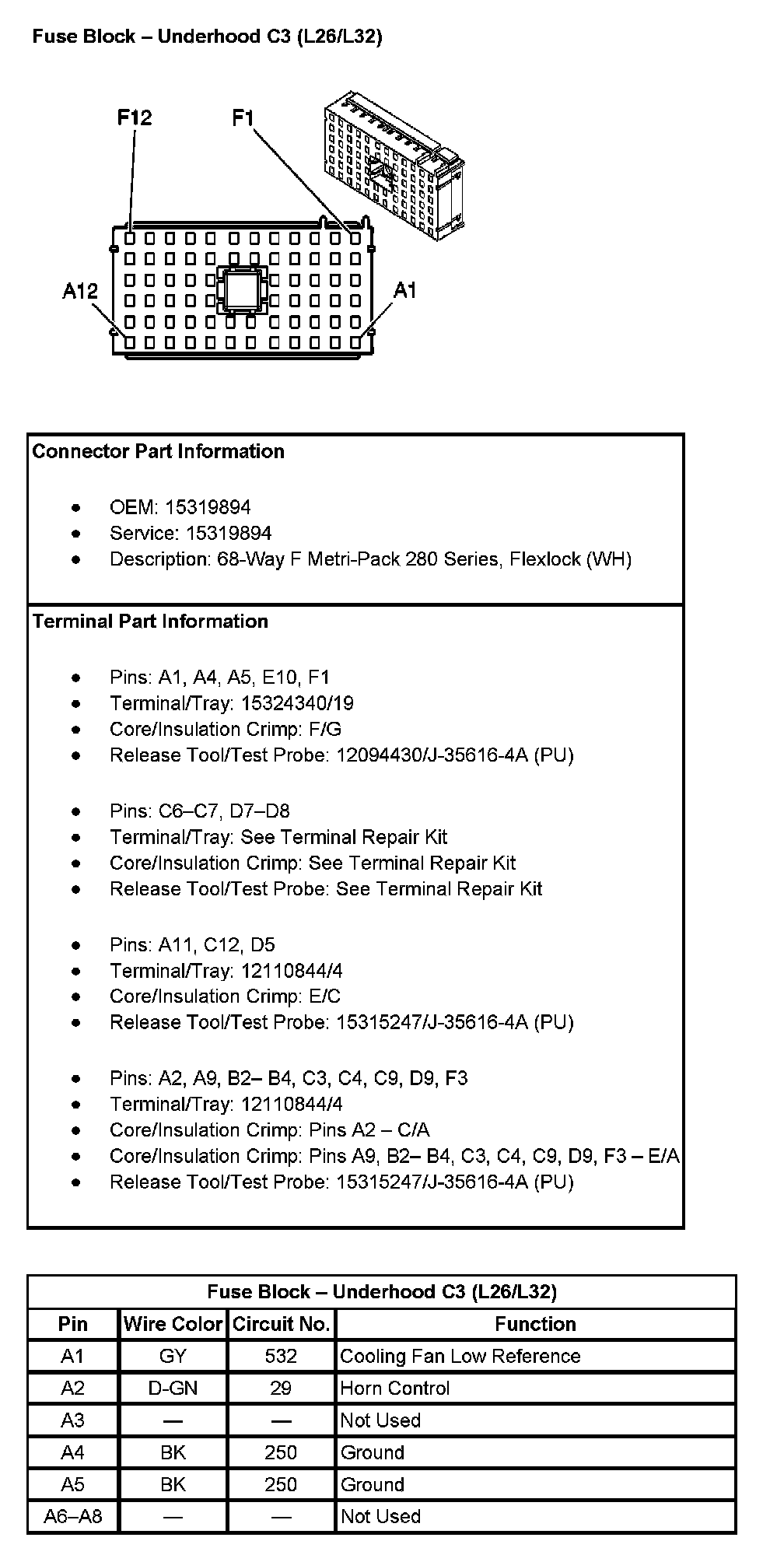

Fuse Block - Underhood C3 (With RPO Code L26/L32) (Pin A1 To A8):

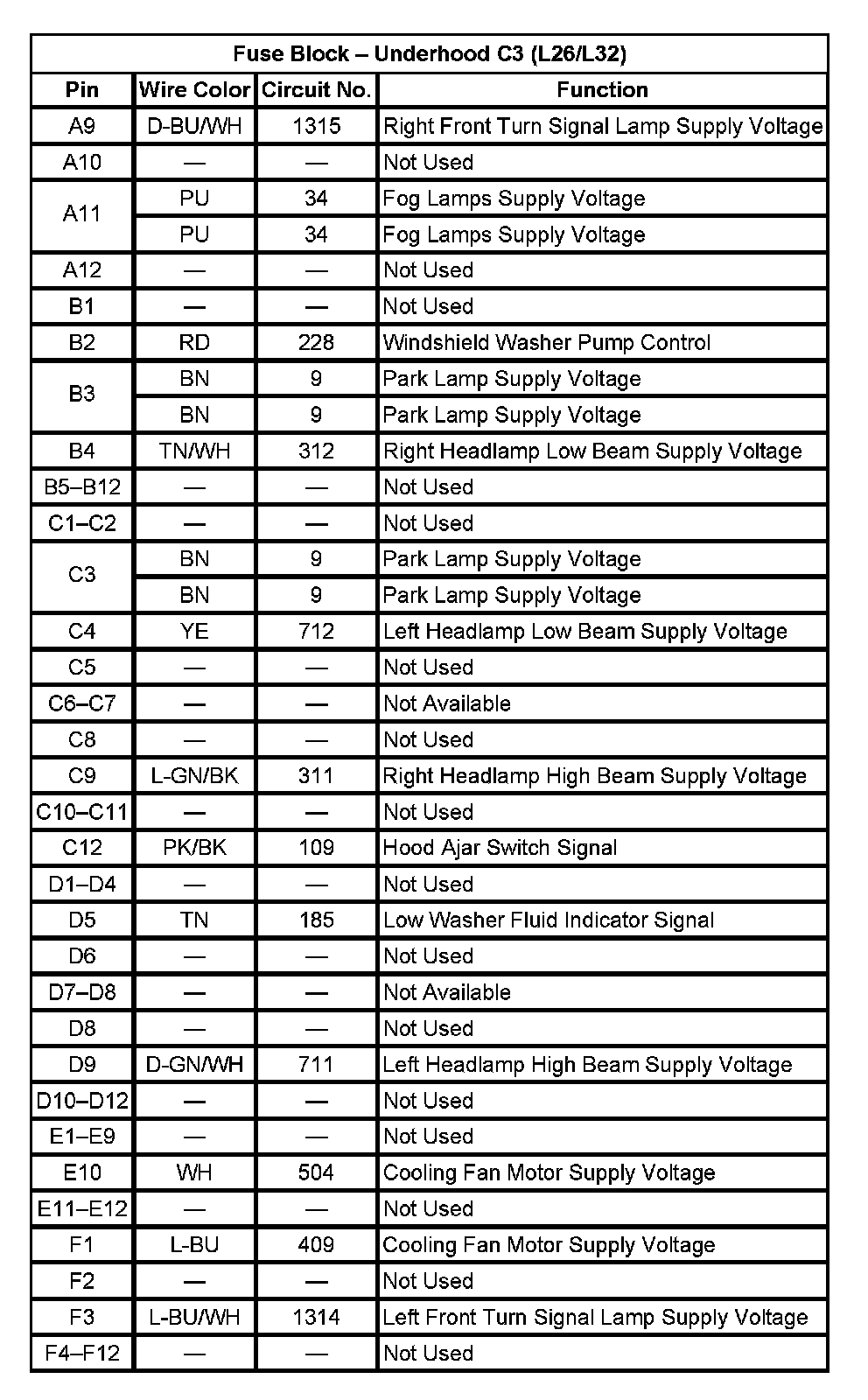

Fuse Block - Underhood C3 (With RPO Code L26/L32) (Pin A9 To F12):

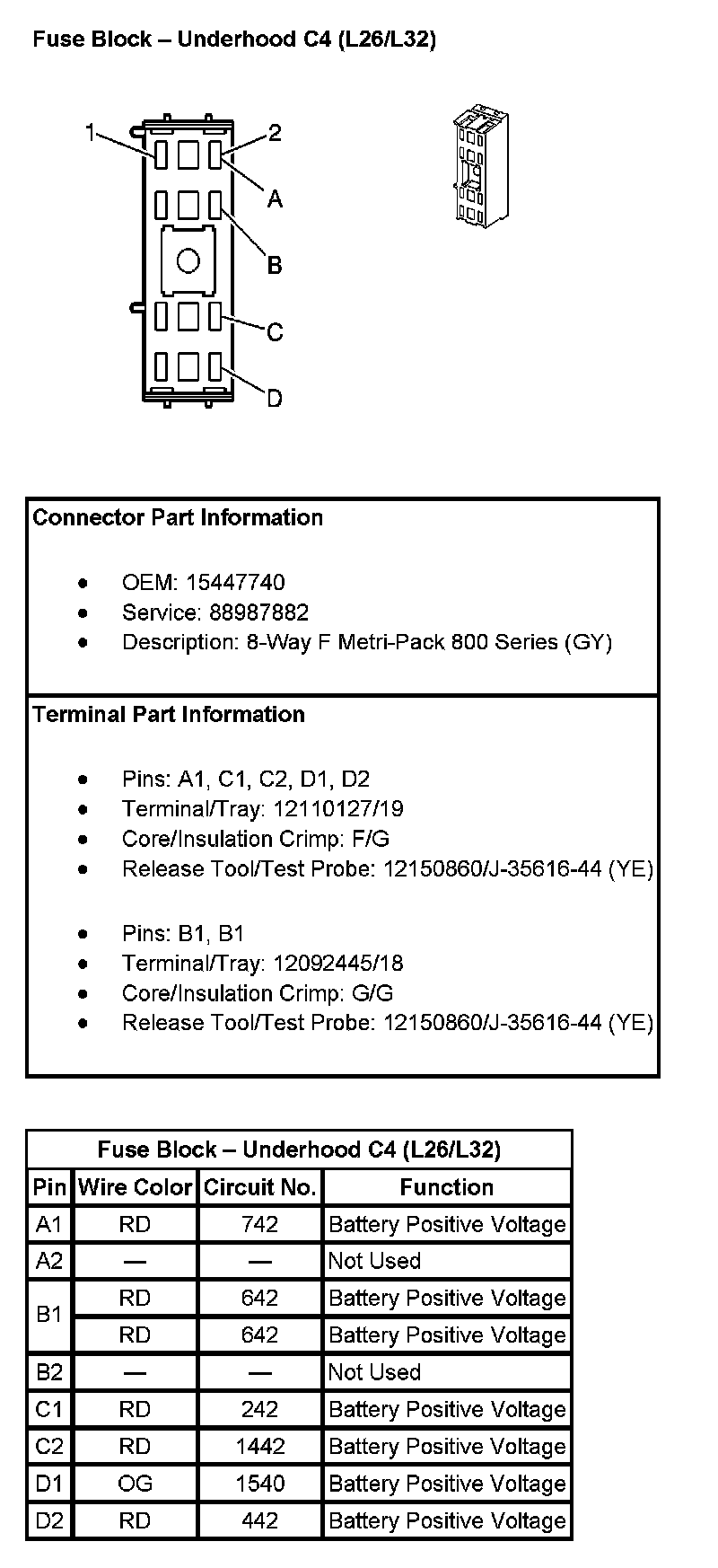

Fuse Block - Underhood C4 (With RPO Code L26/L32):
