Headlamp

Headlamp - High Beam - Left:

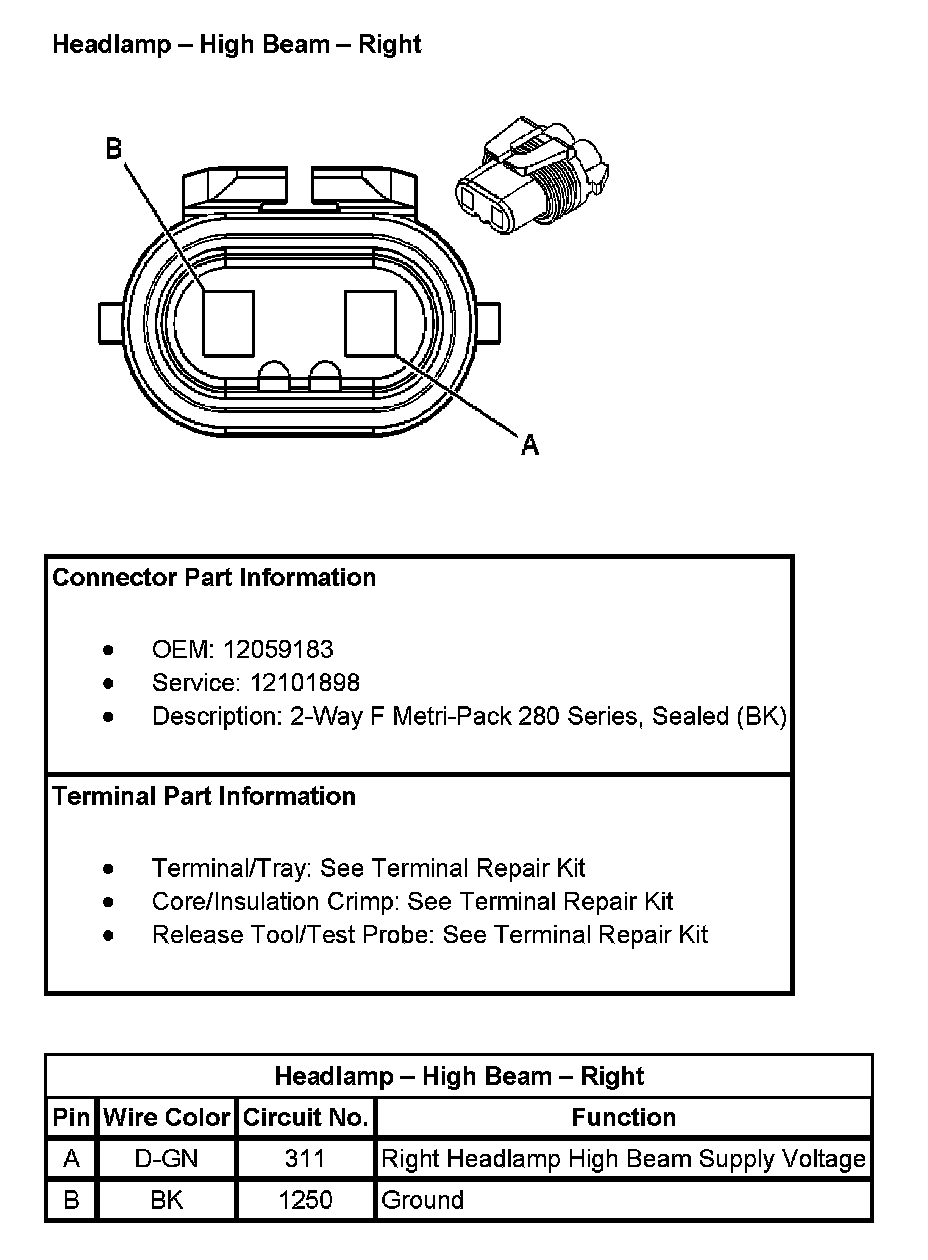

Headlamp - High Beam - Right:

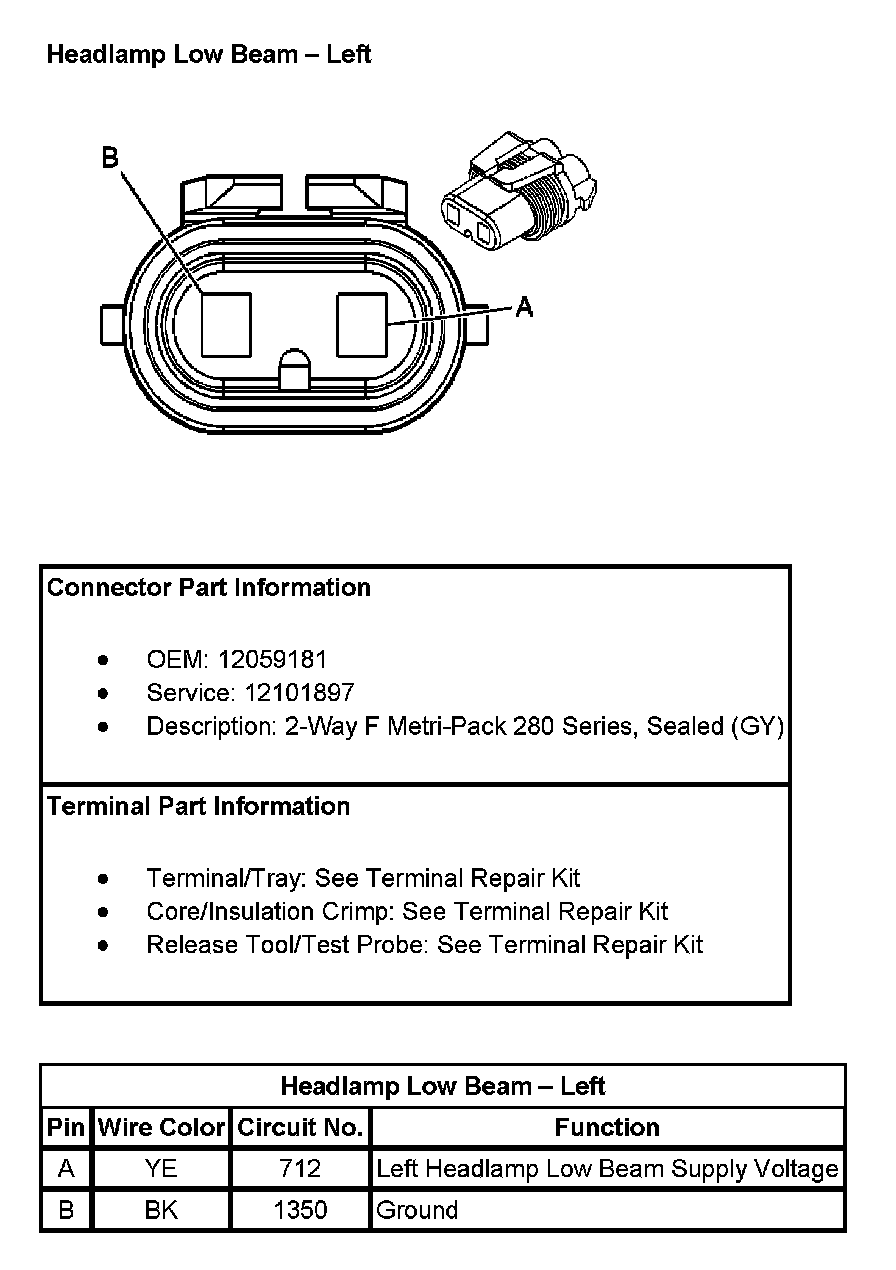

Headlamp Low Beam - Left:

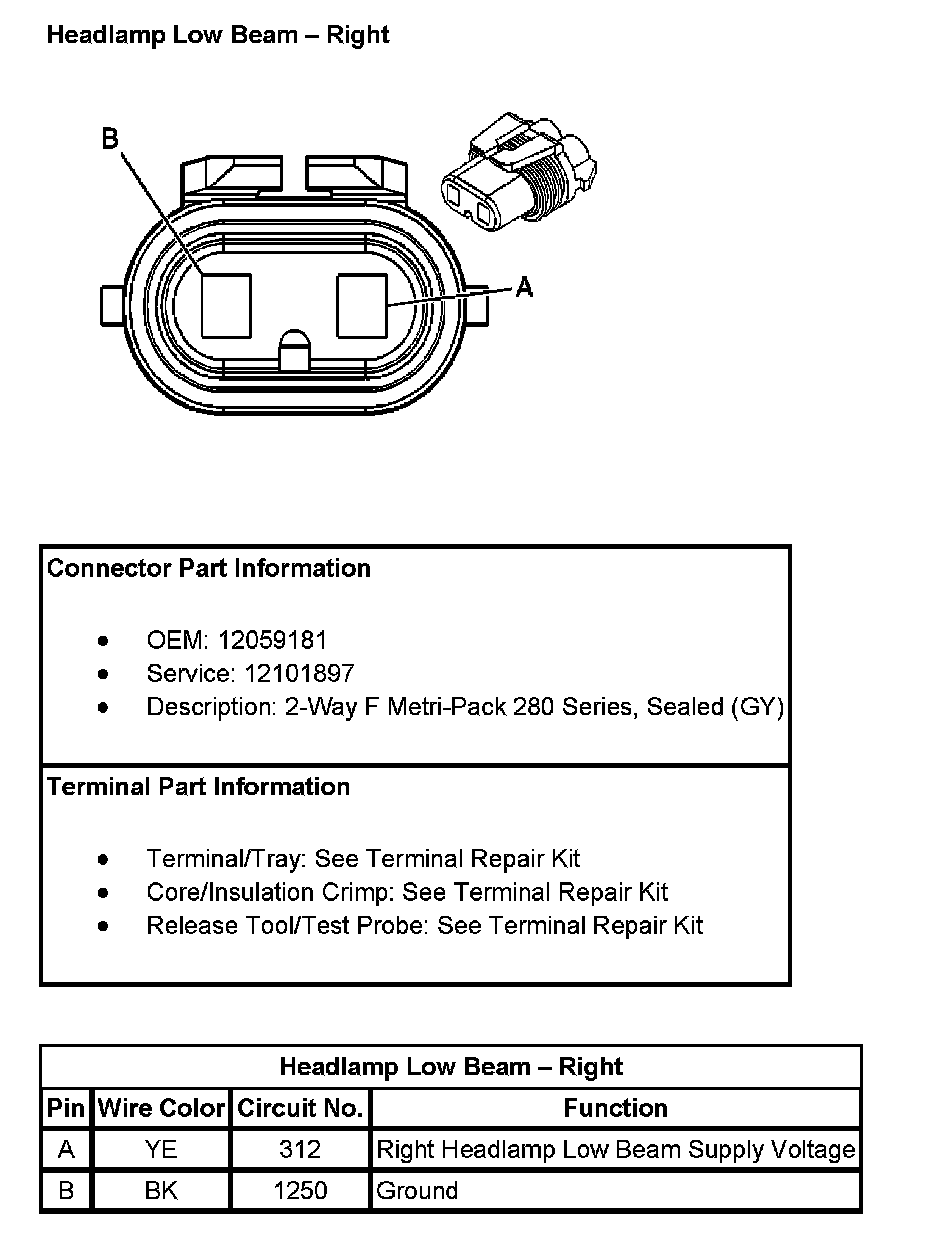

Headlamp Low Beam - Right:
