Remote Power Steering Fluid Reservoir Replacement

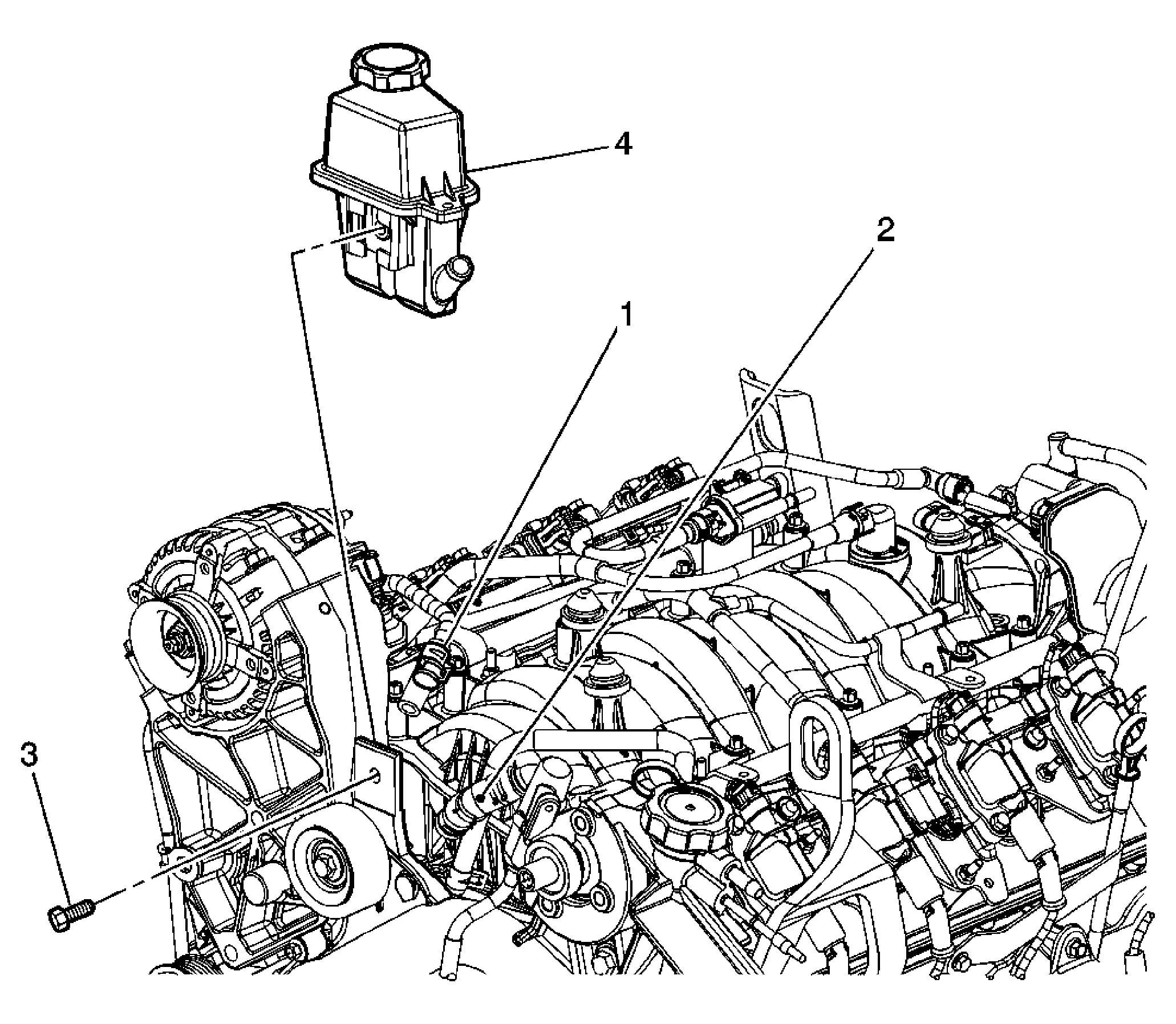

Fig 1: Remote Power Steering Fluid Reservoir

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Clamp, Power Steering Return Hose Tip: Using the appropriate tool, remove the power steering fluid from the reservoir. Also, plug the open end of the hose to limit the amount of fluid leakage.
2	Clamp, Power Steering Pump Feed Hose Tip: Plug or cap the hose between the power steering pump and the reservoir so as to limit the amount of fluid loss.
3	Bolt, Remote Power Steering Reservoir (Qty: 1) Tighten: 18 N.m (13 lb ft)
4	Reservoir, Power Steering Remote
