Power Seat Switch

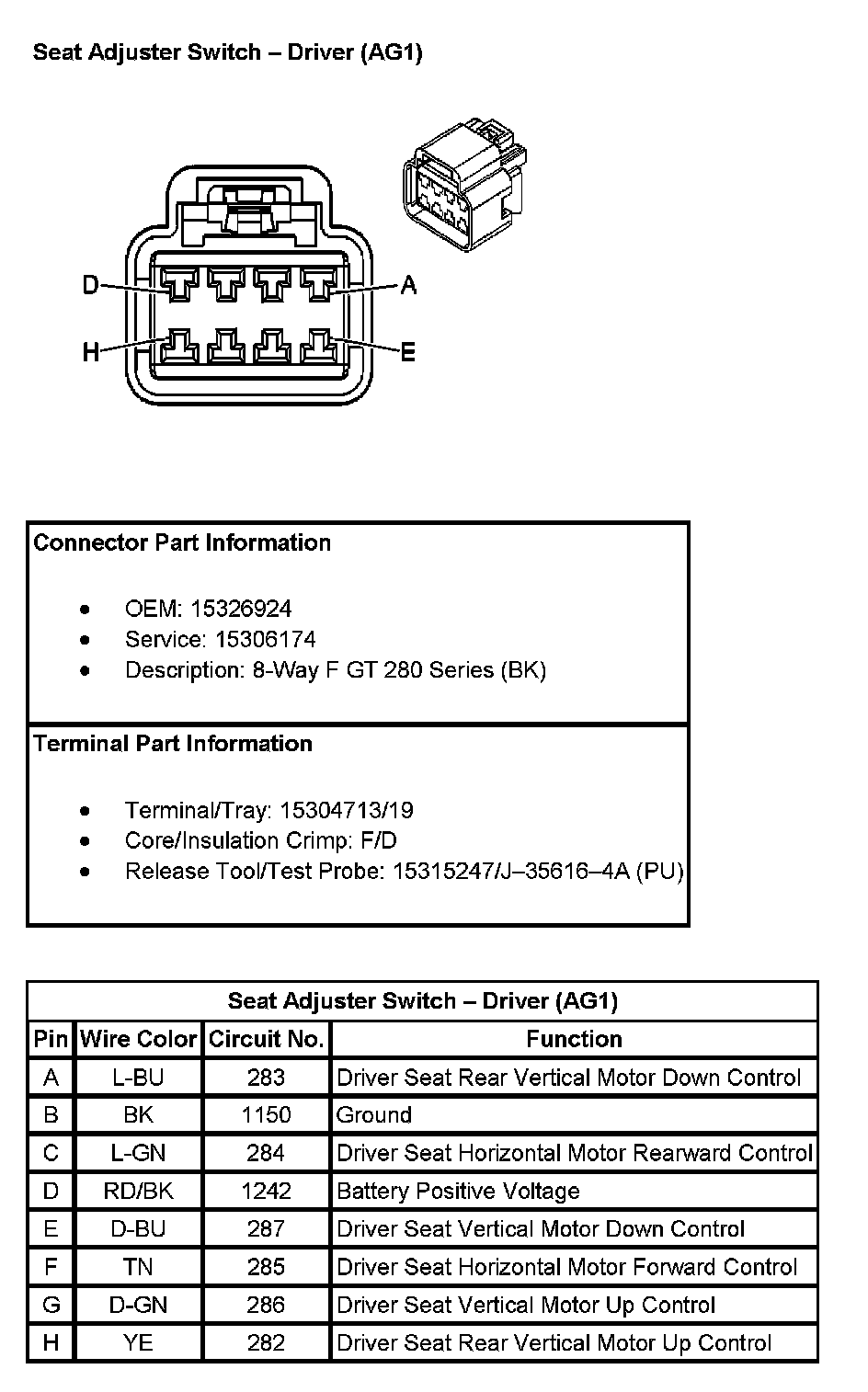

Seat Adjuster Switch - Driver (with RPO Code AG1):



Seat Adjuster Switch - Driver (With RPO Code ASN):
