Underhood Fuse Block

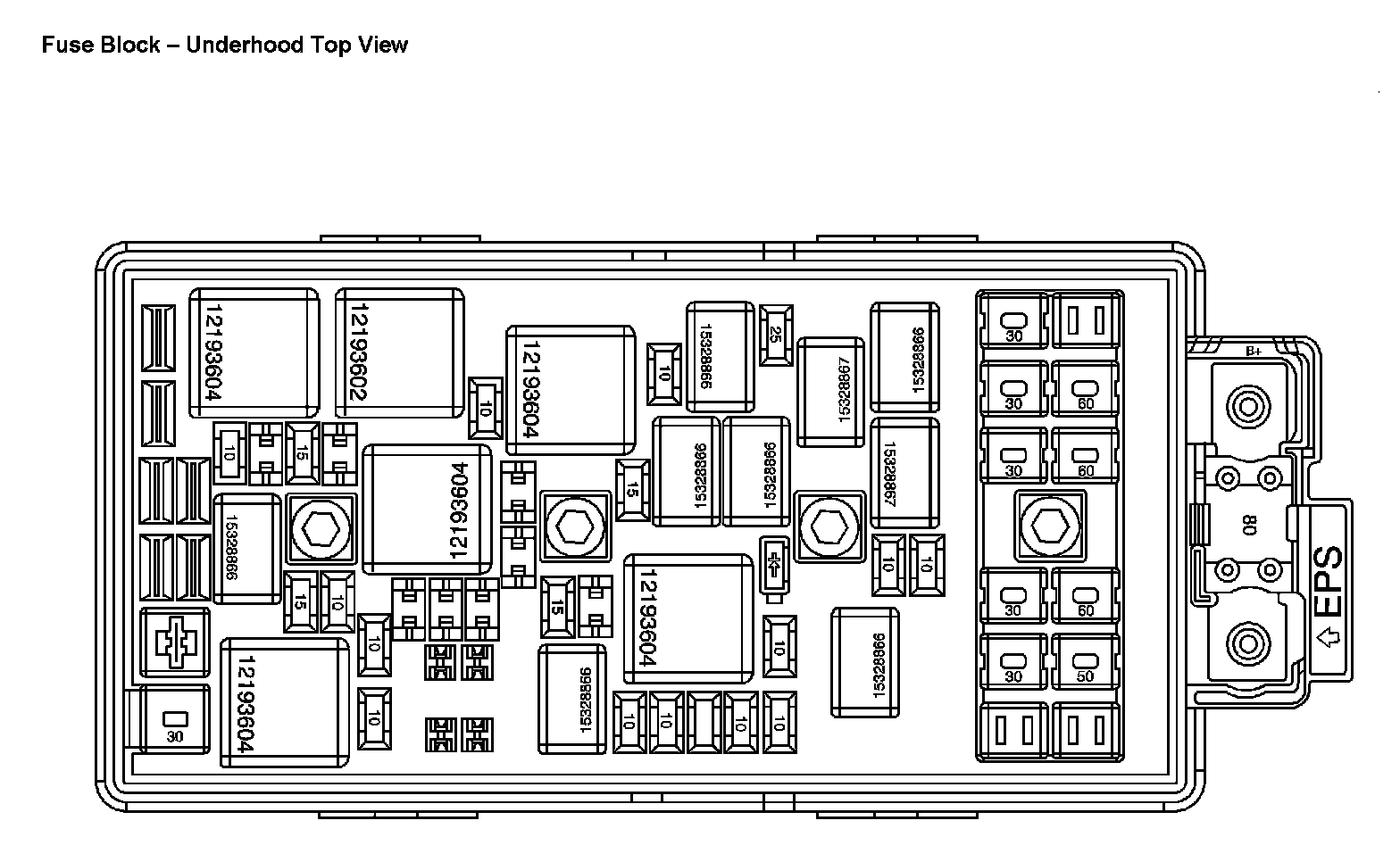

Fuse Block - Underhood Top View:

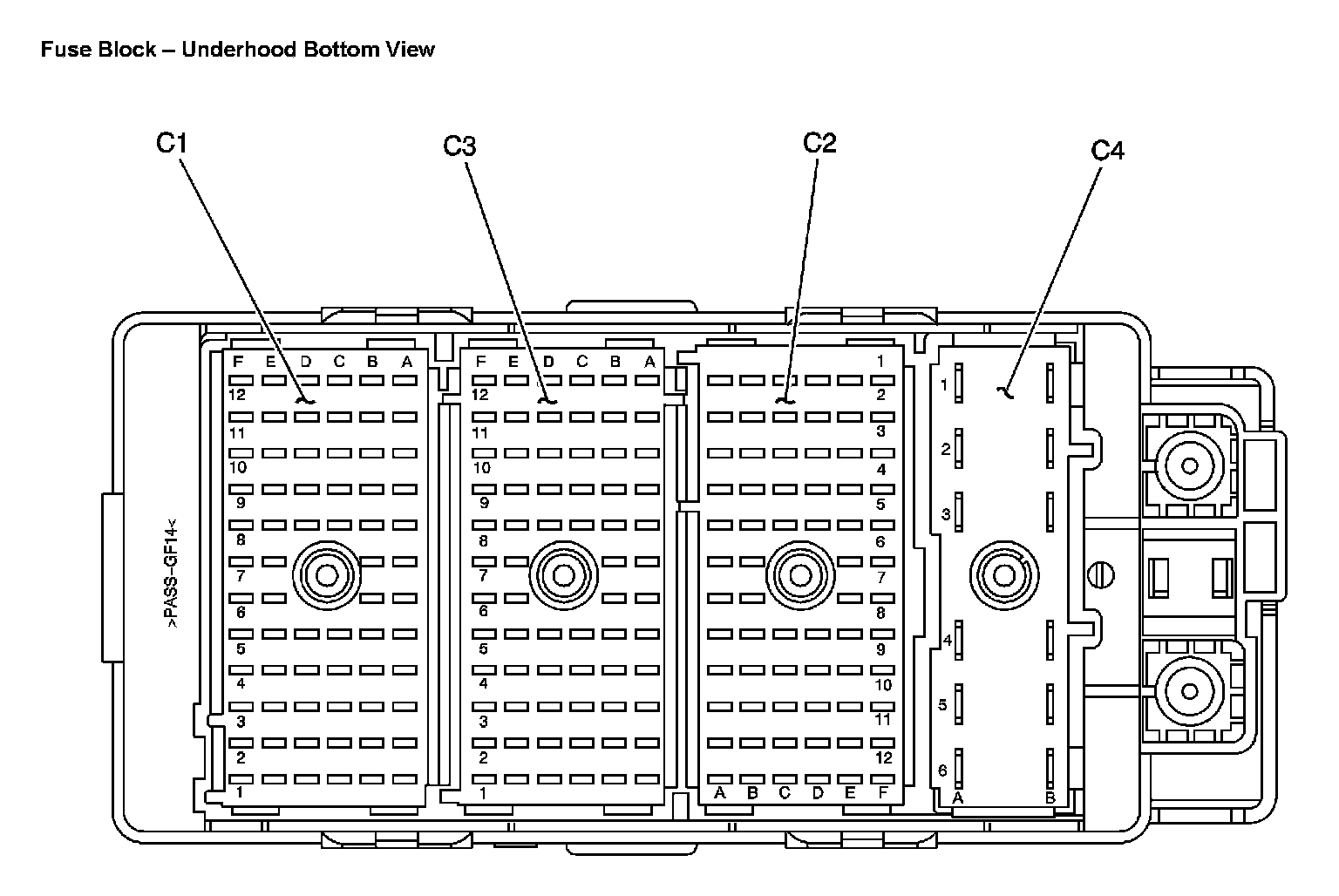

Fuse Block - Underhood Bottom View:

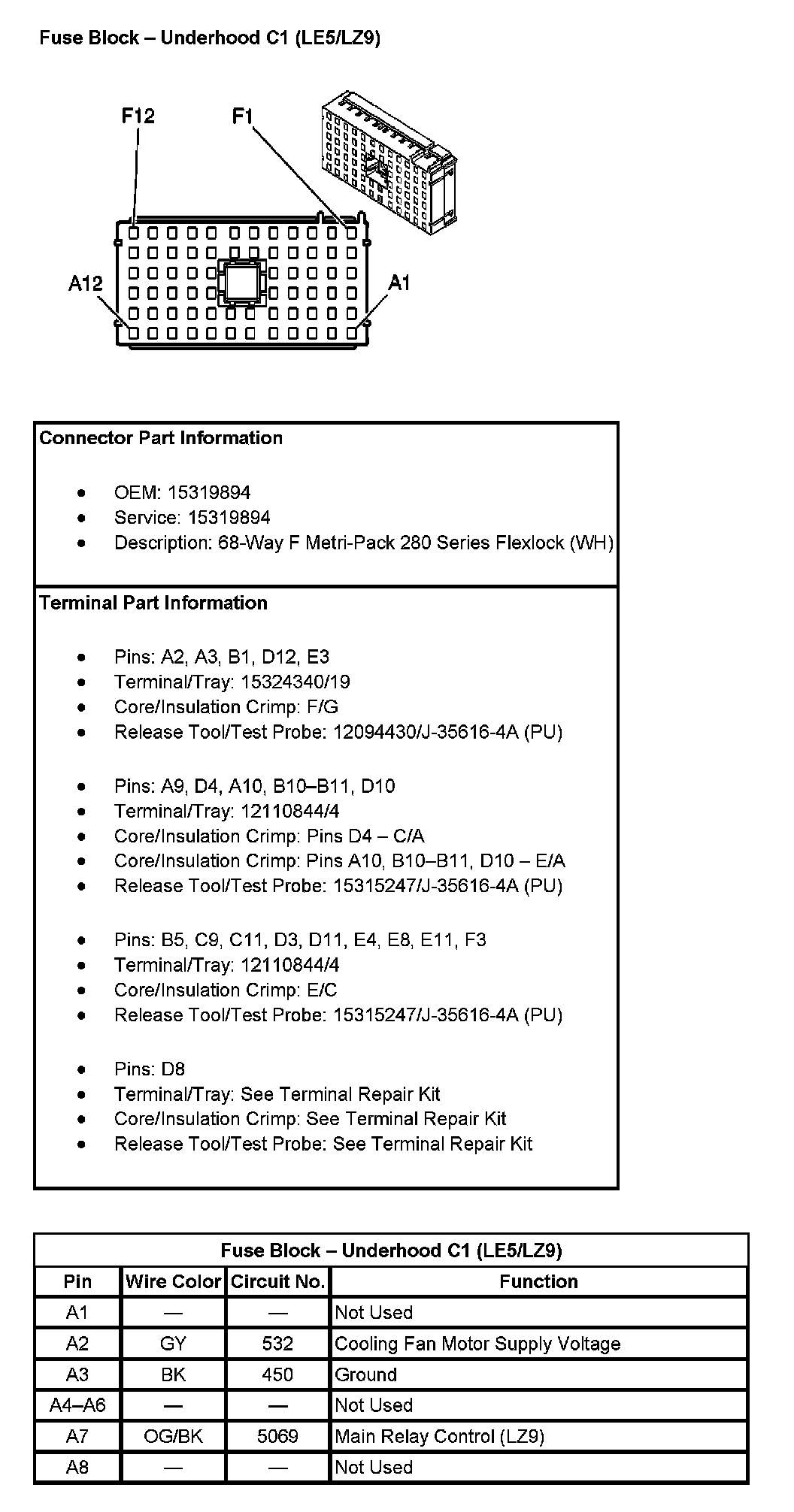

Fuse Block - Underhood C1 (LE5/LZ9):

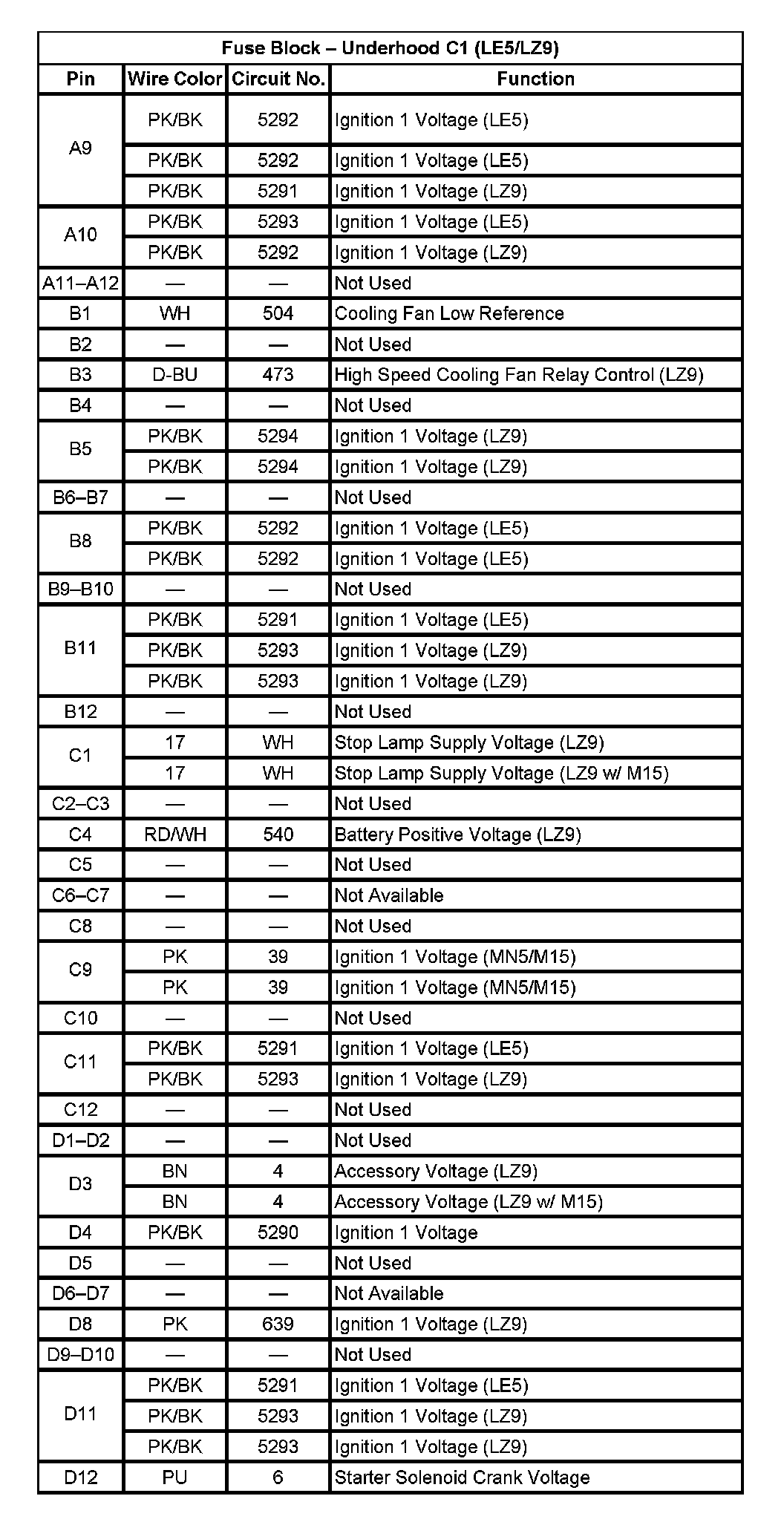

Fuse Block - Underhood C1 (LE5/LZ9) (Pin A9 To D12):

Fuse Block - Underhood C1 (LE5/LZ9) (Pin E1 To F12):

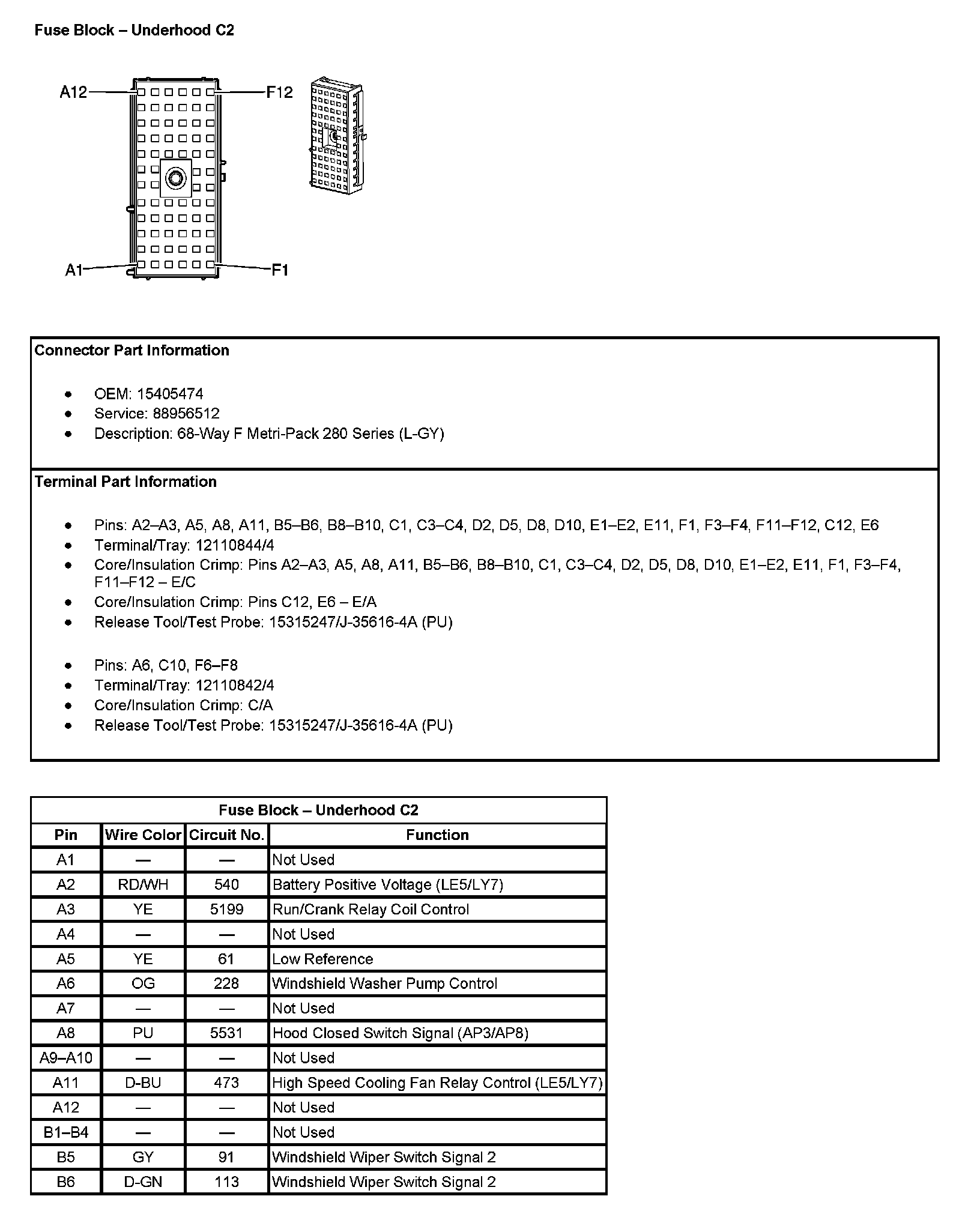

Fuse Block - Underhood C2 (Pin A1 To B6):

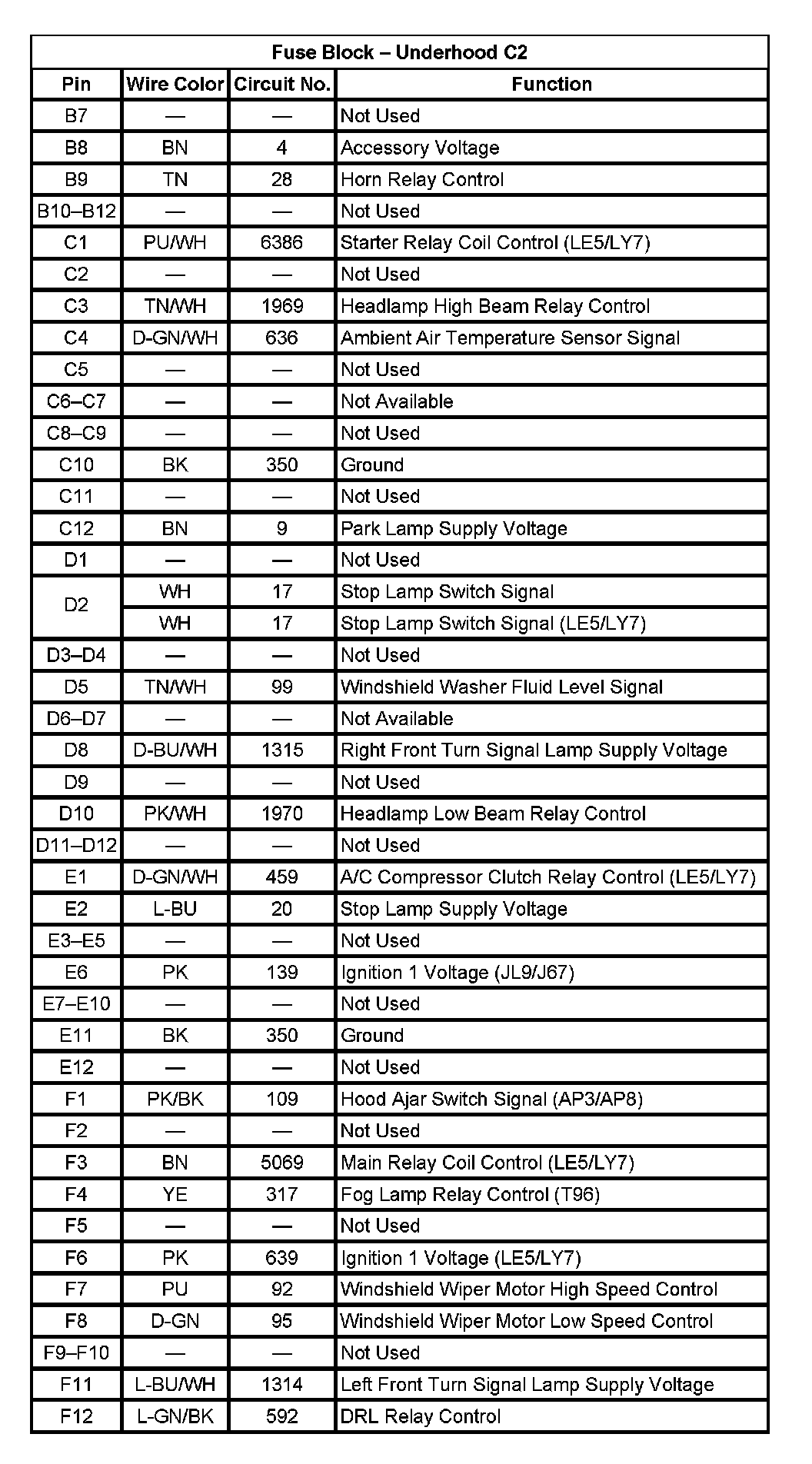

Fuse Block - Underhood C2 (Pin B7 To F12):

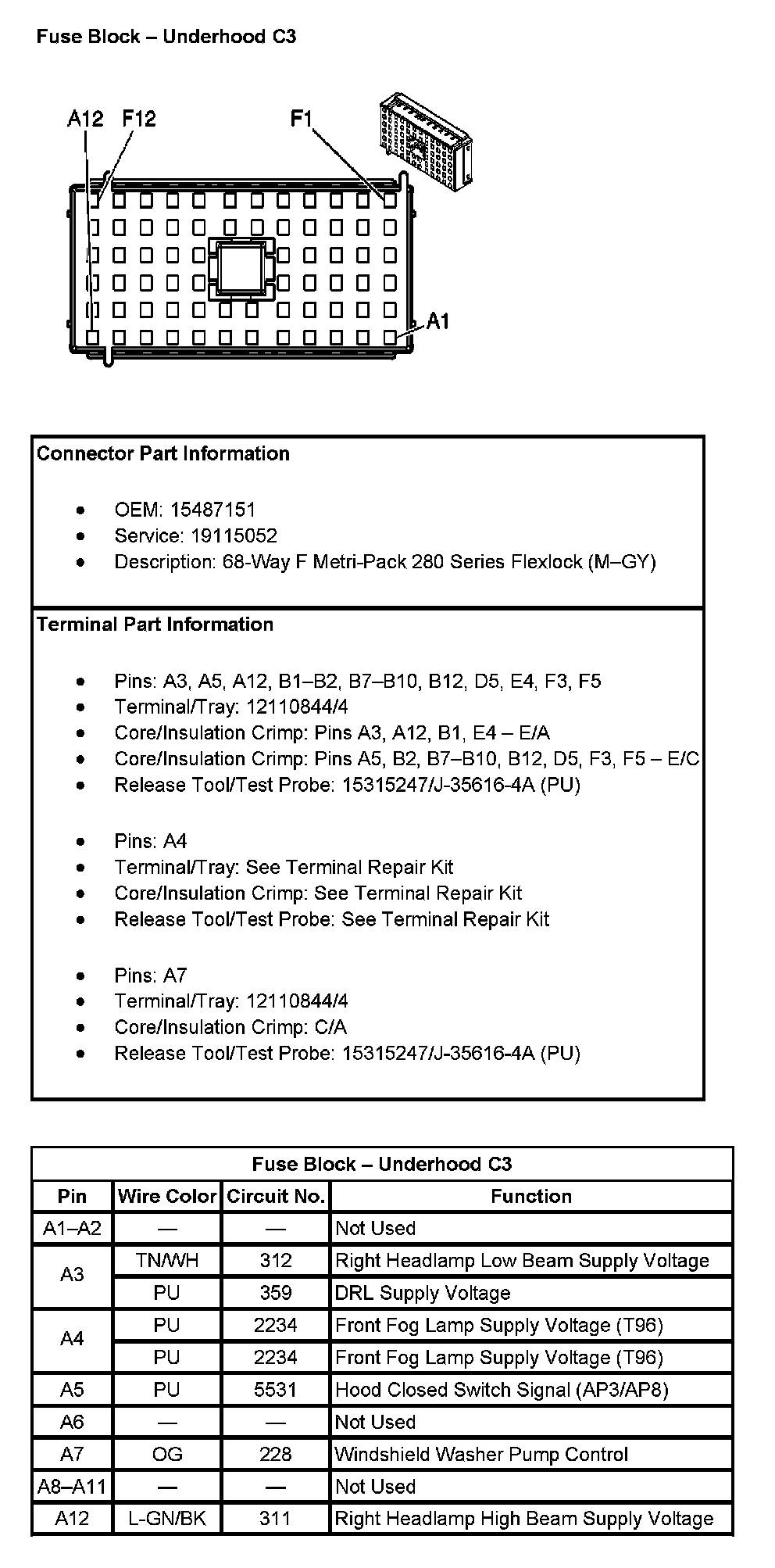

Fuse Block - Underhood C3 (Pin A1 To A12):

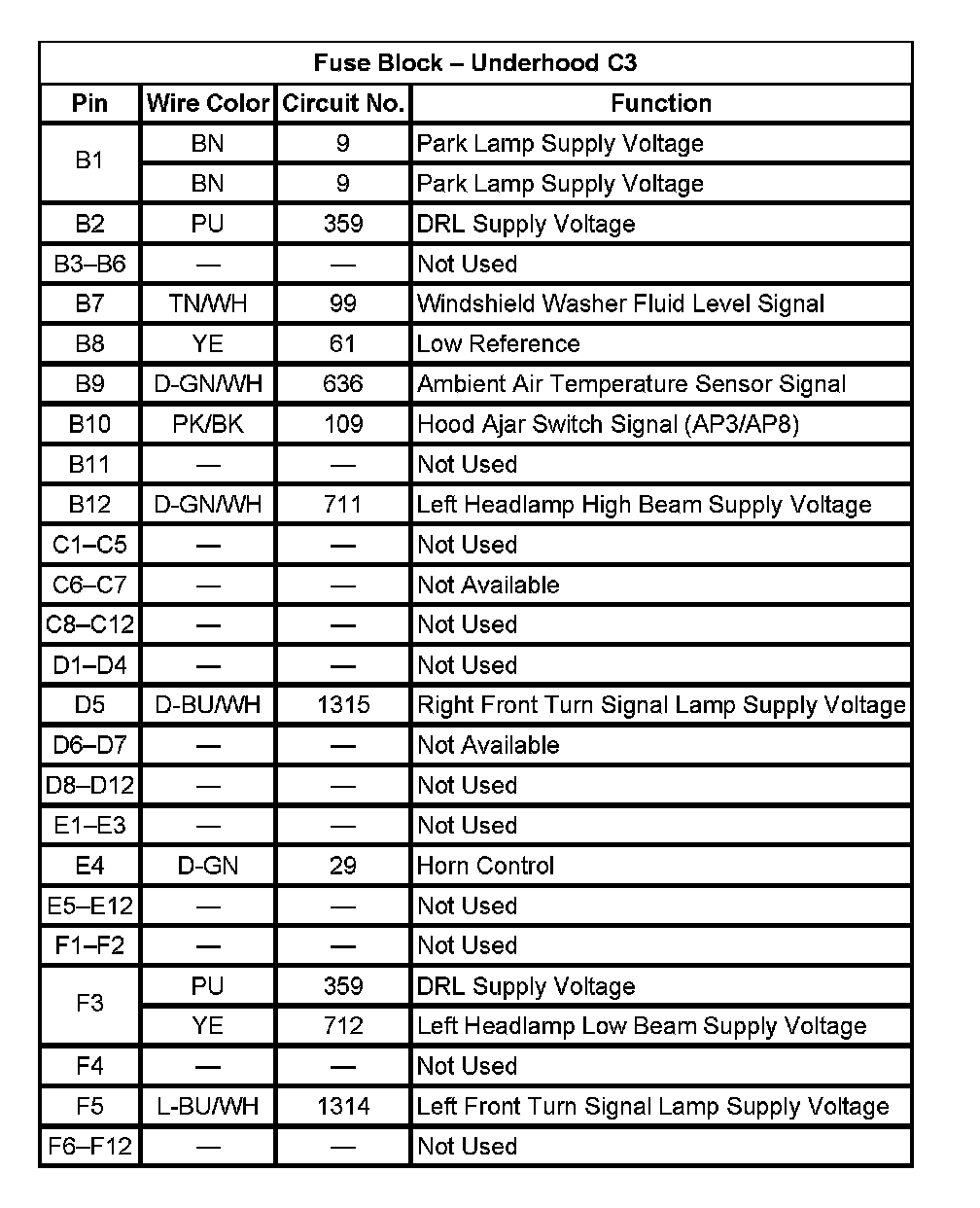

Fuse Block - Underhood C3 (Pin B1 To F12):

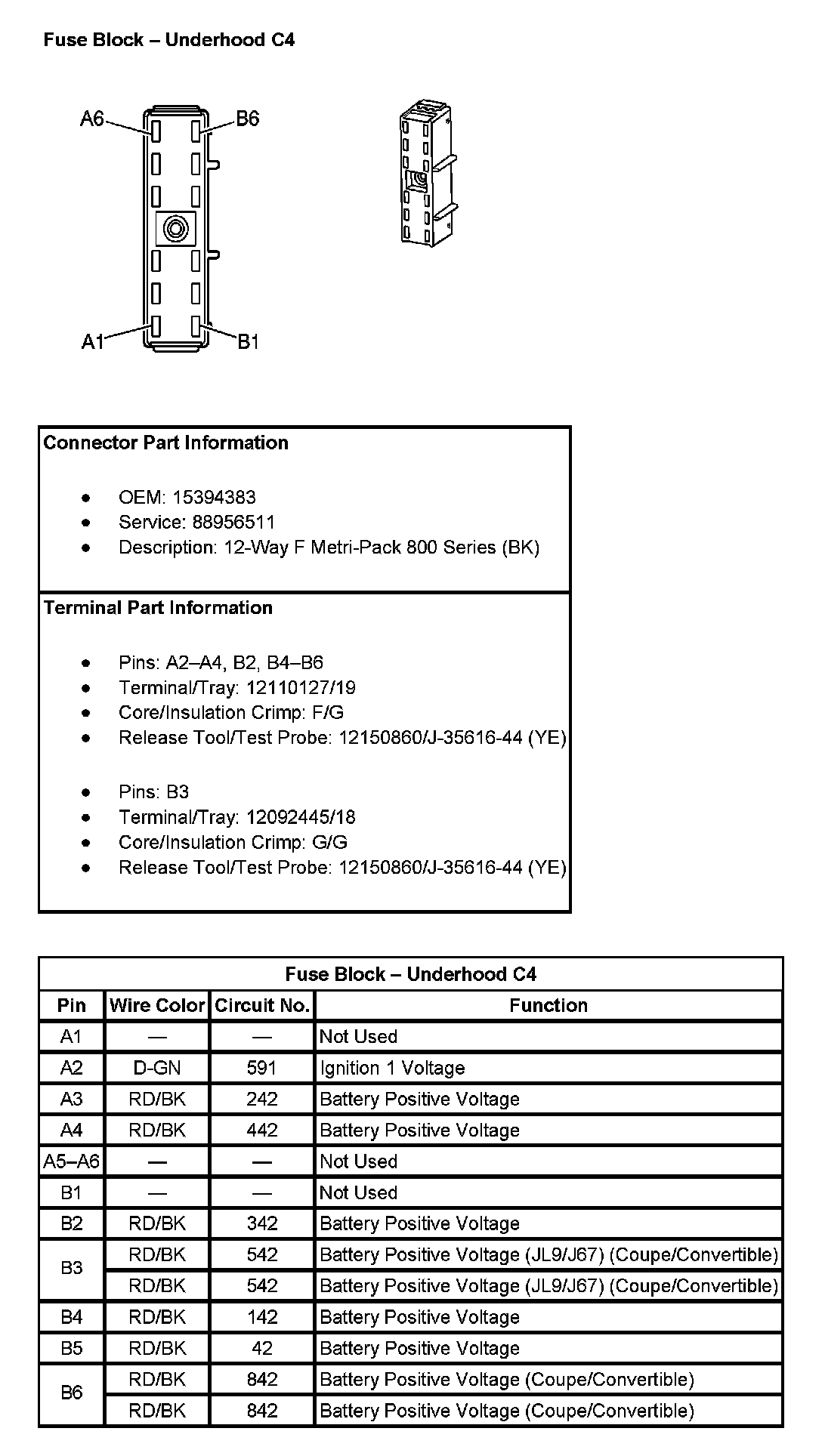

Fuse Block - Underhood C4 Pin A1 To B6:
