Electronic Brake Control Module (EBCM) (FX3)



Electronic Brake Control Module (EBCM) (FX3)

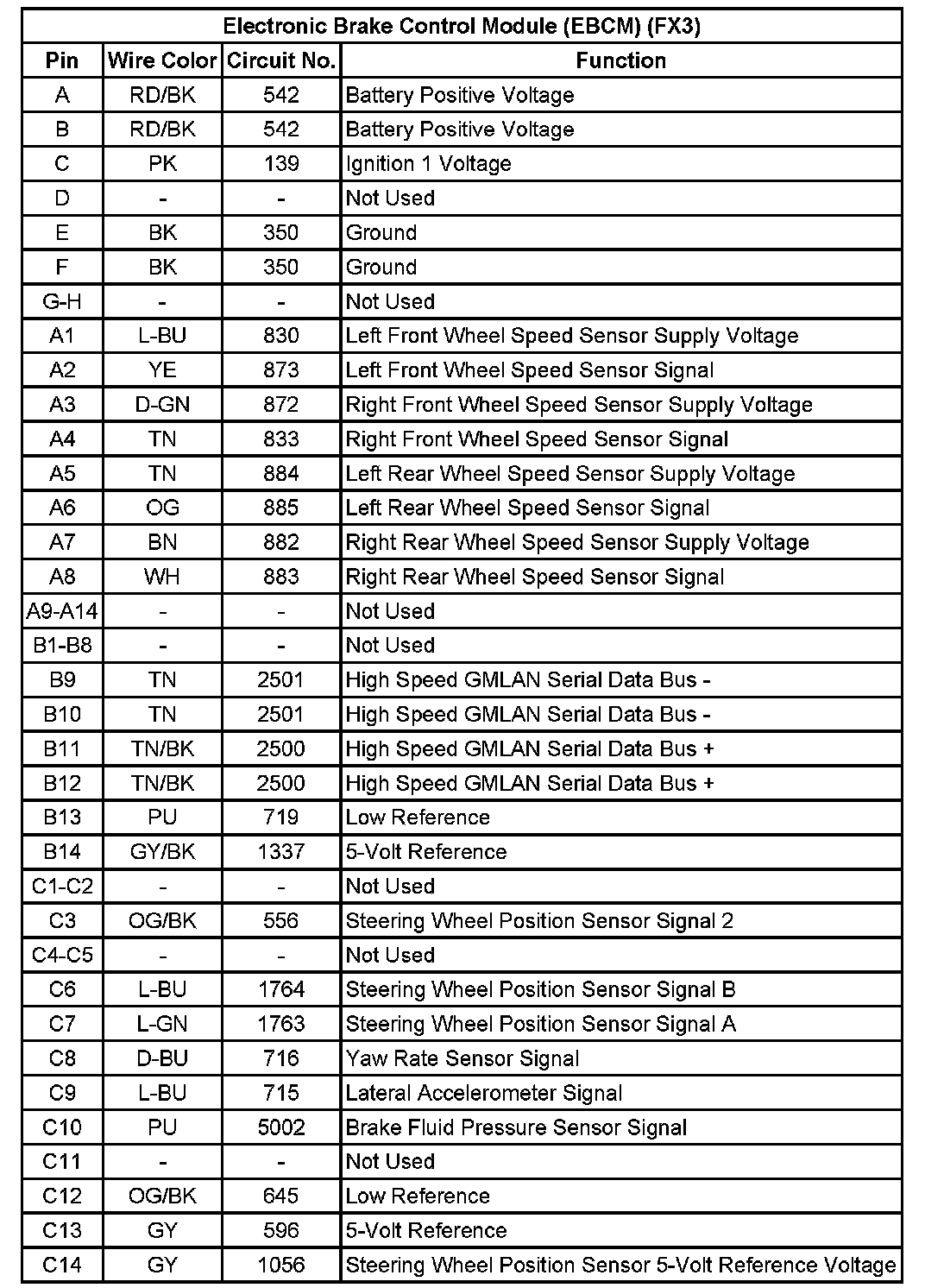

Electronic Brake Control Module (EBCM)(FX3):
