Power Seat Switch: Service and Repair

POWER SEAT SWITCH REPLACEMENT

REMOVAL PROCEDURE

1. CAUTION: Refer to SIR Caution.

Remove the outer trim panel from the seat cushion.

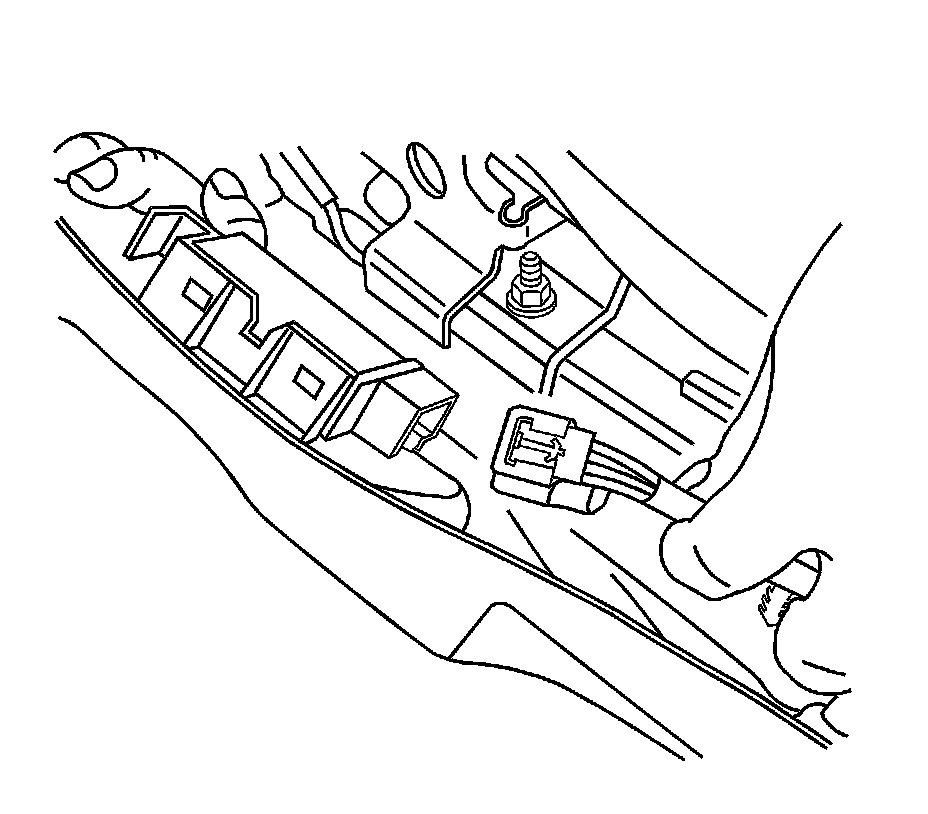

2. Disconnect the electrical connector.




3. Remove the power seat switch from the outer trim panel.

INSTALLATION PROCEDURE




1. Install the power seat switch to the outer trim panel on the seat cushion.




2. Connect the electrical connector.
3. Install the outer trim panel.
