Front Side Door Window Regulator Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

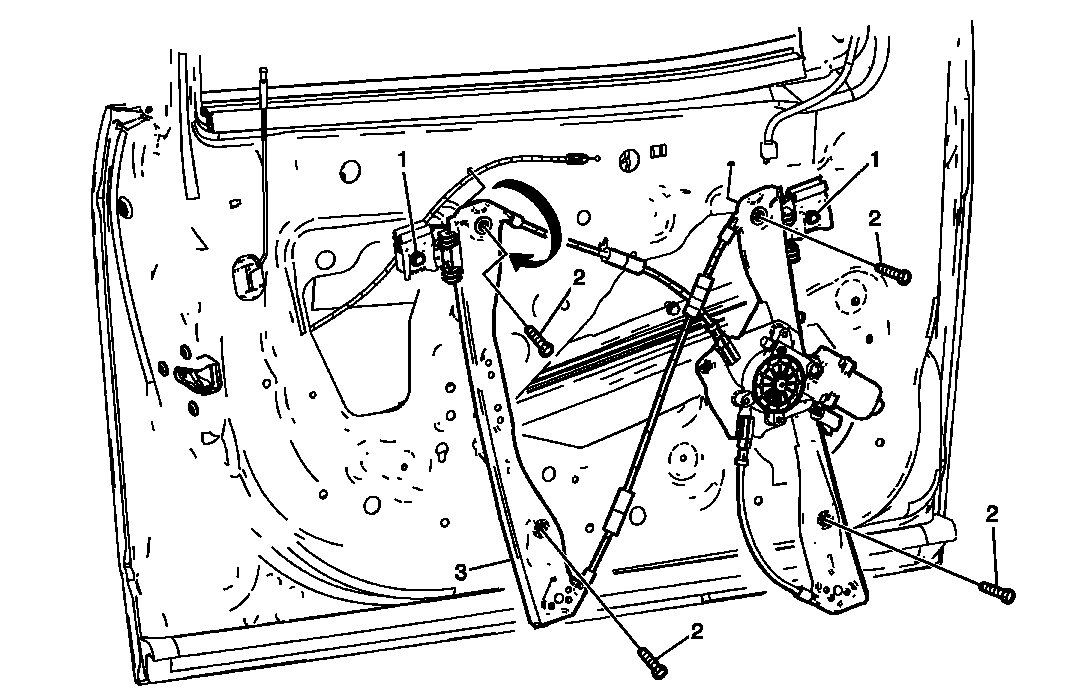

Fig 1: View Of Front Side Door Window Regulator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Position window approximately half way down in the door. Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Front Side Door Window to Regulator Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Loosen the window to regulator bolts. Push the window to the full up position and tape in place. Tighten: 10 N.m (89 lb in)
2	Front Door Window Regulator Bolt (Qty: 4) Procedure: Disconnect window regulator electrical connector. Tighten: 10 N.m (89 lb in)
3	Front Door Window Regulator Tip: The driver door window regulator and motor MUST be replaced as an assembly. The right door is serviceable as door window regulator or motor.
