Power Window Switch

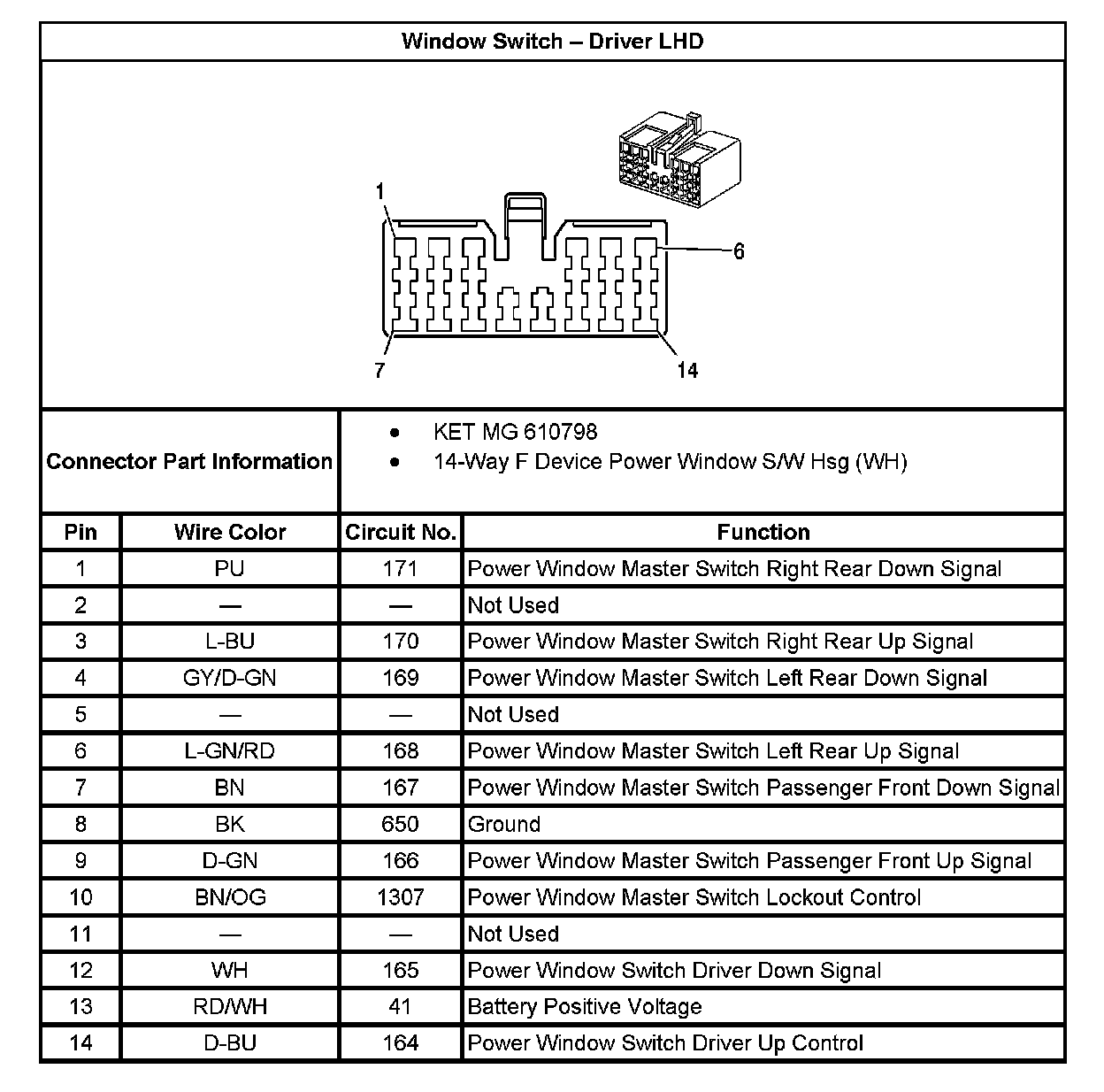

Window Switch - Driver (With RPO Code LHD):

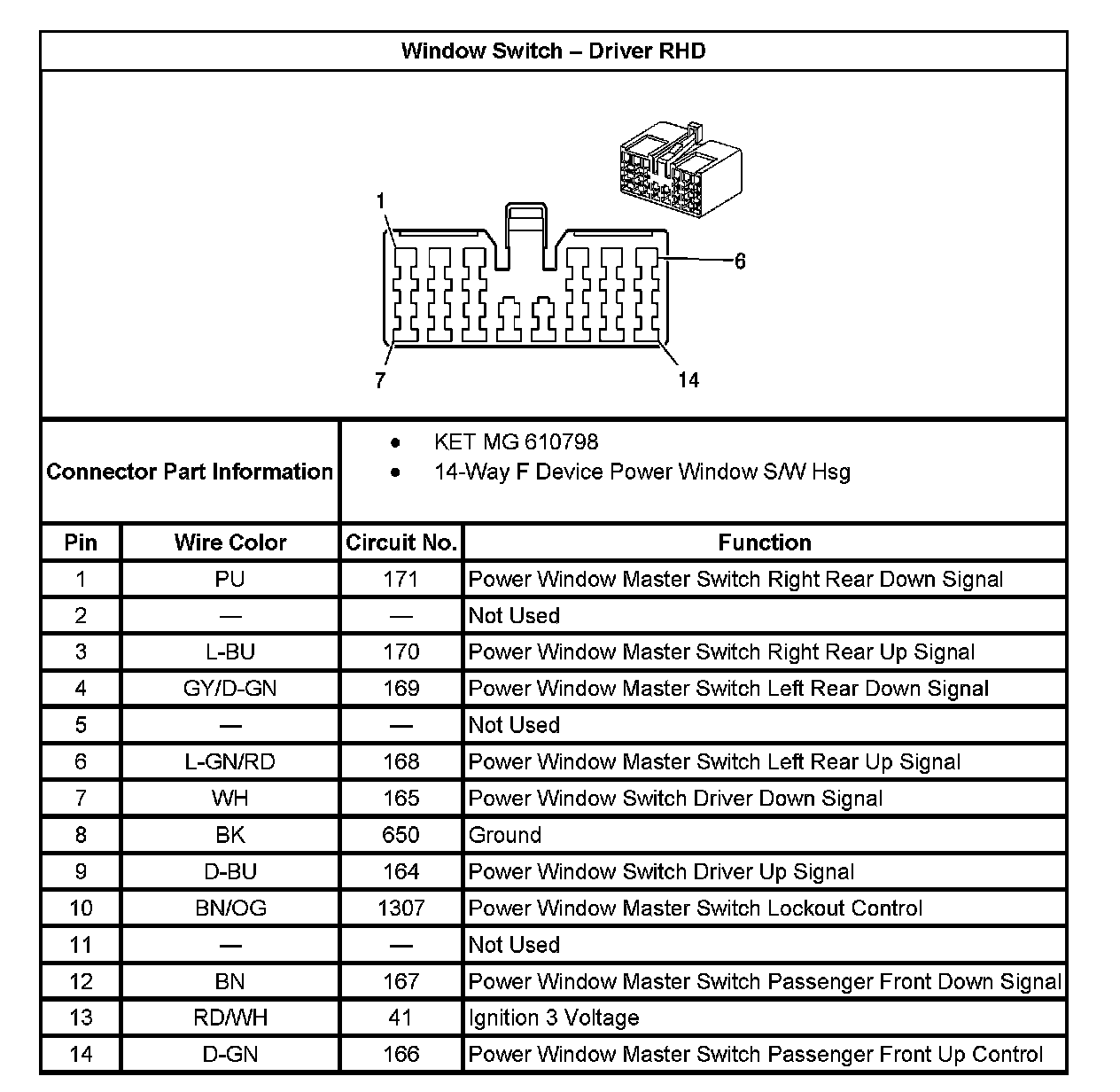

Window Switch - Driver (With RPO Code RHD):



Window Switch - Passenger:



Window Switch - Left Rear:



Window Switch - Right Rear:
