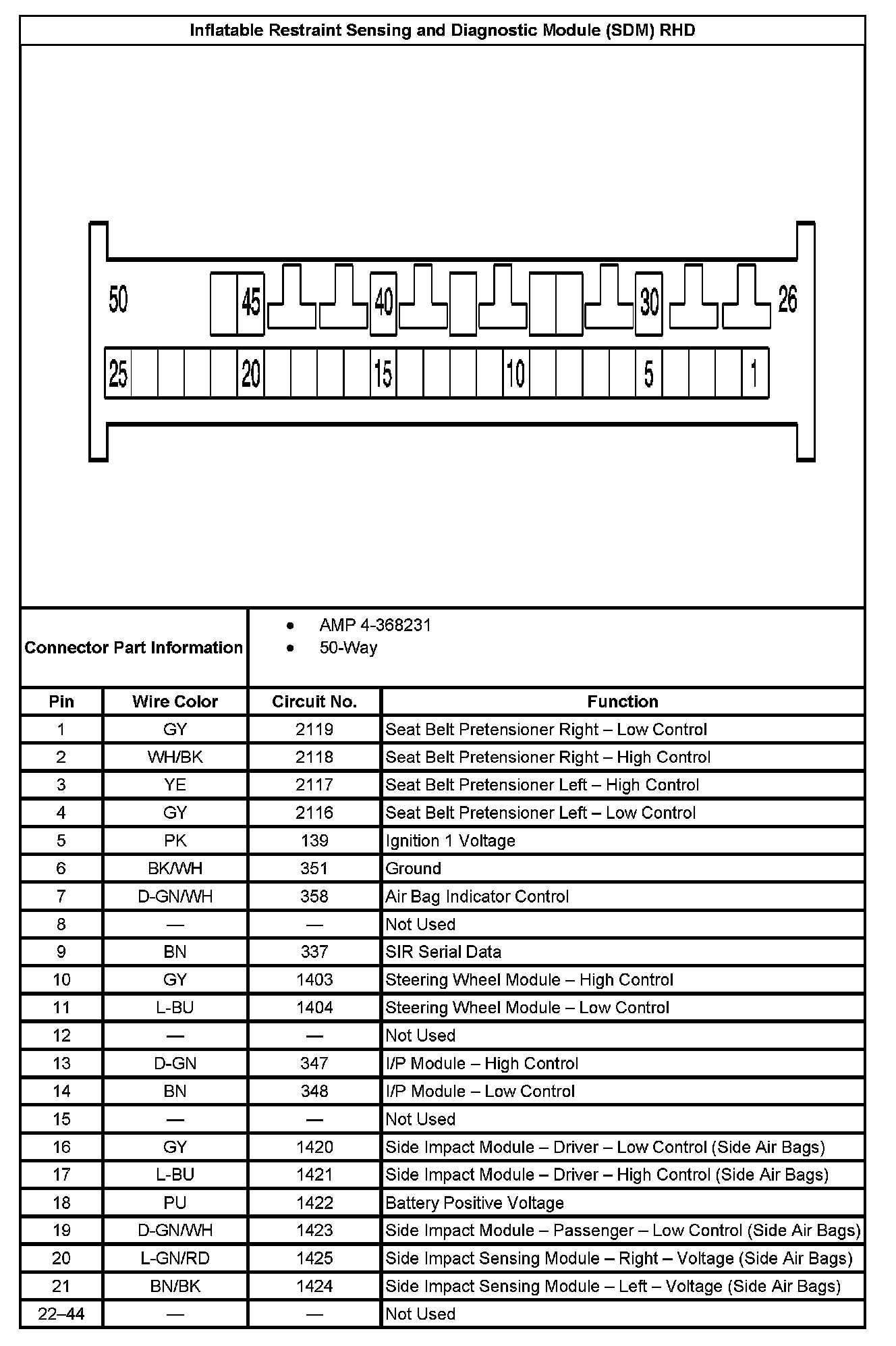

Inflatable Restraint Sensing And Diagnostic Module (SDM) RHD
Inflatable Restraint Sensing And Diagnostic Module (SDM) RHD (Part 1):
Inflatable Restraint Sensing And Diagnostic Module (SDM) RHD (Part 2):
