Removal Procedure

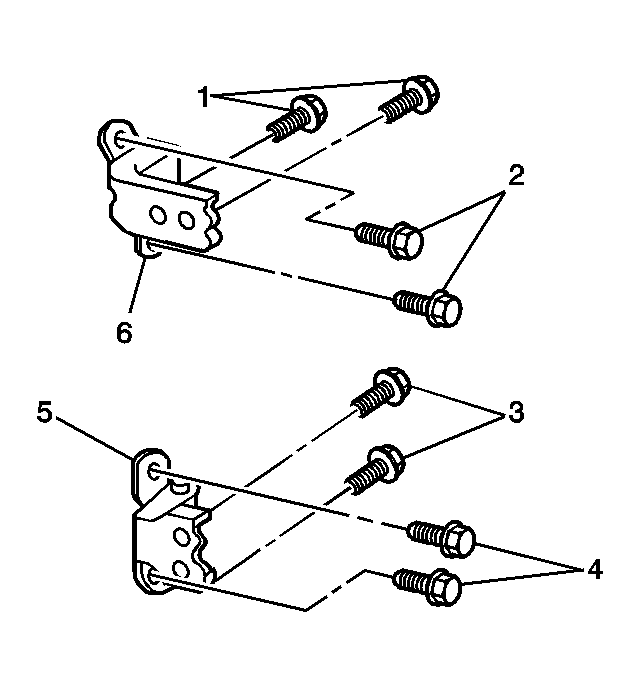

    Fig 1: Front Door Hinge And Bolts
    GM847704Courtesy of GENERAL MOTORS CORP.
  1. Remove the left fender, if necessary. Refer to Fender Replacement - Front - Left in Body Front End.
  2. Remove the right fender, if necessary. Refer to Fender Replacement - Front - Right in Body Front End.
    3. IMPORTANT: Remove only one hinge at a time in order to keep the door properly aligned.
  3. Remove the 2 door to hinge bolts (2 or 4).
  4. Remove the 2 hinge to door jamb bolts (1 or 3).
  5. Remove the upper or lower hinge (6 or 5)) from the vehicle.
