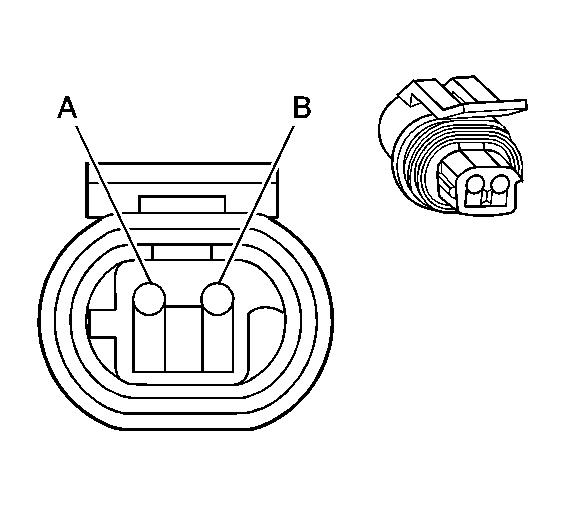

Rear Compartment Lid Release Actuator Connector End View
Rear Compartment Lid Release Actuator Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
RD/GN |
56 |
Rear Compartment Lid Release Control |
| B |
BK/BU |
650 |
Ground |
