Removal Procedure

    Fig 1: Oil Filler Cap, Right Sight Shield, MAP Sensor & Electrical Connector
    GM1464034Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil filler cap (1).
  2. Remove the right engine sight shield (2).
  3. Disconnect the manifold absolute pressure (MAP) sensor electrical connector (3).

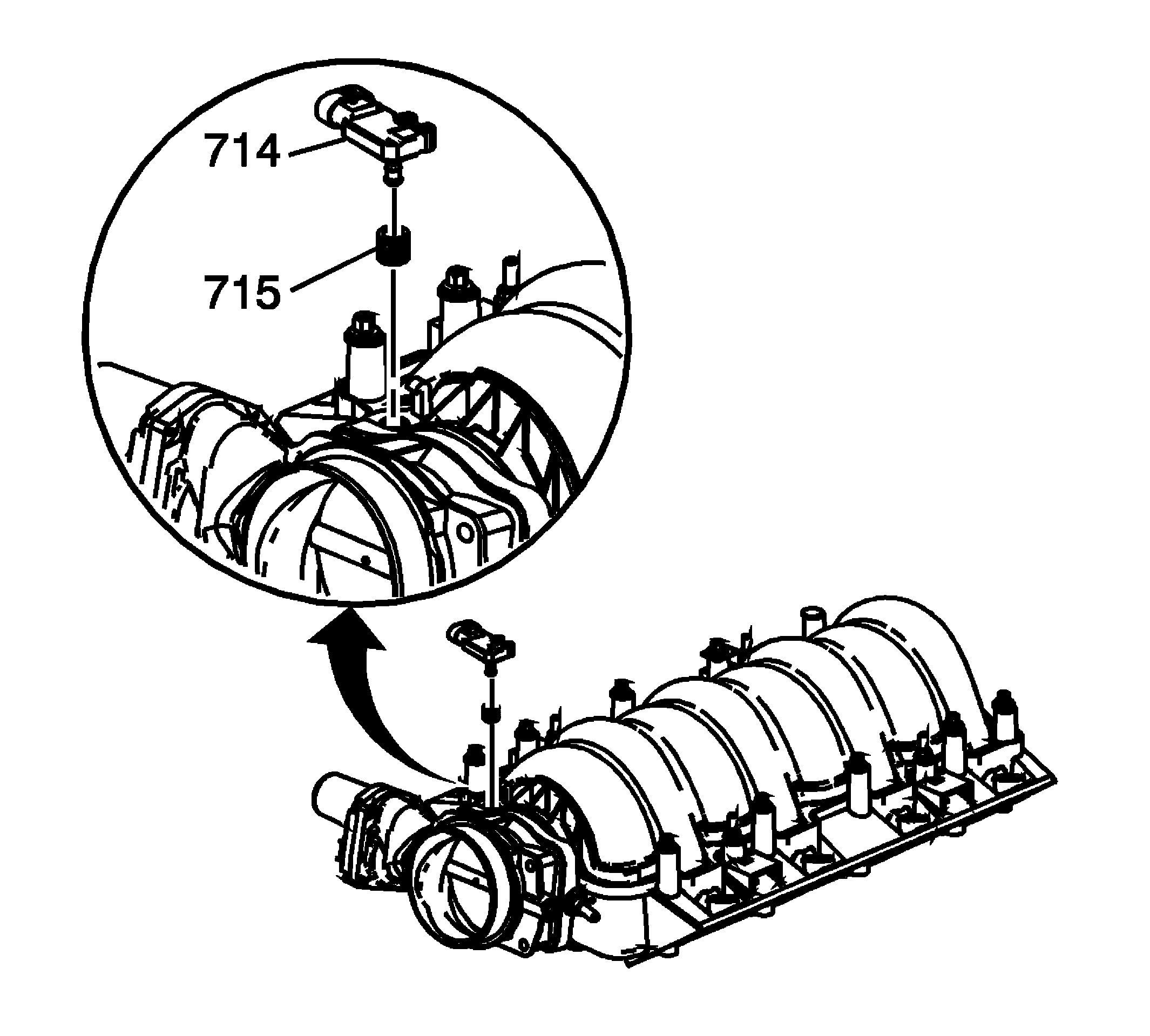

    4. Fig 2: MAP Sensor & Grommet
    GM1408858Courtesy of GENERAL MOTORS CORP.
  4. Remove the MAP sensor (714) from the intake manifold.
