Bracket Assembly Replacement - OnStar Module

BRACKET ASSEMBLY REPLACEMENT - ONSTAR MODULE

REMOVAL PROCEDURE
1. Remove the right closeout panel.
2. Remove the communication interface module.

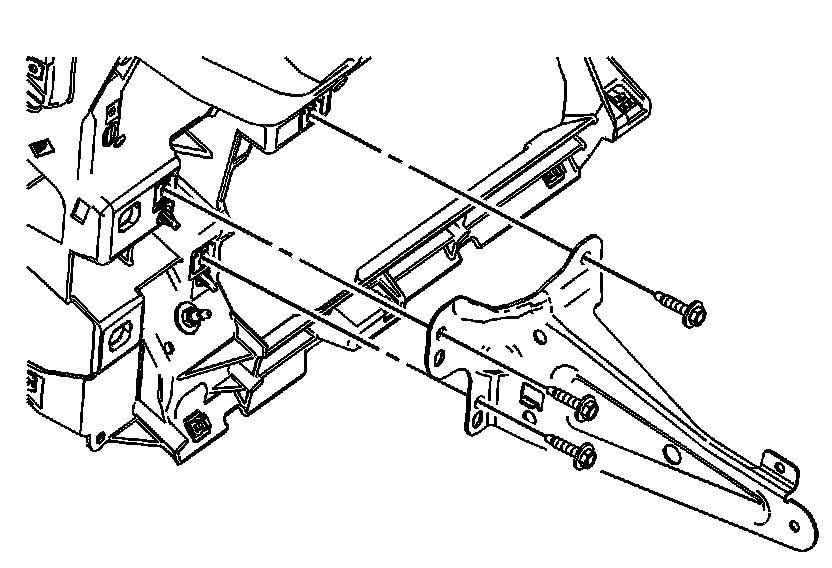

3. Remove the OnStar bracket bolts.




4. Remove the OnStar module bracket.

INSTALLATION PROCEDURE




1. Install the OnStar module bracket.
2. Tighten the OnStar bracket bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the bolts to 10 N.m (89 lb in).

3. Install the communication interface module.
4. Install the right closeout panel.
