Removal Procedure

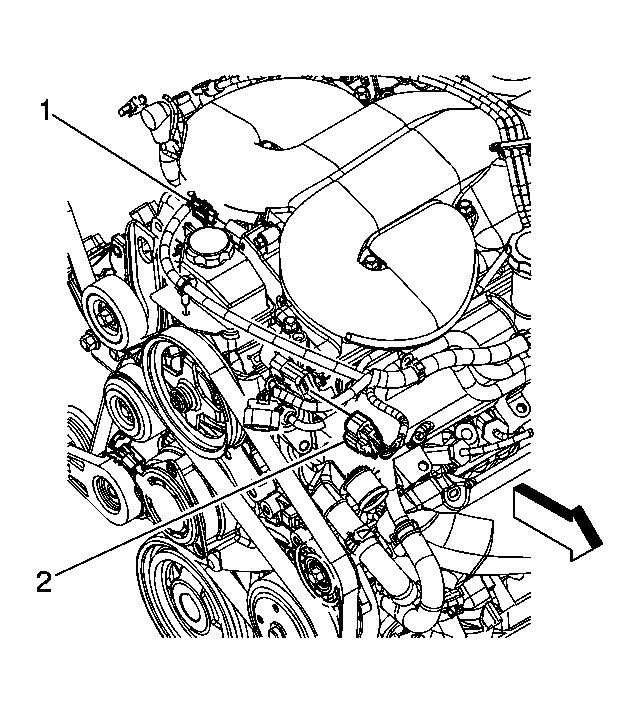

    Fig 1: View Of Intake Manifold Tuning Valve Electrical Connector
    GM1582090Courtesy of GENERAL MOTORS CORP.
  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  2. Disconnect the intake manifold tuning valve electrical connector (1).
  3. Remove the engine harness clip from the power steering reservoir bracket.
  4. Remove the power steering pump. Refer to Power Steering Pump Replacement
    5. Fig 2: Removing/Installing Intake Manifold Tuning Valve Bolts
    GM1557831Courtesy of GENERAL MOTORS CORP.
  5. Remove the intake manifold tuning valve bolts.
  6. Remove the intake manifold tuning valve.
