Engine Controls Schematics

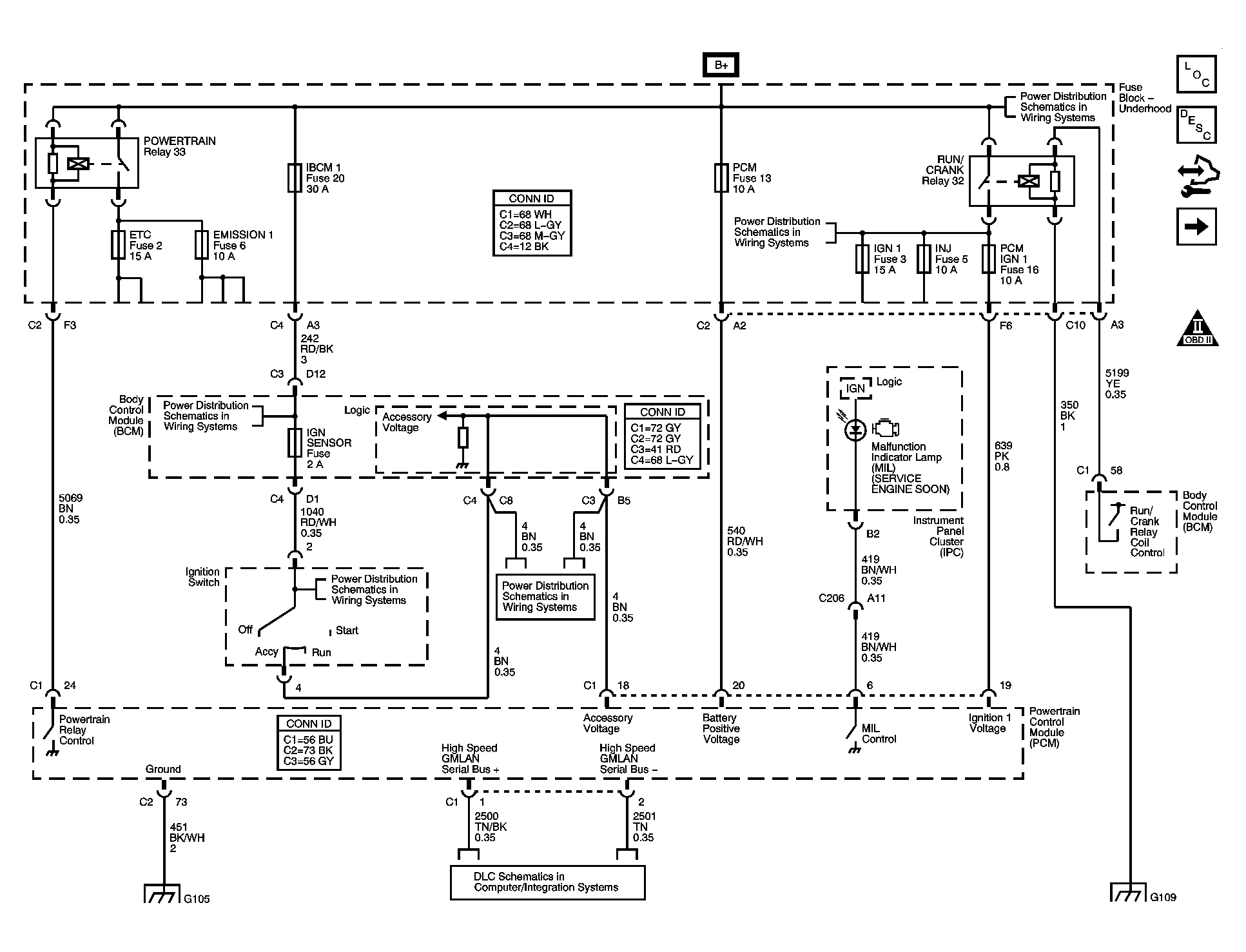

Fig 1: DLC, Ground, MIL and Power

GM1615865

Courtesy of GENERAL MOTORS CORP.

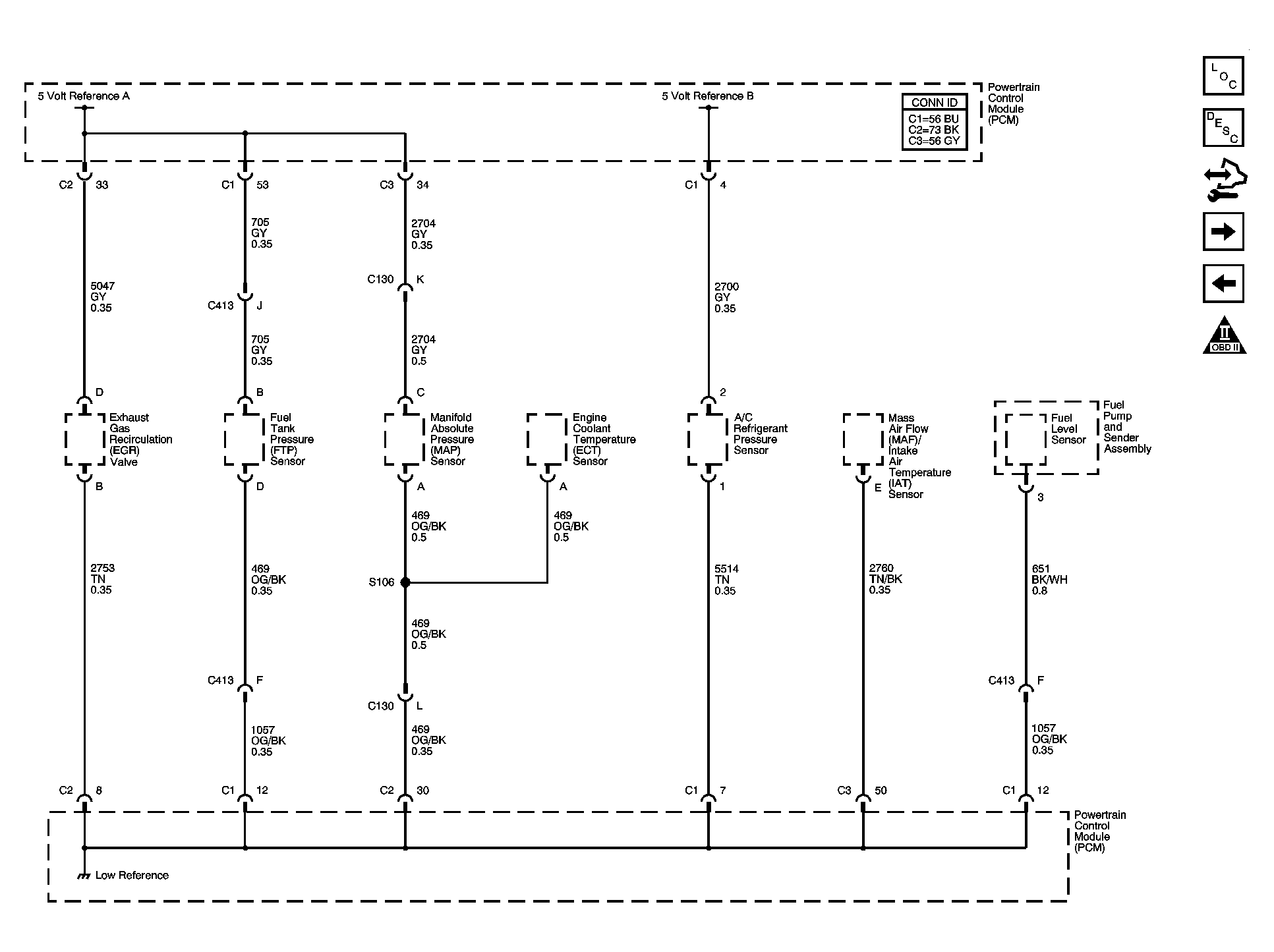

Fig 2: 5-Volt and Low References

GM1615868

Courtesy of GENERAL MOTORS CORP.

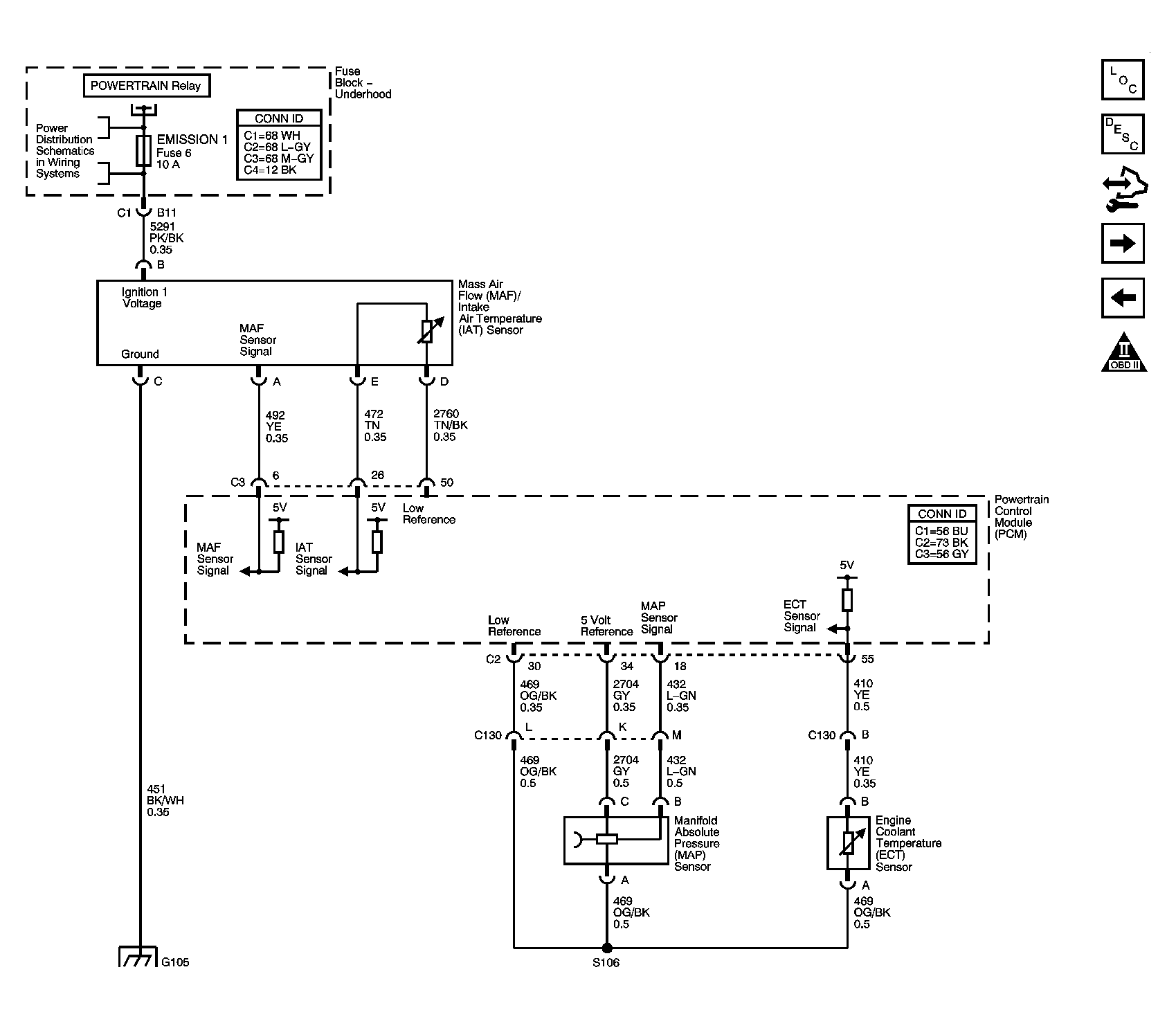

Fig 3: ECT, MAF and MAP Sensors

GM1615870

Courtesy of GENERAL MOTORS CORP.

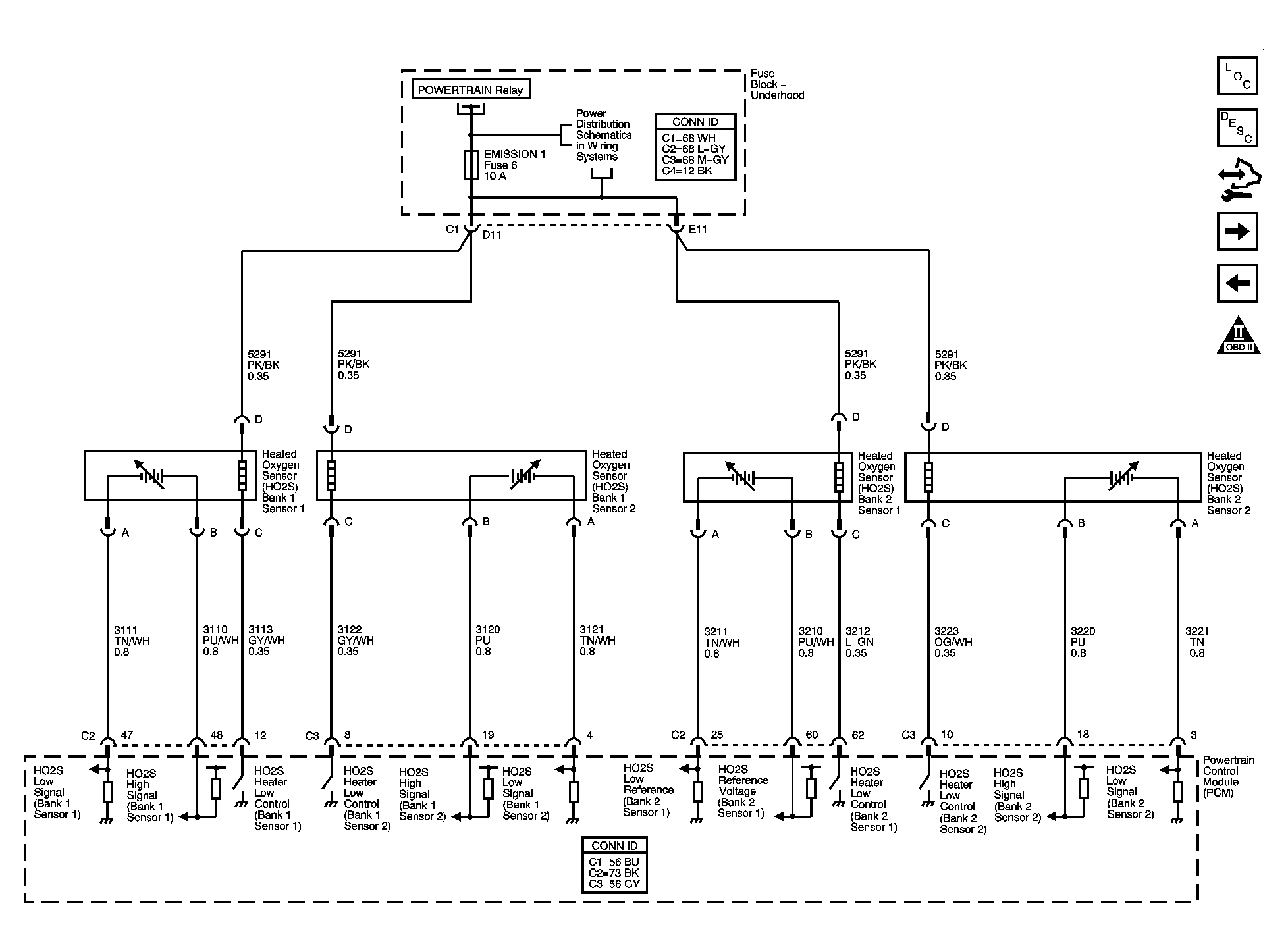

Fig 4: Heated Oxygen Sensors

GM1615873

Courtesy of GENERAL MOTORS CORP.

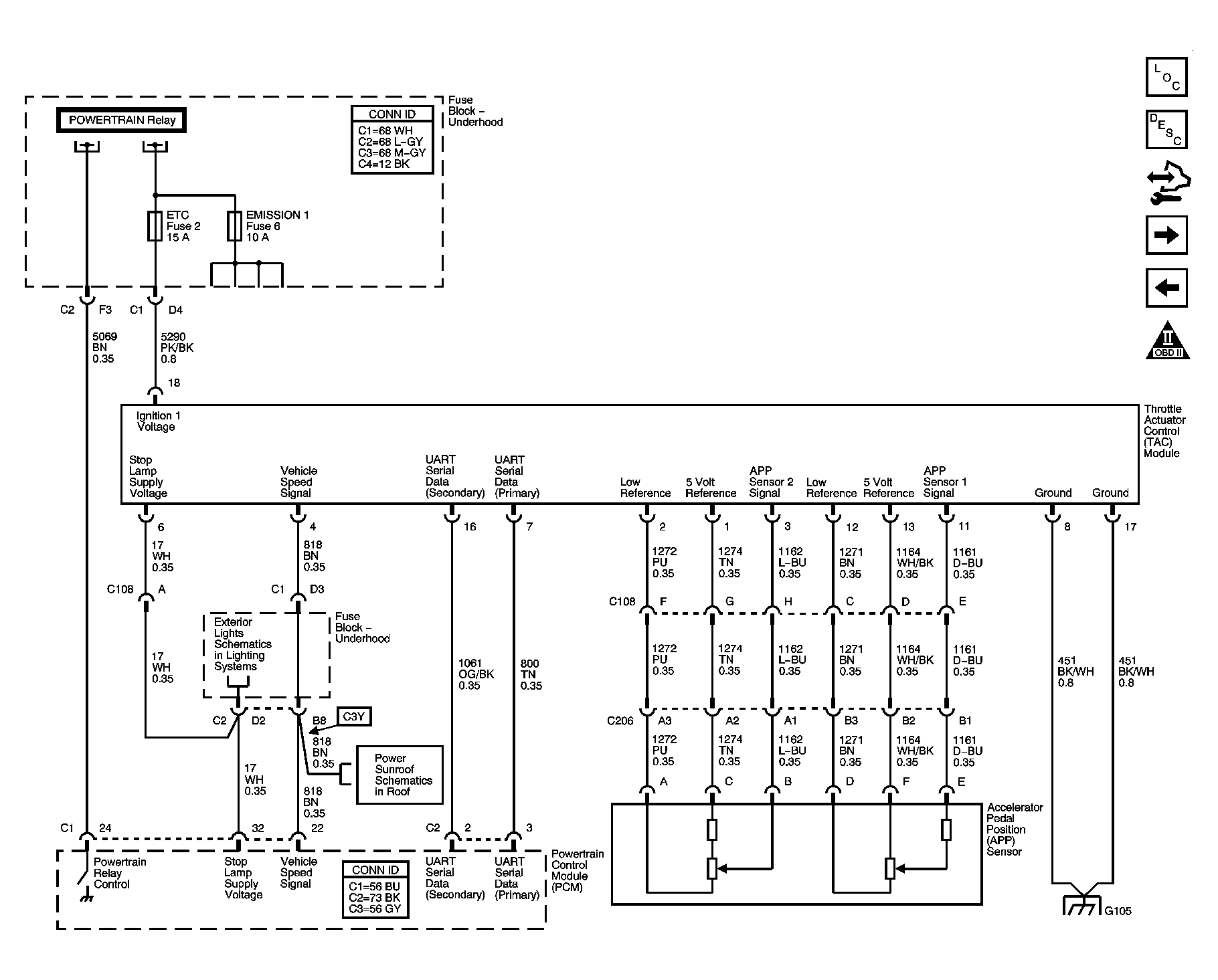

Fig 5: Electronic Throttle Controls

GM1615876

Courtesy of GENERAL MOTORS CORP.

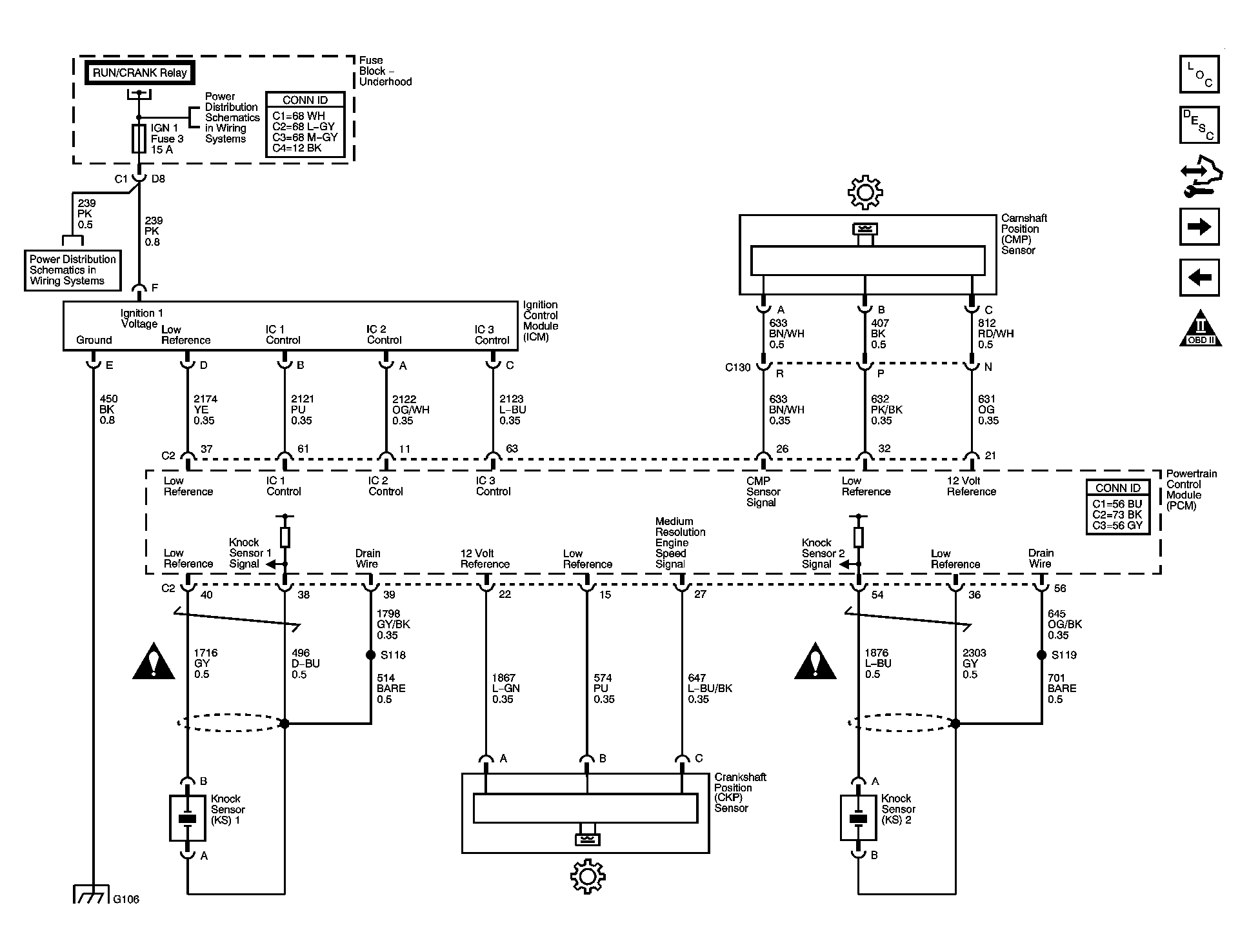

Fig 6: Ignition System

GM1615877

Courtesy of GENERAL MOTORS CORP.

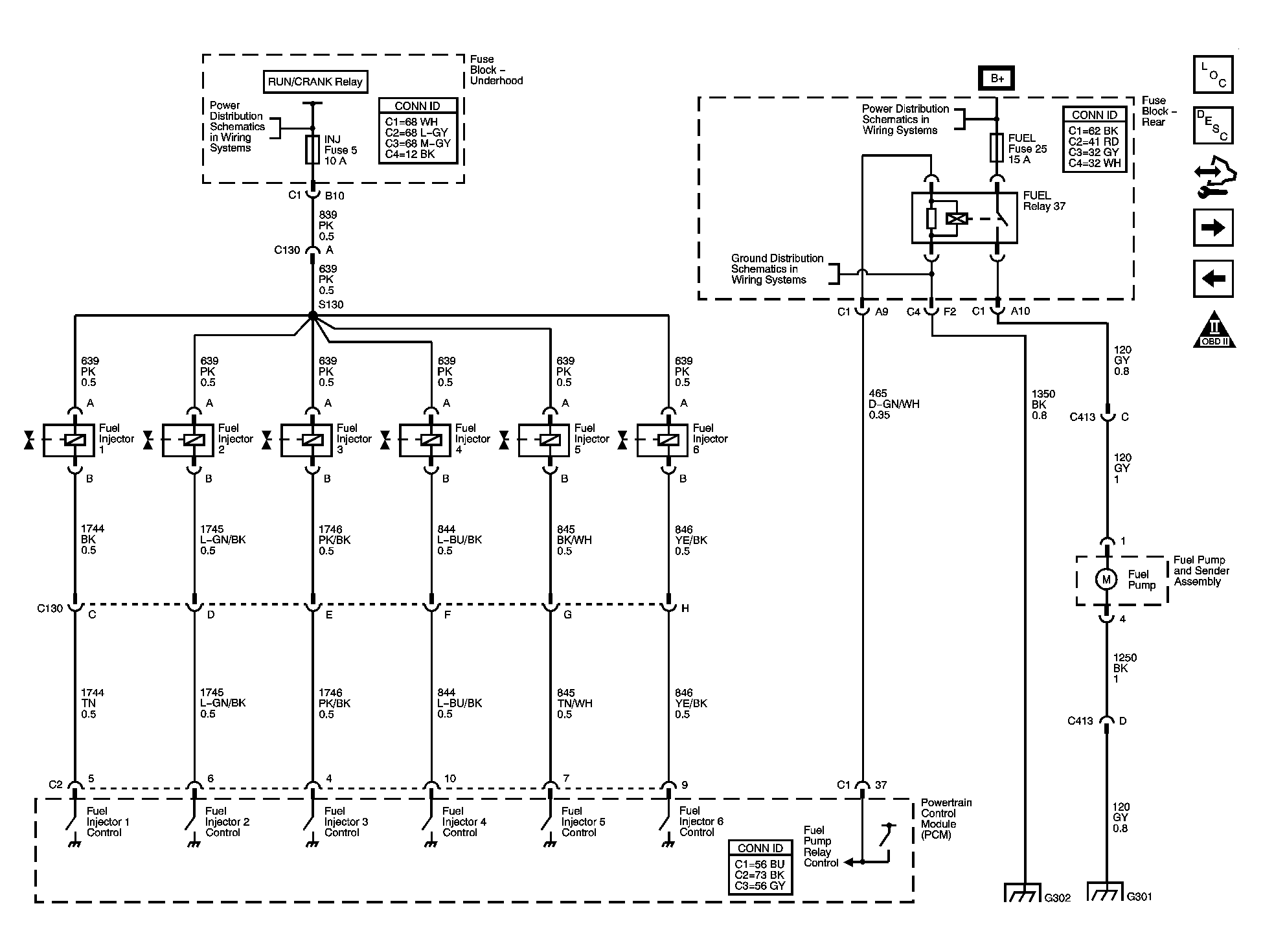

Fig 7: Fuel Injectors and Fuel Pump

GM1615878

Courtesy of GENERAL MOTORS CORP.

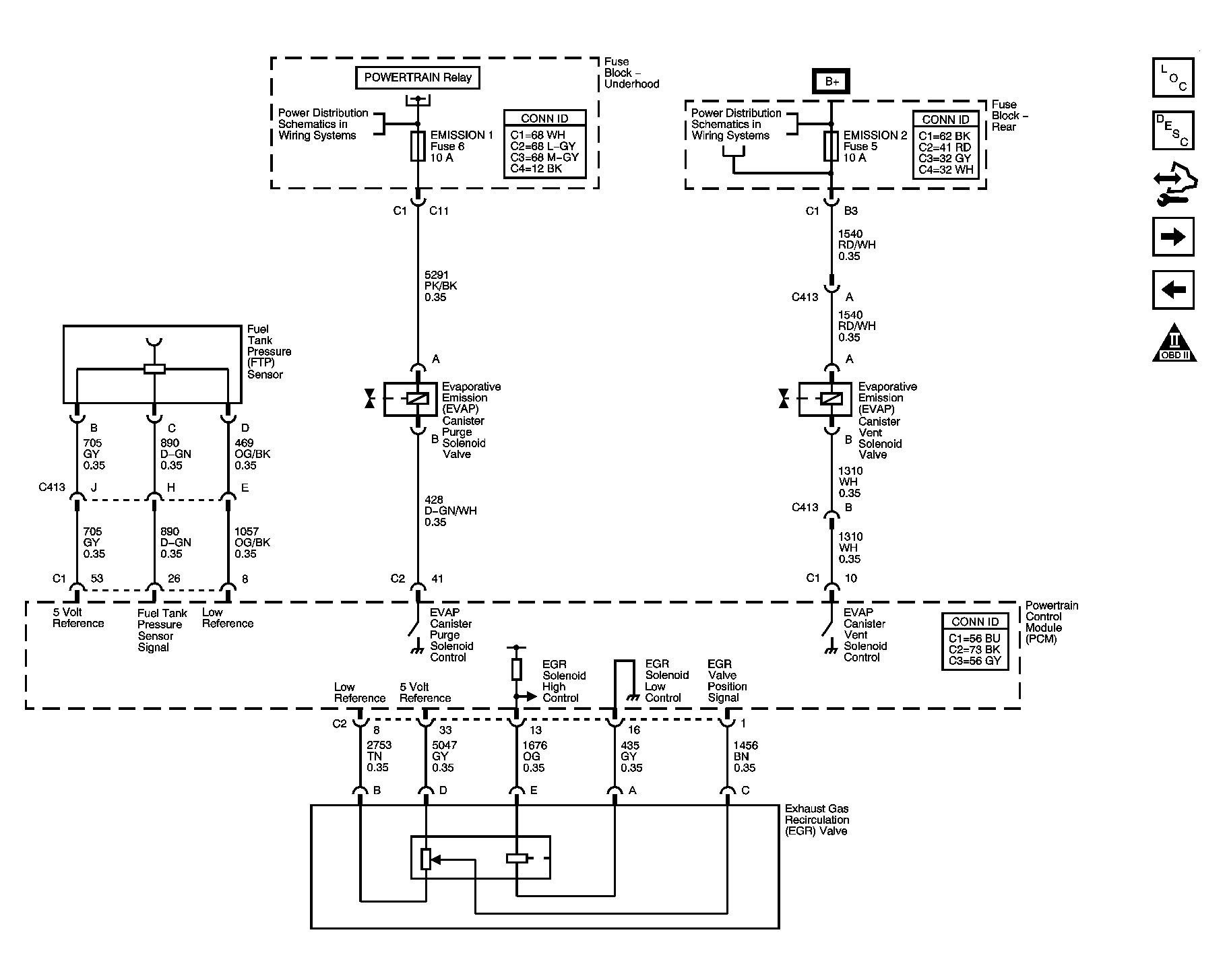

Fig 8: EGR, EVAP Controls and FTP Sensor

GM1615880

Courtesy of GENERAL MOTORS CORP.

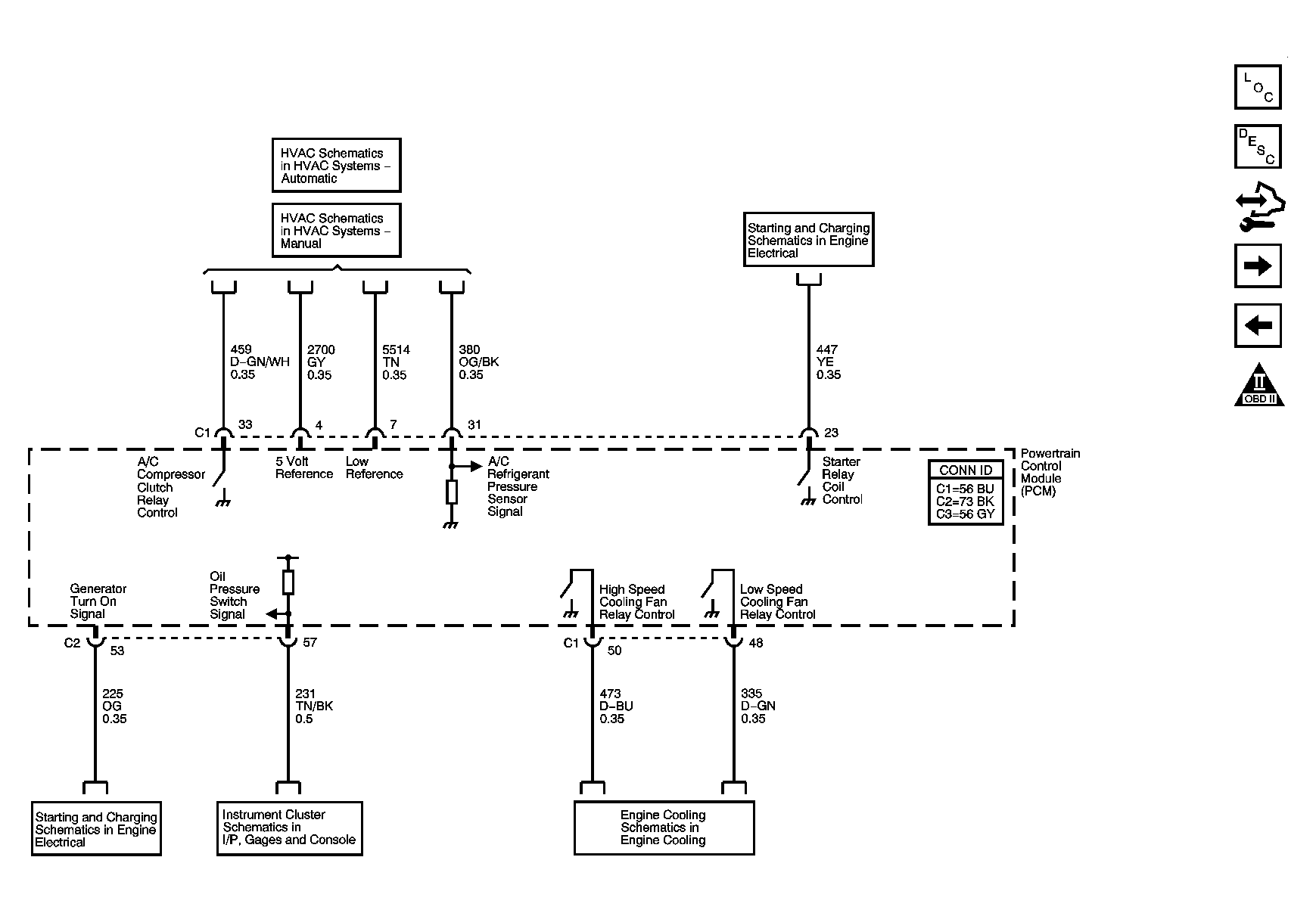

Fig 9: Controlled/Monitored Subsystem References

GM1615882

Courtesy of GENERAL MOTORS CORP.

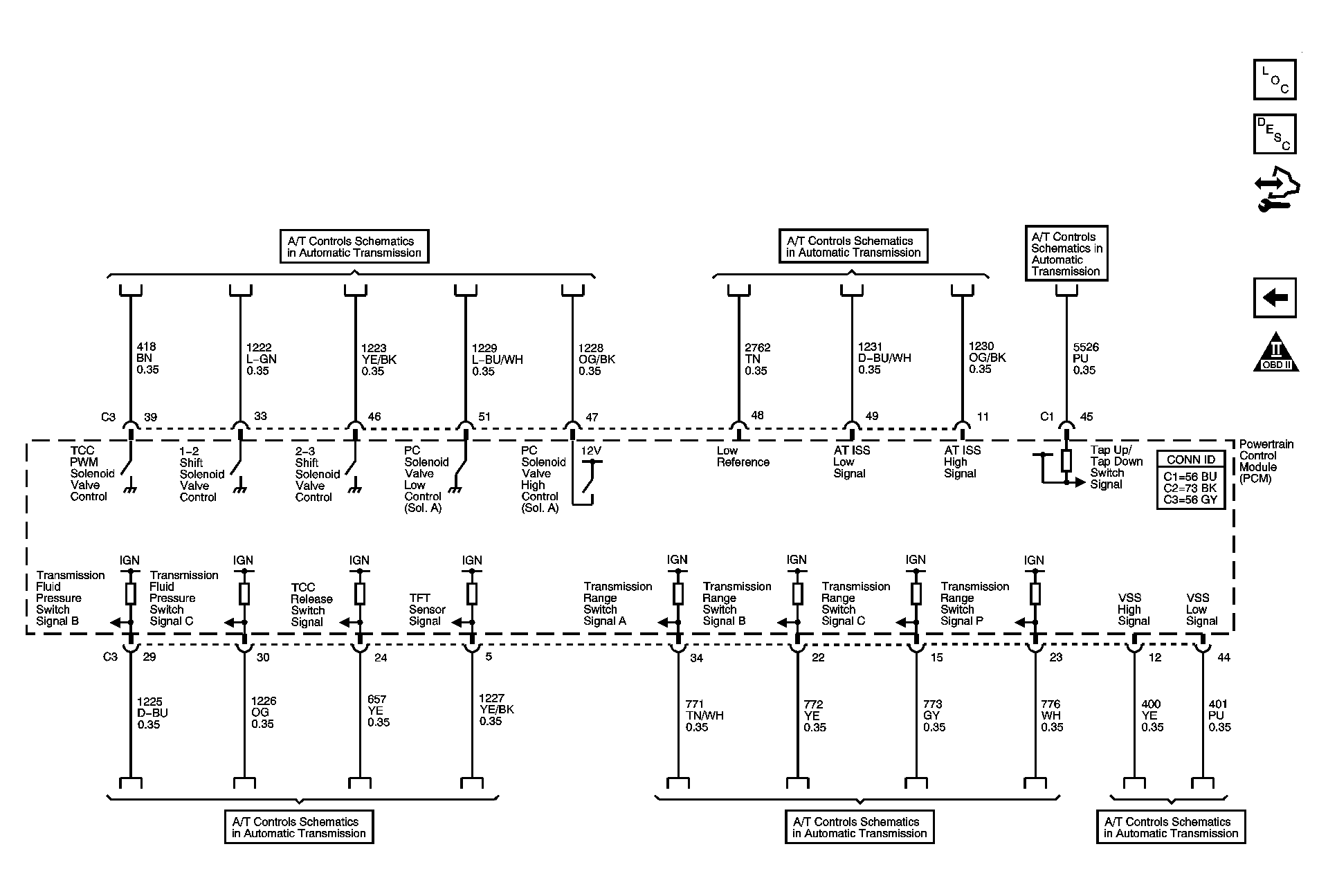

Fig 10: Transmission Control References

GM1615884

Courtesy of GENERAL MOTORS CORP.
