Differential Assembly

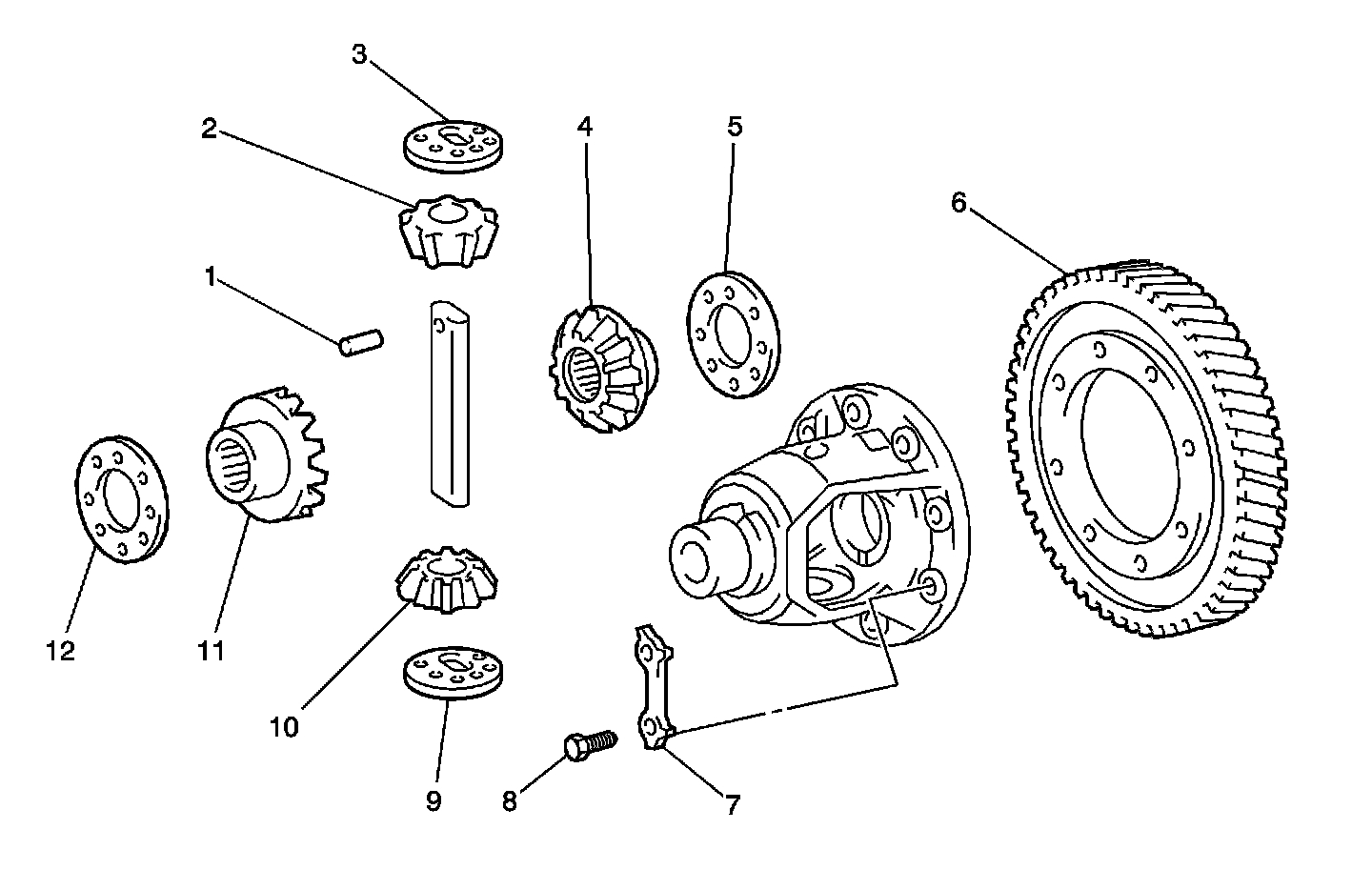

Differential Assembly





1 - Front Differential Pinion Shaft Pin
2 - Front Differential Pinion Gear
3 - Front Differential Pinion Thrust Washer
4 - Front Differential Side Gear
5 - Front Differential Side Gear Thrust Washer
6 - Ring Gear
7 - Ring Gear Set Bolt Lock Plate
8 - Bolt
9 - Front Differential Pinion Thrust Washer
10 - Front Differential Pinion Gear
11 - Front Differential Side Gear
12 - Front Differential Side Gear Thrust Washer
