Removal Procedure

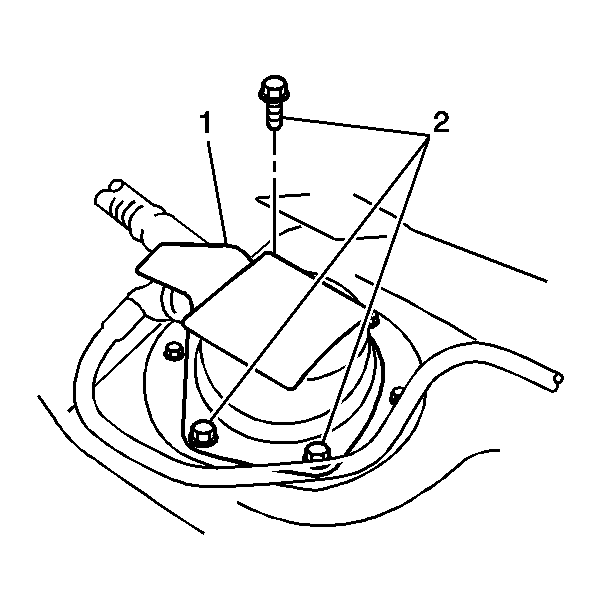

Fig 1: FLVV Cover And Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the fuel tank. Refer to Fuel Tank Replacement (FWD) or Fuel Tank Replacement (AWD) .
Remove the three bolts (2) and the FLVV cover (1) from the fuel tank.
Disconnect the two EVAP lines from the FLVV.

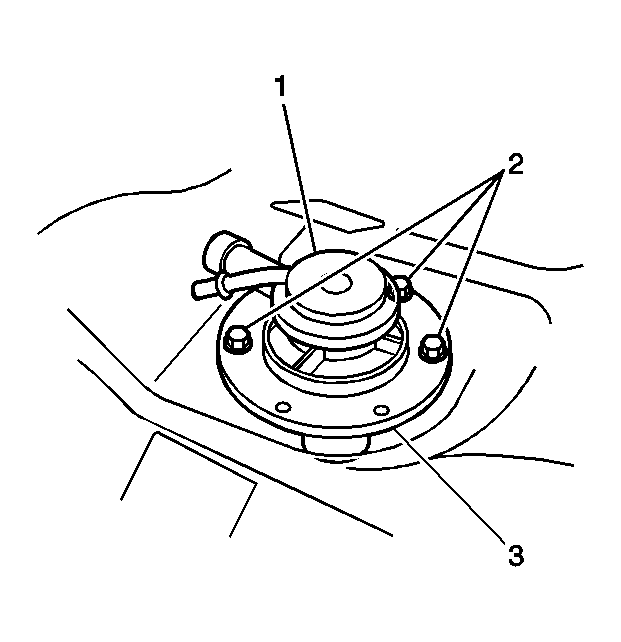

Fig 2: FLVV, Gasket And Bolts (AWD)

Courtesy of GENERAL MOTORS CORP.

Remove the three bolts (2) and the FLVV (1) and gasket (3) from the fuel tank.
