Transmission Control Systems
Automatic Transmission External Component Connector End Views
Overdrive Switch Connector End View:
Overdrive Switch
Park/Neutral Position (PNP) Switch Connector End View:
Park/Neutral Position (PNP) Switch
Shiftlock Control Module Connector End View:
Shiftlock Control Module

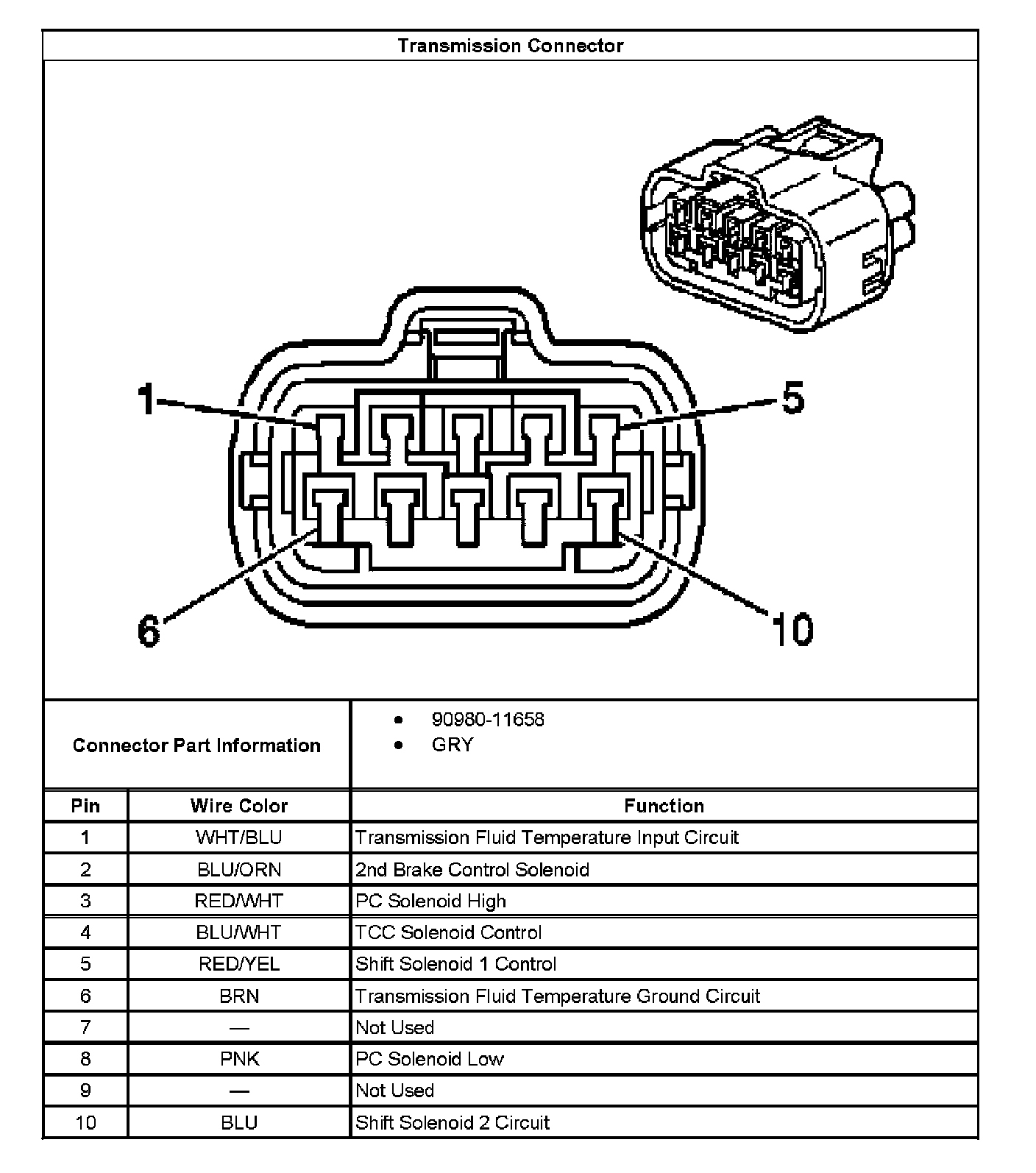

Transmission Connector Connector End View:
Transmission Connector
Vehicle Speed Sensor (VSS) Connector End View:
Vehicle Speed Sensor (VSS)
