Power Window Schematics

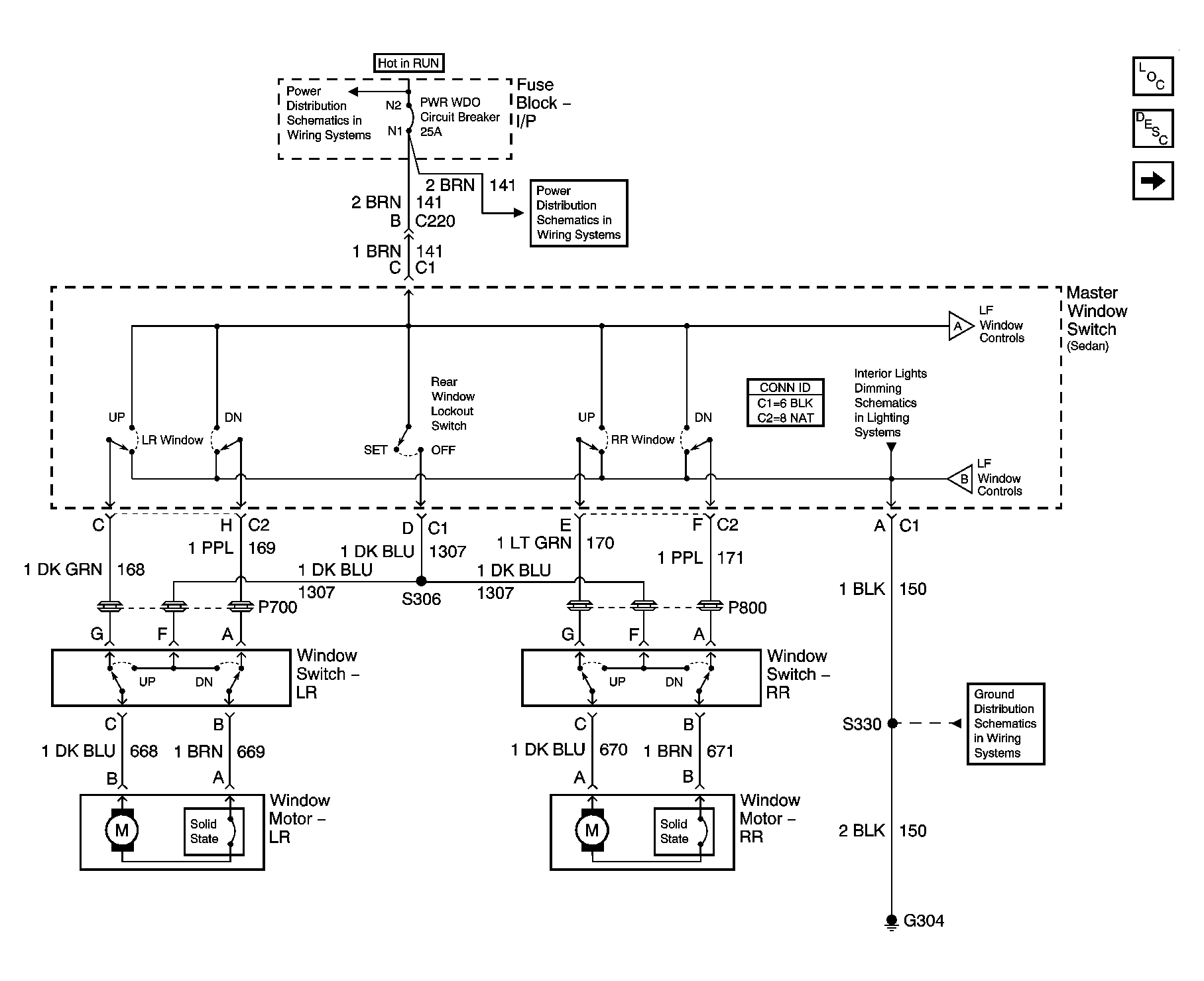

Fig 1: Power, Ground and Window Controls Schematic - Sedan

Courtesy of GENERAL MOTORS CORP.

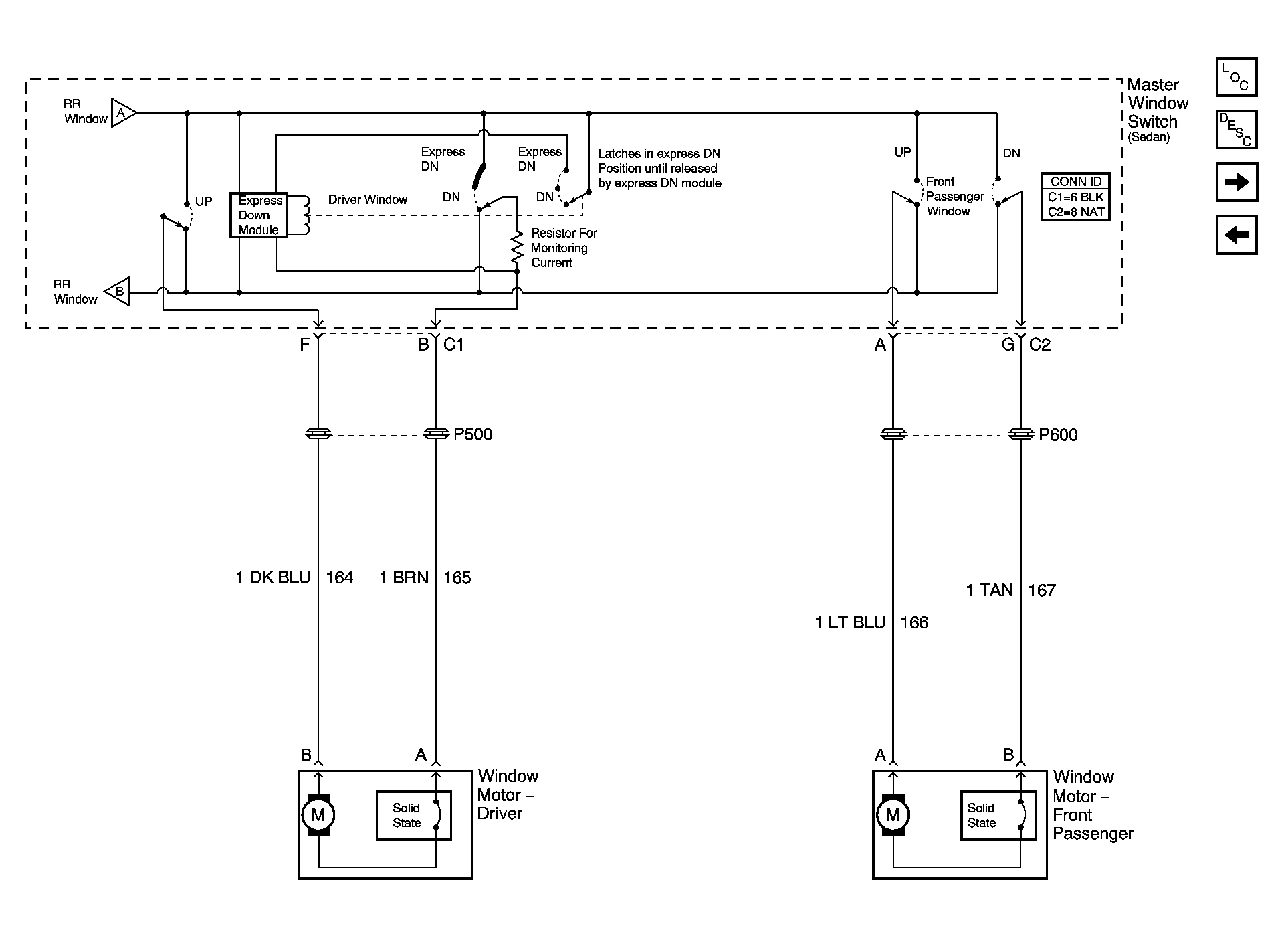

Fig 2: Front Window Controls Schematic - Sedan

Courtesy of GENERAL MOTORS CORP.

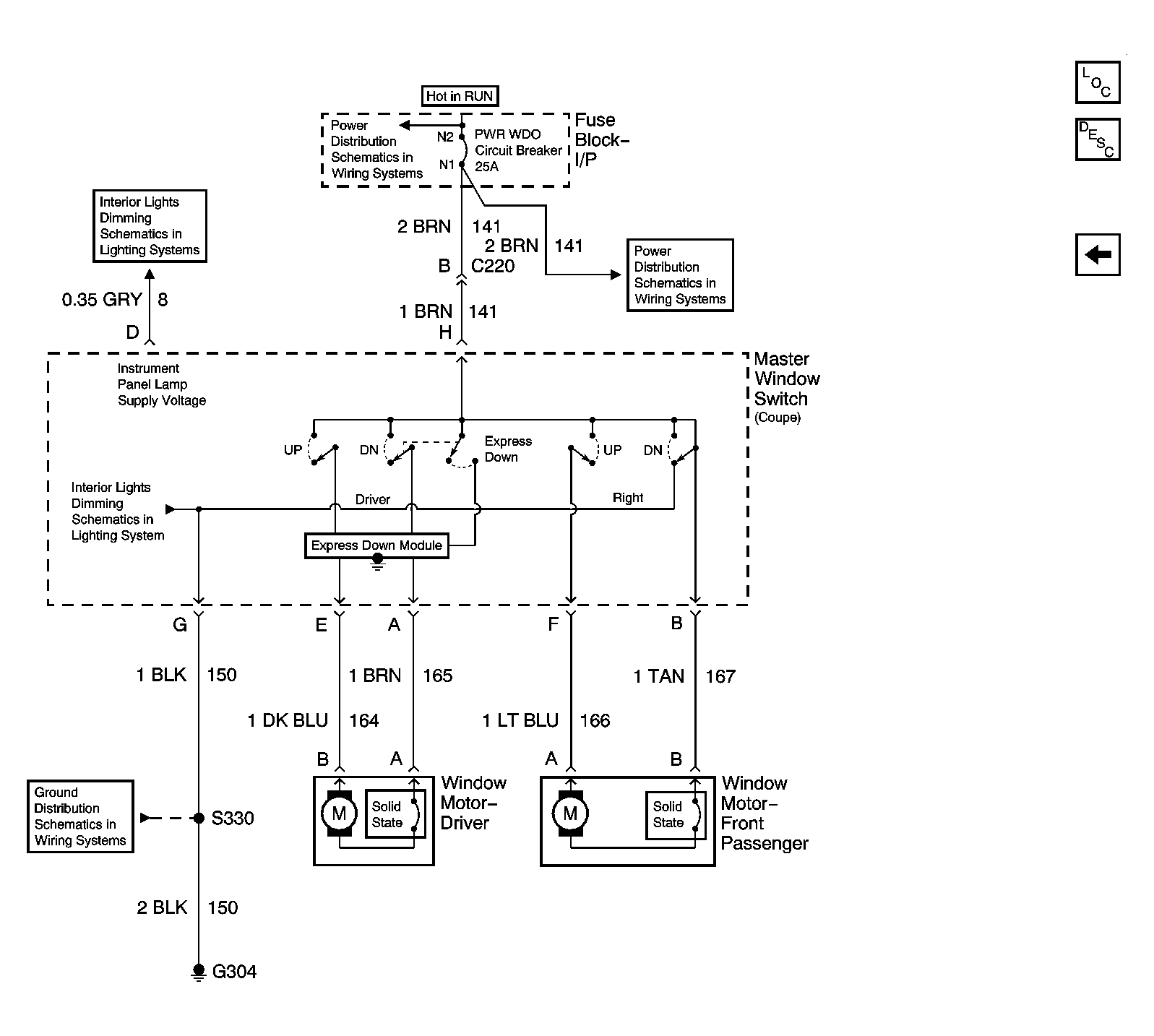

Fig 3: Window Controls Schematic - Coupe

Courtesy of GENERAL MOTORS CORP.
