Door Lock/Indicator Schematics

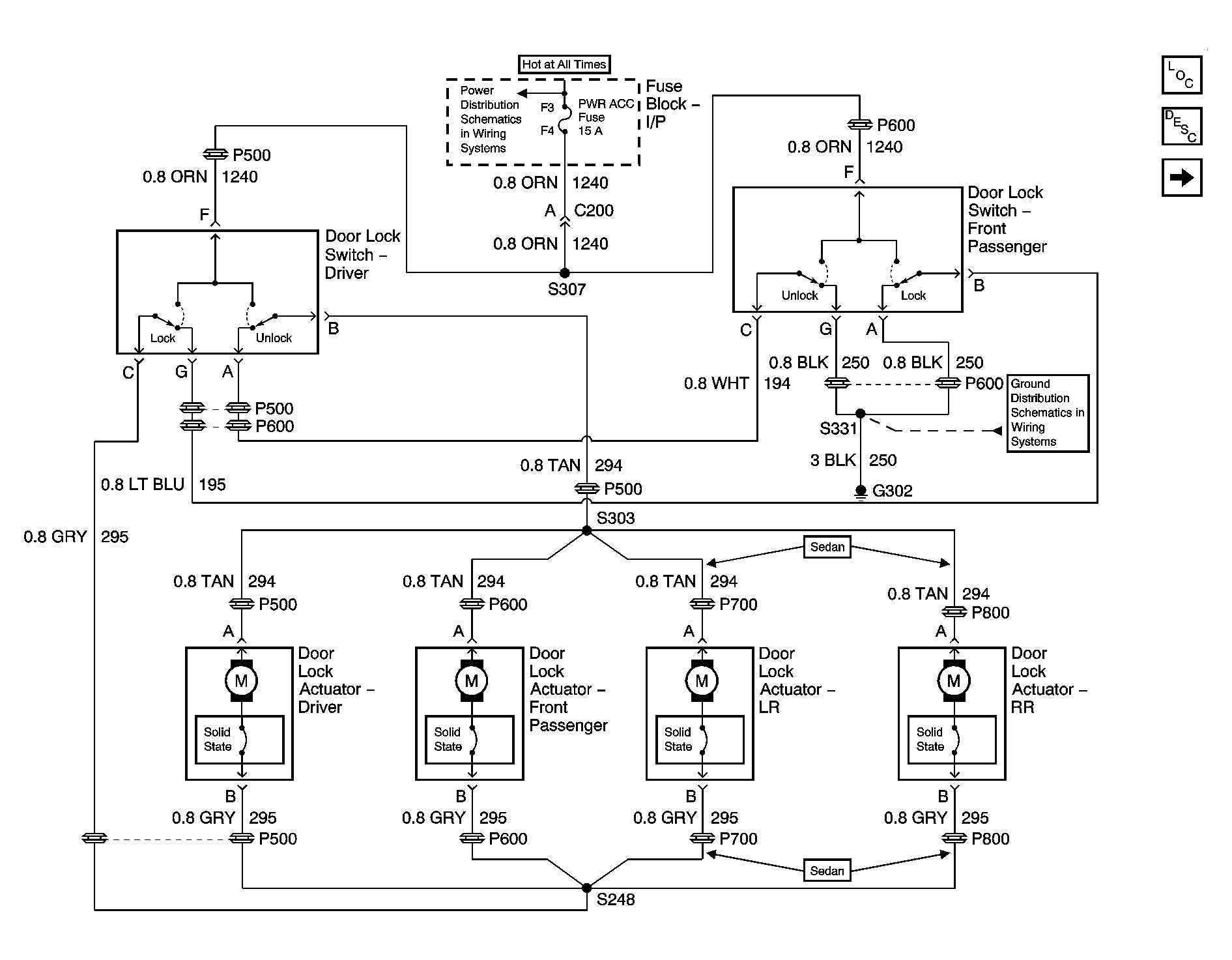

Fig 1: Door Lock Schematic - Sedan w/o AUO

Courtesy of GENERAL MOTORS CORP.

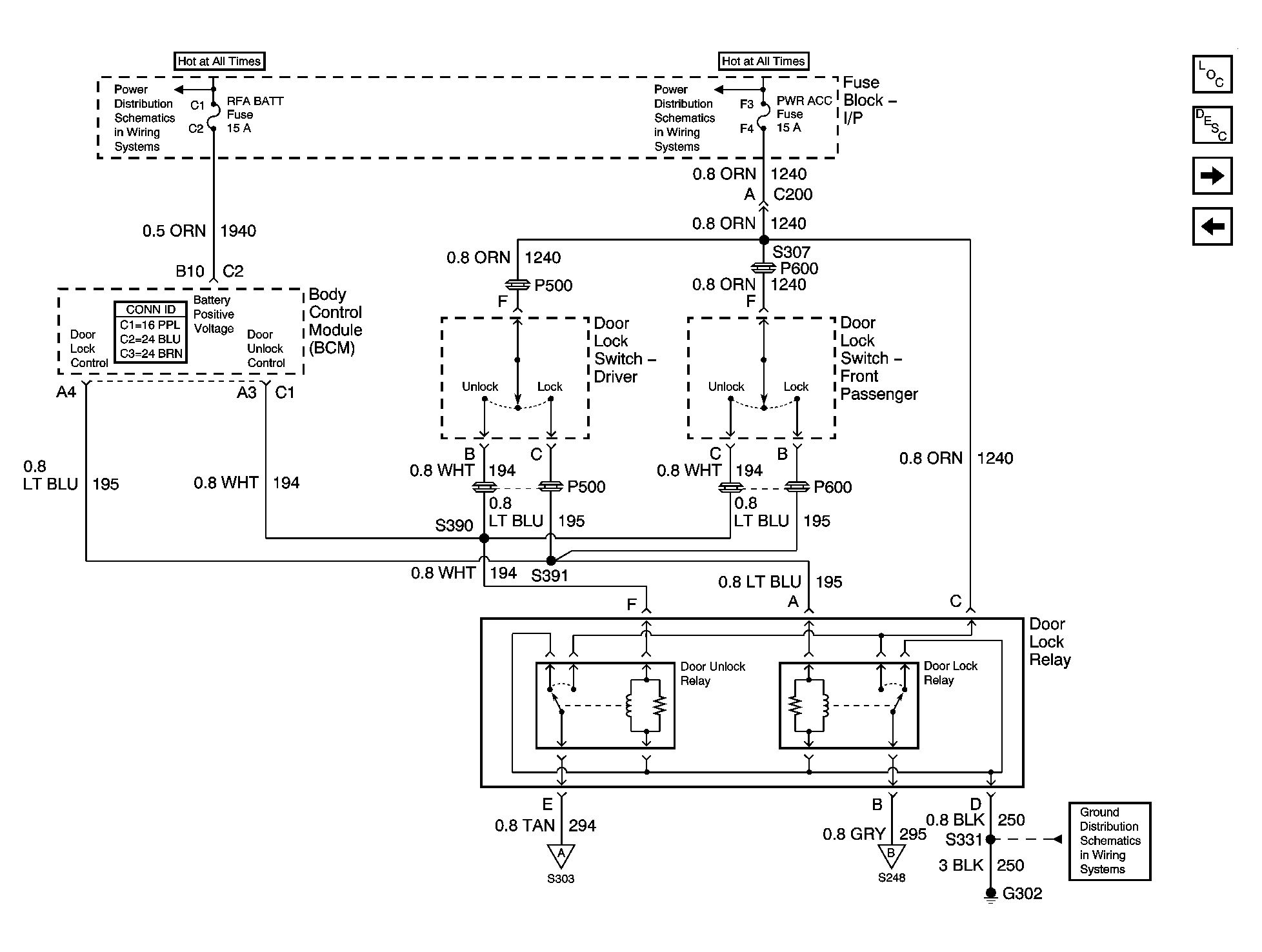

Fig 2: Switches and Controls Schematic - w/AUO

Courtesy of GENERAL MOTORS CORP.

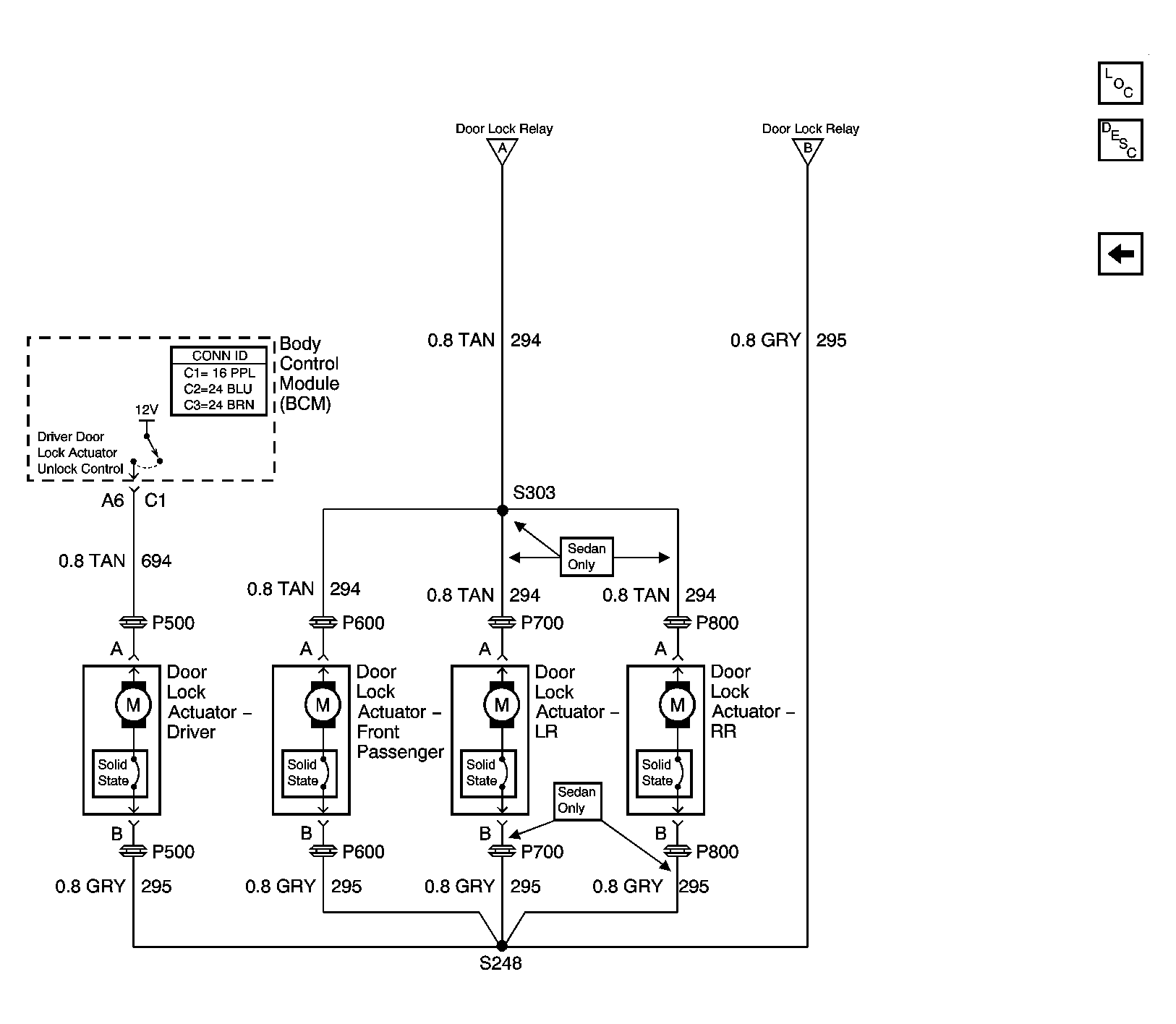

Fig 3: Door Lock Motors Schematic - w/AUO

Courtesy of GENERAL MOTORS CORP.
