Installation Procedure

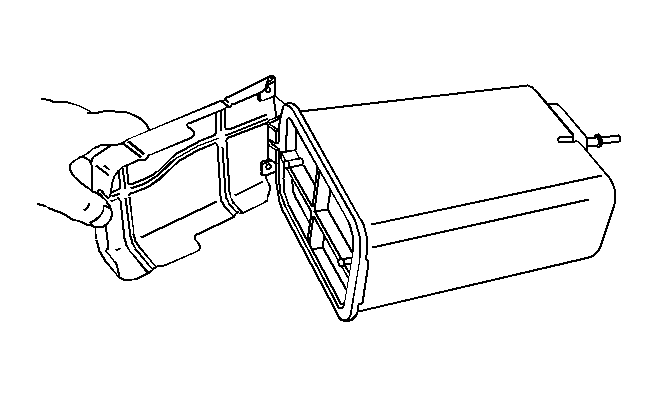

    Fig 1: View Of EVAP Canister Retainer
    GM102414Courtesy of GENERAL MOTORS CORP.
  1. Snap the EVAP canister retainer onto the EVAP canister.

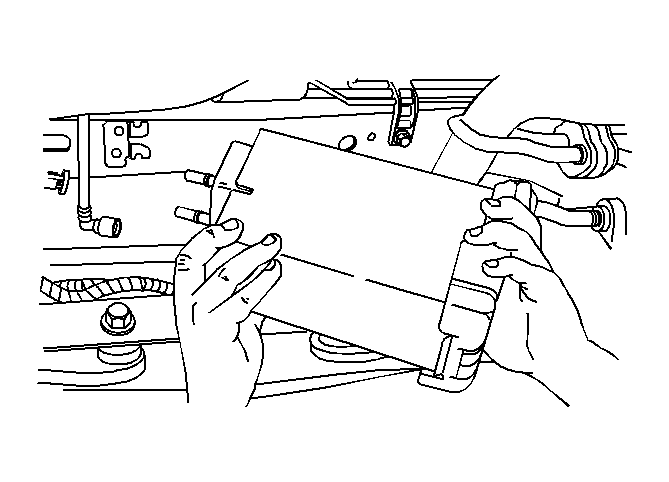

    2. Fig 2: Supporting EVAP Canister & Retainer
    GM102409Courtesy of GENERAL MOTORS CORP.
  2. Install the end of the EVAP canister into the tab on the body.

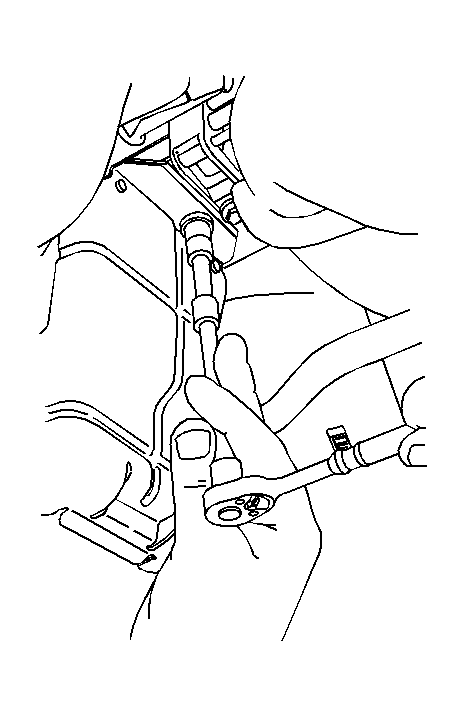

    3. Fig 3: Identifying EVAP Canister Retainer Bolt
    GM102405Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the attaching bolt to the EVAP canister retainer.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

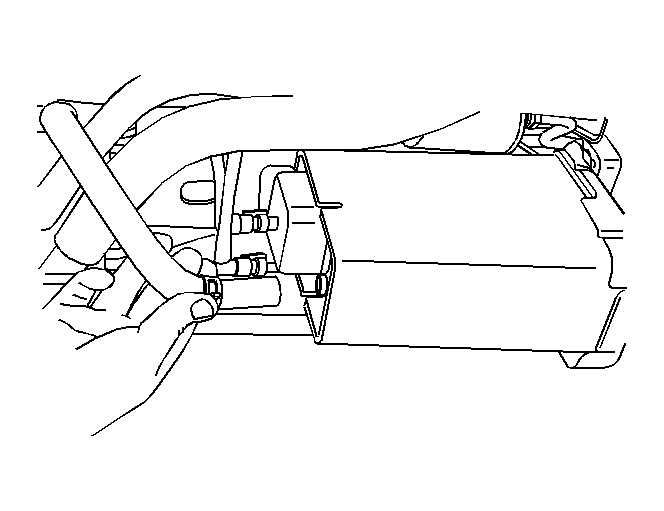

    4. Fig 4: View Of Evaporative Emissions (EVAP) Canister Hoses
    GM102404Courtesy of GENERAL MOTORS CORP.
  4. Reconnect the hoses to the EVAP canister.
  5. Lower the vehicle.
