Electronic Brake Control Module: Locations

Hydraulic Brakes Component Views

Rear of the Engine Compartment:

Rear of the Engine Compartment

1 - Brake Fluid Level Switch
2 - Brake Fluid Pressure Sensor (JL4)
3 - Brake Pressure Modulator Valve (BPMV)
4 - Electronic Brake Control Module (EBCM)

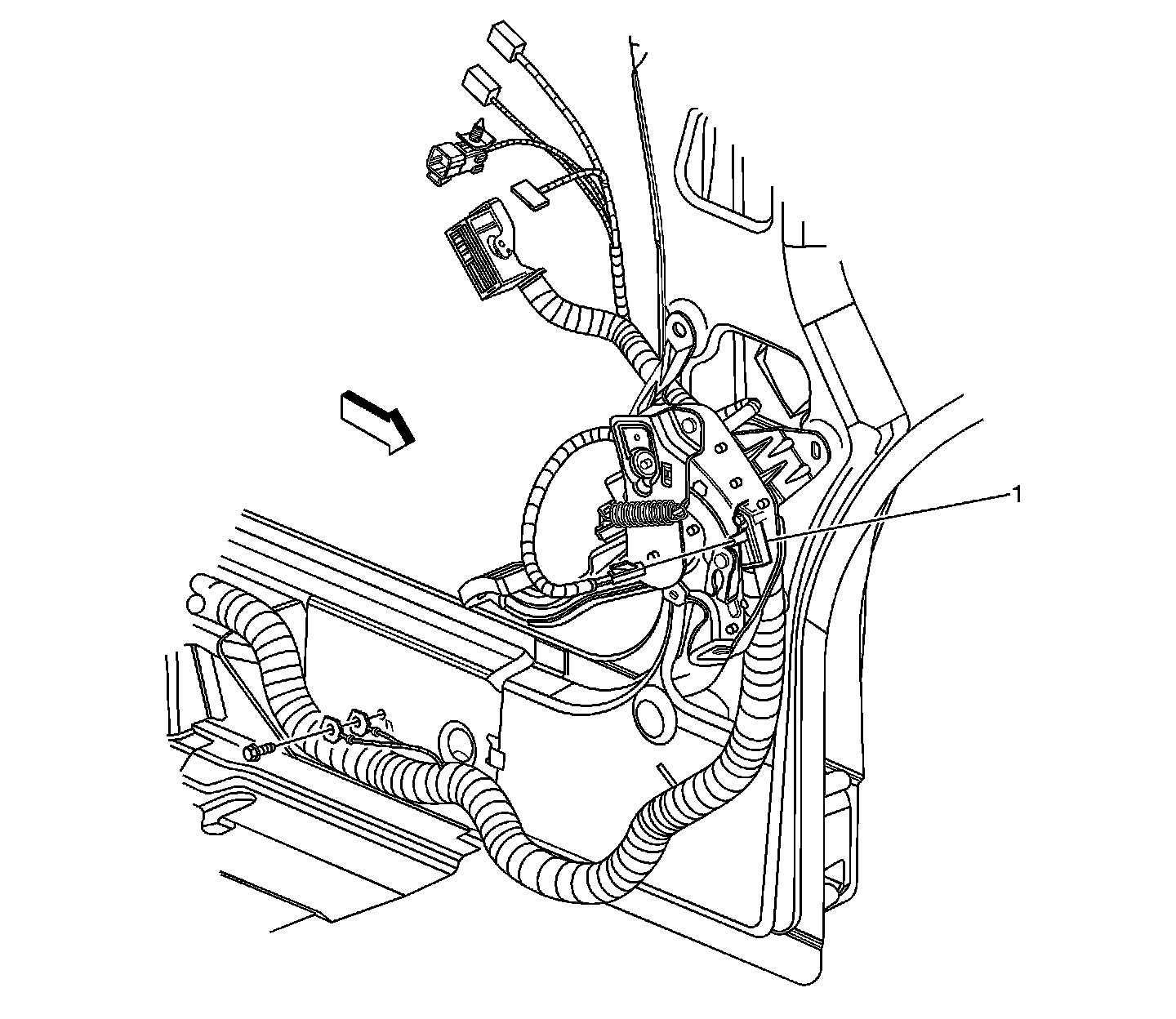

Left Front of the Passenger Compartment

1 - Park Brake Switch
