Engine Controls Schematics

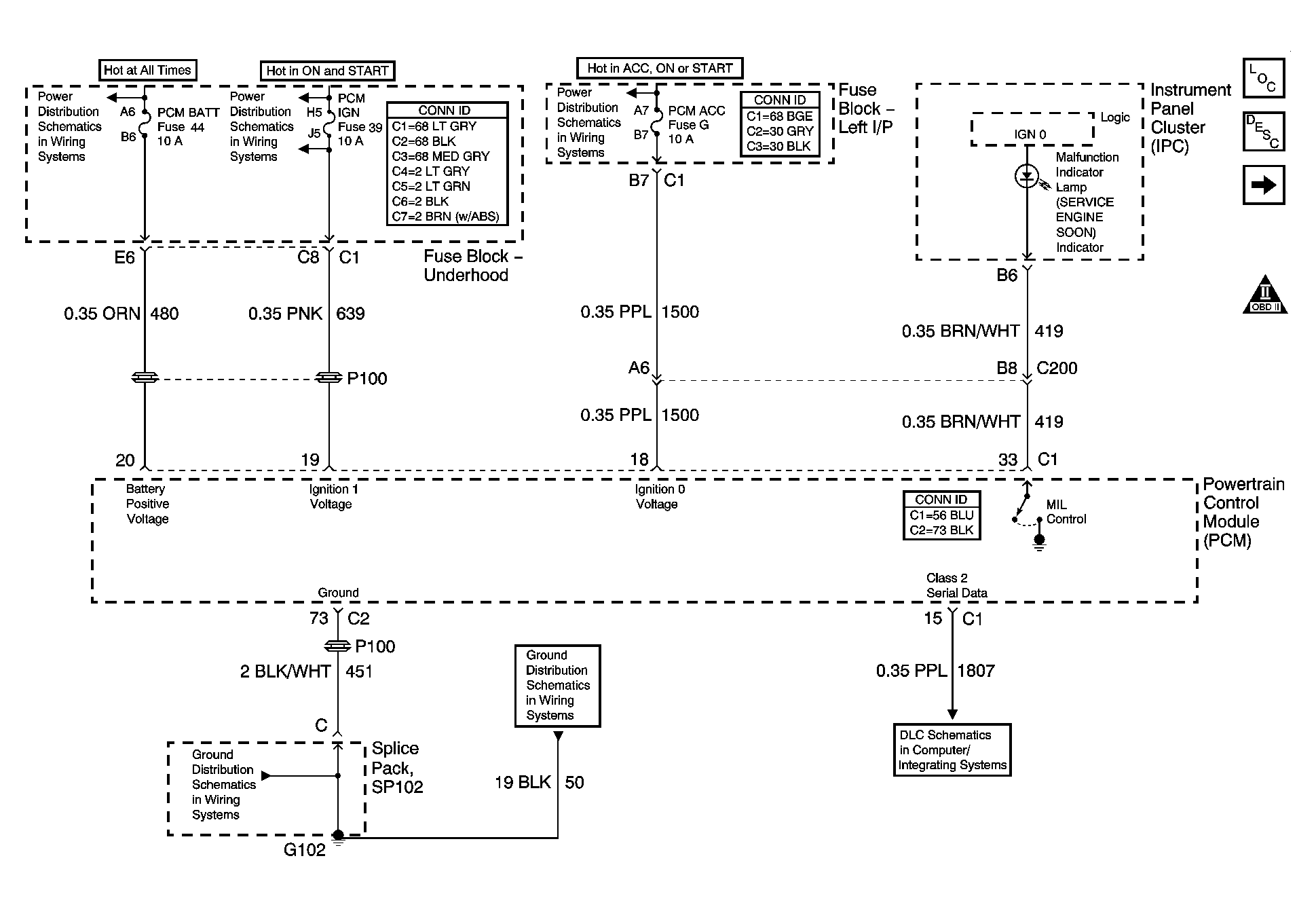

Fig 1: Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

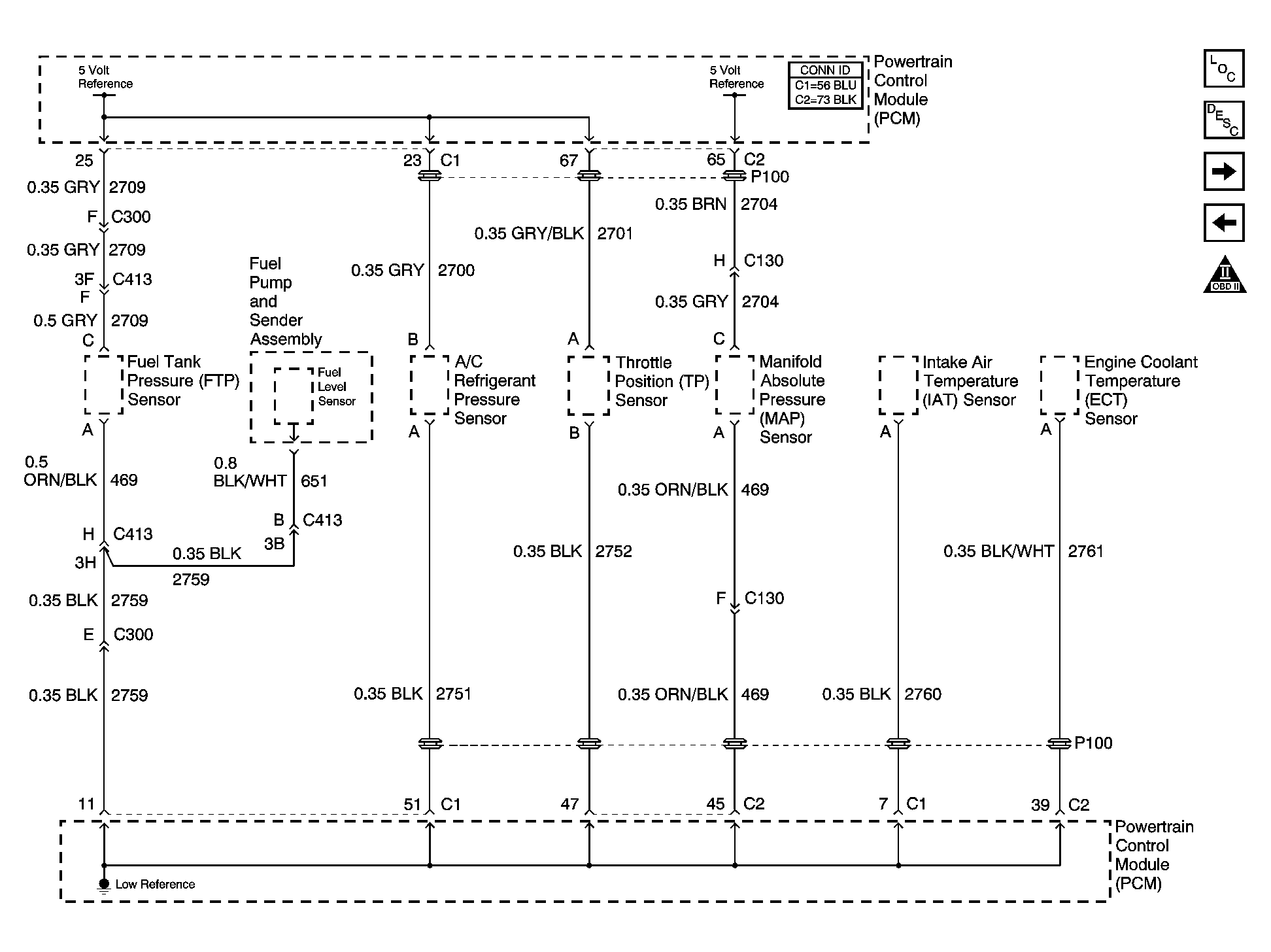

Fig 2: 5-Volt and Low Reference Bussing

Courtesy of GENERAL MOTORS CORP.

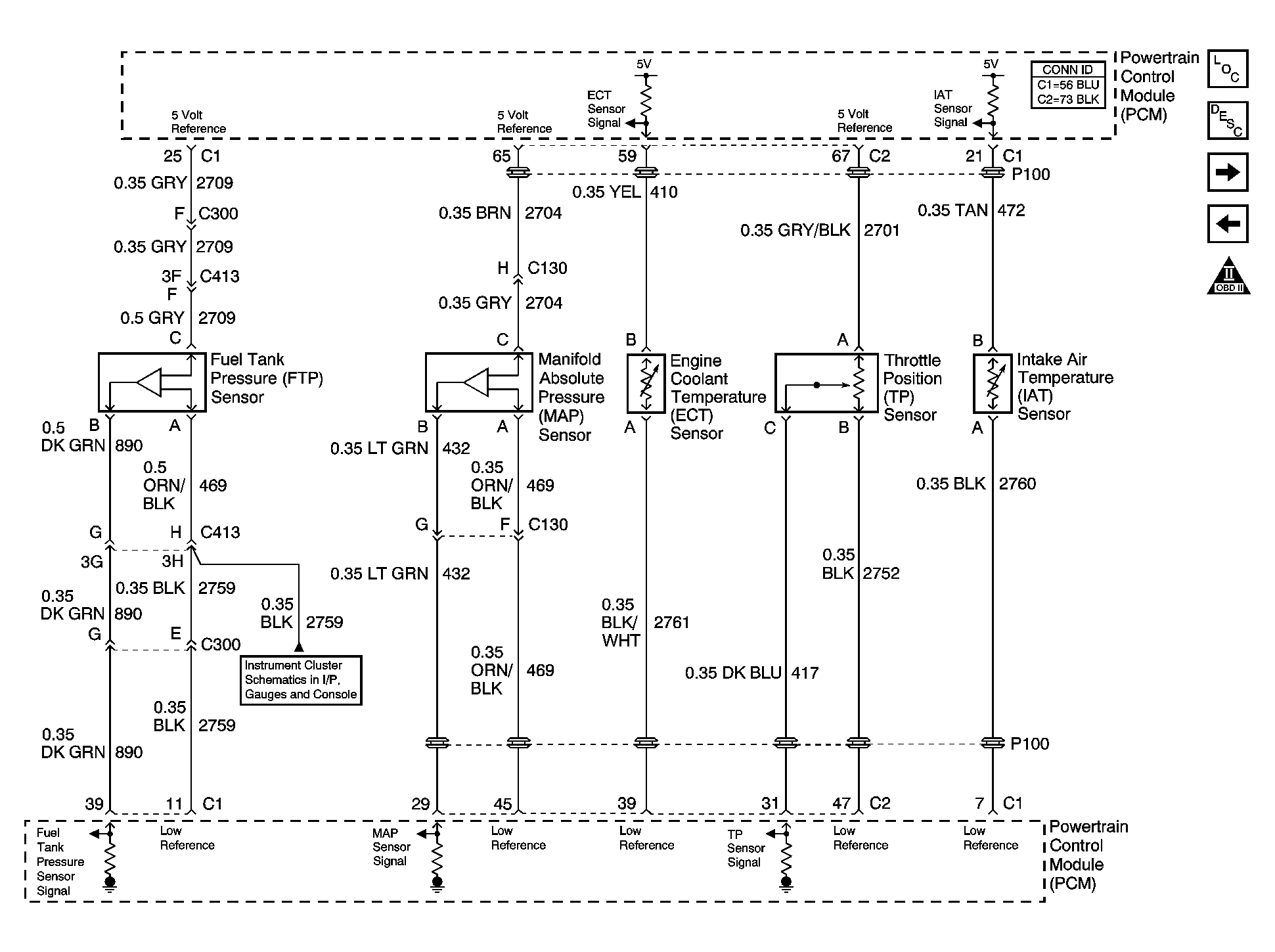

Fig 3: Engine Data Sensors Schematic - Pressure & Temperature

Courtesy of GENERAL MOTORS CORP.

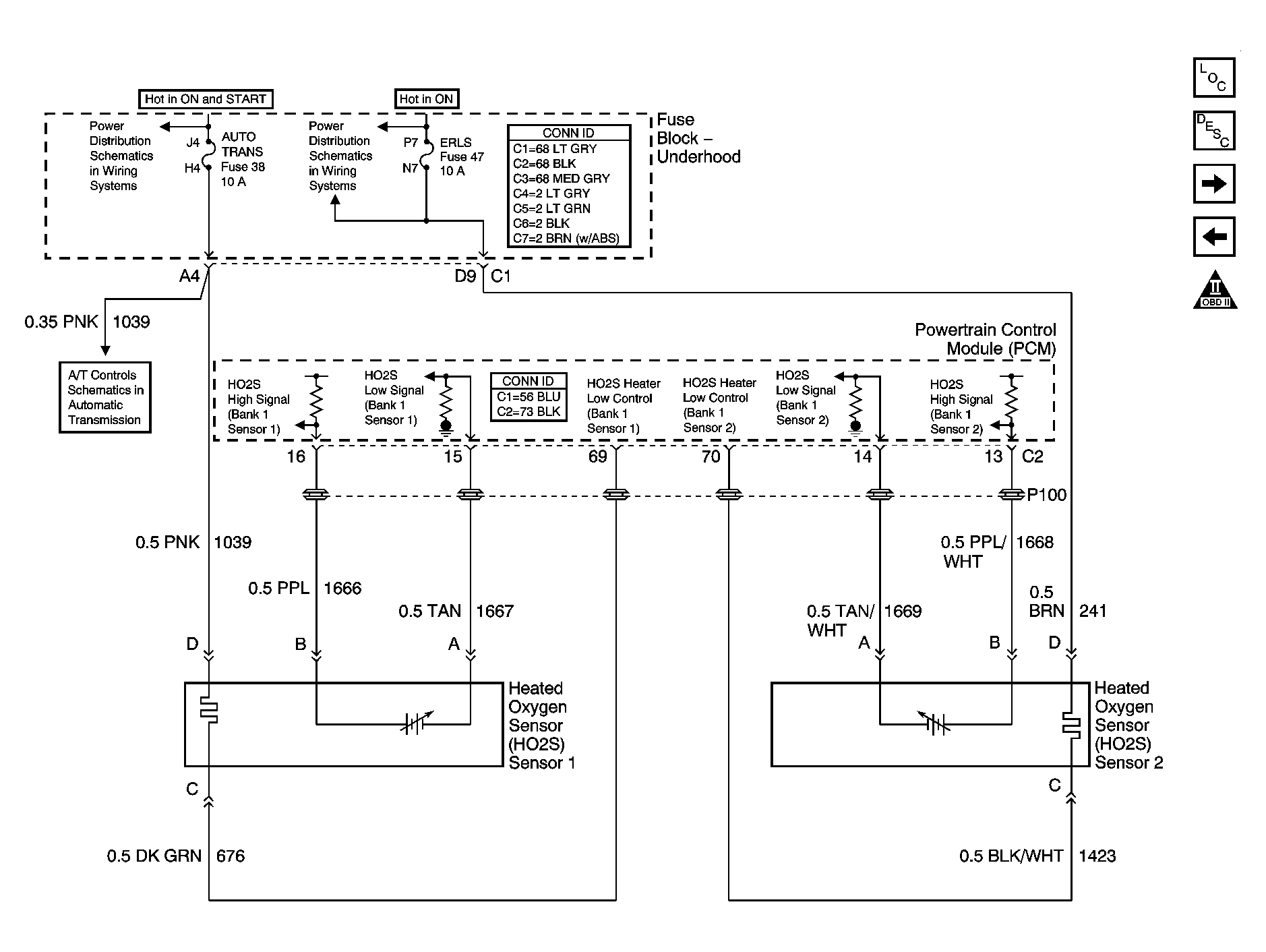

Fig 4: Heated Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

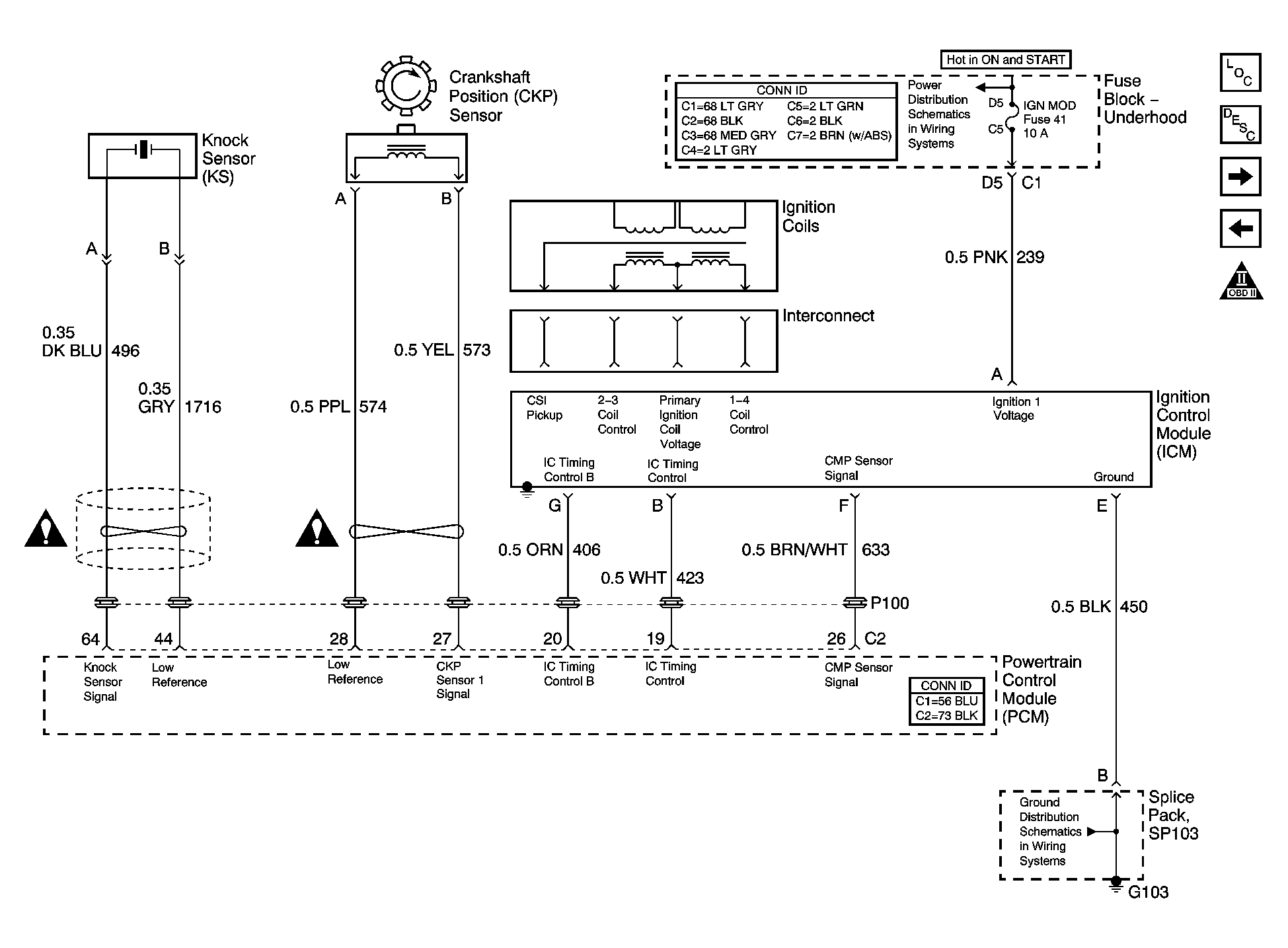

Fig 5: Ignition System Schematic

Courtesy of GENERAL MOTORS CORP.

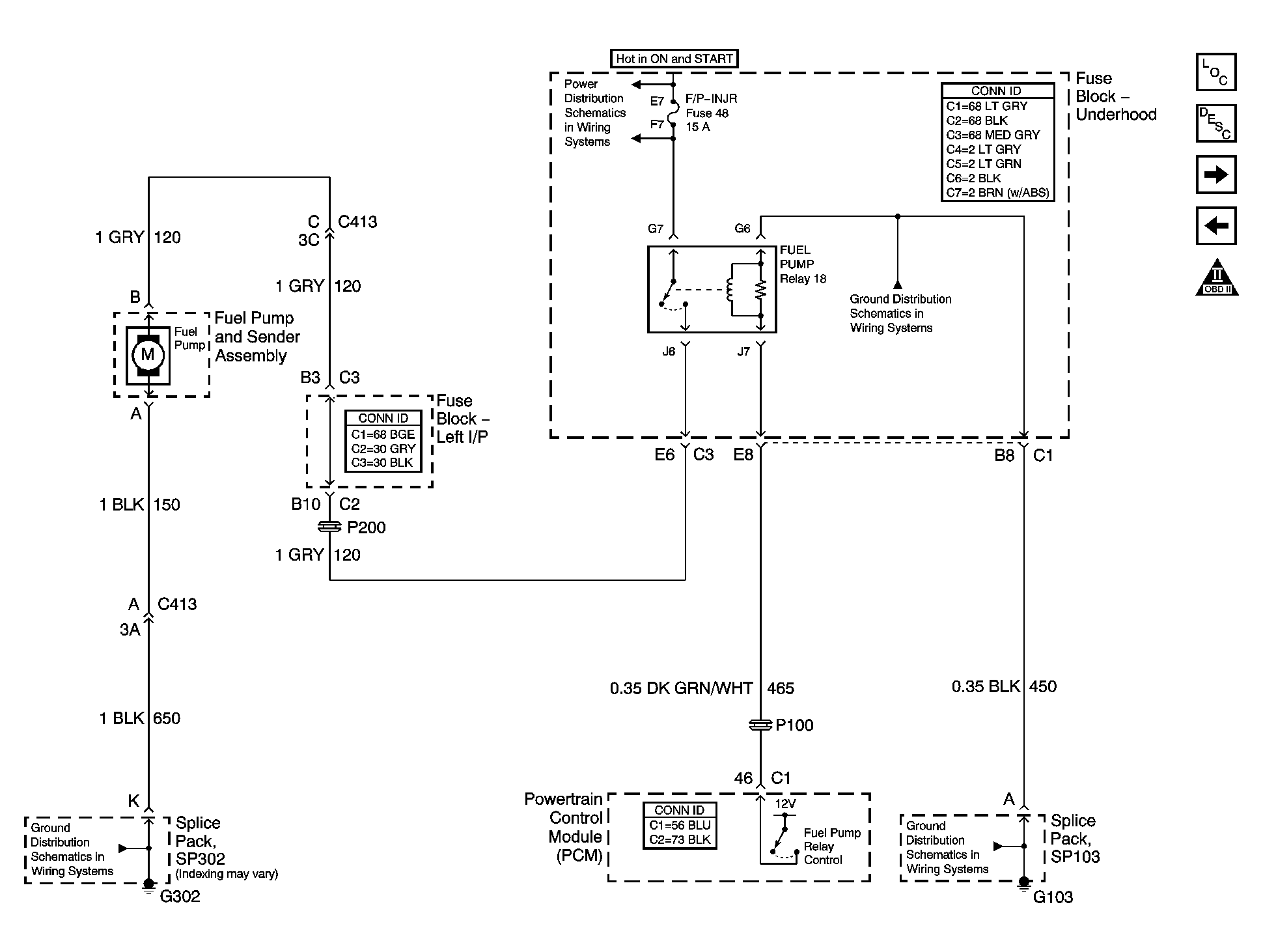

Fig 6: Fuel Pump Controls Schematic

Courtesy of GENERAL MOTORS CORP.

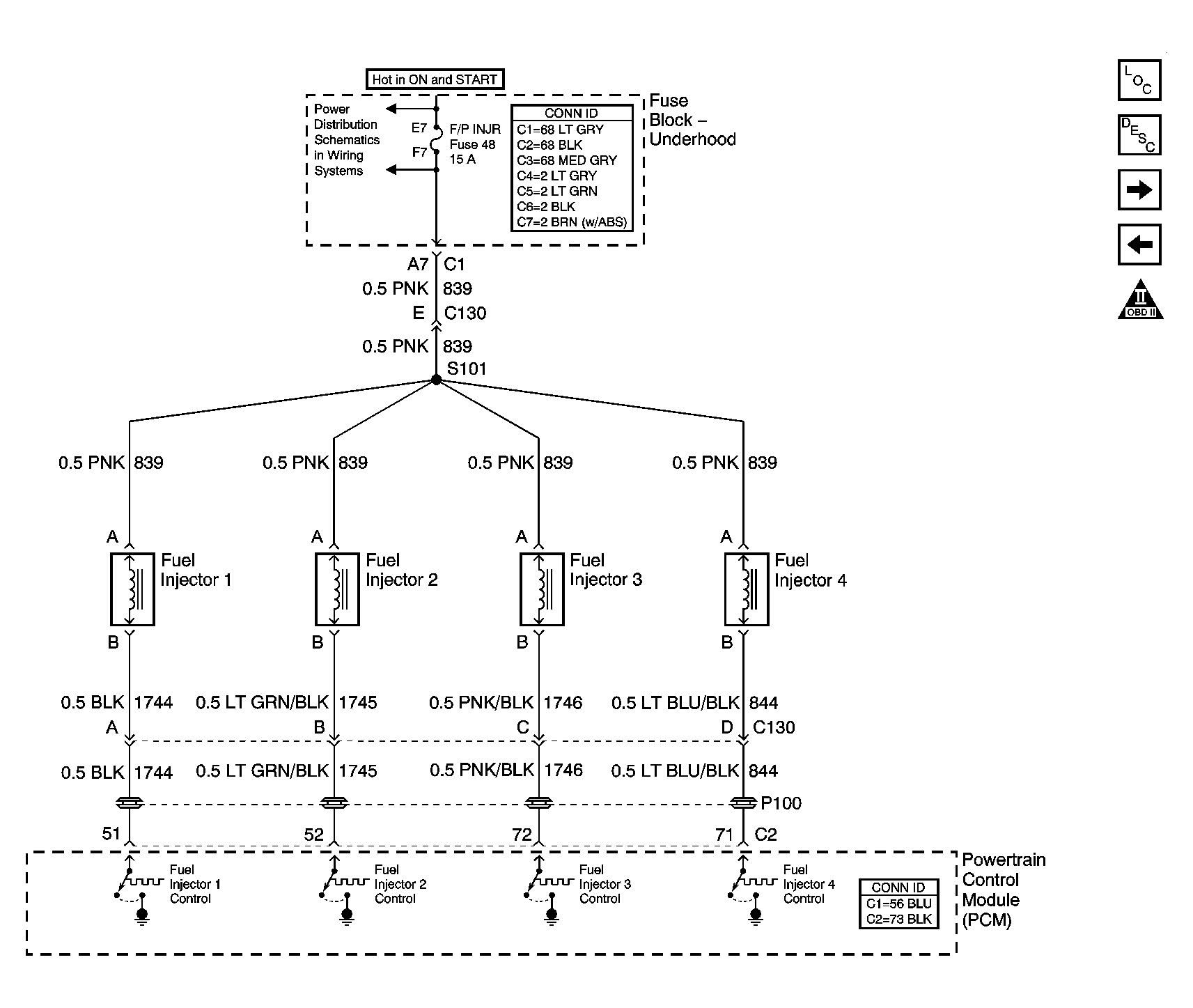

Fig 7: Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

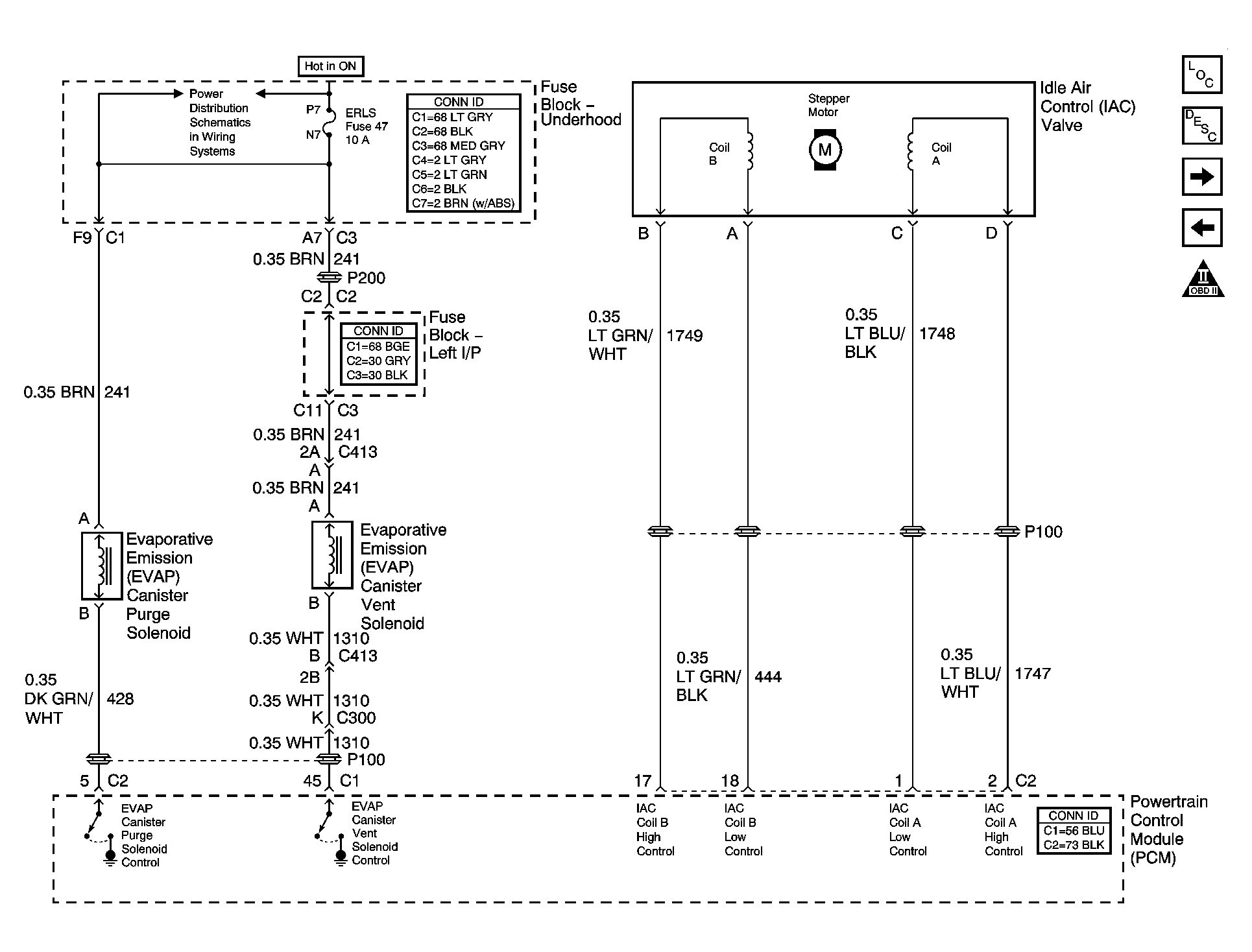

Fig 8: EVAP & IAC Controls Schematic

Courtesy of GENERAL MOTORS CORP.

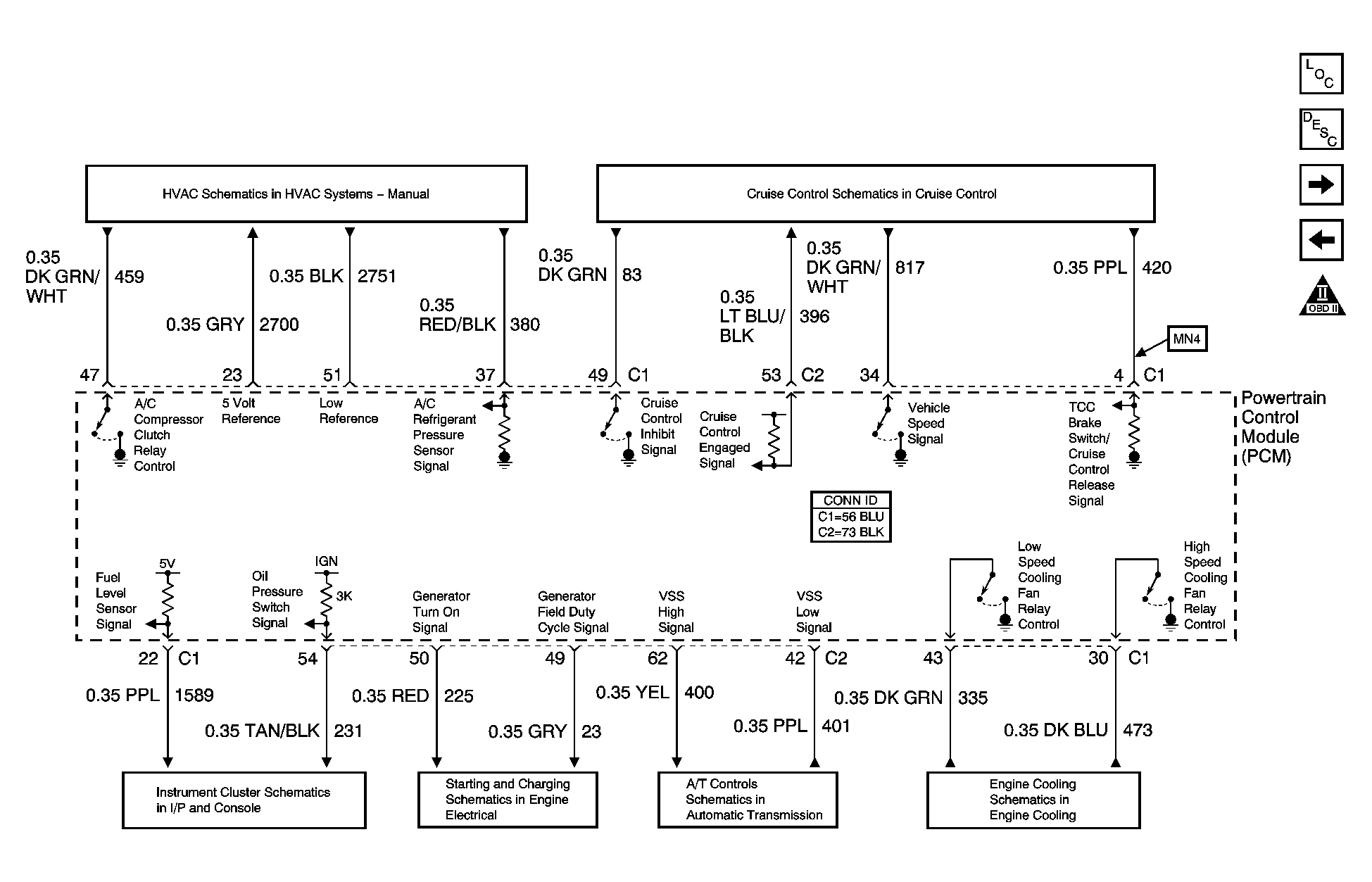

Fig 9: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

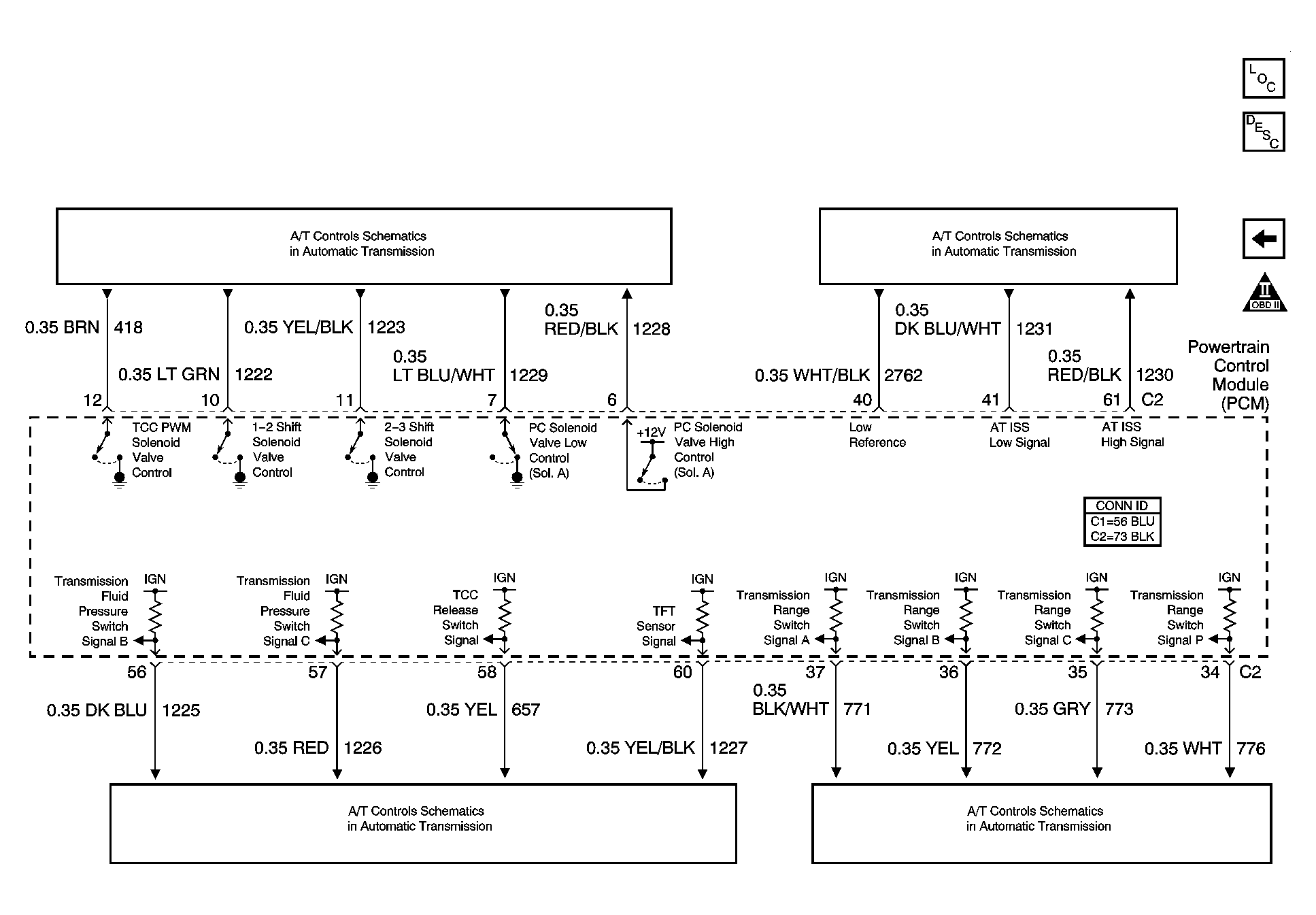

Fig 10: Transmission Controls Schematic - A/T

Courtesy of GENERAL MOTORS CORP.
