Fuse Block - Left I/P C2
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Fuse Block - Left I/P C2

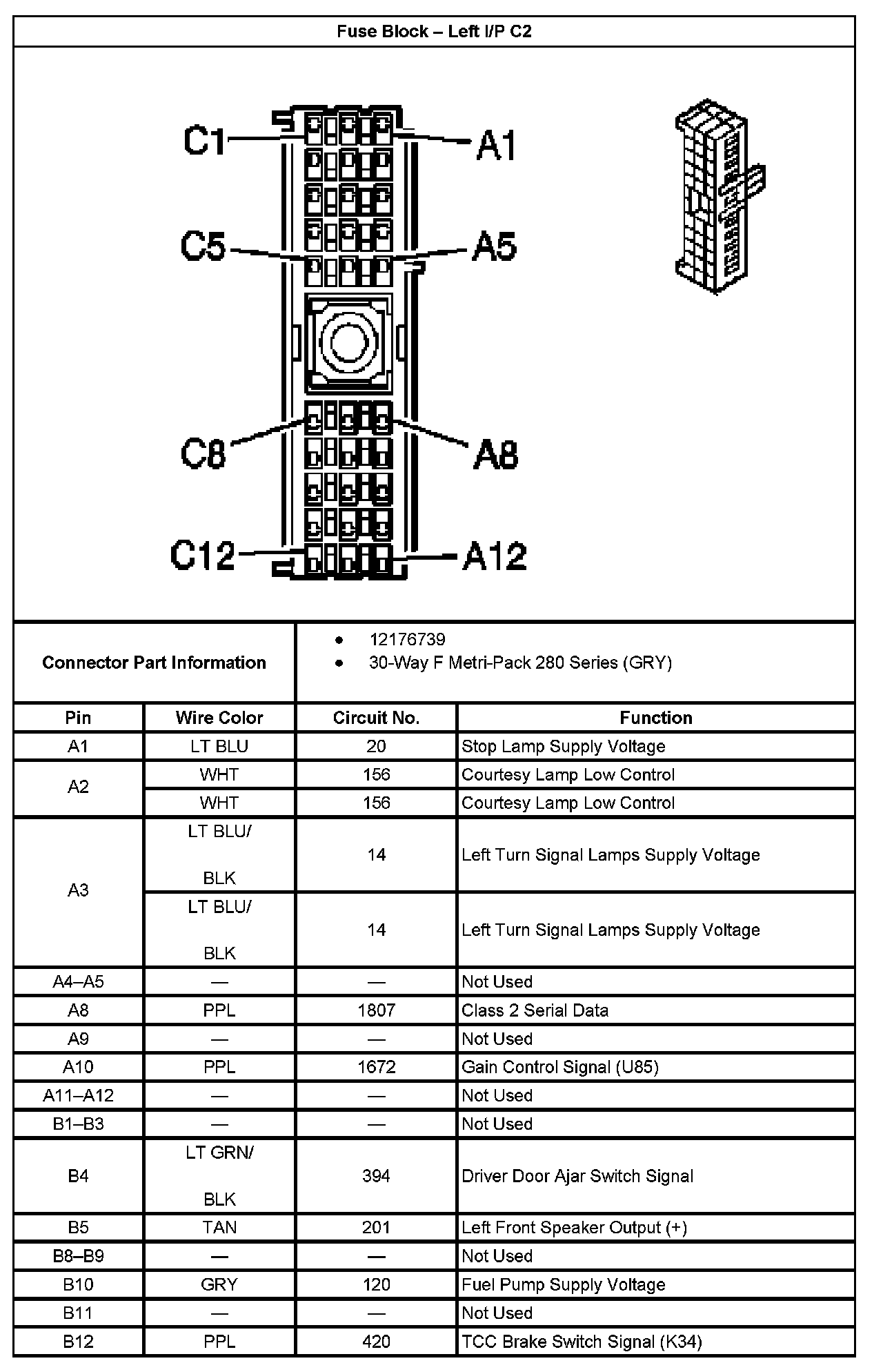

Fuse Block - Left I/P C2 Part 1:

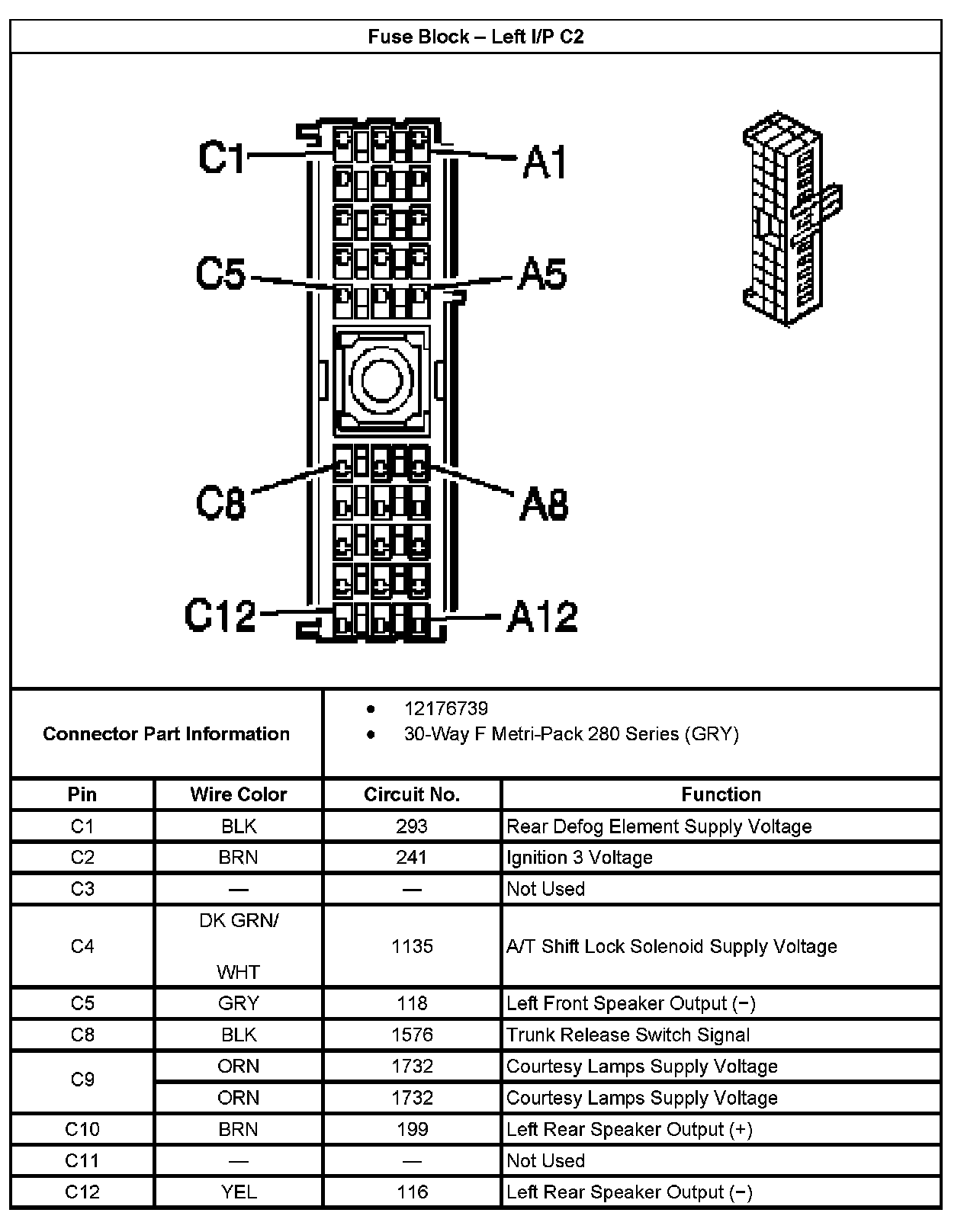

Fuse Block - Left I/P C2 Part 2:
