Window Switch - Driver

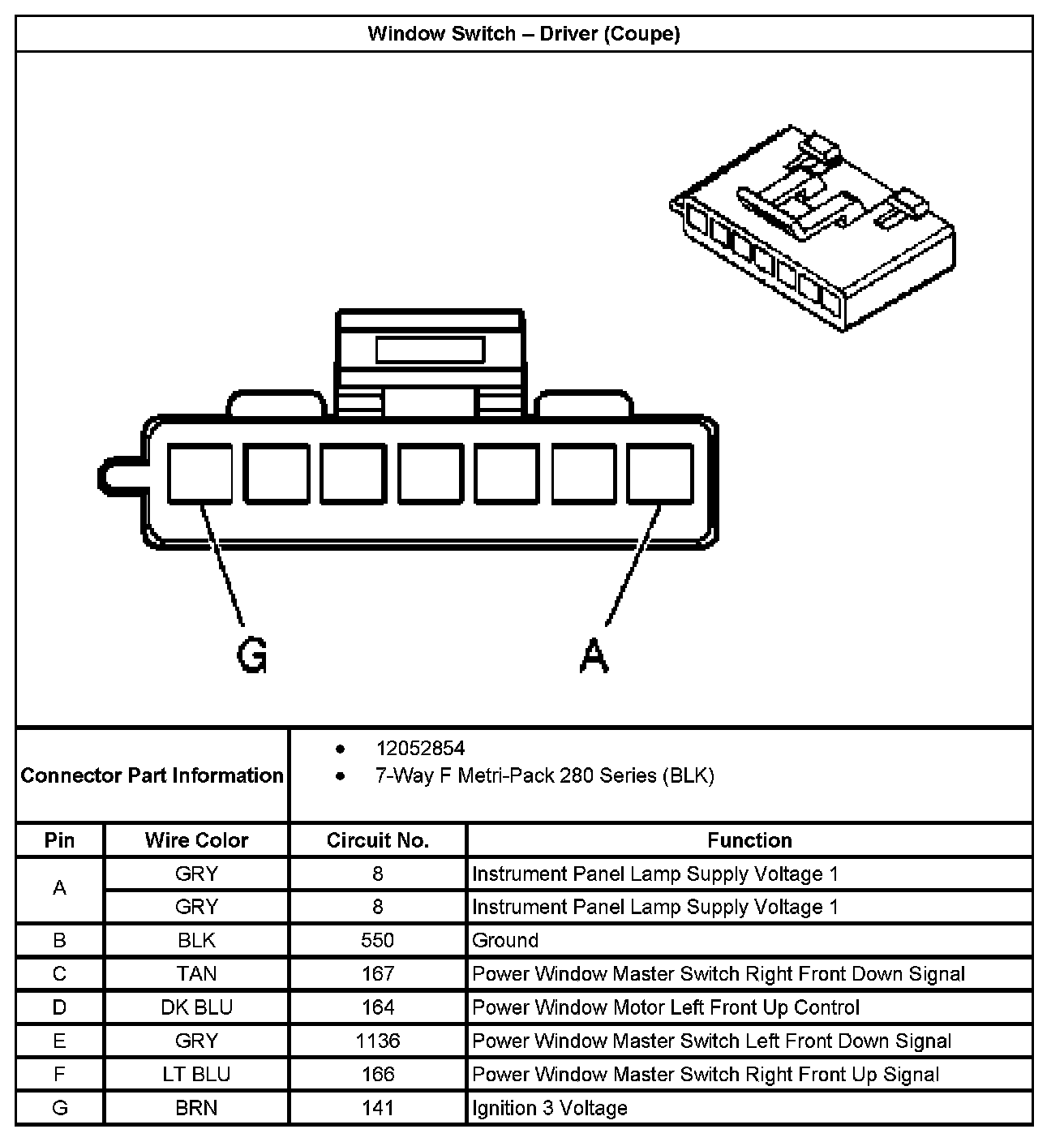

Window Switch - Driver (Coupe):

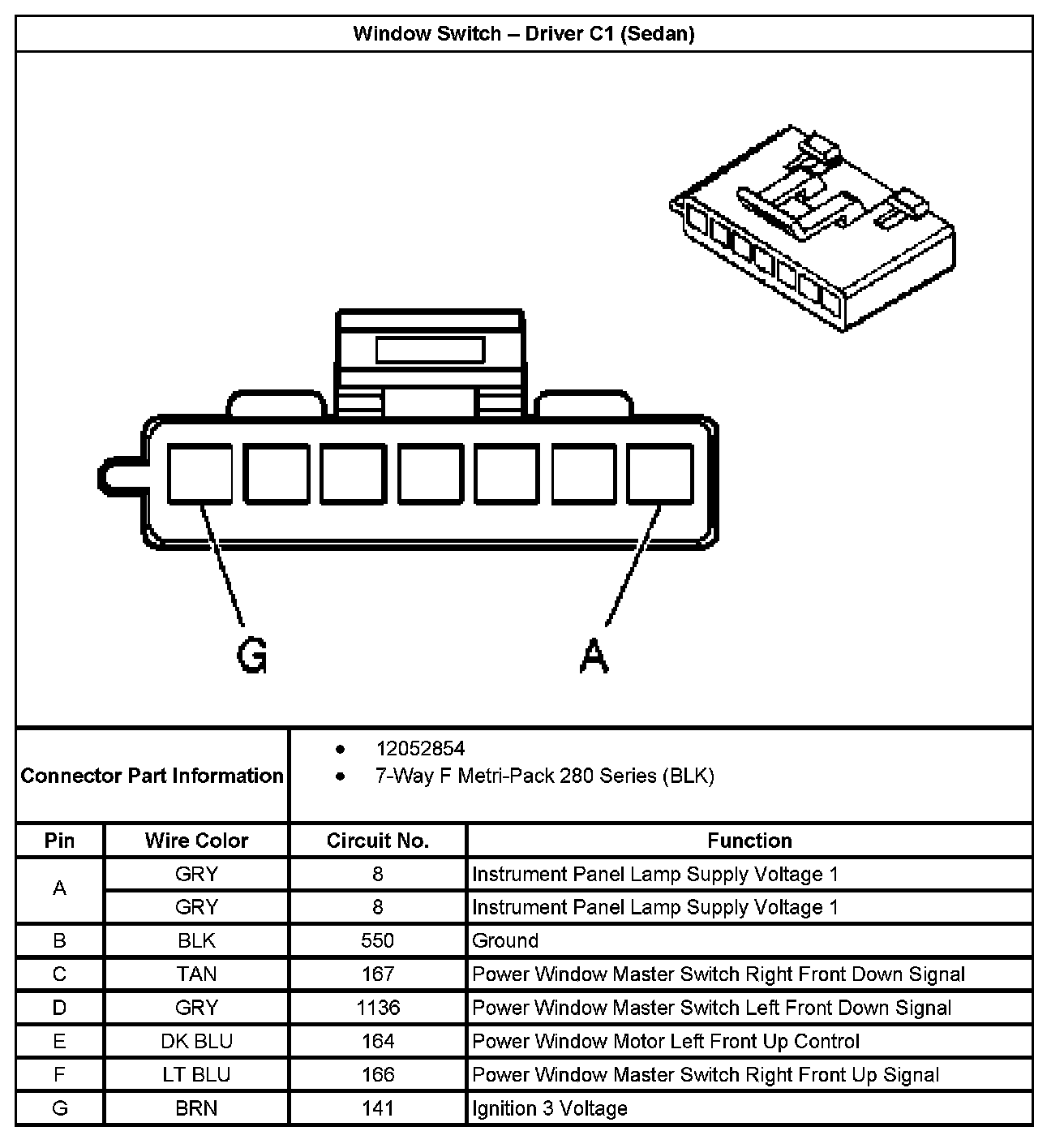

Window Switch - Driver C1 (Sedan):



Window Switch - Driver C2 (Sedan):
