Home
>>
Pontiac
>>
2005
>>
Grand AM L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Control Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Ignition Control Module

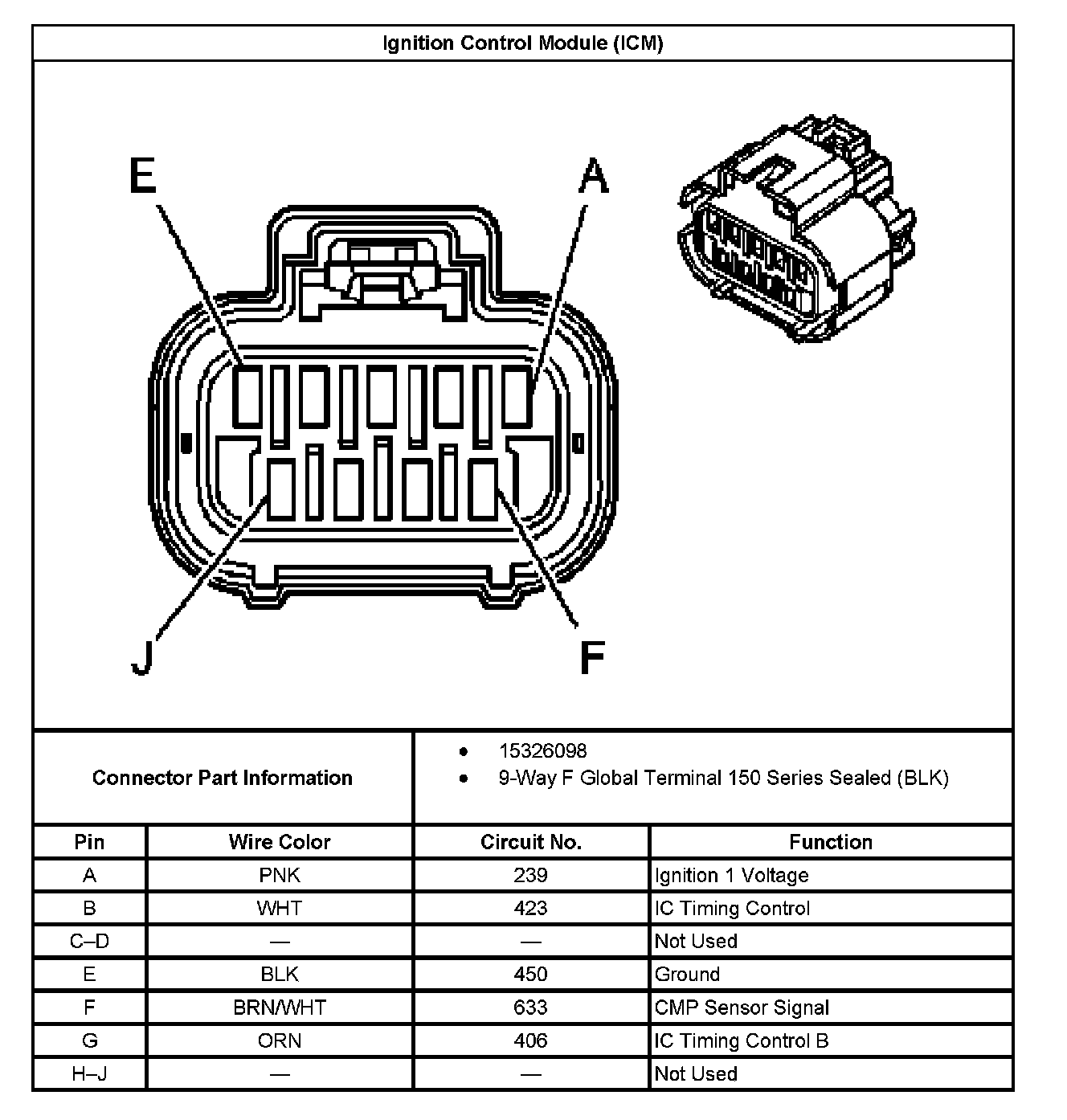

Ignition Control Module (ICM):
