Body Control Module (BCM) C1

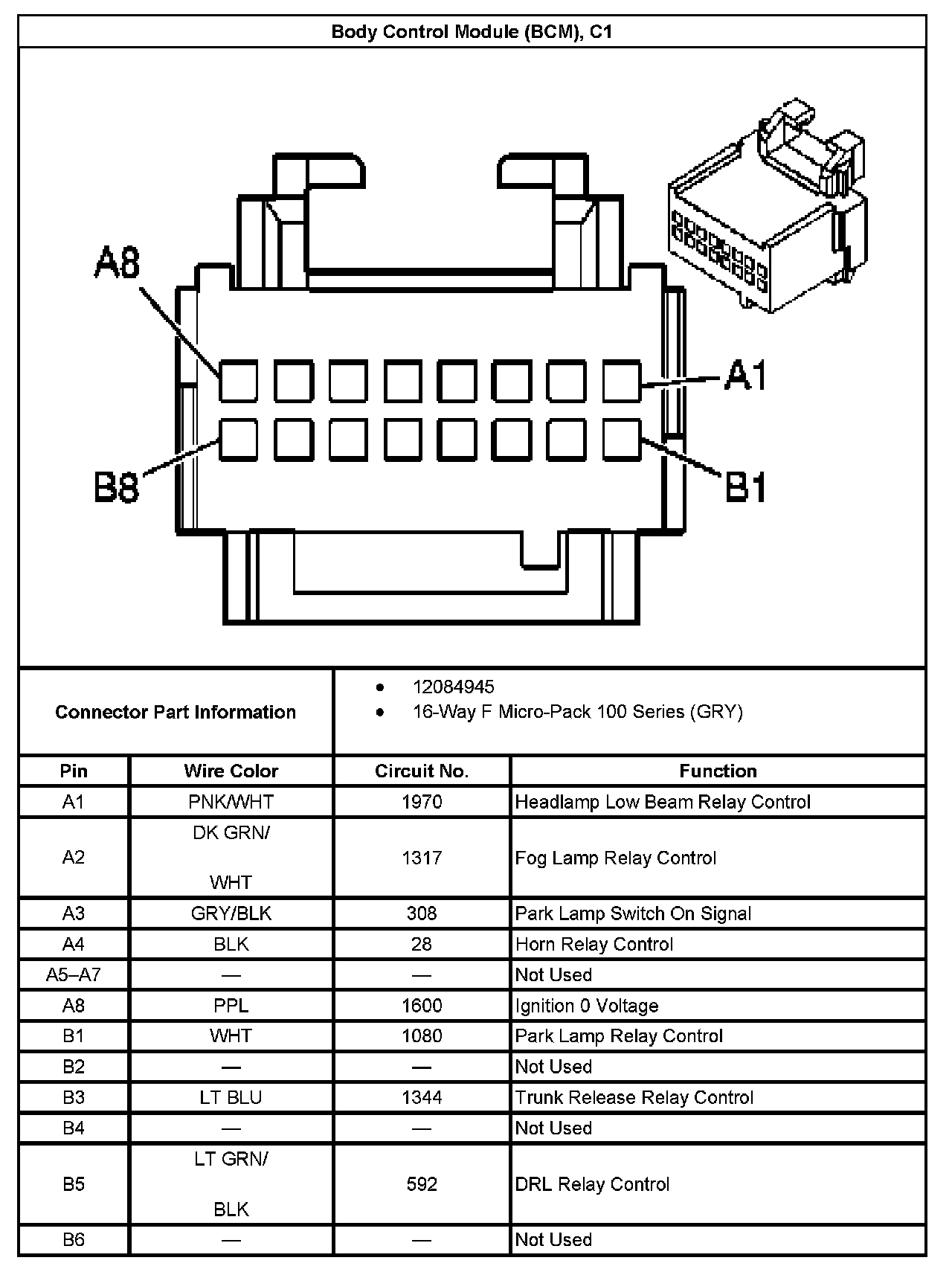

Body Control Module (BCM), C1 Part 1:



Body Control Module (BCM), C1 Part 2:
