Thread Repair Specifications



Thread Repair Specifications

Engine Block:

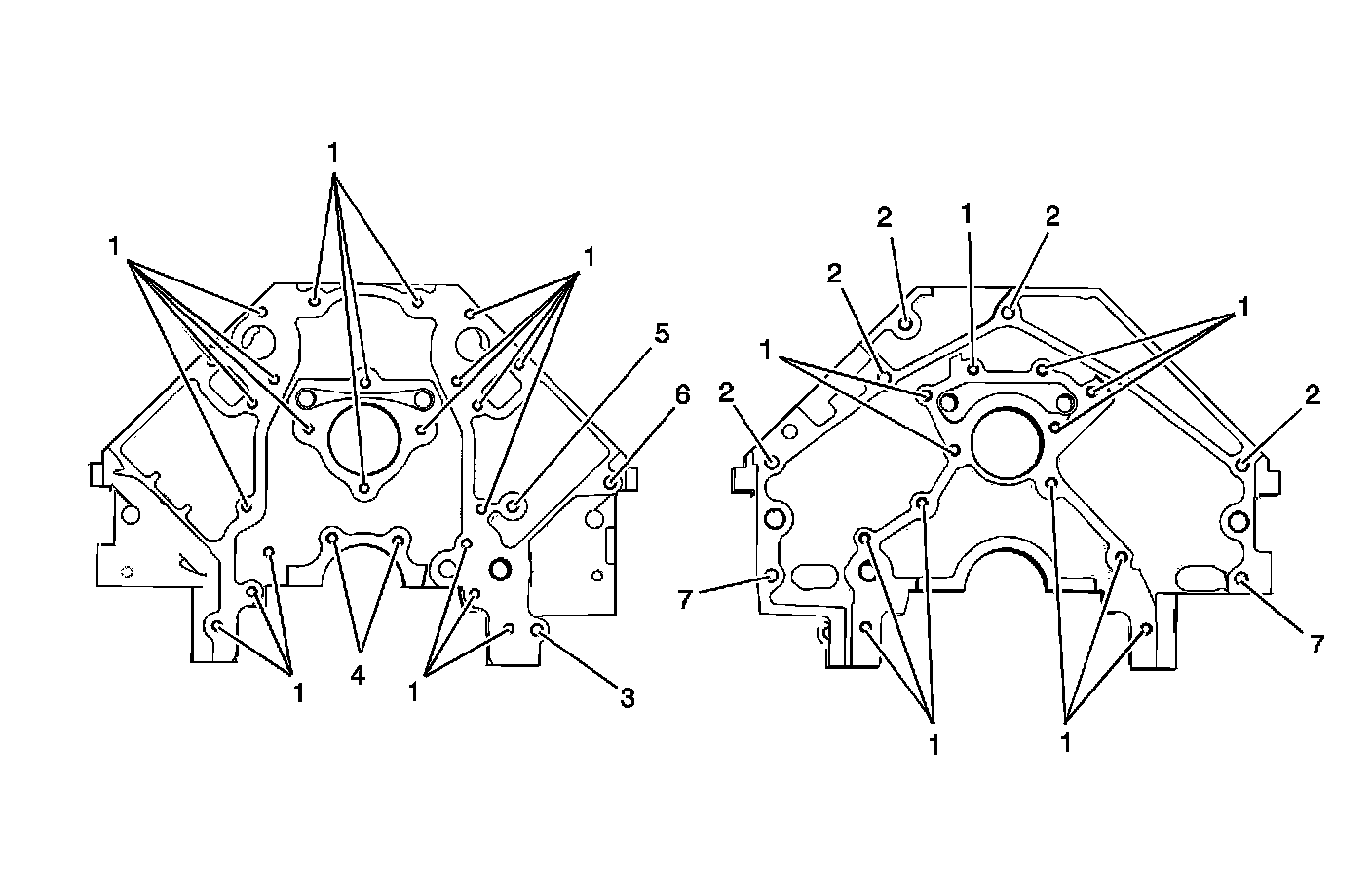

Engine Block - Front/Rear Views

Engine Block:

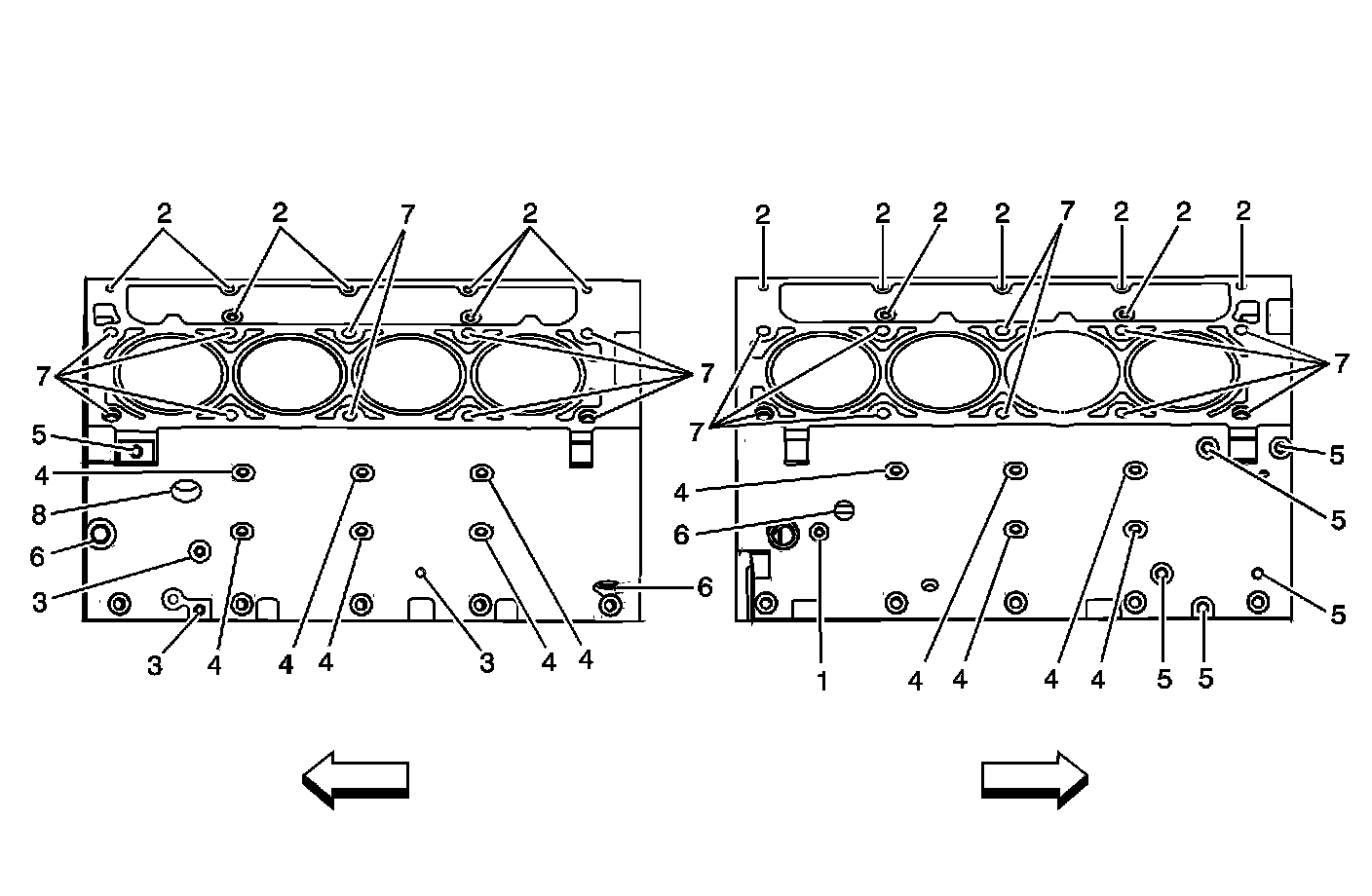

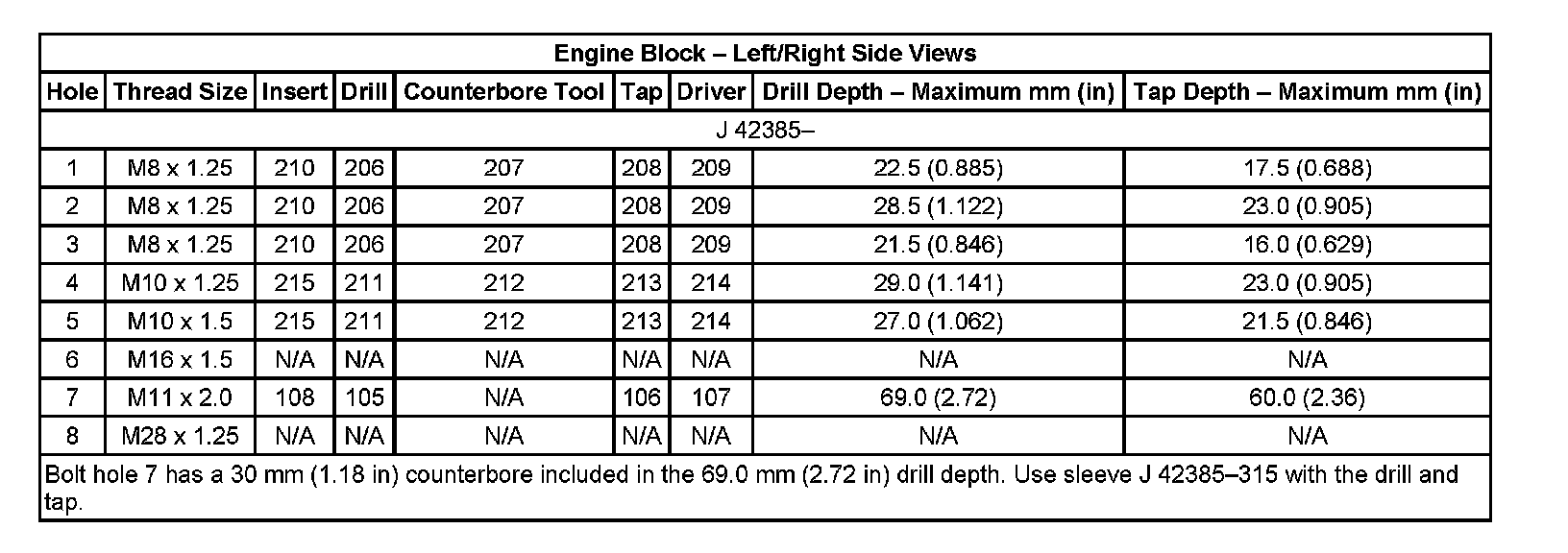

Engine Block - Left/Right Side Views

Engine Block:

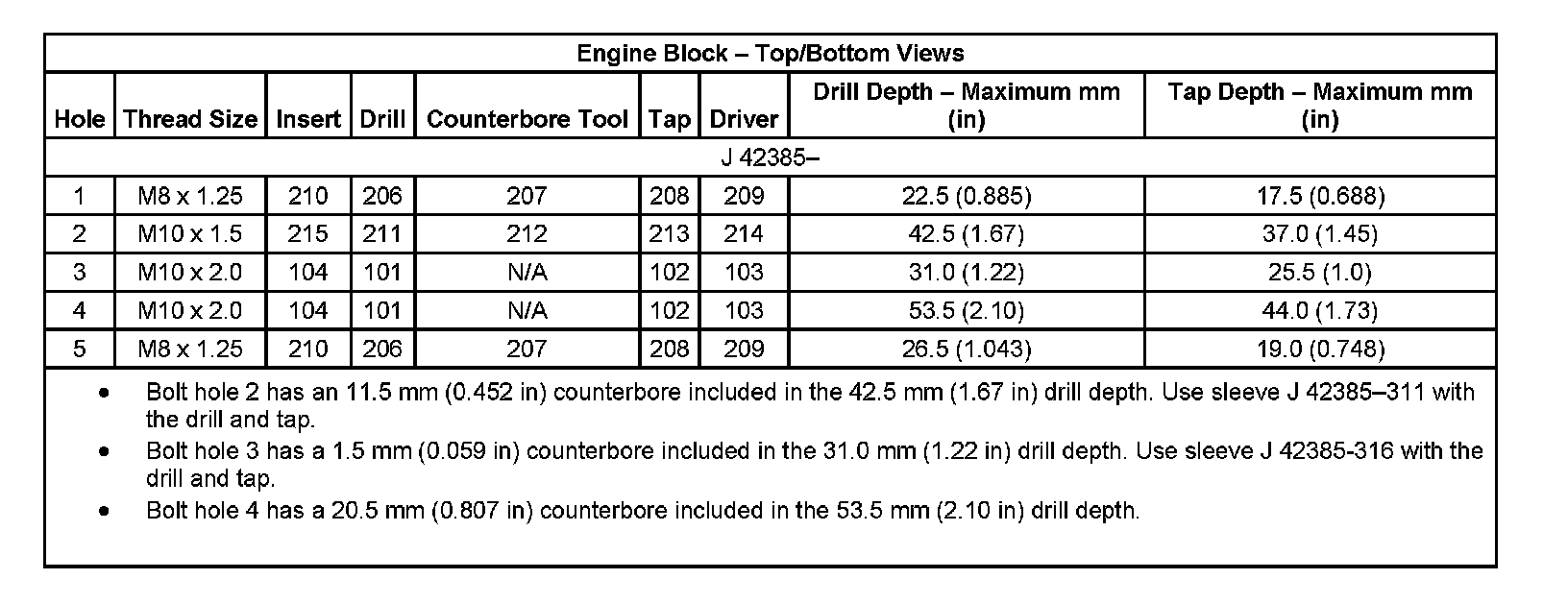

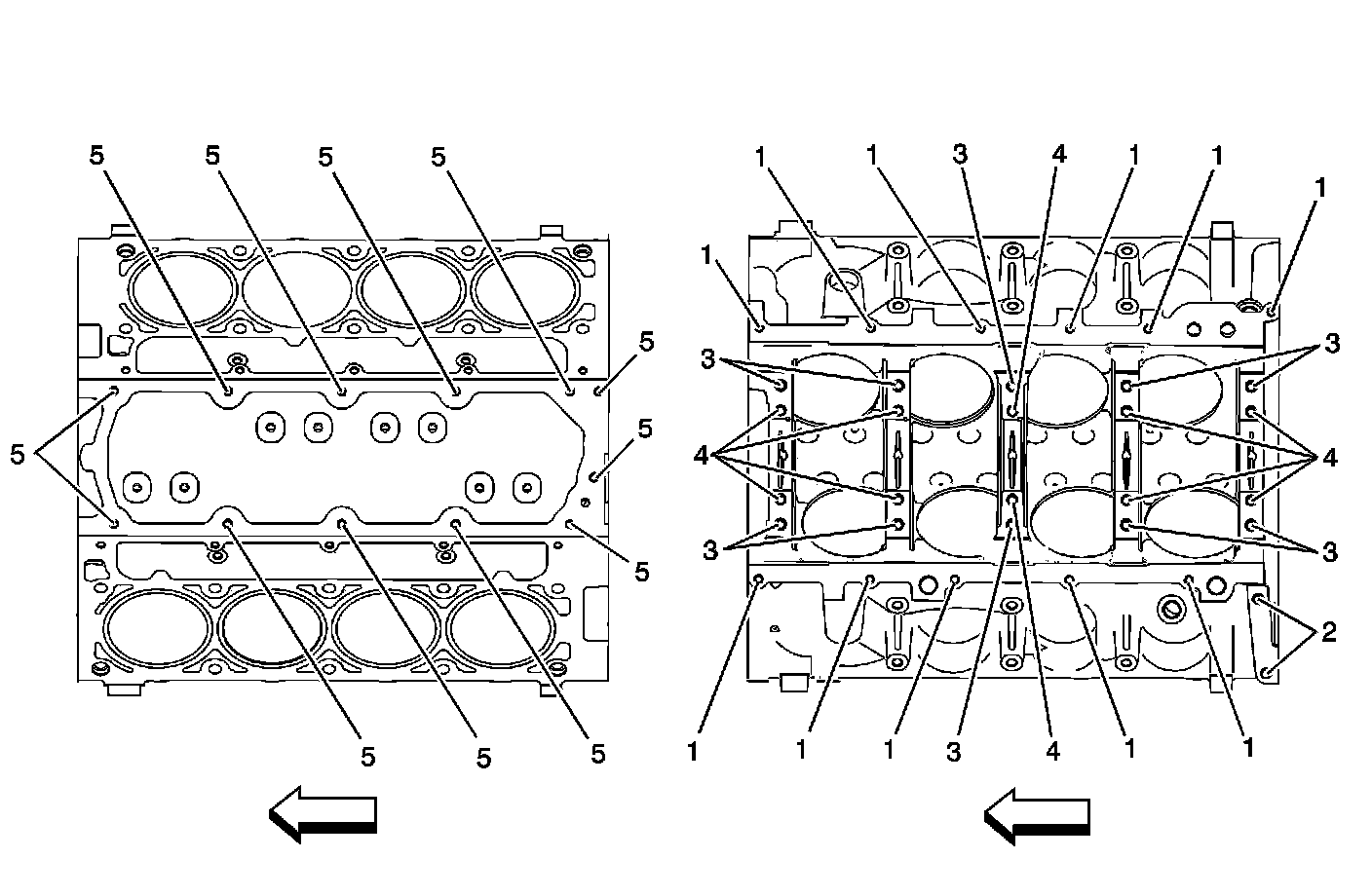

Engine Block - Top/Bottom Views

Cylinder Head:








Cylinder Head - Top/End Views

Cylinder Head:








Cylinder Head - Intake/Exhaust Side Views
