Backup Lamp Connector End View - Right

Backup Lamp Connector End View - Right

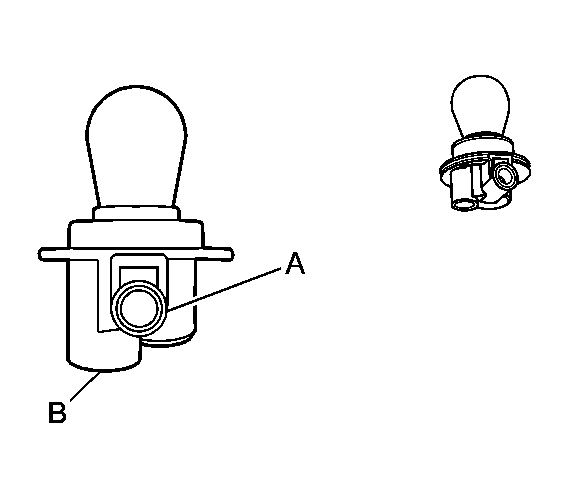

GM1356154Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • E56
  • 2-Way Bulb Socket
Pin Wire Color Circuit No. Function
A L-GN 24 Backup Lamps Supply Voltage
B BK/BU 650 Ground
