Abs Schematics

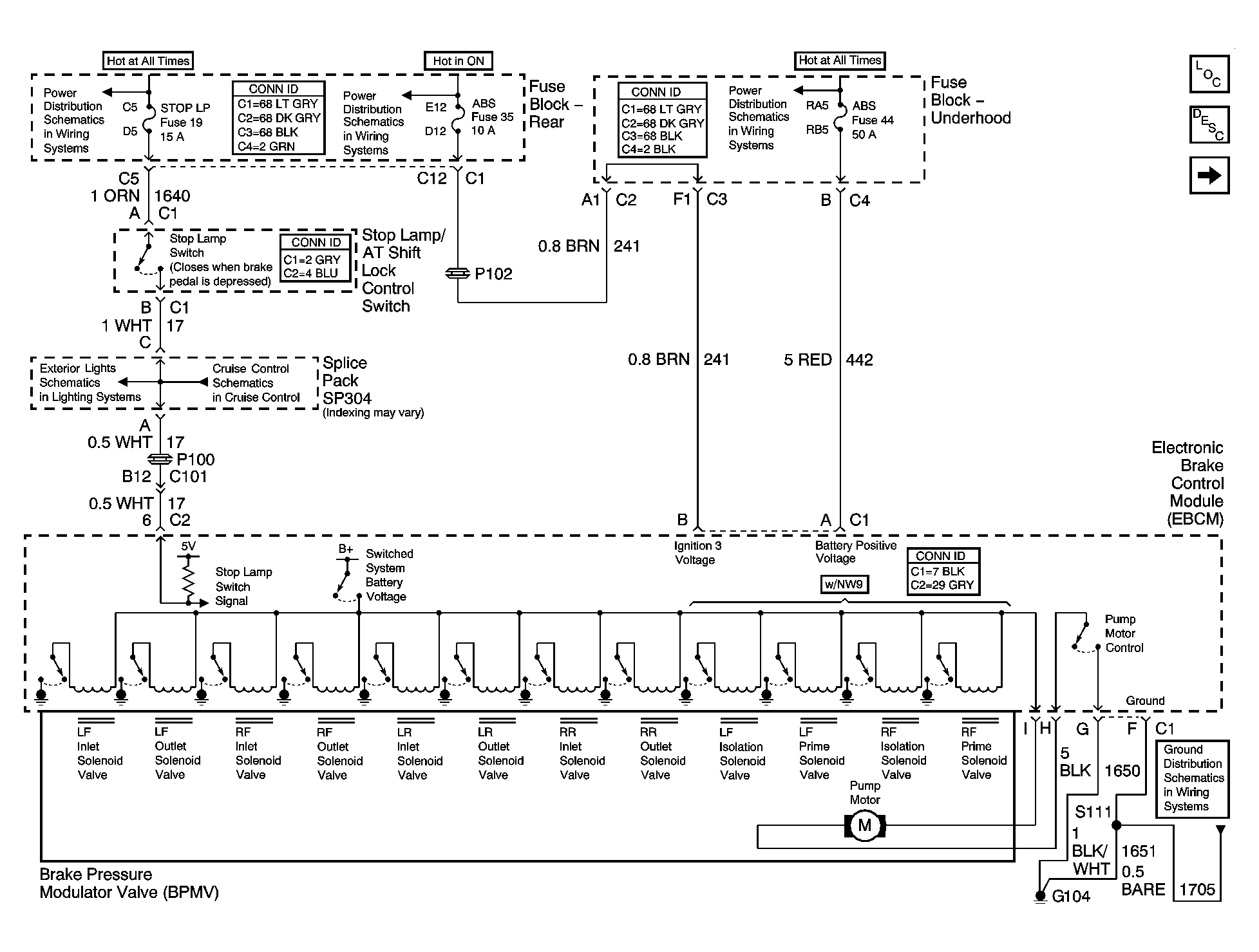

Fig 1: Power, Ground & BPMV Valve Schematic - 3.8L

Courtesy of GENERAL MOTORS CORP.

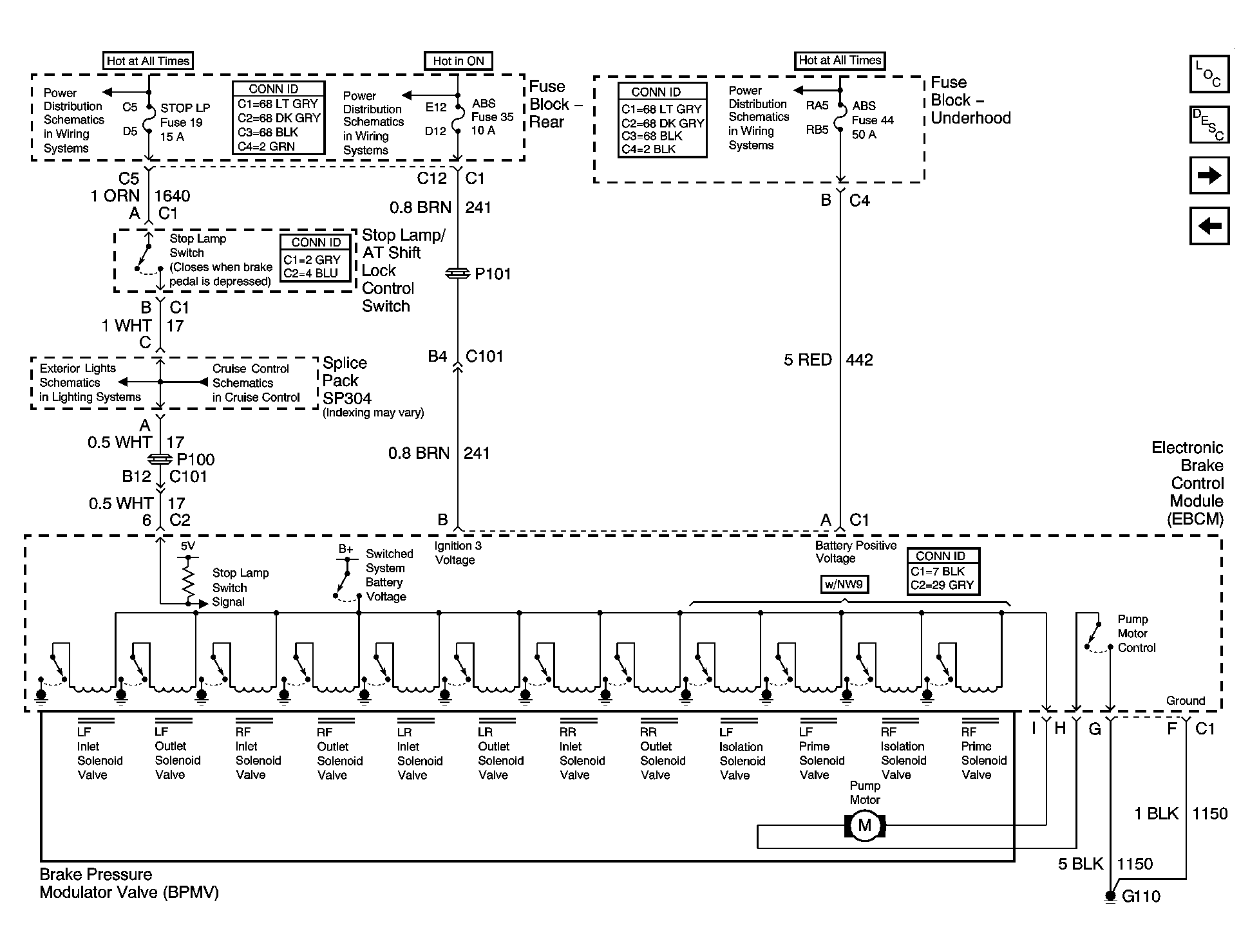

Fig 2: Power, Ground & BPMV Valve Schematic - 4.6L

Courtesy of GENERAL MOTORS CORP.

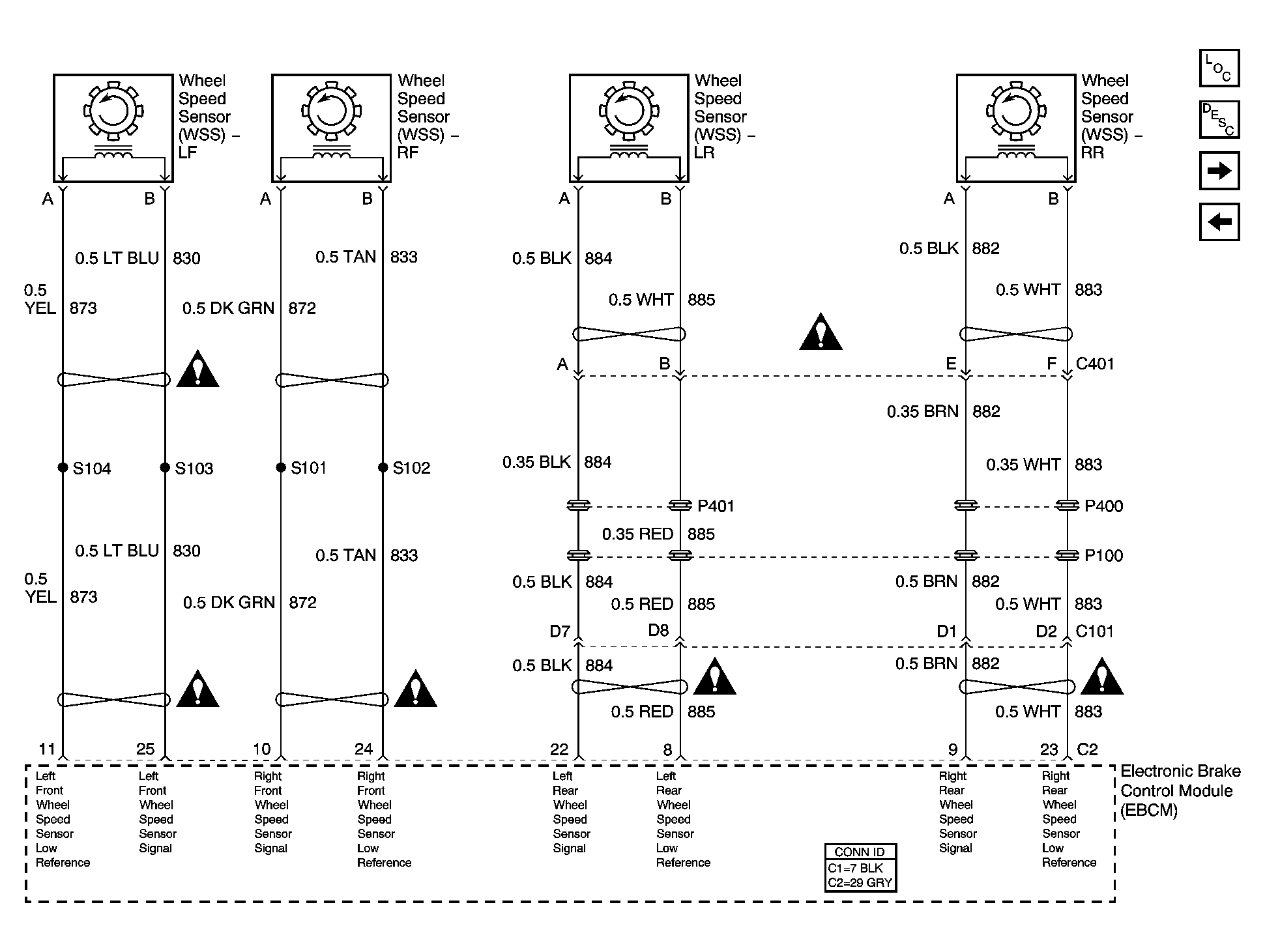

Fig 3: Wheel Speed Sensors Schematic - 3.8L

Courtesy of GENERAL MOTORS CORP.

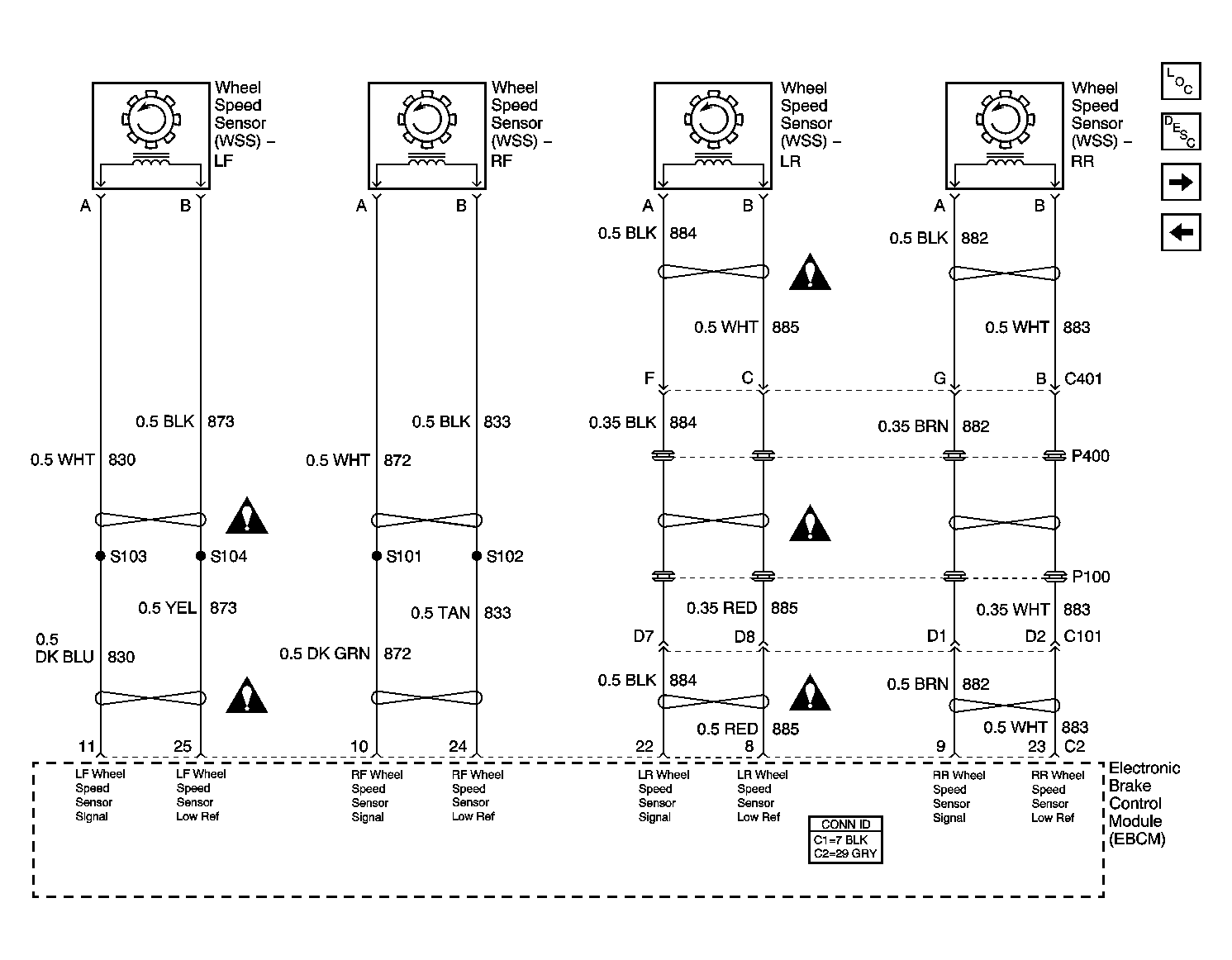

Fig 4: Wheel Speed Sensors Schematic - 4.6L

Courtesy of GENERAL MOTORS CORP.

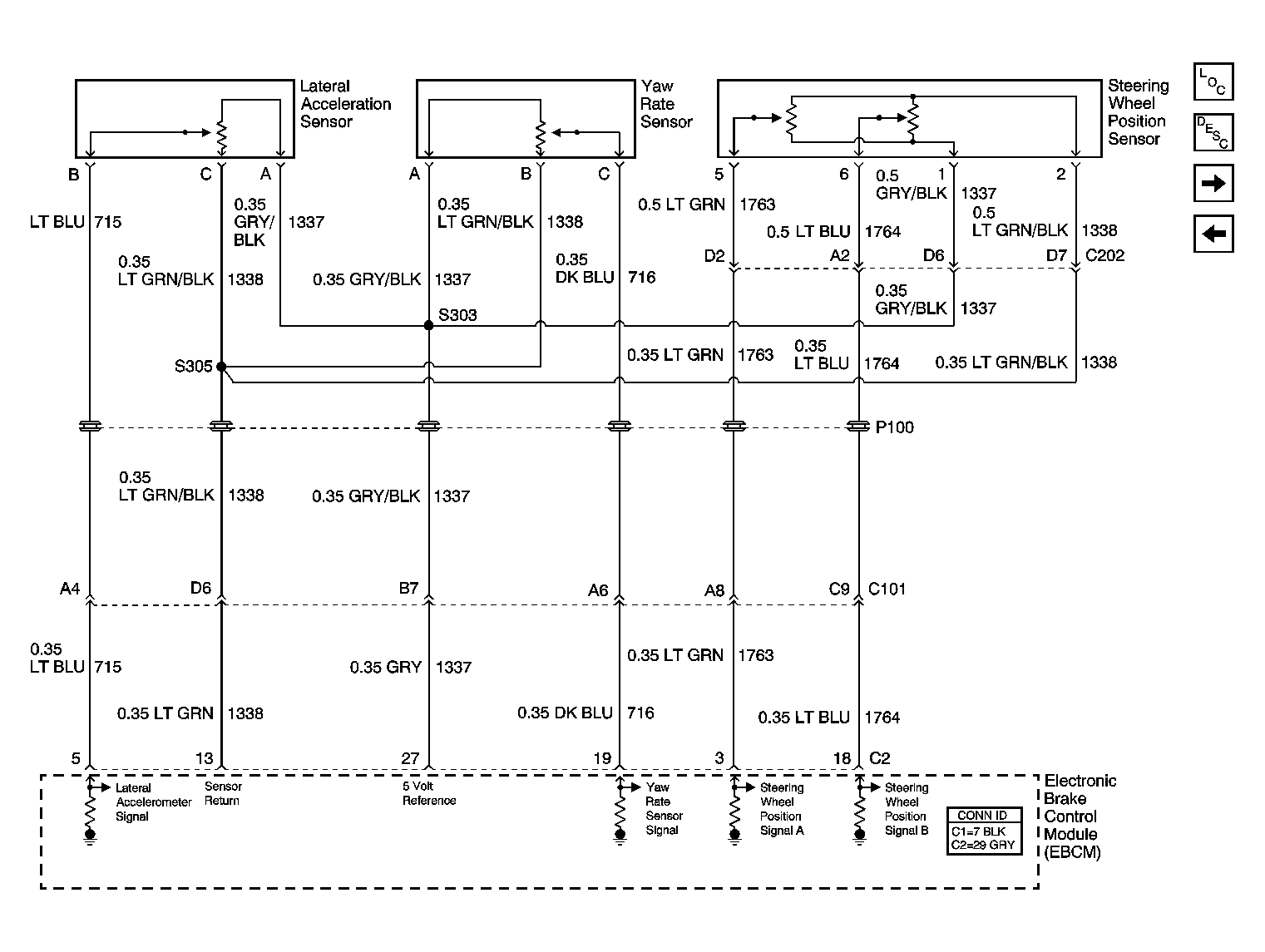

Fig 5: Vehicle Stability Enhancement System Schematic (JL4)

Courtesy of GENERAL MOTORS CORP.

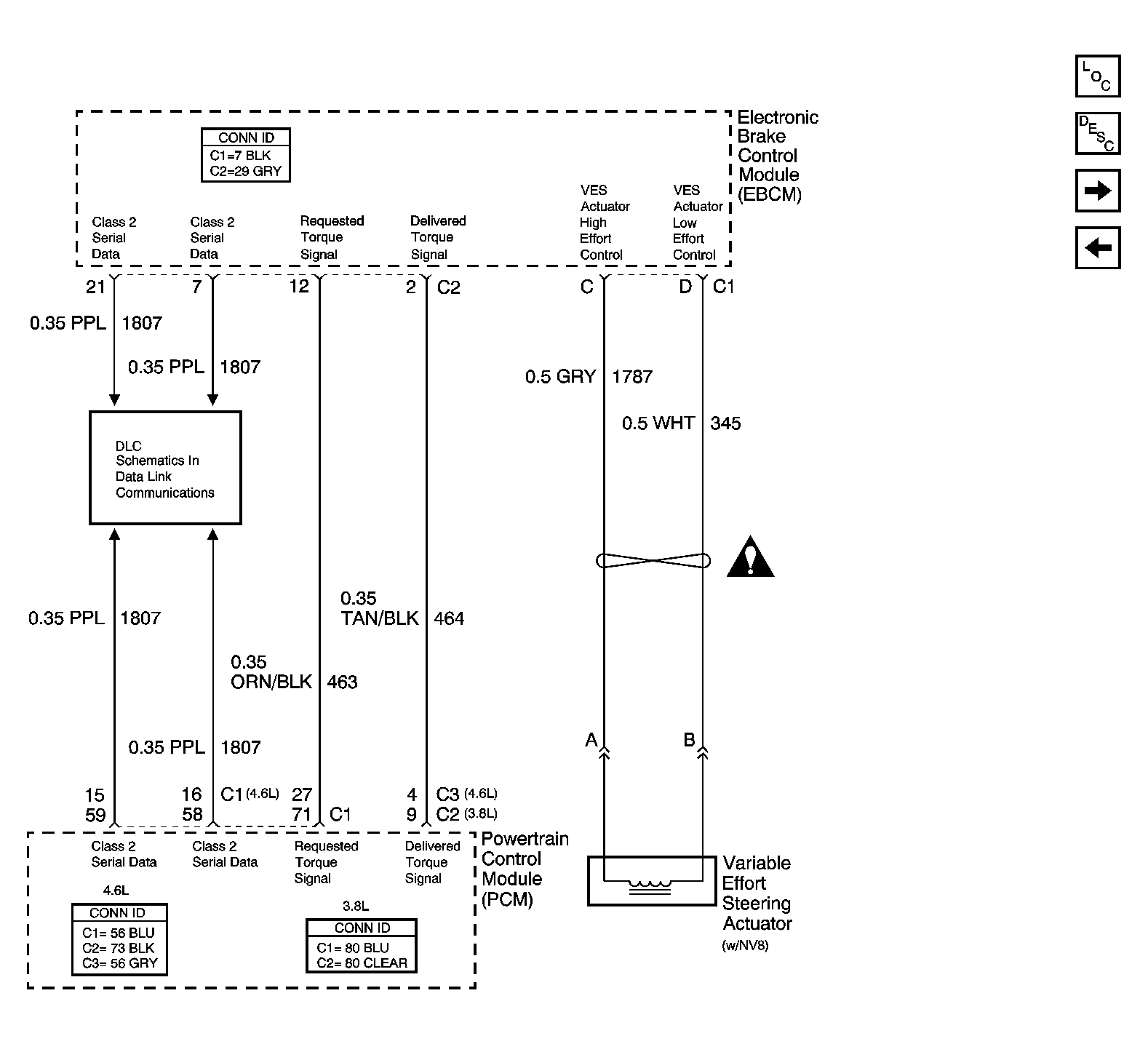

Fig 6: Traction Control Schematic (NW9)

Courtesy of GENERAL MOTORS CORP.

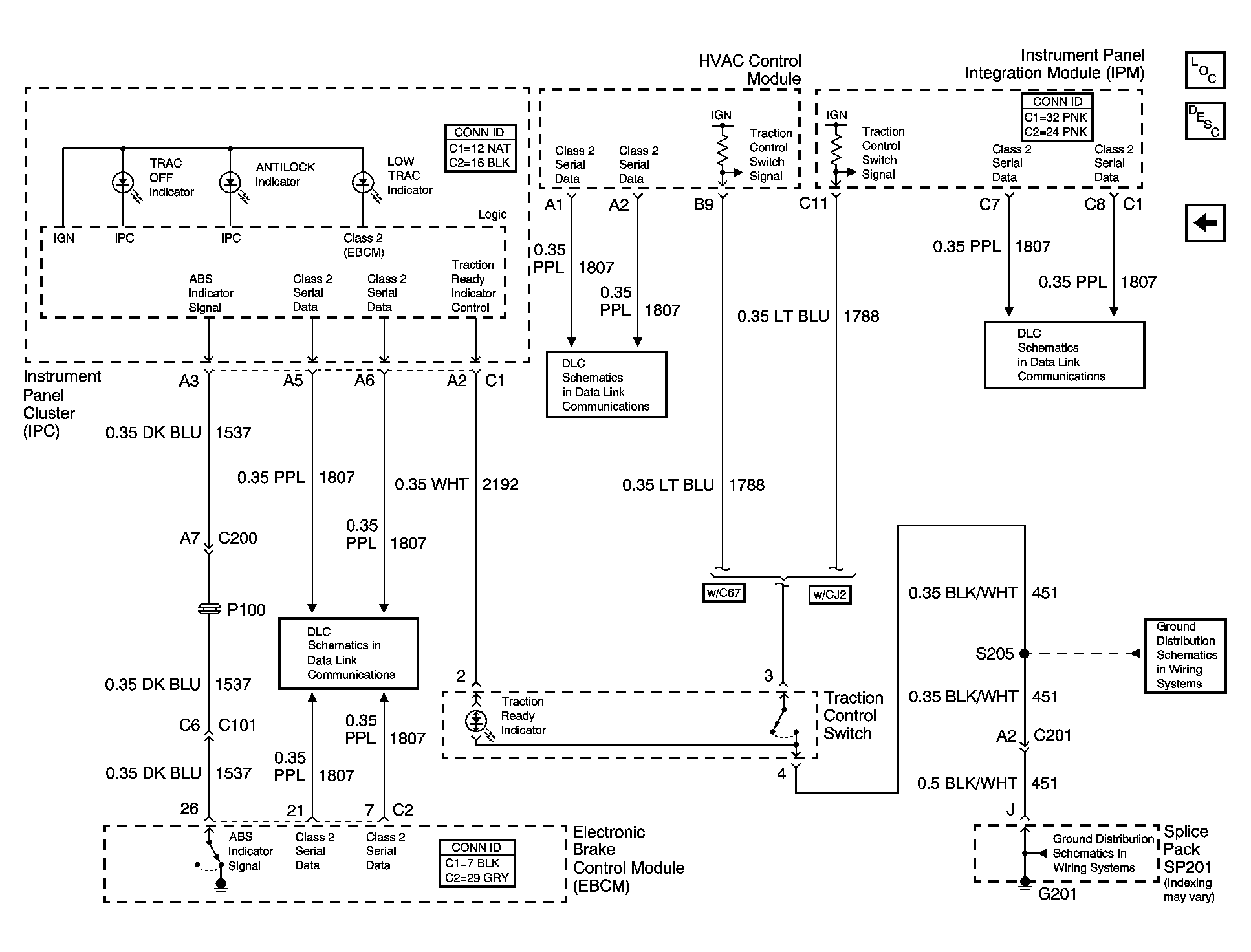

Fig 7: Indicators & the Traction Control Switch Schematic

Courtesy of GENERAL MOTORS CORP.
