Door Control Module Schematics

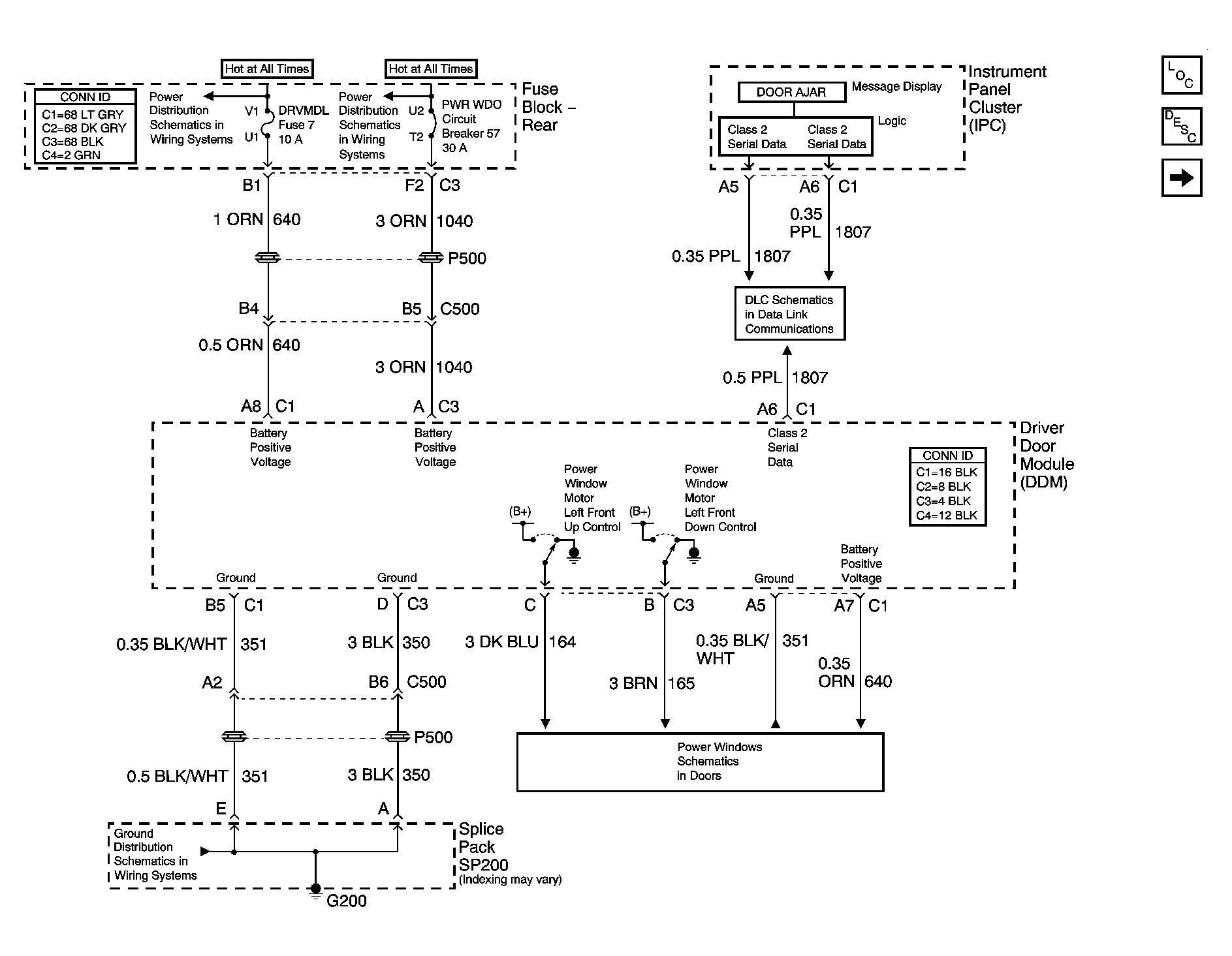

Fig 1: DDM Power & Ground Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: PDM Power & Ground Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Door Control Module Schematic (DDM Inputs/Outputs)

Courtesy of GENERAL MOTORS CORP.

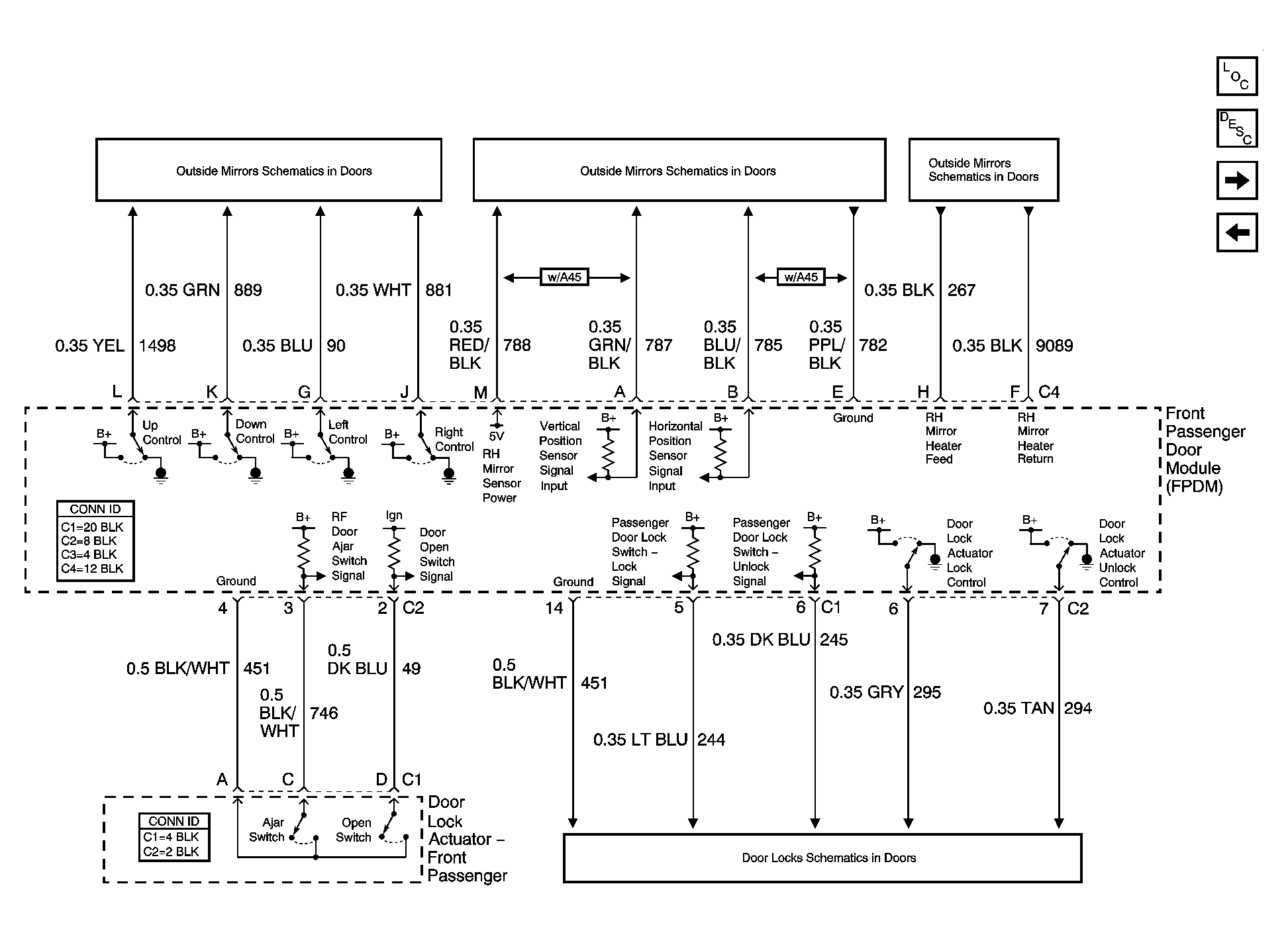

Fig 4: PDM Schematic (Inputs/Outputs)

Courtesy of GENERAL MOTORS CORP.

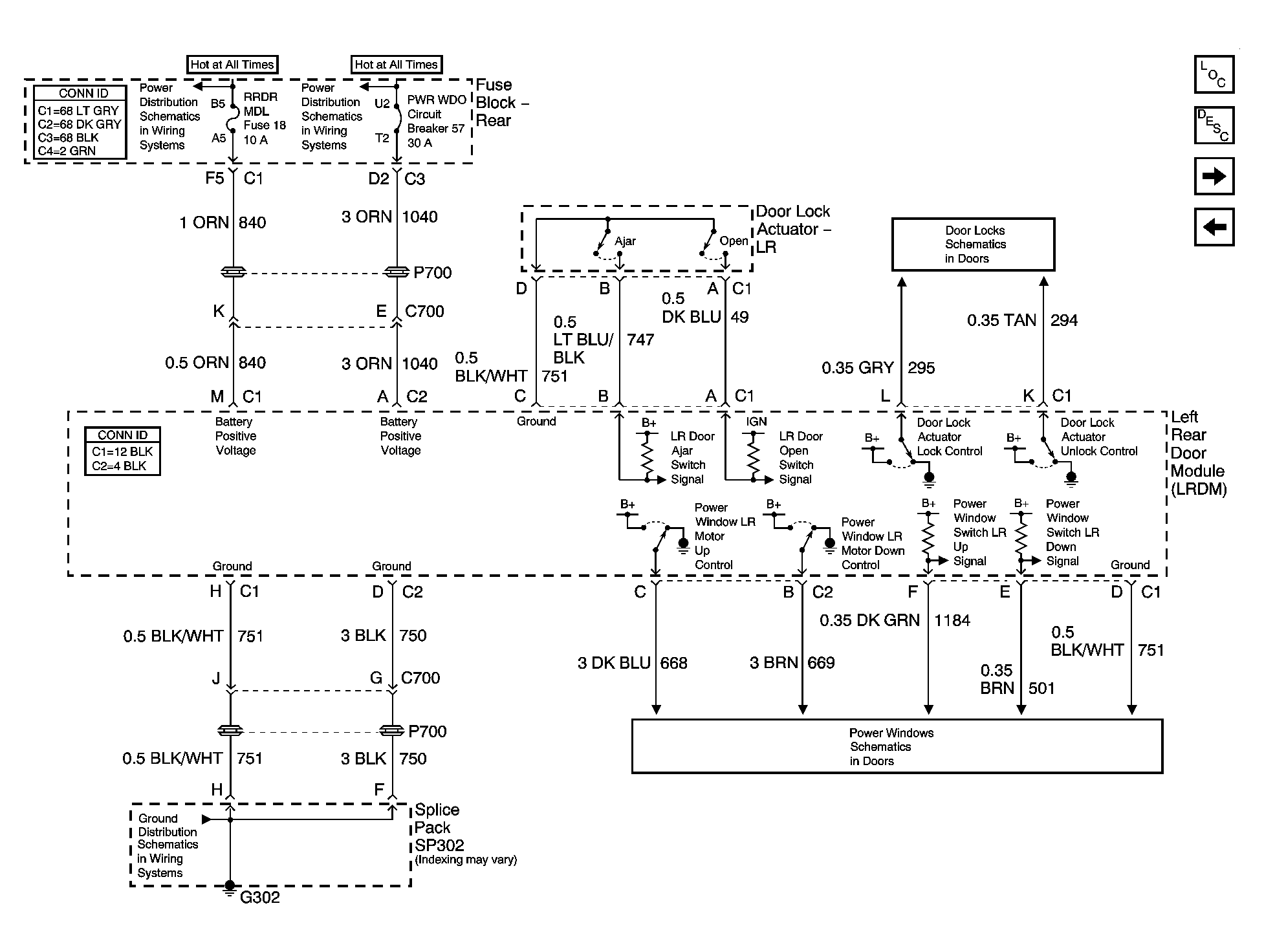

Fig 5: LRDM Schematic

Courtesy of GENERAL MOTORS CORP.

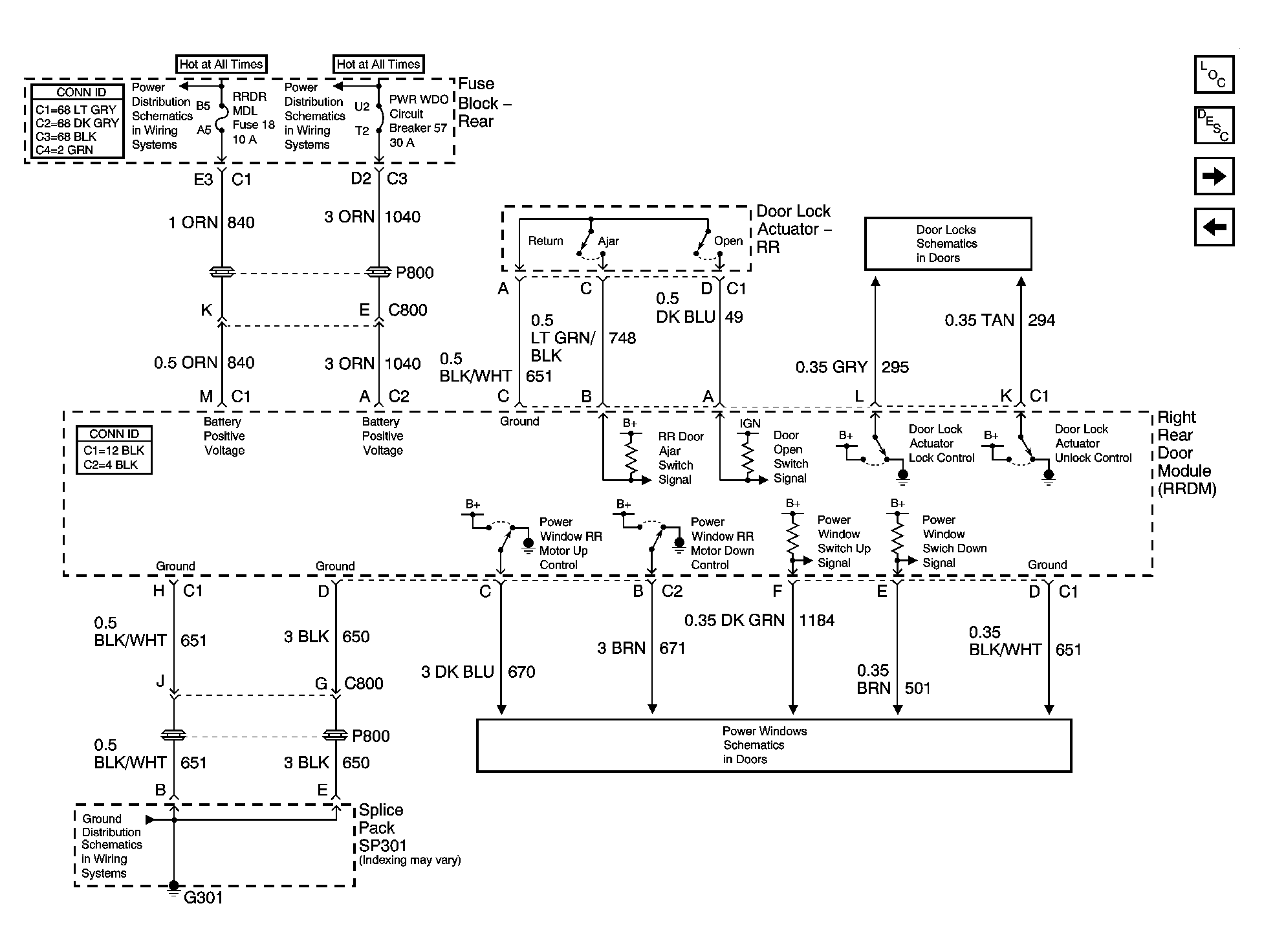

Fig 6: RRDM Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: Door Control Module Schematic (Driver Door Switch Assembly)

Courtesy of GENERAL MOTORS CORP.

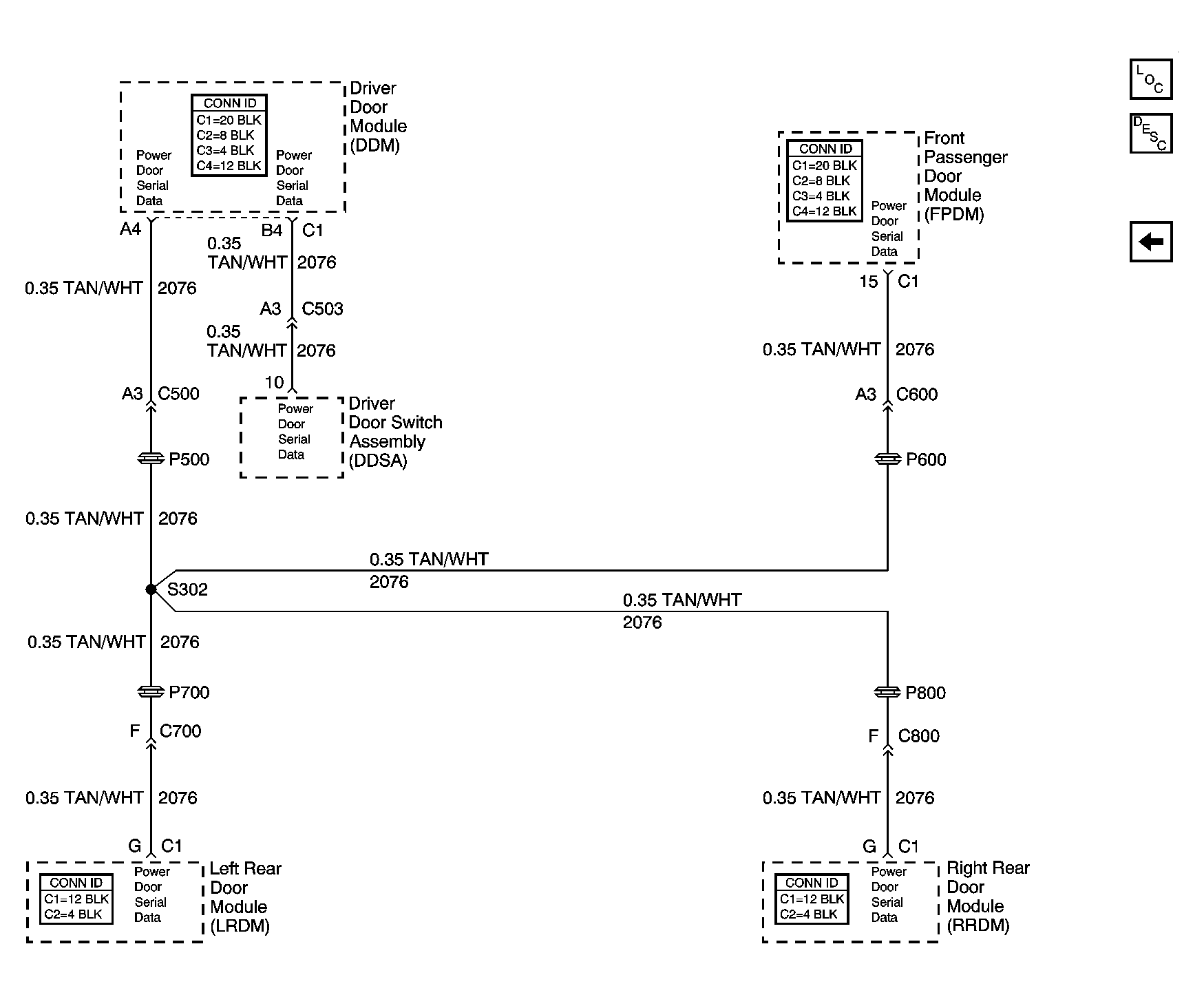

Fig 8: Simple Bus Interface Schematic (SBI)

Courtesy of GENERAL MOTORS CORP.
