Installation Procedure

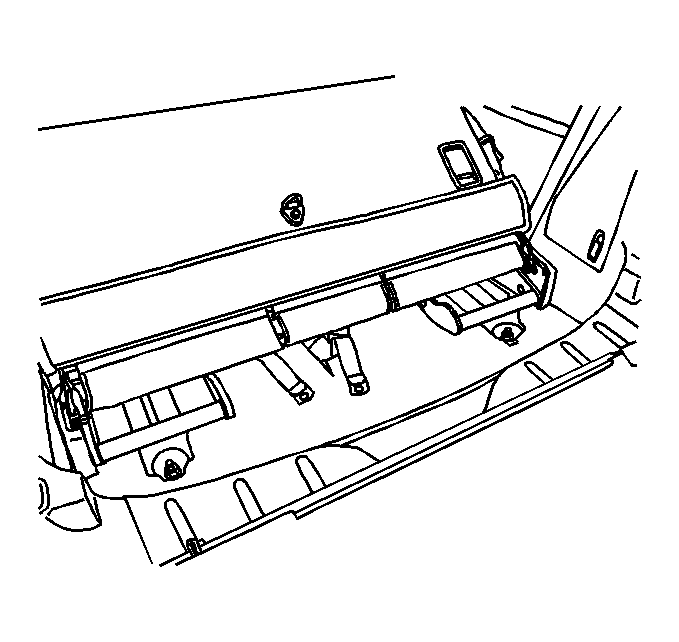

Fig 1: Locating Bolts That Hold The Seat Belt Buckle To The Floor

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Position the seat belt buckle to the floor. Secure the buckle with the anchor bolt.
Tighten: Tighten the bolt to 53 N.m (30 lb ft).
Install the rear storage compartment. Refer to Storage Compartment Replacement - Rear (Rendezvous) in Interior Trim.
Close the lift gate.
