Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

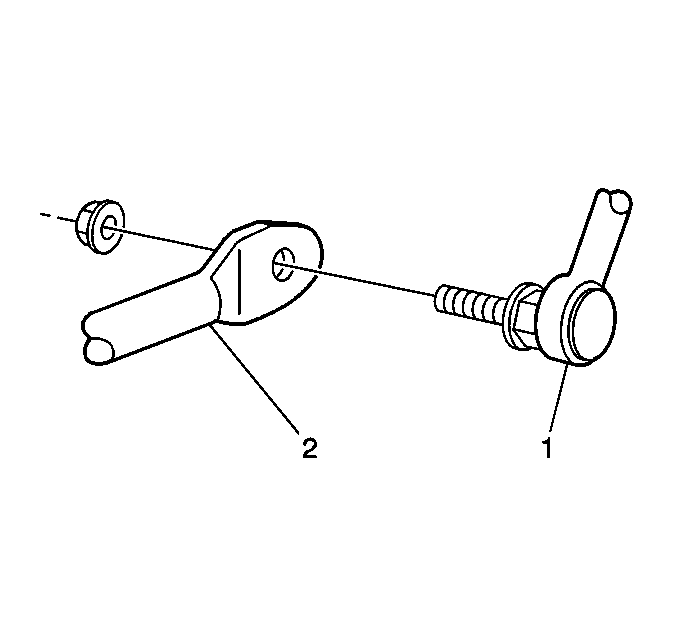

    2. Fig 1: Stabilizer Shaft Link Nut
    GM236116Courtesy of GENERAL MOTORS CORP.
  2. Remove the stabilizer shaft link nut from the stabilizer shaft link (1) and the stabilizer shaft (2).

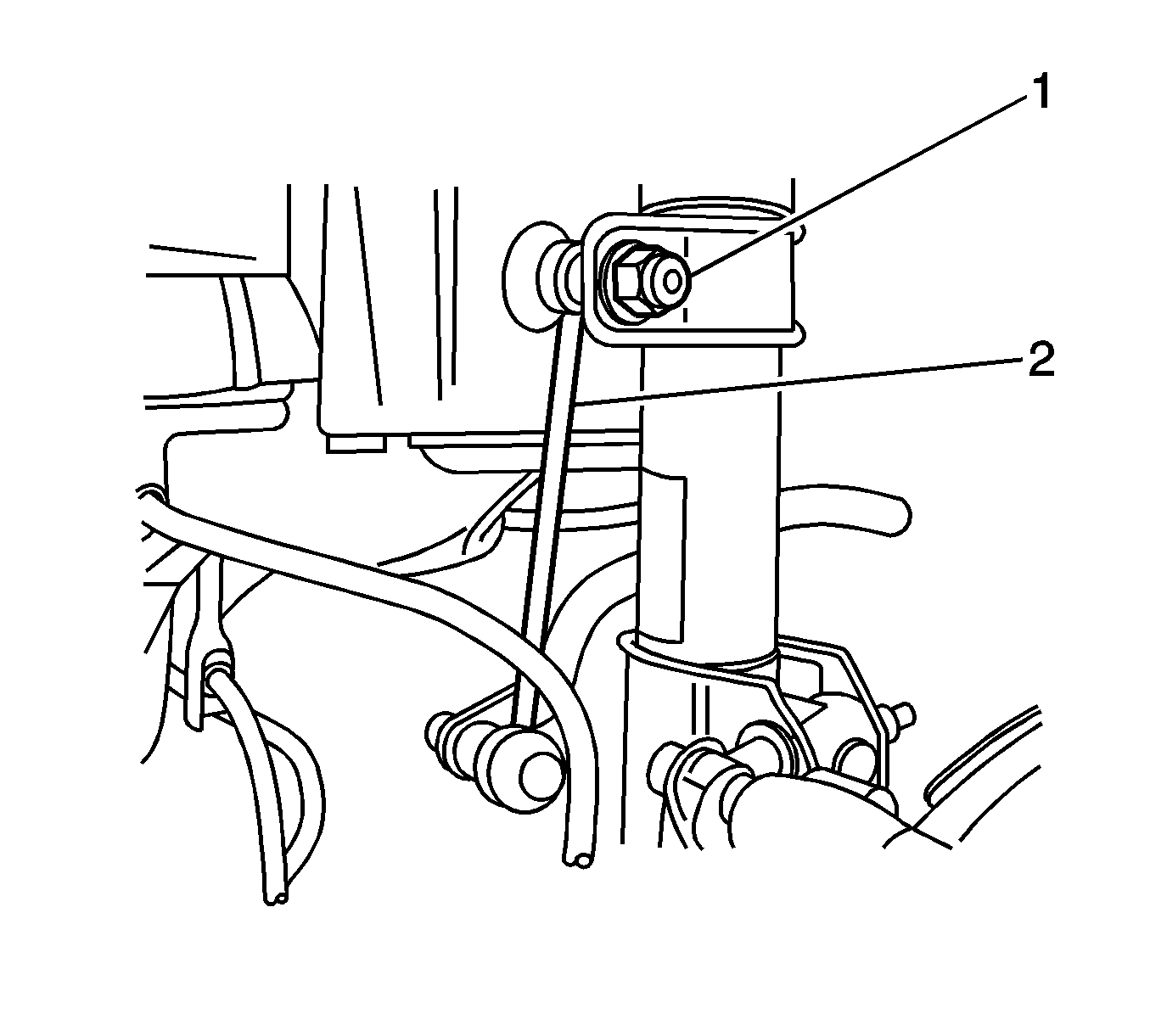

    3. Fig 2: View Of Stabilizer Shaft Link
    GM614968Courtesy of GENERAL MOTORS CORP.
  3. Remove the stabilizer shaft link nut (1) from the stabilizer shaft link (2) and the strut.
  4. Remove the stabilizer shaft link (2) from the vehicle.
