Cruise Control Schematics

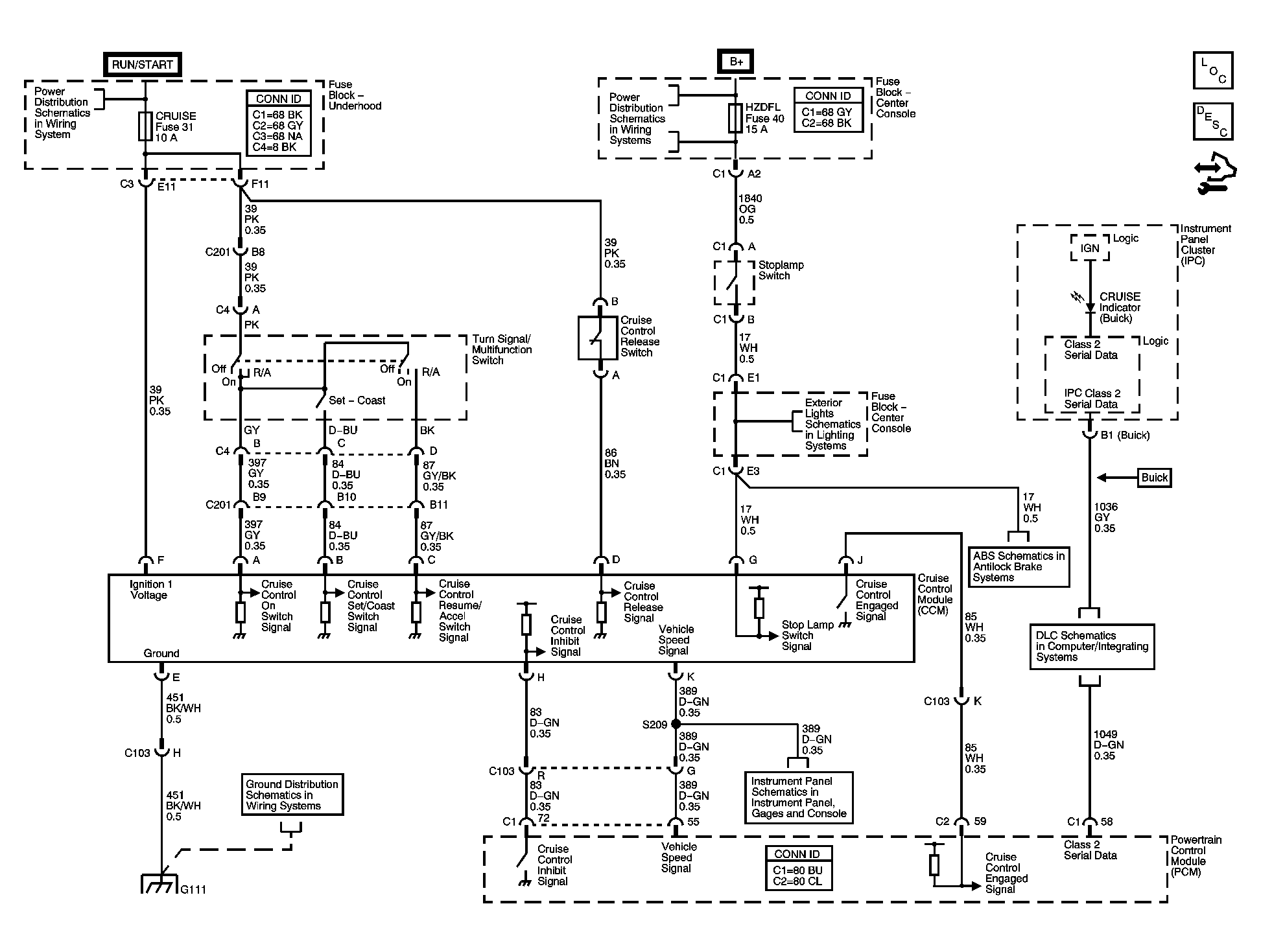

Fig 1: Cruise Control (LA1)
GM1499688Courtesy of GENERAL MOTORS CORP.

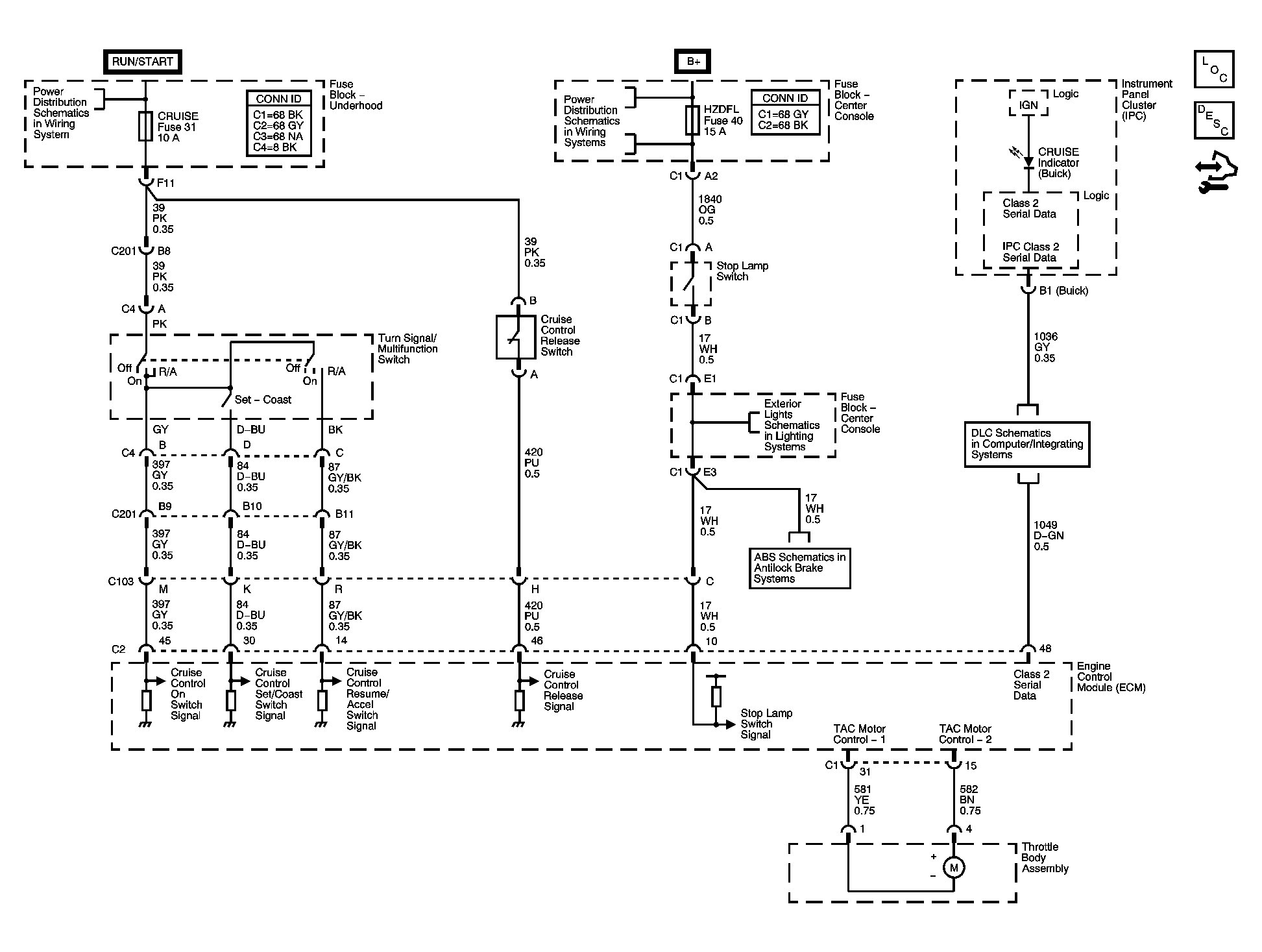

Fig 2: Cruise Control (LY7)
GM1500979Courtesy of GENERAL MOTORS CORP.
