Computer/Integrating Systems Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Fuse Block- Center Console |
| 2 |
BCM Connector C3 |

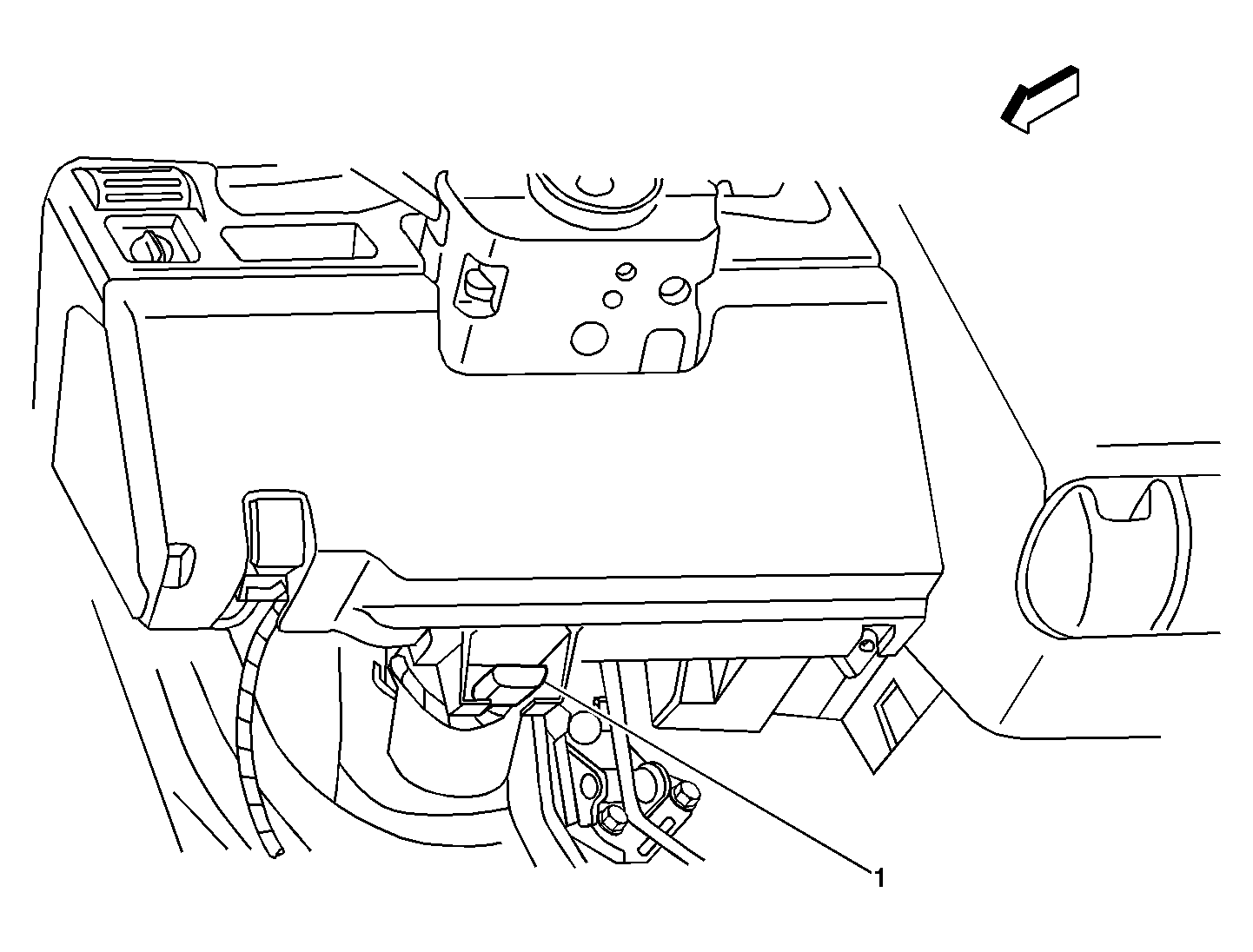

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Data Link Connector (DLC) |
