Case Cover Bolts


Case Cover Bolts

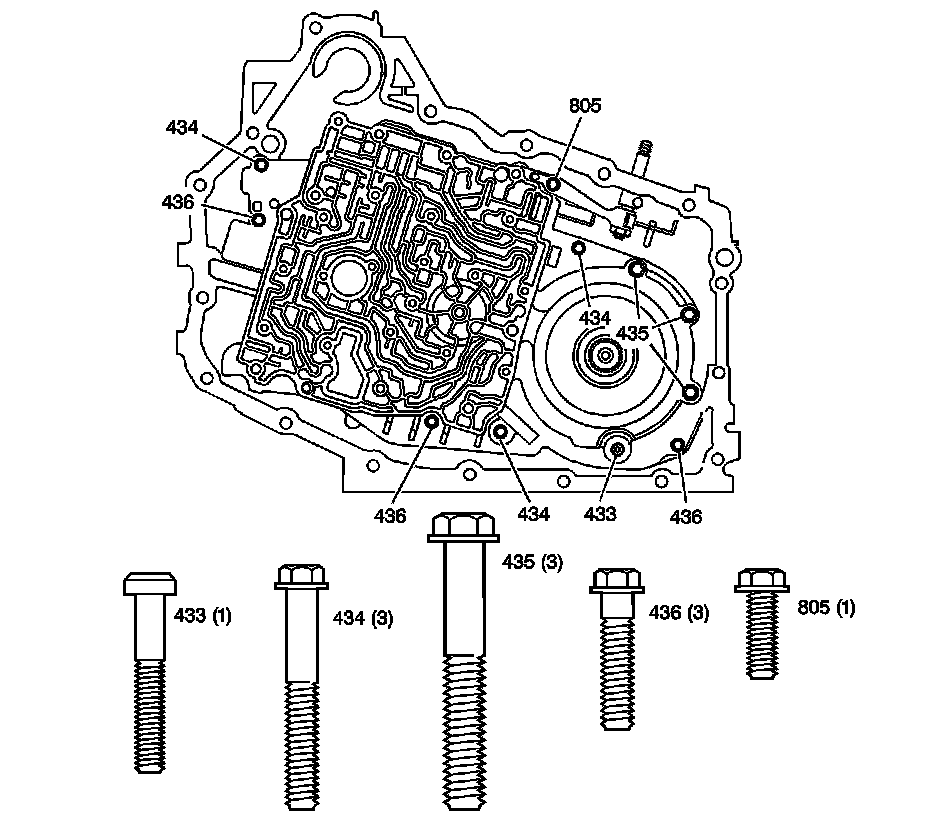

Case Cover Bolts:





433 - Case Cover Bolt/Screw TORX� Plus Special M6 X 1.0 X 32.0 (1)
434 - Case Cover Bolt/Screw M6 X 1.0 X 40.0 (3)
435 - Case Cover Bolt/Screw M8 X 1.25 X 50.0 (3)
436 - Case Cover Bolt/Screw M6 X 1.0 X 30.0 (3)
805 - Case Cover Bolt/Screw M6 X 1.0 X 16.0 (1)
