Amplifier, Sound System

Audio Amplifier - C1 (With RPO Code UQ3):

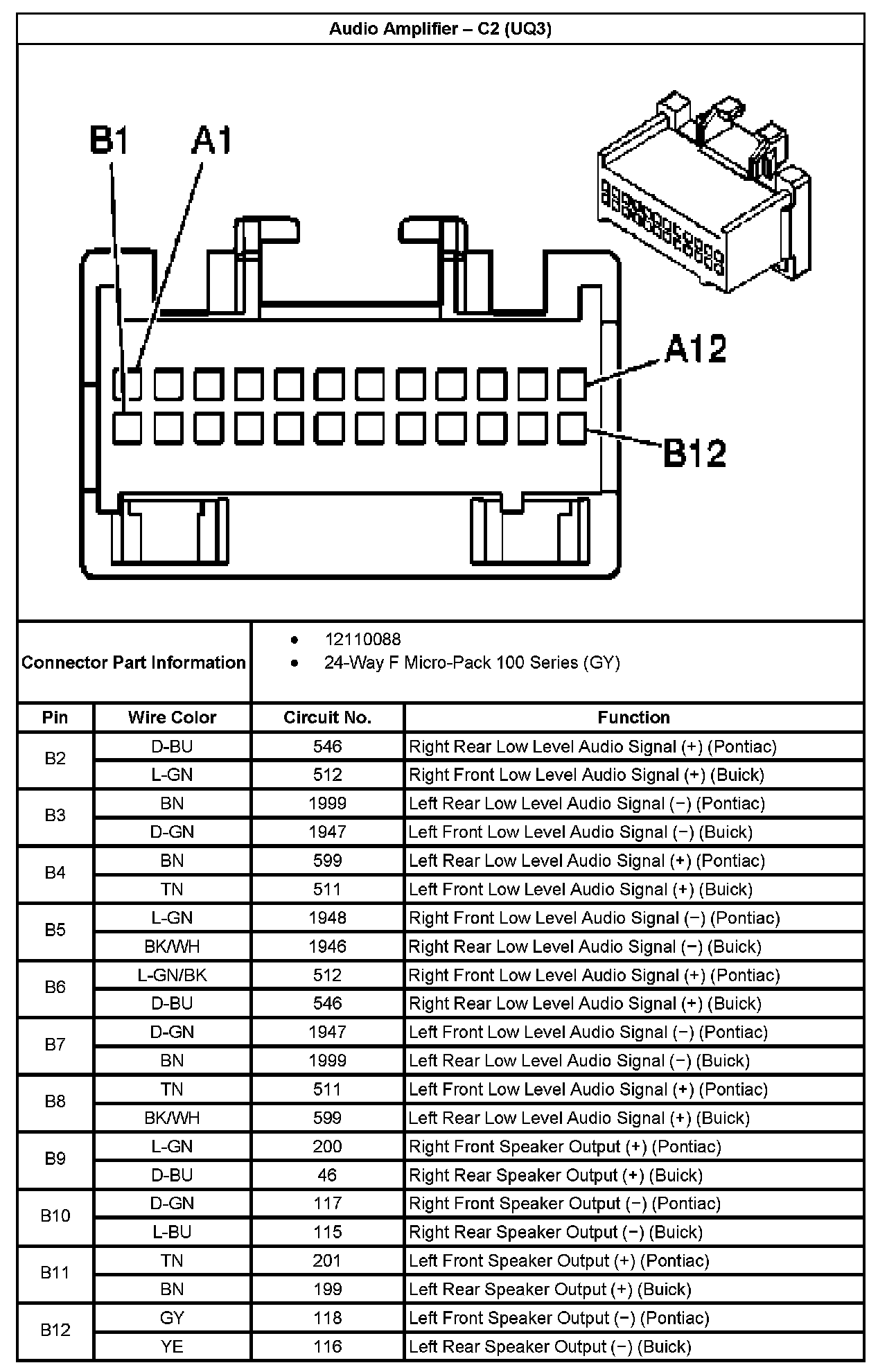

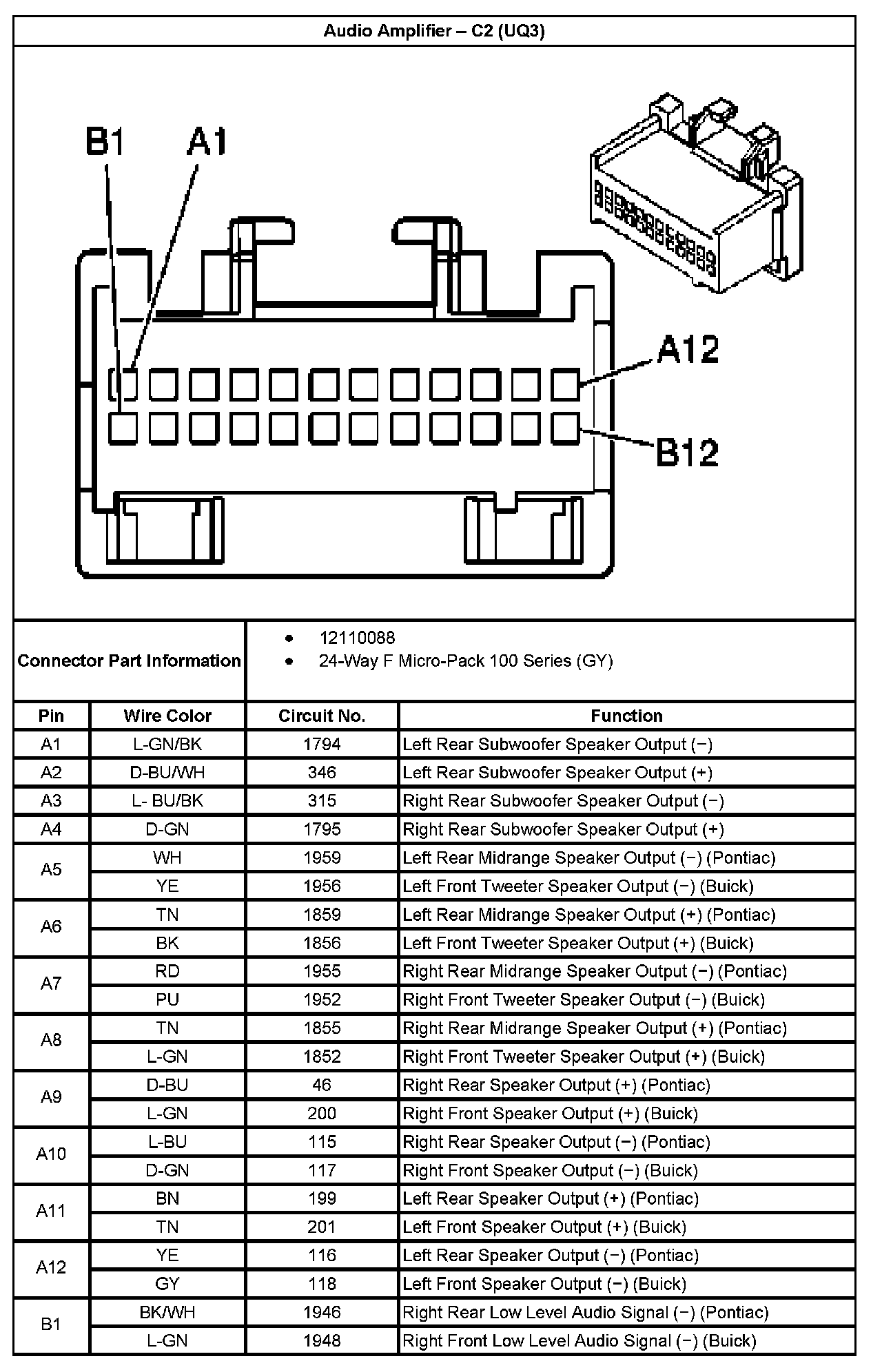

Audio Amplifier - C2 (With RPO Code UQ3) Part 1:



Audio Amplifier - C2 (With RPO Code UQ3) Part 2:
