Cruise Control - Inoperative/Malfunctioning



CRUISE CONTROL INOPERATIVE/MALFUNCTIONING

DIAGNOSTIC AIDS

IMPORTANT: Perform the following in order to avoid misdiagnosis.
- Inspect for proper operation of the brake lamps.
- Inspect for proper operation of the transmission range switch.
- Inspect throttle linkage for mechanical binding which could cause the system to malfunction.

TEST

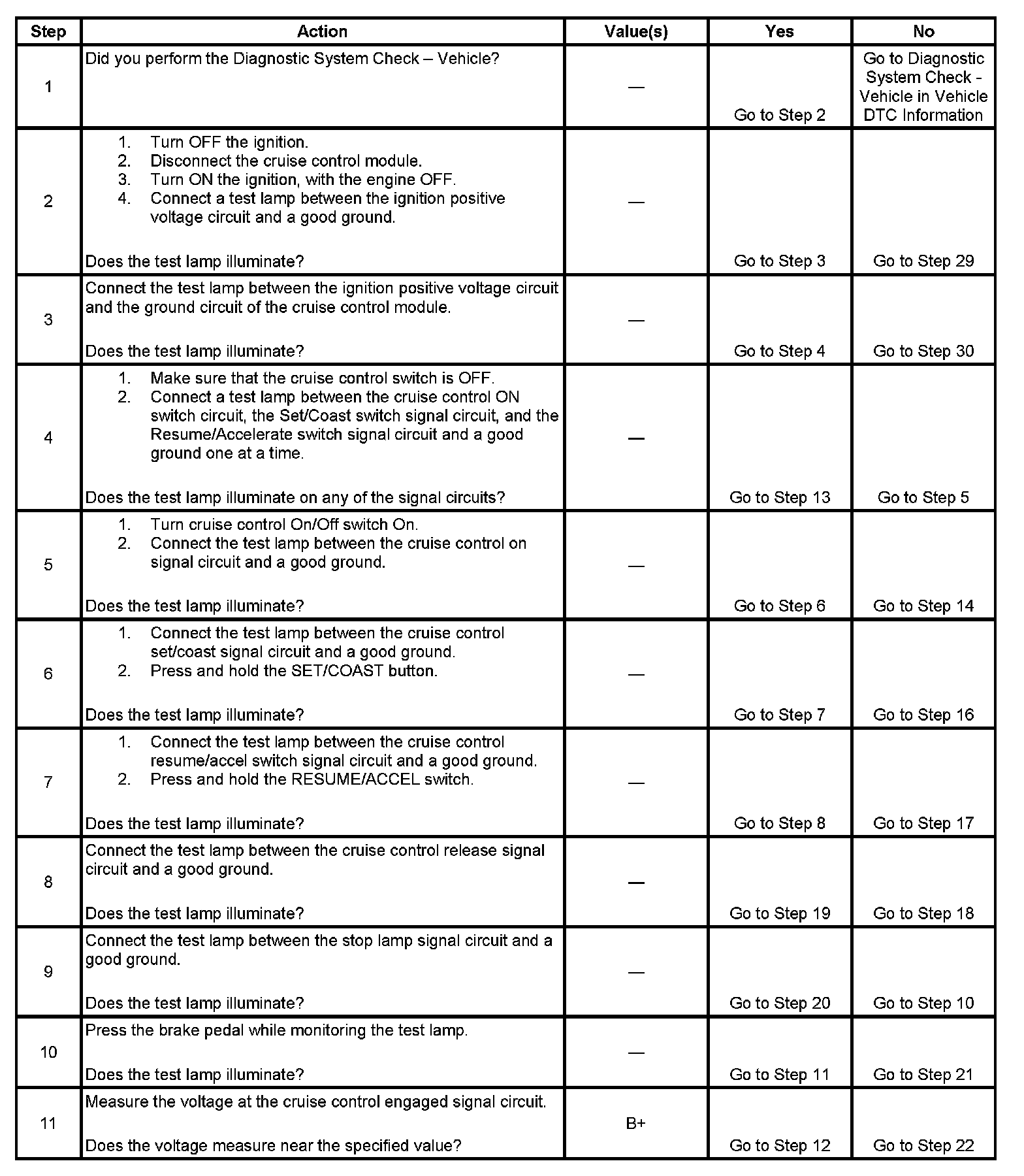

Steps 1-11:

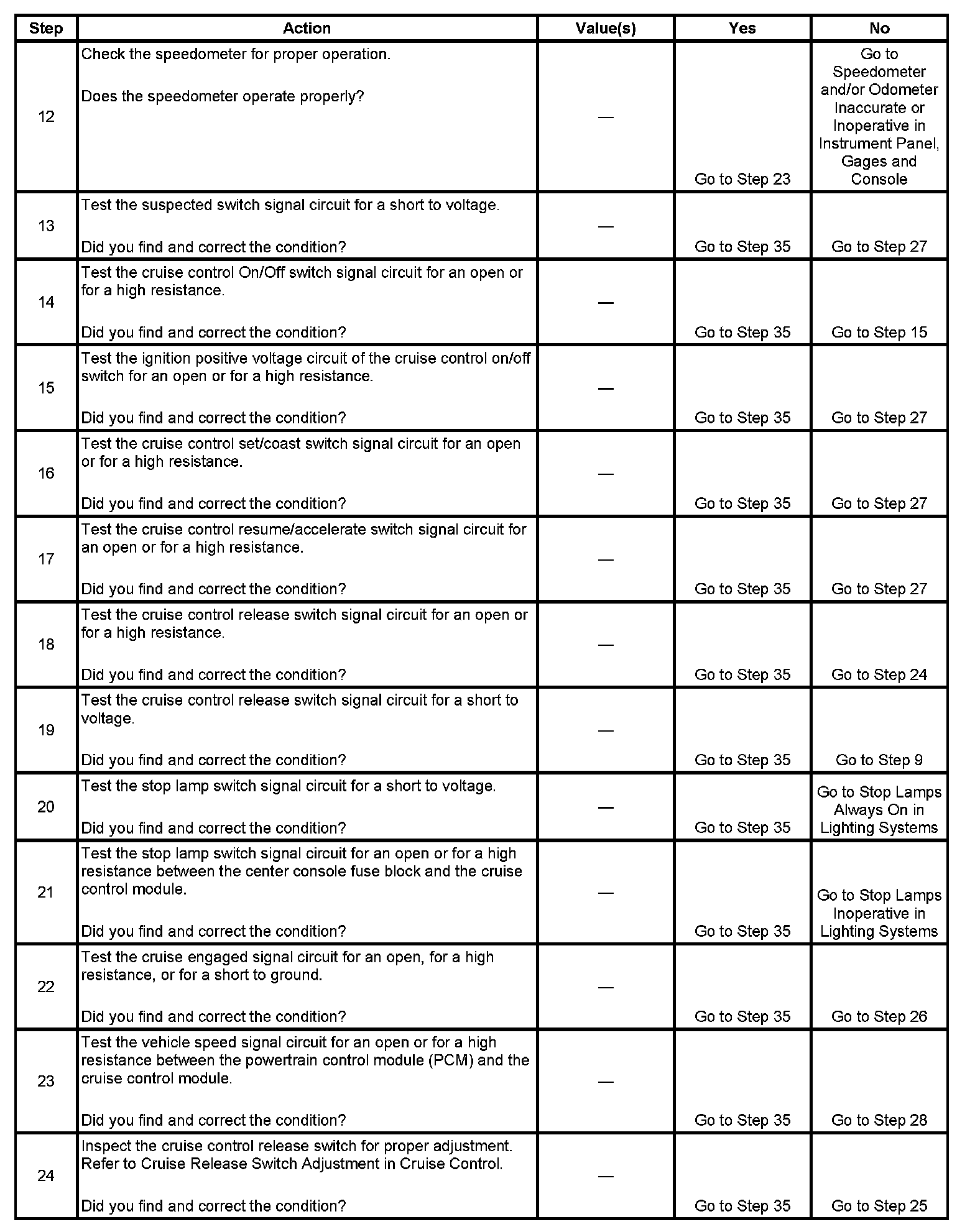

Steps 12-24:

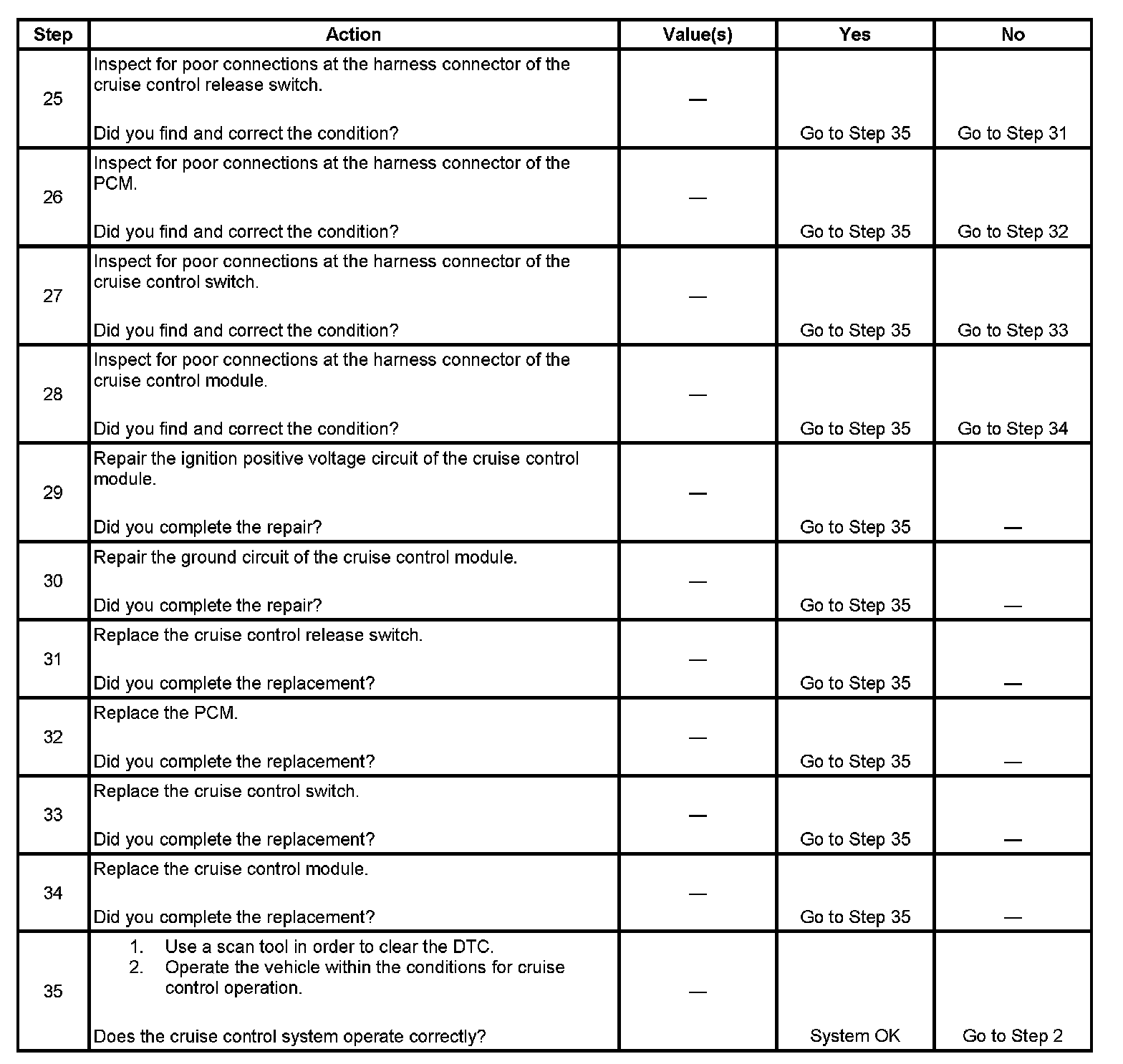

Steps 25-35:
