Home >> Pontiac >> 2004 >> Grand Prix V6-3.8L VIN 2 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold and Component
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Intake Manifold and Component

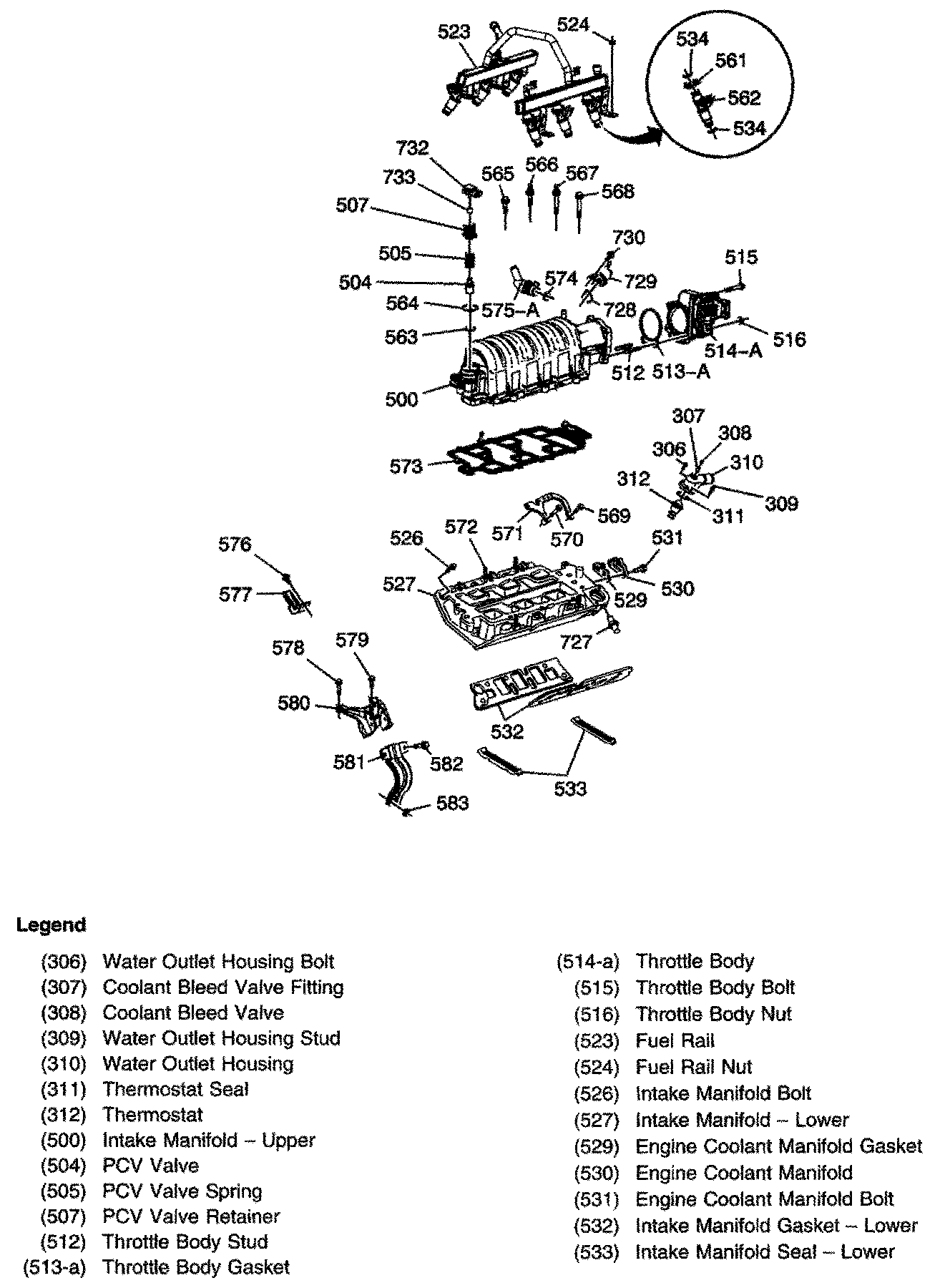

Part 1 Of 2:

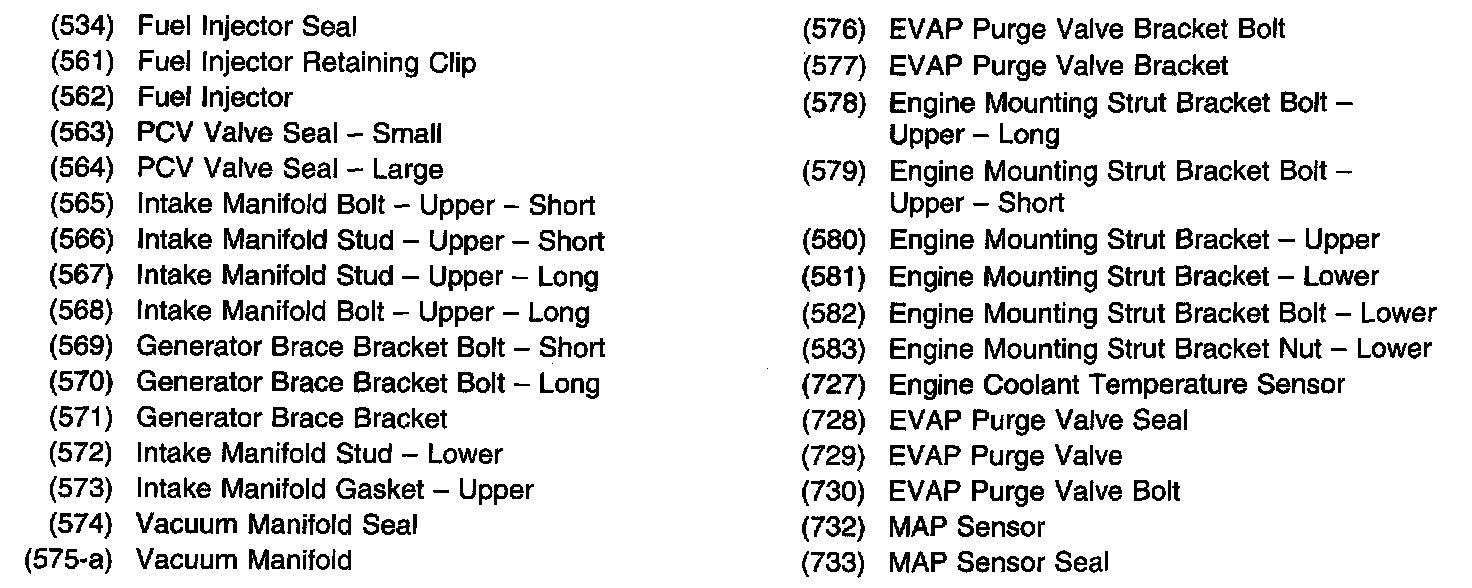

Part 2 Of 2:
