Electronic Brake Control Module

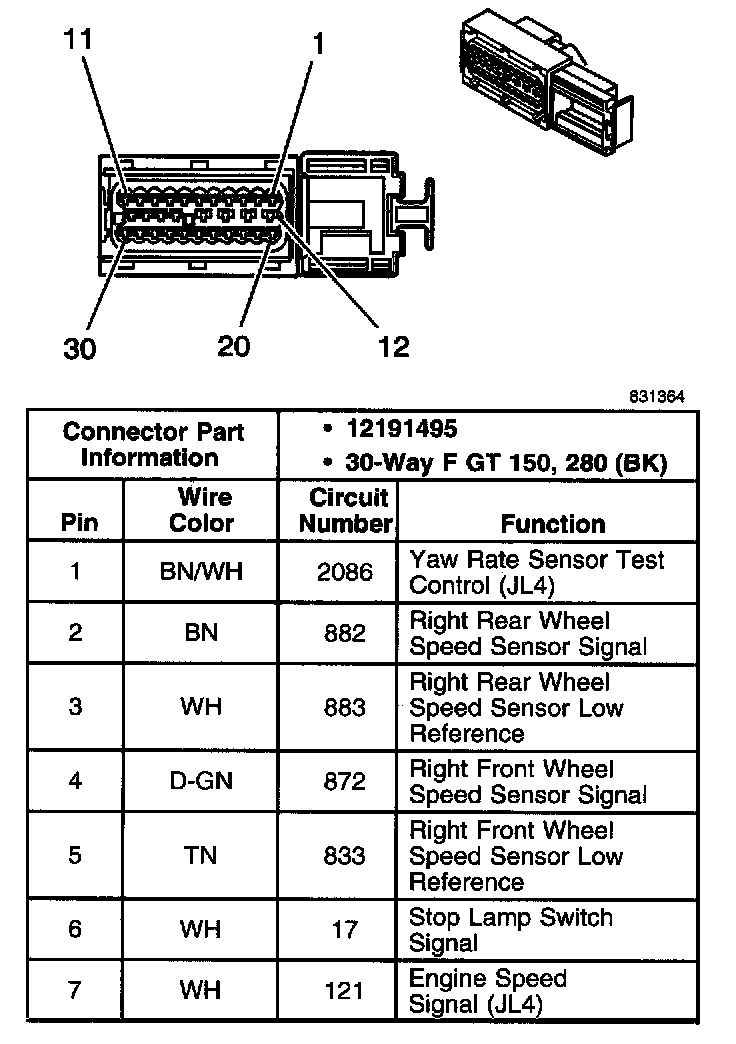

Electronic Brake Control Module (EBCM) Part 1 Of 2:

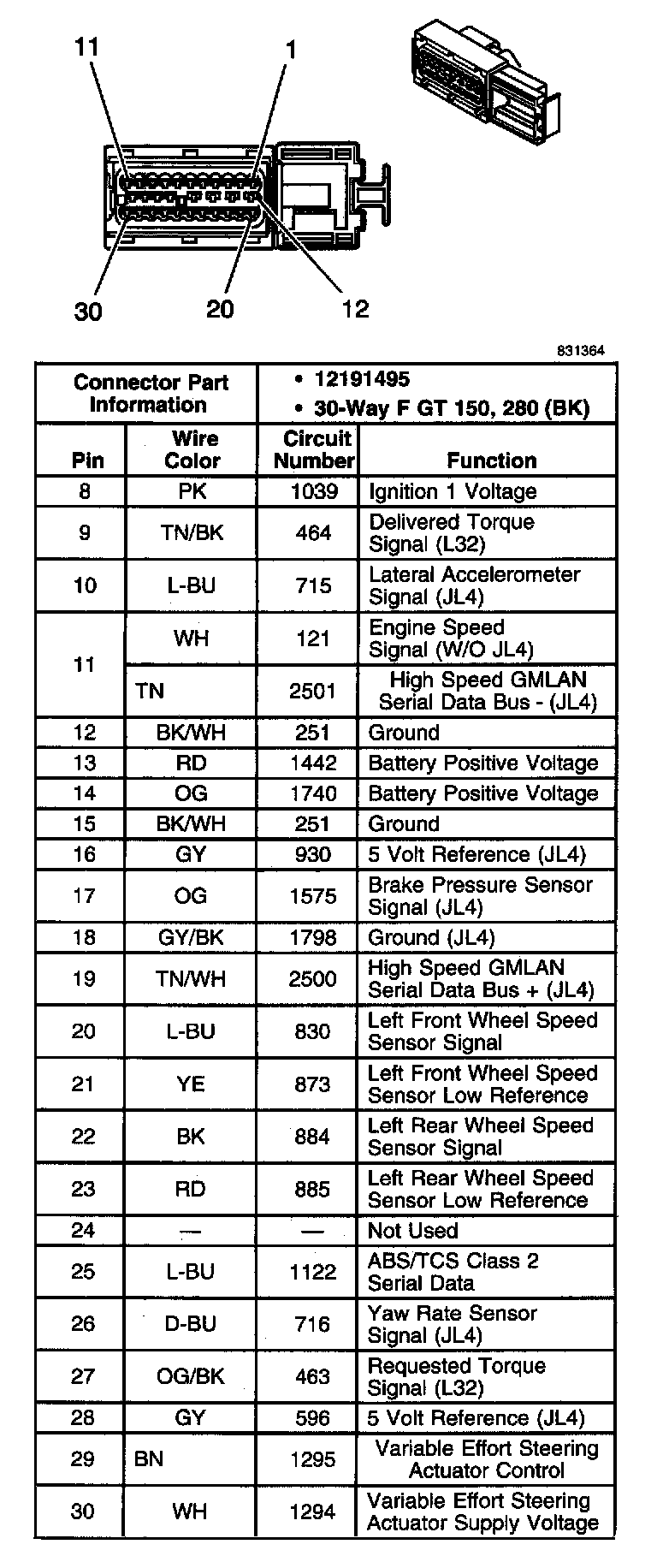

Electronic Brake Control Module (EBCM) Part 2 Of 2:
