Power Window Switch

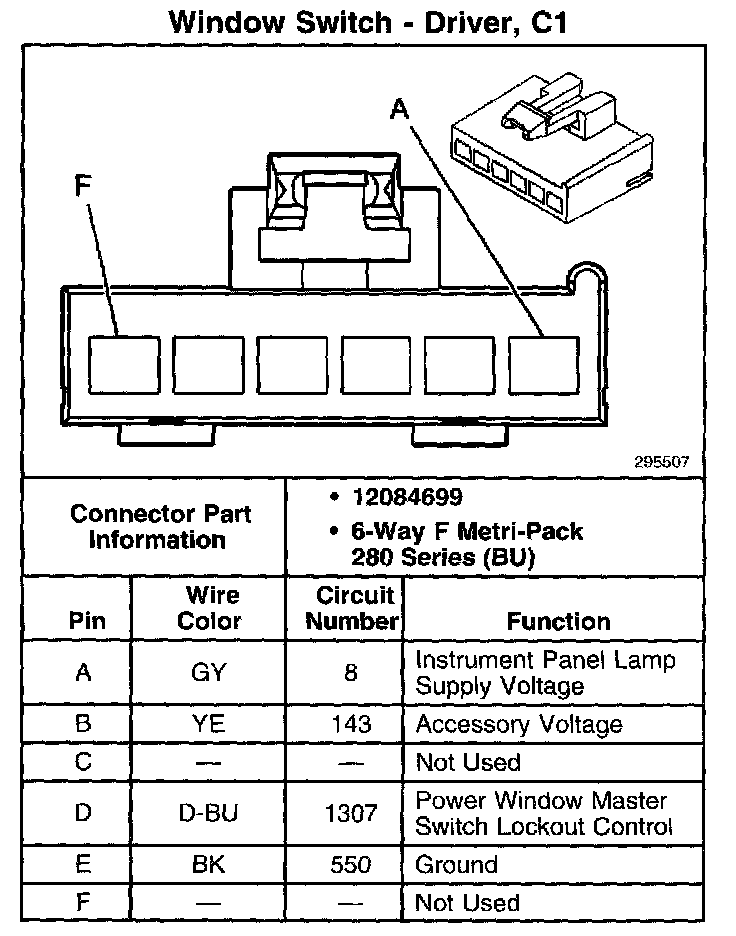

Window Switch - Driver, C1:

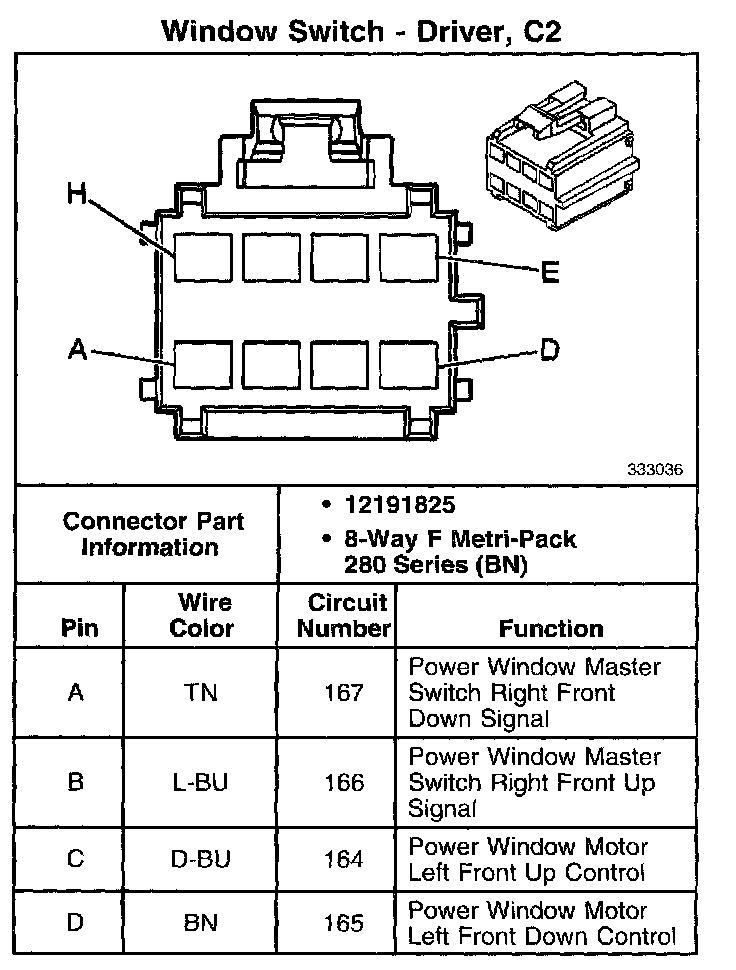

Window Switch - Driver, C2 Part 1:

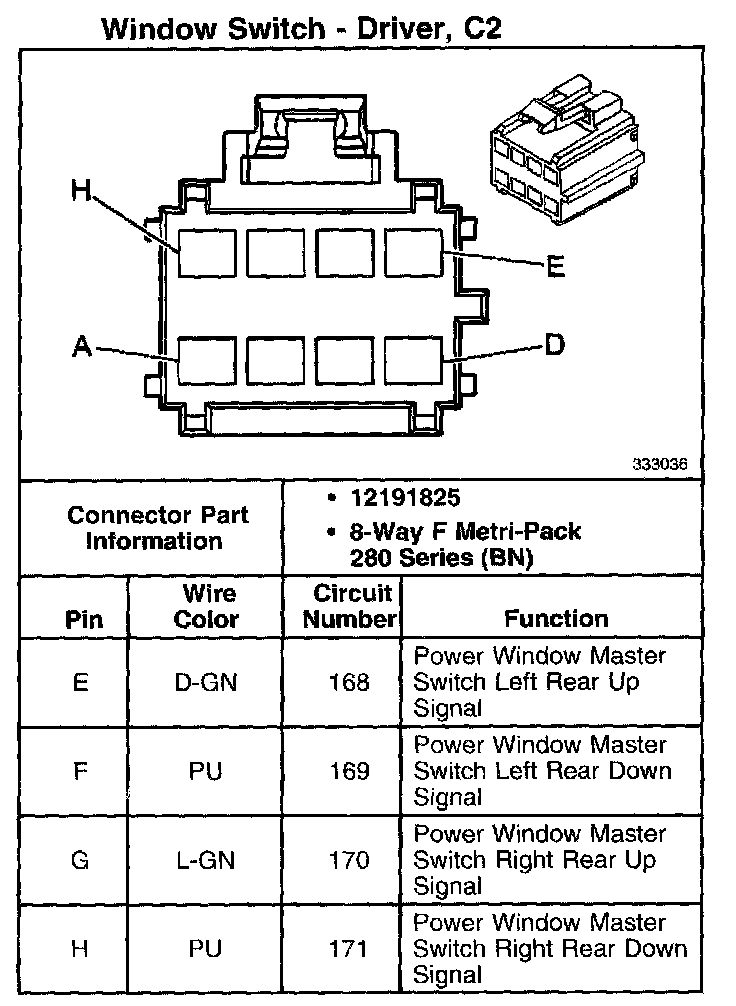

Window Switch - Driver, C2 Part 2:

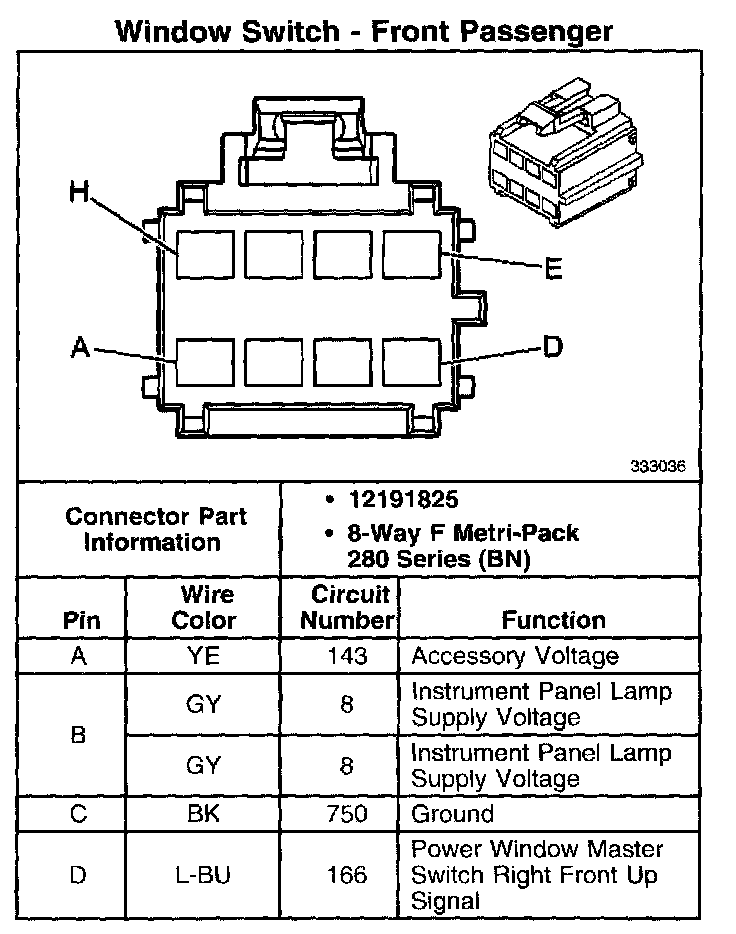

Window Switch - Front Passenger Part 1:

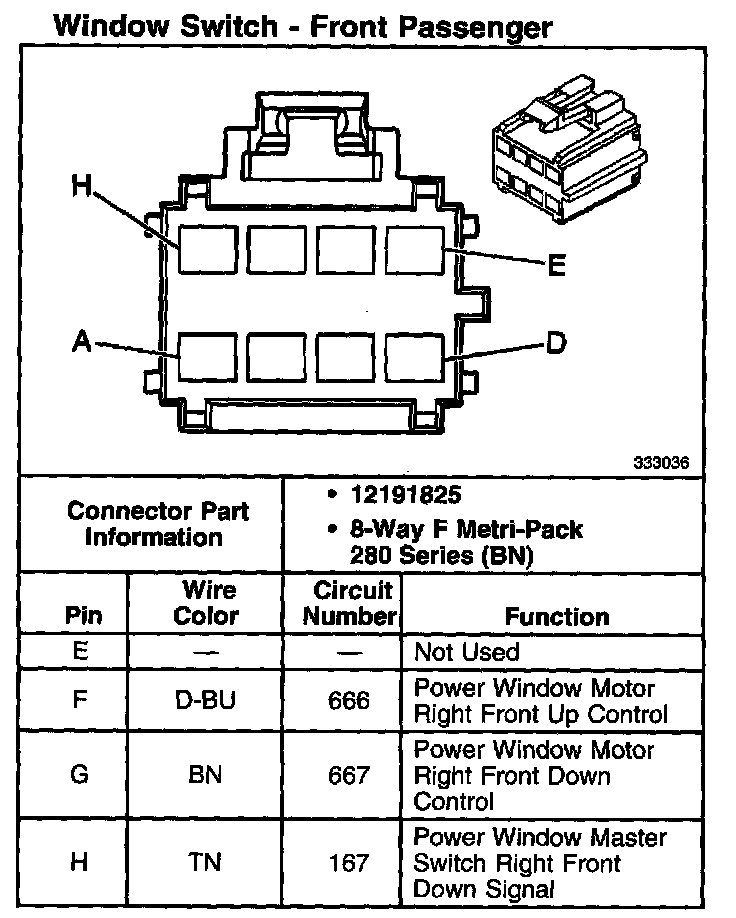

Window Switch - Front Passenger Part 2:

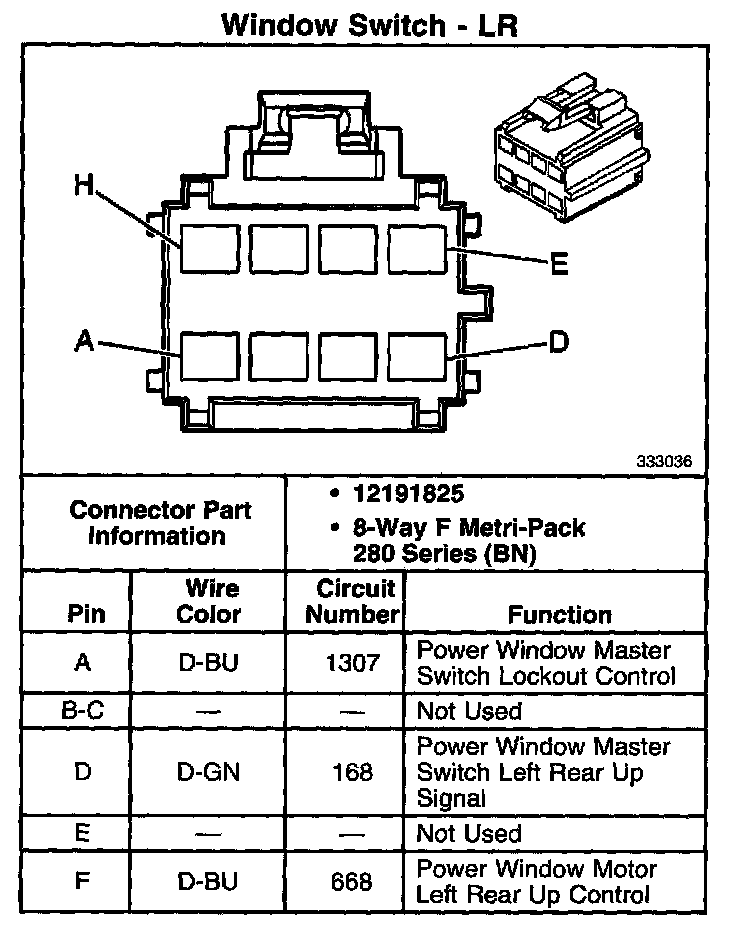

Window Switch - LR Part 1:




Window Switch - LR Part 2:

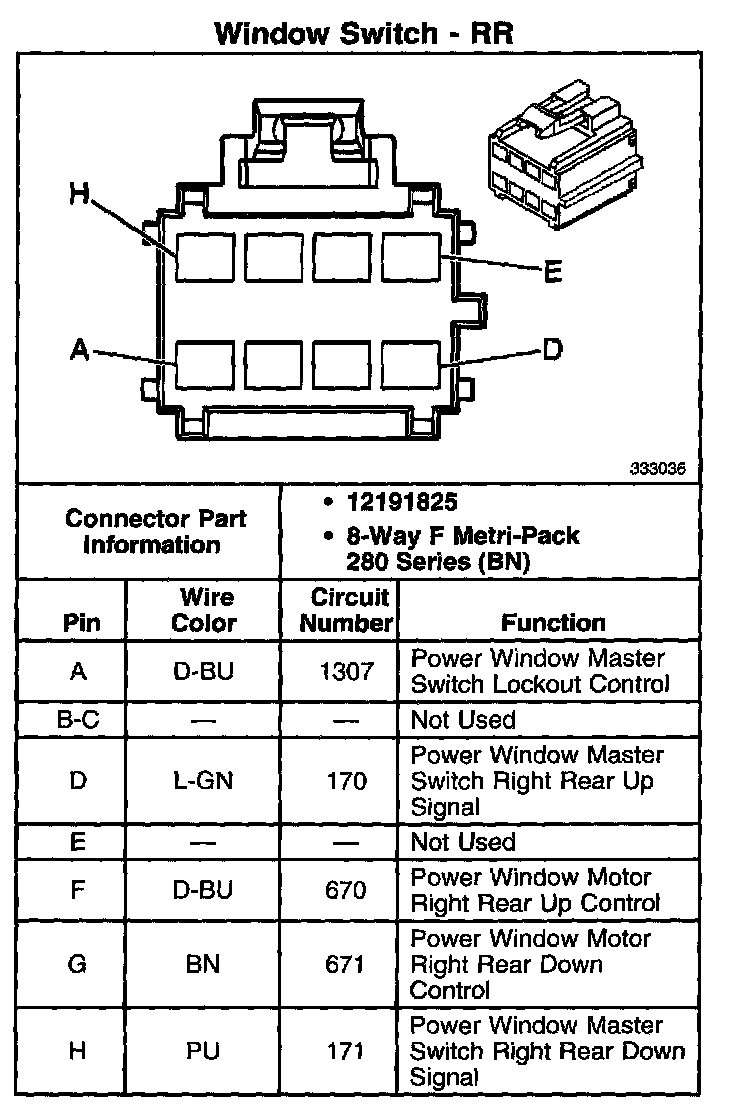

Window Switch - RR:
